YXZNRC F09-H Naval Eagle 6CH 6-Axis Gyro RC Helicopter GPS Optical Flow Positioning 5.8G FPV Camera Dual Brushless Combat Helicopter

Sale price$559.98 Regular price$599.98
Save 7%

Color: F09-H
Version: Without Camera
Battery: 1 Battery

YXZNRC F09-H Naval Eagle 6CH 6-Axis Gyro RC Helicopter GPS Optical Flow Positioning 5.8G FPV Camera Dual Brushless Combat Helicopter

Note: RC Helicopter with camera FPV version adds a set FPV screen.

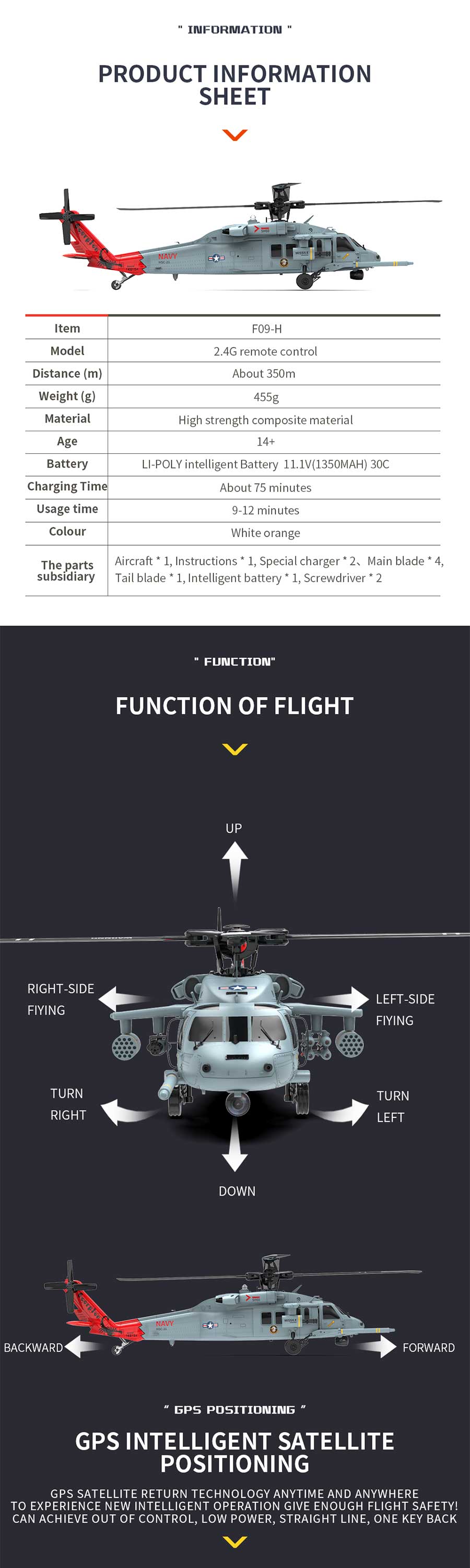

YXZNRC F09-H RC Helicopter User Manual

Model Number: YXZNRC F09H RC Helicopter with camera
Material: High Strength Engineering Composites
Color: Orange&White
Model: YXZNRC F09H
Scale: 1/47
Rotor Diameter: 425mm
Body Length: 420mm
Height: 350mm
Drive Motor: 4006 630KV Brushless Motor
Tail Lock Motor: 1104 5200KV Brushless Motor (Upgraded 4 propellers)
YXZNRC F09H Remote Comtrol: 2.4G/6CH LED Screen Remote Control
RC Distance: Over 120m
YXZNRC F09H Battery: 3S 11.1V 1350mAh 30C Smart LIPO Battery
Charger: Balance Charger
YXZNRC F09H Charing Time: Approx 75mins
YXZNRC F09H Flight Time: 9-12mins
YXZNRC F09H Dimensions: 42 x 42.5 x 12cm
YXZNRC F09H Weight: 458g
Package Dimensions: 47 x 31 x 14cm
Package Weight: 1920g
Packing: Graphic Carton

Function Description:
1> YXZNRC F09H According to the U.S. UH60 Black Hawks helicopter, the scale is reduced to 47:1, with high simulation appearance details, cool lights, and movable side door shock landing gear.
2> YXZNRC F09H flybarless design, dual shaft co drive motor and electronic stability enhancement system are adopted to make the hand feel more accurate, flight more stable, and optimize the structure to reduce the probability of damage.
3> YXZNRC F09H propeller is designed according to the aerodynamic principle to provide strong power and body self stability. High efficiency and power saving, long flight time. The blade is made of nylon+carbon fiber composite material with high strength, good toughness, impact resistance, deformation and durability.
4> YXZNRC F09H use 4004 630KV brushless motor is used for self stabilizing co drive to reduce gear agitation. It has the characteristics of low noise, large torque, high power efficiency, and specially made high temperature resistant magnetic steel can withstand 150 ℃ high temperature without damage, thus improving the service life.
5> YXZNRC F09H tail locking motor uses a specially made 1104 4200KV brushless motor, which is characterized by high temperature resistance, fast responses speed, stable tail locking, and long working time, and is not easy to damage.
6> YXZNRC F09H use Large 4.3g metal digital steering gear is used, featuring high torque response, fast precision, and high centering accuracy. The response speed is 60 °/0.05ms, making the aircraft fly accurately, feel good, and have a longer life.
7> YXZNRC F09H use Intelligent flight control, equipped with a GPS module, a visual module, a barometric height fixing module under the compass module, a visual flight manual self stabilizing mode, a multi-function flight mode under GPS stabilization, and a safe flight function such as one button return, low power, intelligent return, runaway return, one button landing, electronic fence, Figure 8 flight, circular flight.

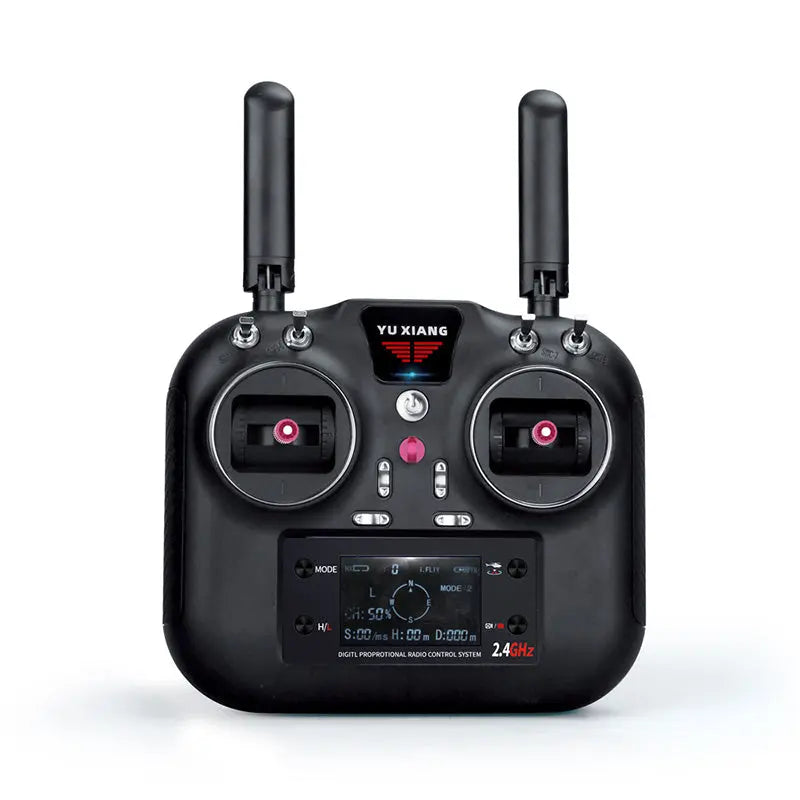

8> YXZNRC F09H use New 8-channel high-precision remote controller, 2.4GHZ two-way communication protocol. It has 1024 level operation feel high-definition display screen for two-way data retrieval, which can feed back important information such as aircraft power, flight speed, flight height, flight distance, flight direction and GPS quantity in real time, effectively improving users' accurate control of aircraft
9> YXZNRC F09H use high-precision CNC rotor head cross plate is used to optimize the structure, reduce the weight and greatly reduce the probability of aircraft damage.
10> YXZNRC F09H use casing adopts the hot runner injection molding process, and the simulation details are highly elastic, good toughness and not easy to be damaged.
11> YXZNRC F09H use Professional customized high rate lithium polymer 11.1V 1350mAh 30C battery, high discharge rate, long service life, flight time of about 9-12 minutes, and normal use of up to 500+cycles. It has the functions of preventing overcharge, overcharge and low discharge, and effectively prolonging the service life of the battery.
12> Equipped with special charging stand, high-precision digital display balanced charger.
13> YXZNRC F09H can carry 5.8G analog image transmission with a distance of 300m

Package IncludingPackage Including
1* YXZNRC F09H RC Helicopter
1* Remote Control
1* Instructions
1* Balance Charger
4* Main Blade
1* Tail Blade
1* Smart Battery (Optional 1, 2, 3 PCS)
1* Weapon pendant kit

1* Camera (optional)
1* FPV Screen (optional)
