Dinosaur Series : EMO XX/EMO XXL

The Stegosaurus and the Thunder Dragon are born, continuing the excellent pure EMO lineage, shaking the heavens and earth.

Ancient beast, modern rebirth.

When the massive body crushes the mountain rocks, it feels like the Jurassic Stegosaurus has traveled through time and space to arrive.

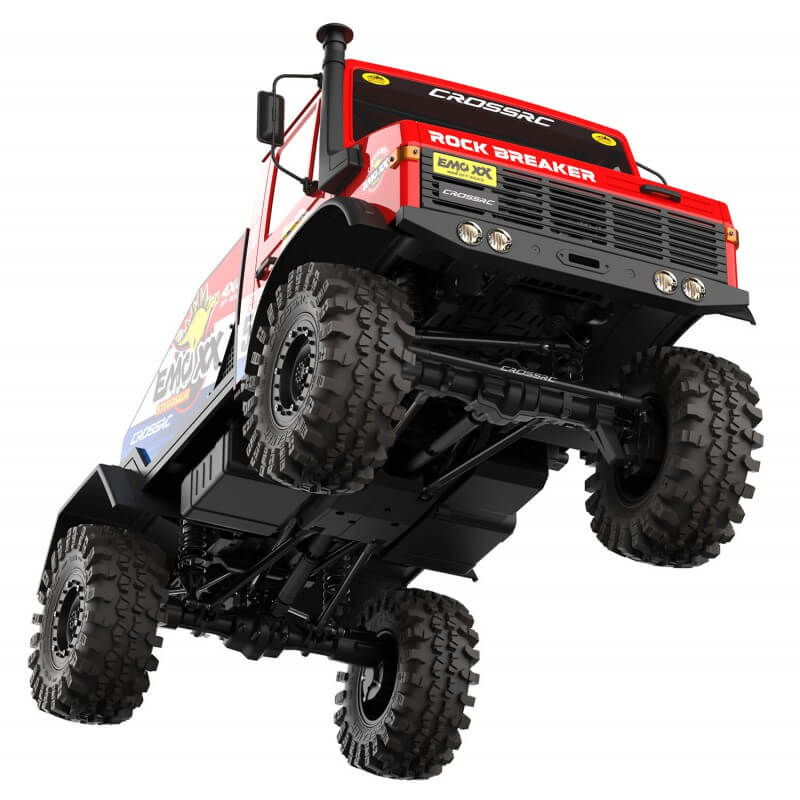

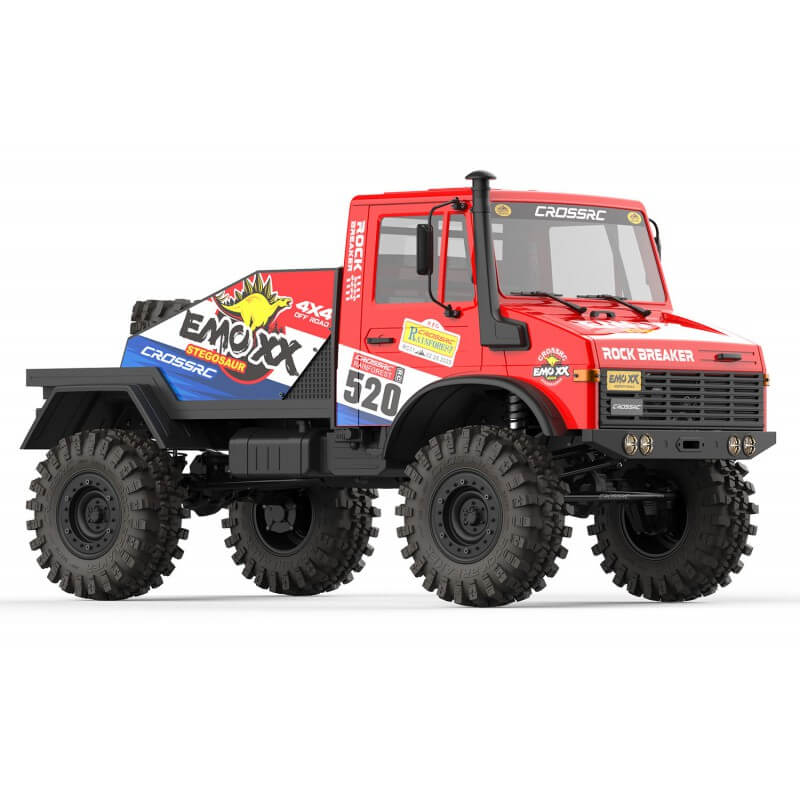

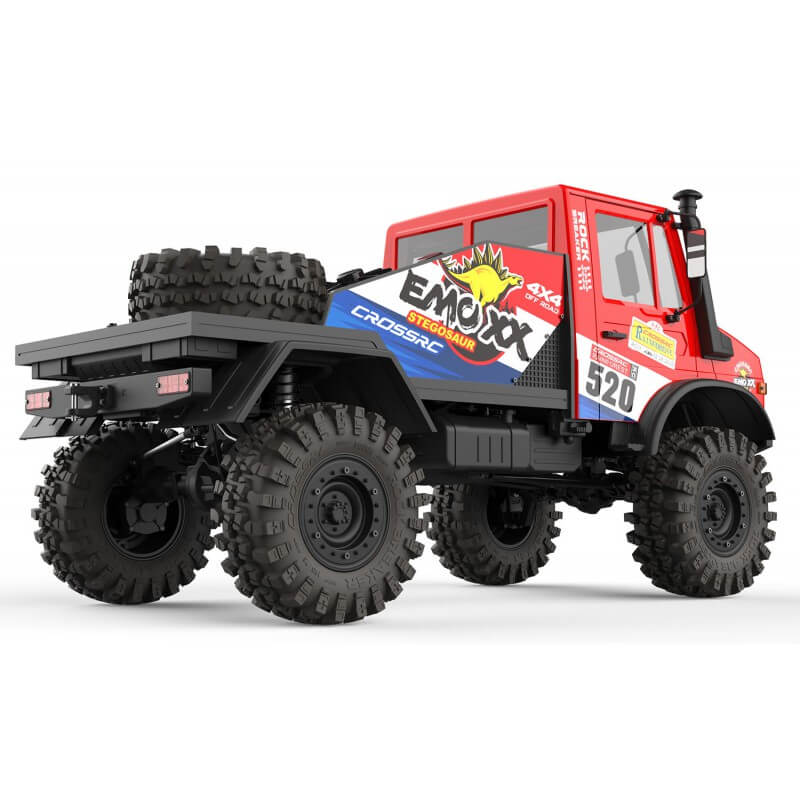

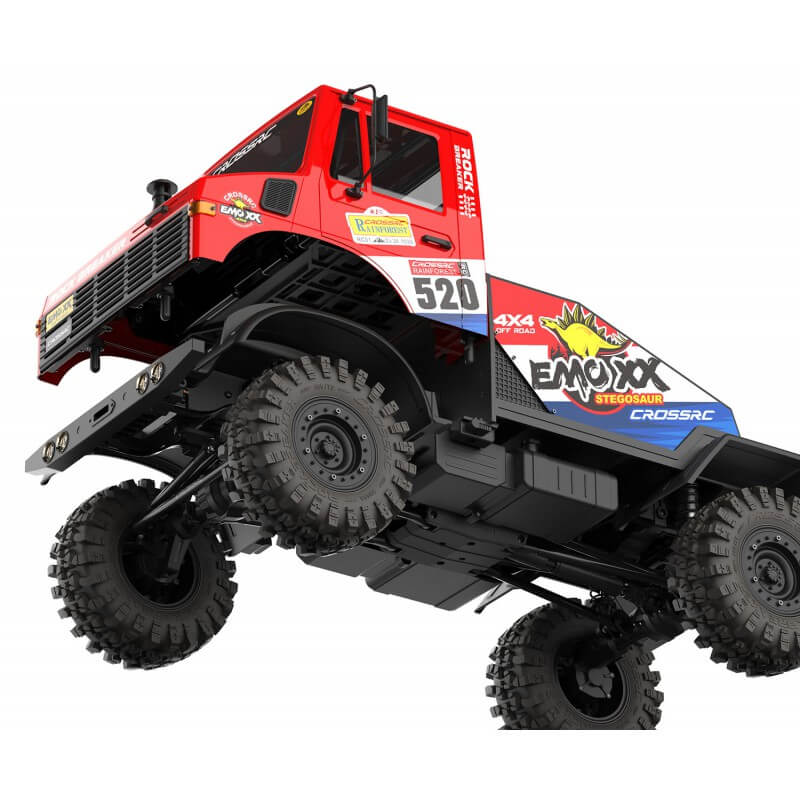

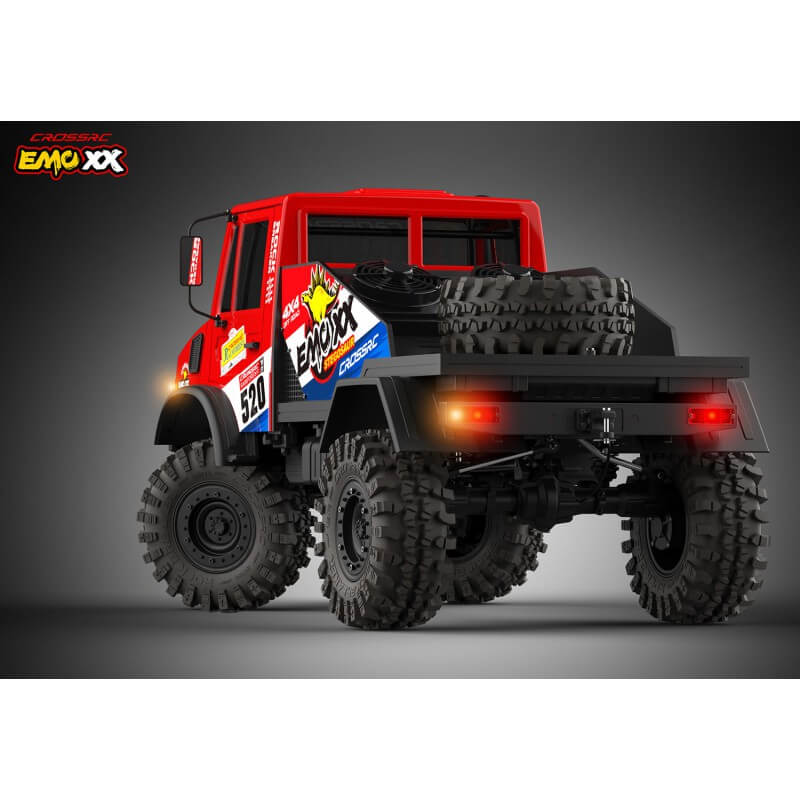

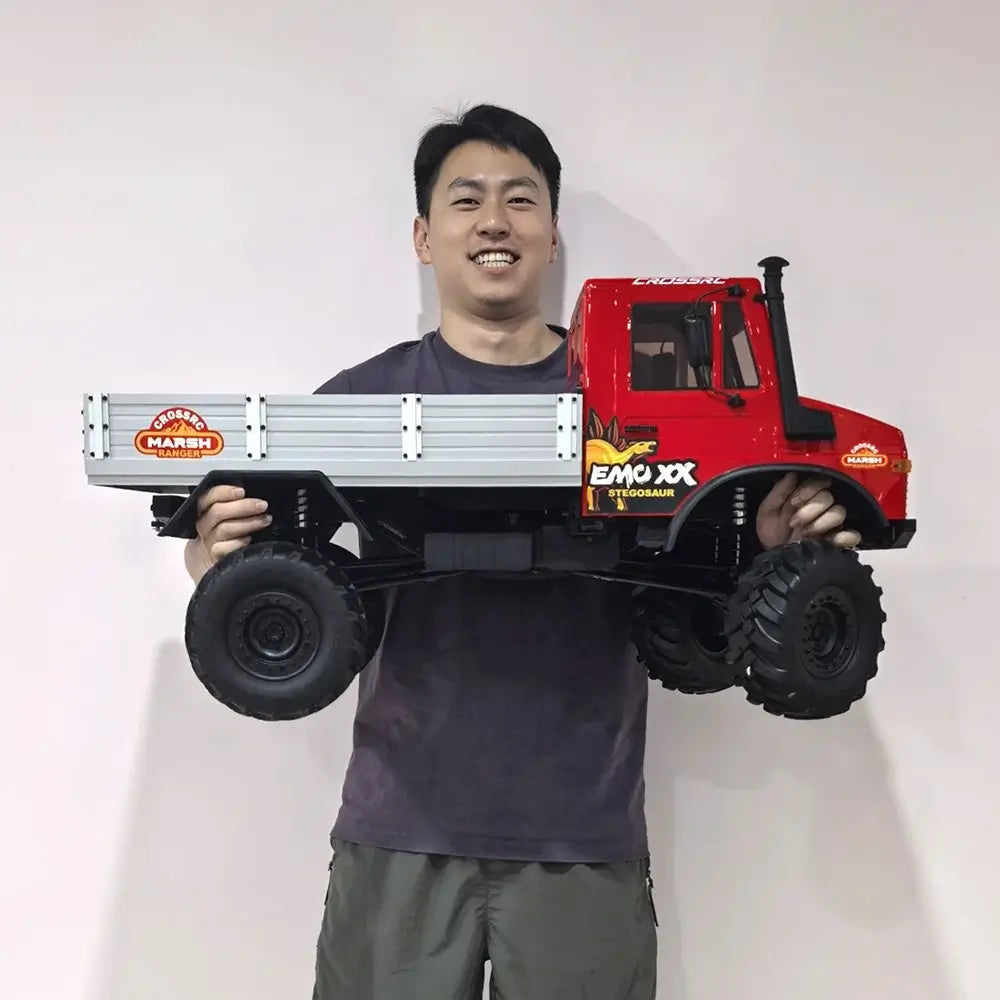

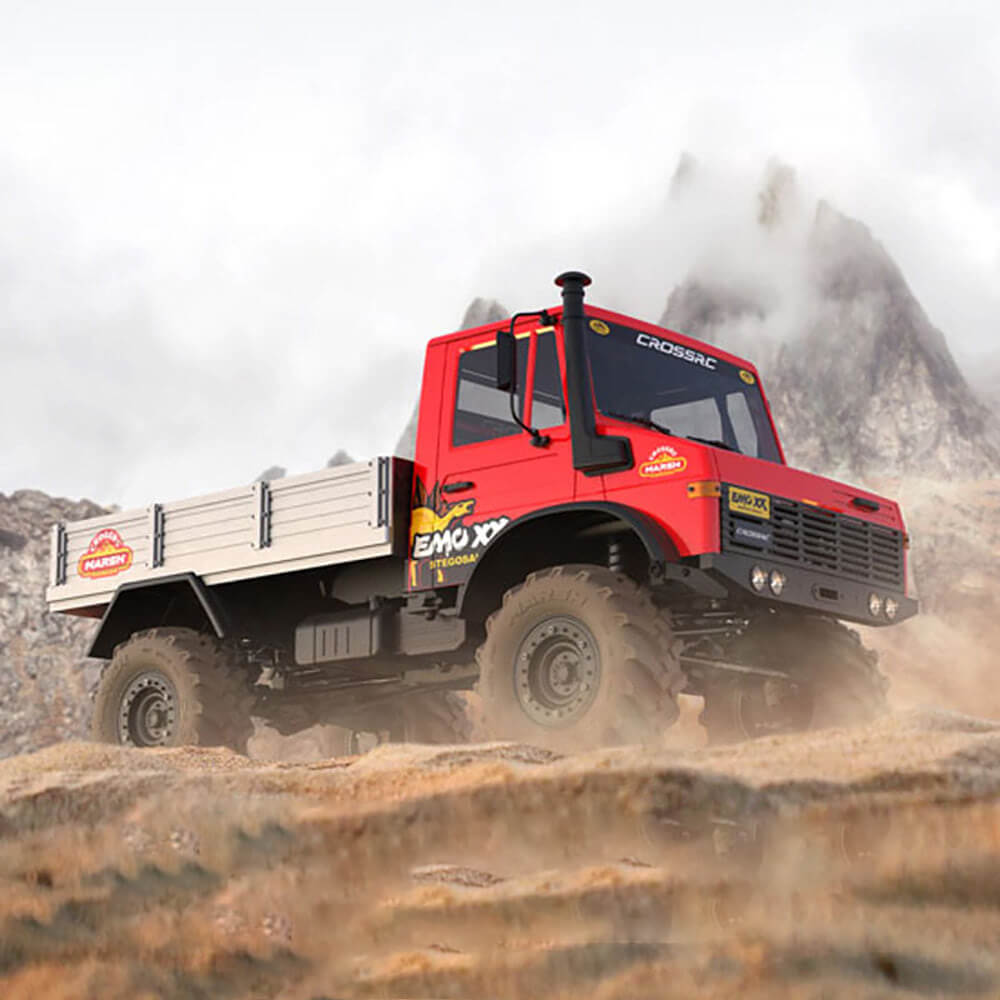

EMO XX Stegosaurus, with dinosaur-level pressure and agility, redefines the limits of "large-scale climbing"! The entire car is over 80 cm long, weighs 13 kg, and every corner bursts with the wildness of a giant beast, every twist of the waist shows extremely flexible and agile posture. A 1/6 large-scale climbing giant beast named after the prehistoric overlord is launching an assault on the limits of the earth with a hardcore stance that defies imagination!

Dinosaur Genes, Hardcore Technology

Skeleton: Steel Beam × Imported Nylon

• Reinforced chassis, using thick steel plates formed by hundred-ton stamping to create a realistic beam.
• The axles, crossbeams, and various connecting parts are made of imported nylon material with a special formula, achieving a good balance of chassis strength and toughness.
• Reverse transmission front and rear door axle structure, maximum steering positive 5-degree Ackerman angle, steering kingpin inclination 8 degrees, maximum caster 8 degrees. This provides better tracking after steering return, bringing more stable and easy-to-follow handling performance for high-speed crossing.
• Accompanied by a raised angle input shaft and special mounting point angle, smooth transmission effectively reduces axle effect to a minimum.
• The half axles inside the bridge and the output axles at the door edges are made of reinforced steel. The half axle diameter is 6mm, the door edge output axle diameter is 8mm equipped with a 17mm connector, strong and impact-resistant.

Tendons: Lightweight Aluminum Alloy CNC × Reinforced Ball Joint

• Suspension, using front three-link + lateral thrust rod, rear four-link + balance rod, link diameter up to 10mm, thick and powerful. This makes the suspension have large-angle waist twisting flexibility while also having high lateral impact resistance. The front lateral thrust rod upper pivot is further enhanced with a steel module.
• Shock absorbers, 26mm large diameter shock absorbers, made of high-quality aluminum alloy CNC high-precision processing. Adjustable preload, maximum stroke up to 40mm, providing good support for the whole vehicle while easily showing agile posture.
• Strong ball joints, using special material large-size ball joint buckle + fine steel ball joint beads, combining rigidity and flexibility, agile and impact-resistant.

Dragon Heart: Dual Power × Fine Steel Internal Teeth

• The RTR Brushless version comes with two Hobbywing FUSION 8IGHT FOC brushless system, using a 4269, 1800KV high-torque motor supporting the use of a 2-4S LiPo battery.
• Large torque dual-speed gearbox uses all-metal gears, heavy load end is integrated steel cut gears to ensure high strength, transmission end is self-lubricating alloy gears, reducing gear wear and extending service life.

Brain: Precise Control × Intelligent Protection

The whole vehicle high-voltage servo, 5-car level high-voltage 70KG high-power steering servo *1 + high-voltage 25KG standard servo *3.

Power distribution, 70KG high-power steering servo powered by independent ESC BEC, avoiding the impact of servo power load on vehicle precise control and flashing light group work. It also has servo stall protection function, automatically reducing current output when the servo is stalled for a long time, protecting the servo from burning out.

Functional servo full stroke adjustment-free, CROSSRC's original front and rear differential lock and gearbox shift control use servo full stroke control, intelligently protecting the servo from burning out due to incorrect working stroke.

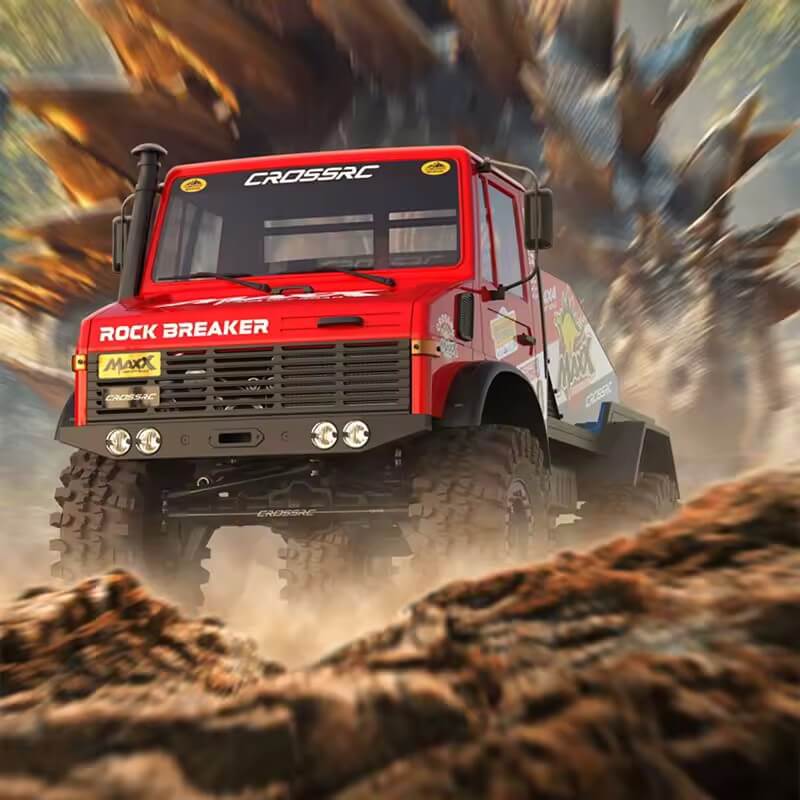

• Dragon Claws: Equipped with newly developed ROCK BREAKER "Rock Roar" MT tires, using large multi-edged vertical tire claws to firmly grip every rock wall. Also launched are MARSH RANGER "Marsh Roam" MT tires, using classic herringbone texture, easily traversing muddy terrain. The original car is equipped with nylon clamp-style wheels, using screw nuts to clamp the tires, allowing you to drive freely without worrying about tire delamination.

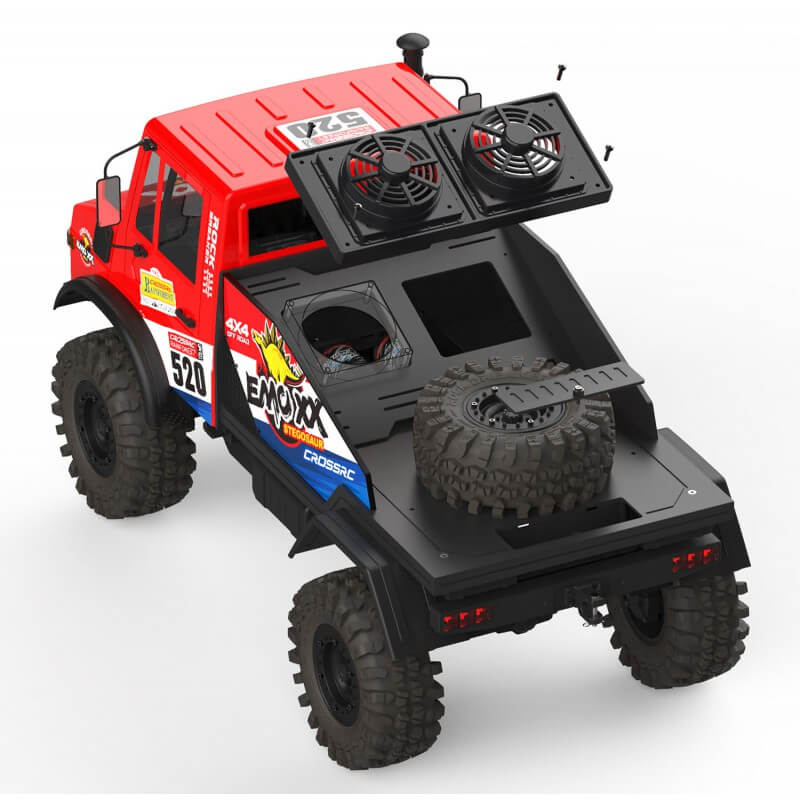

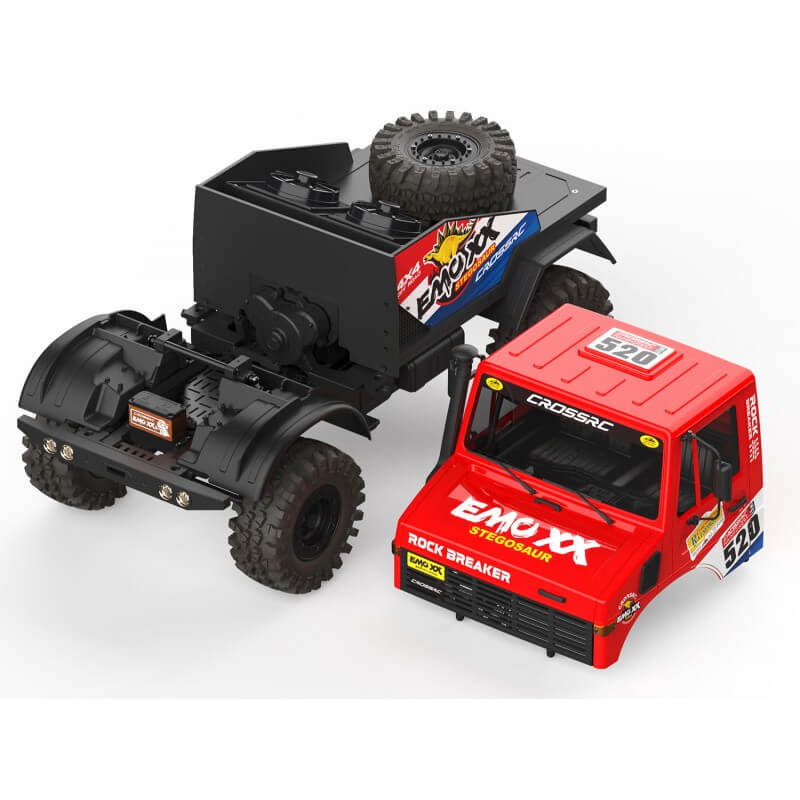

• Armor: Thickened PC material with interior car shell + composite internal roll cage, realistic appearance details and truly protecting the car shell from damage. Connected closely with the chassis through four-point quick-release structure, realistic appearance and easy to disassemble, reliable.

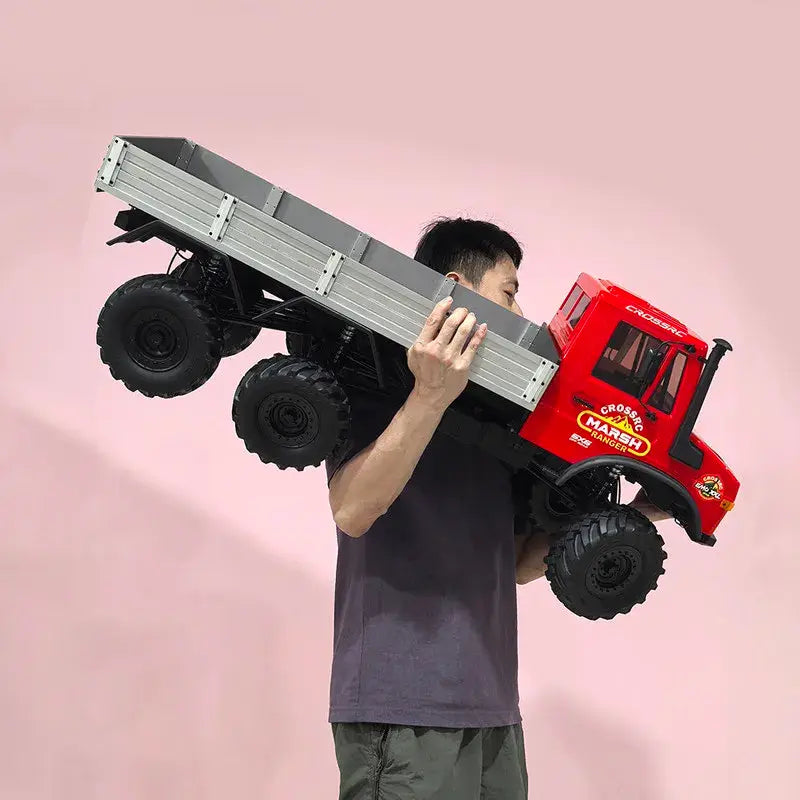

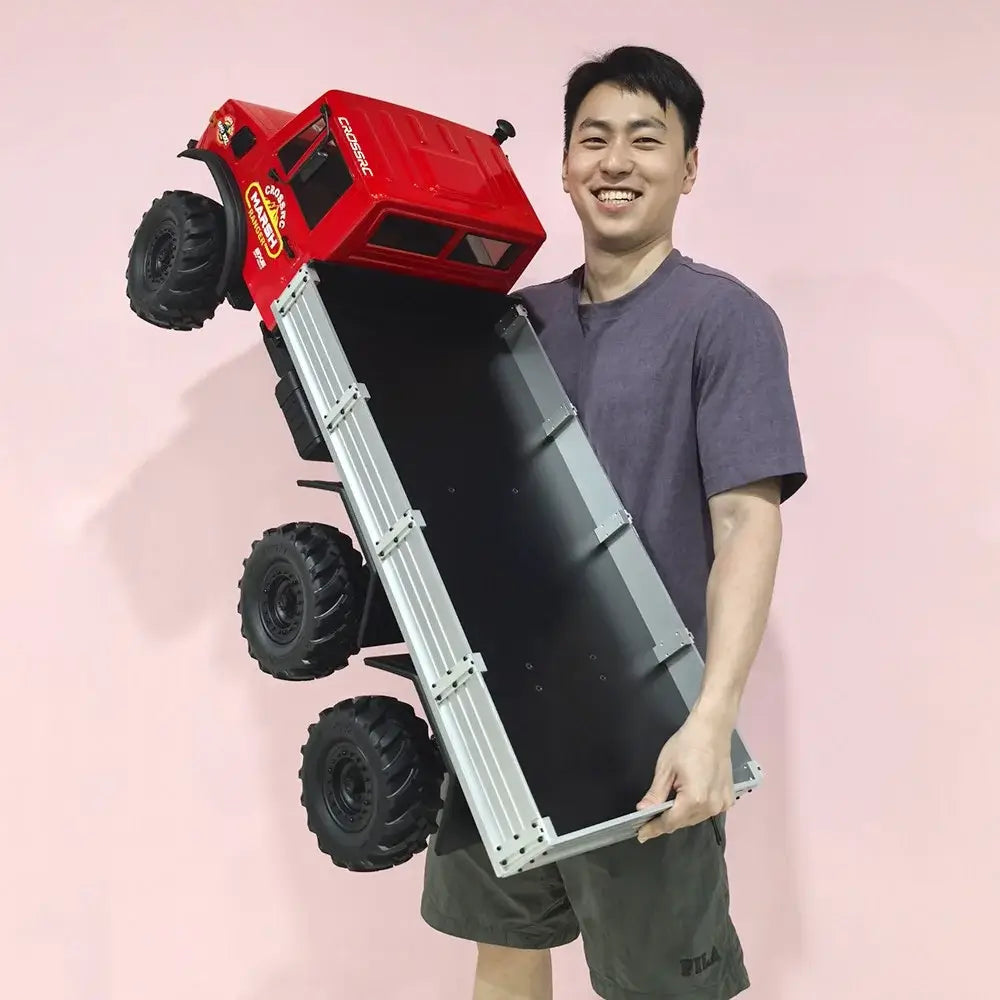

• Cang Armor Carrying Mountain: EMO XXL 6x6 Thunder Dragon has a car length of 1.06 meters, 693mm325mm rear cargo box, easily carrying long wheelbase 1/8 climbing cars and many models, larger than the existing mass-produced RTR climbing cars in the world.
• Dragon Spine: On the third axle of EMO XXL 6x6 Thunder Dragon, using bridge-type transmission shaft structure. The bridge shaft structure has extremely strong resistance to large torque, making the second and third axles reliably transmit thousands of pounds of force in extreme cross-axle conditions, easily crushing cliffs.

Multiple Styles are Available

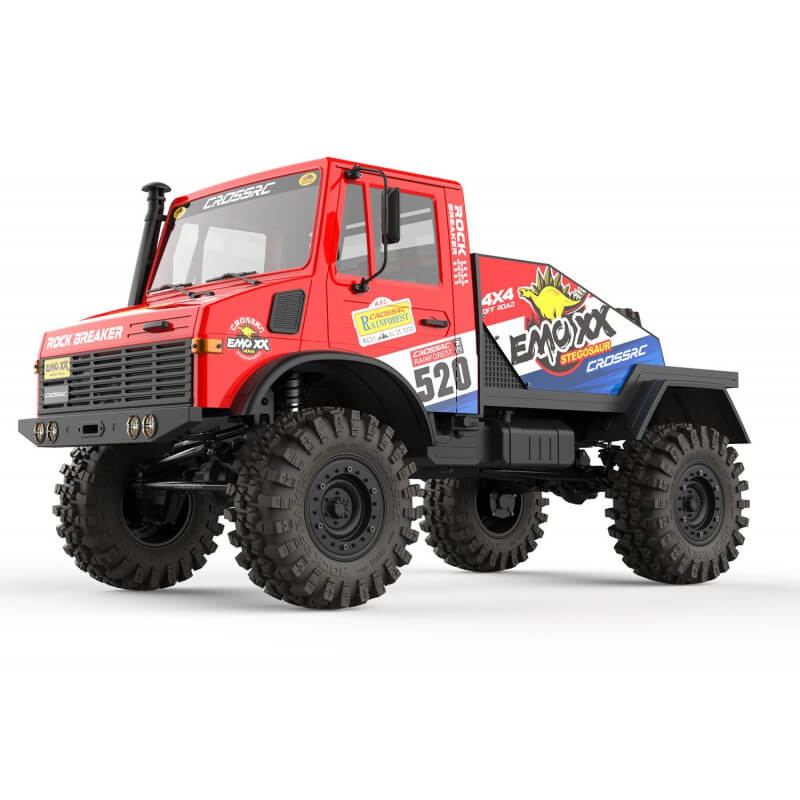

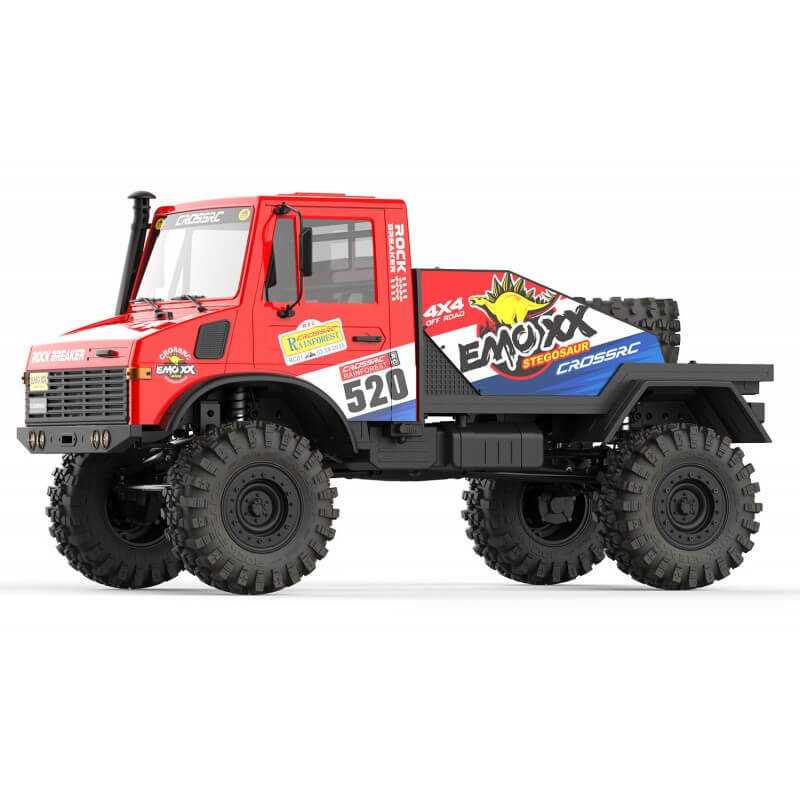

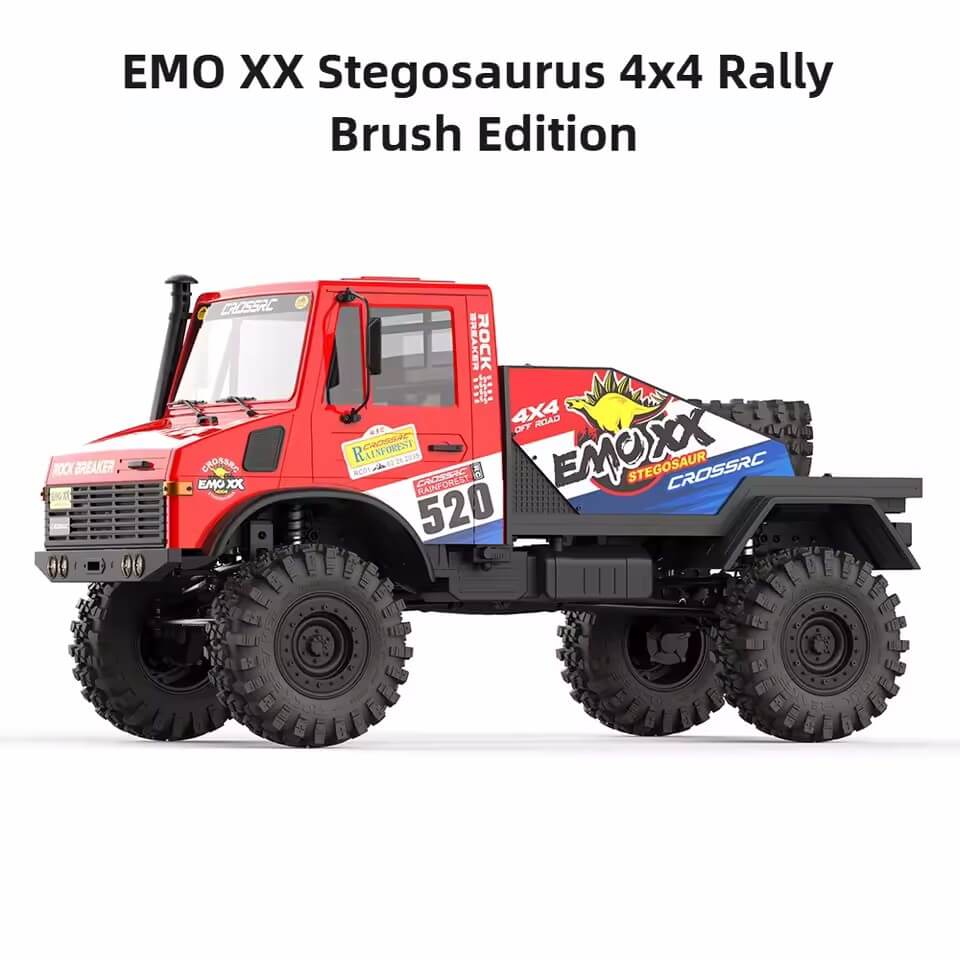

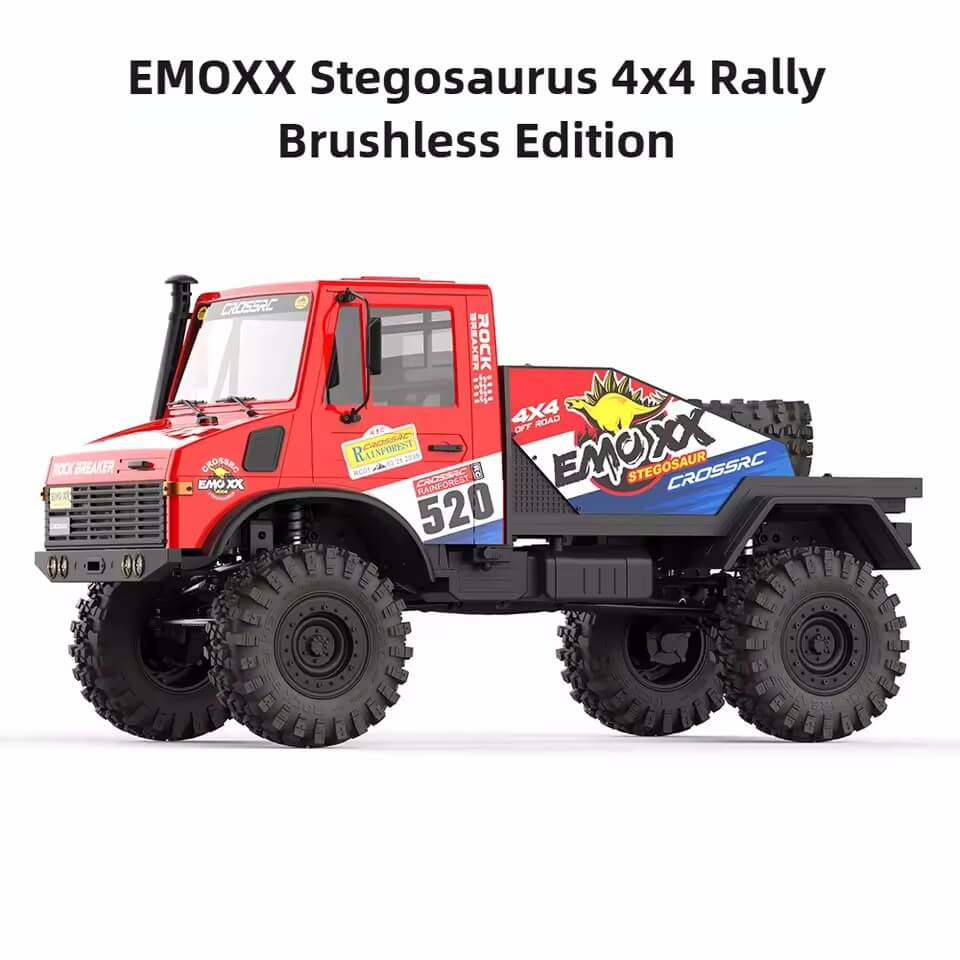

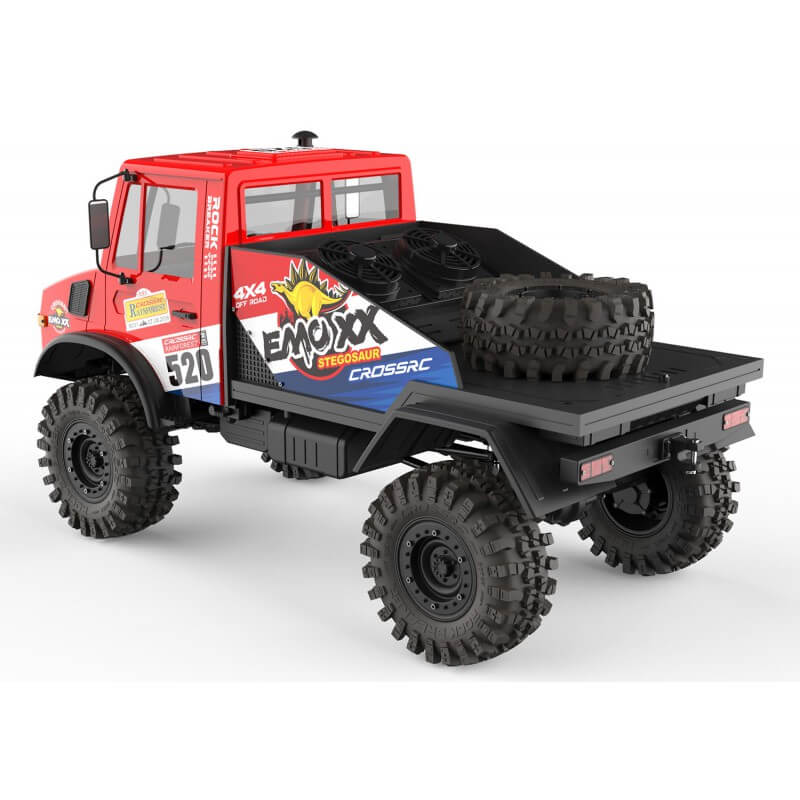

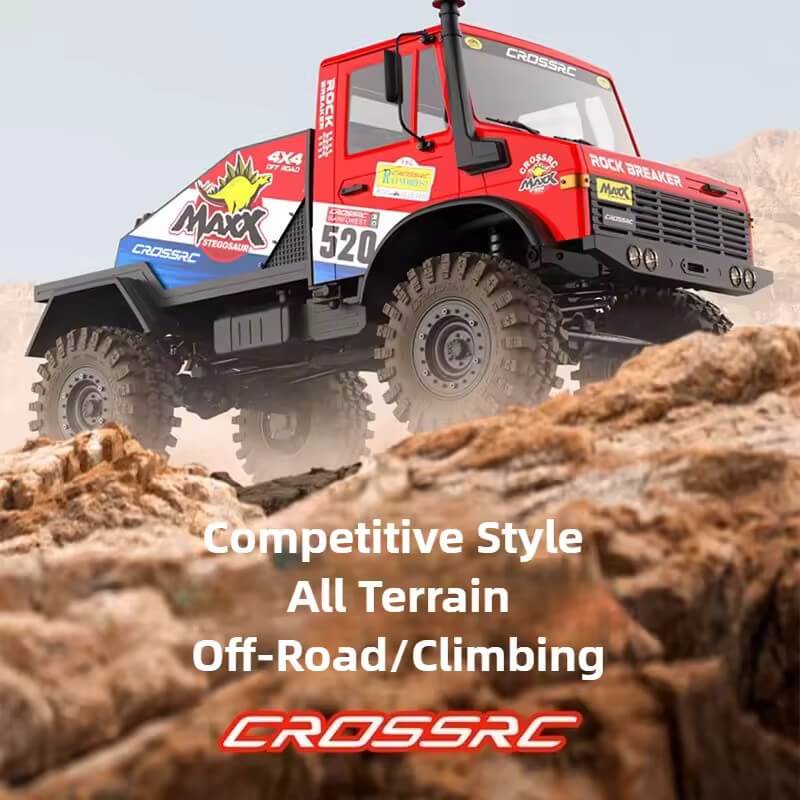

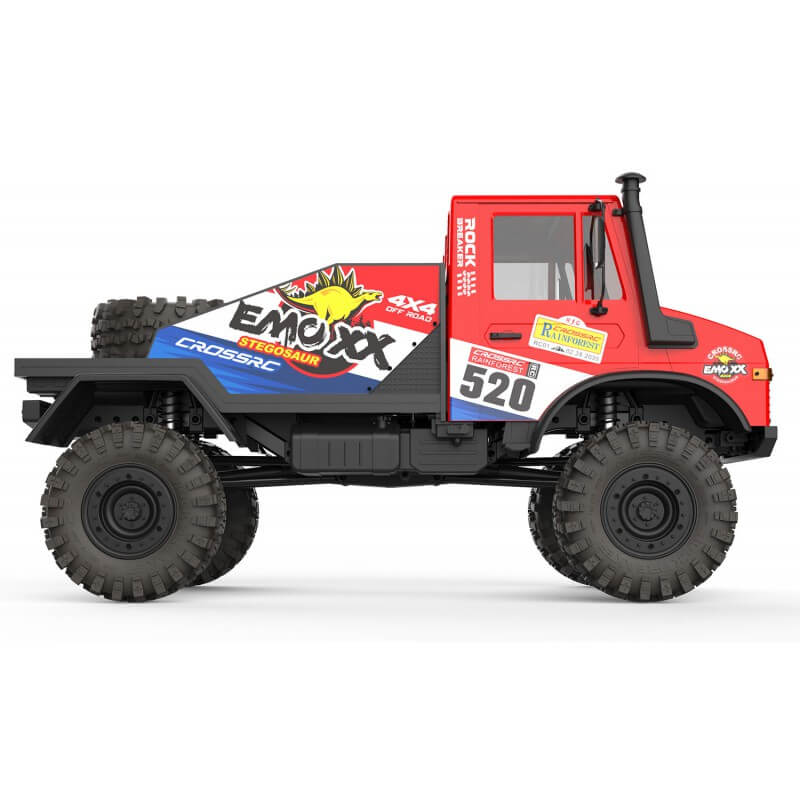

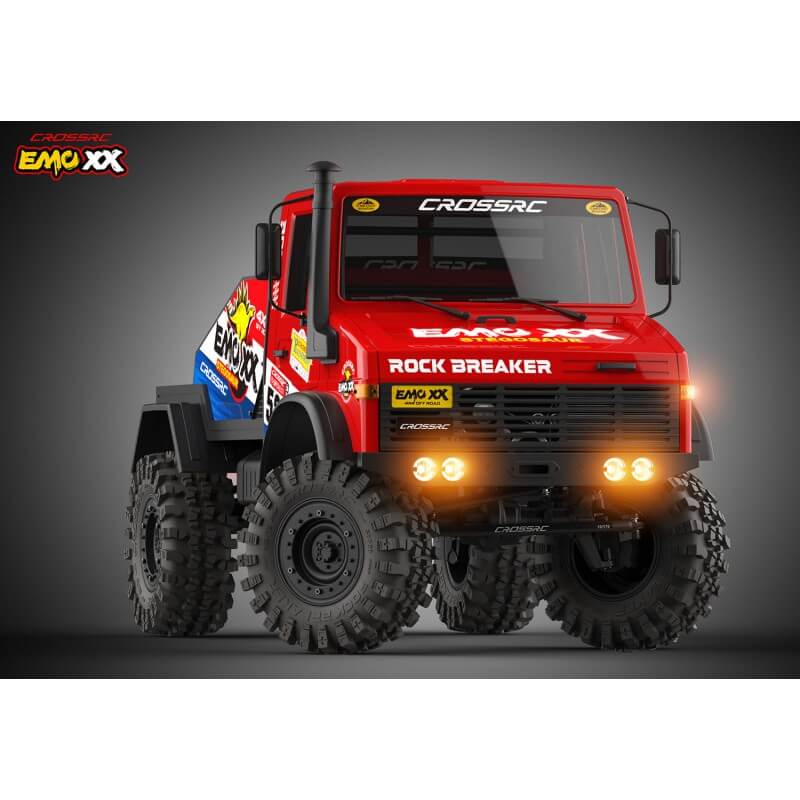

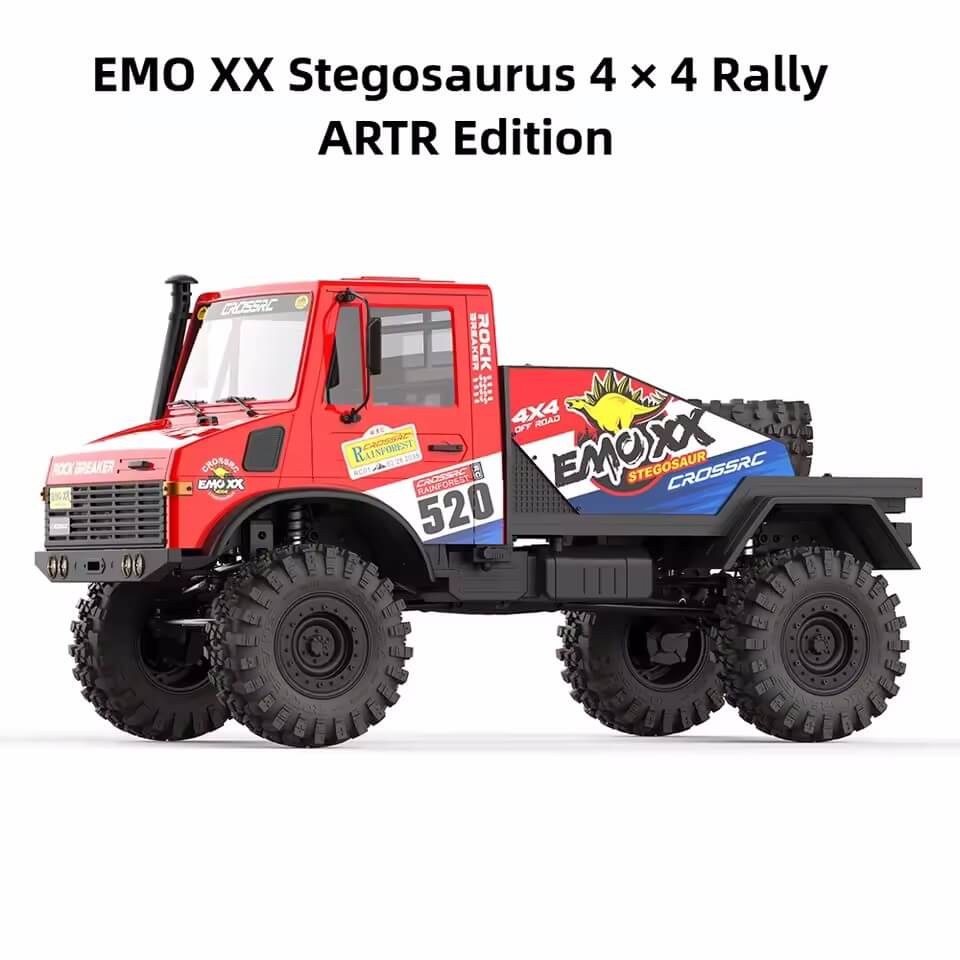

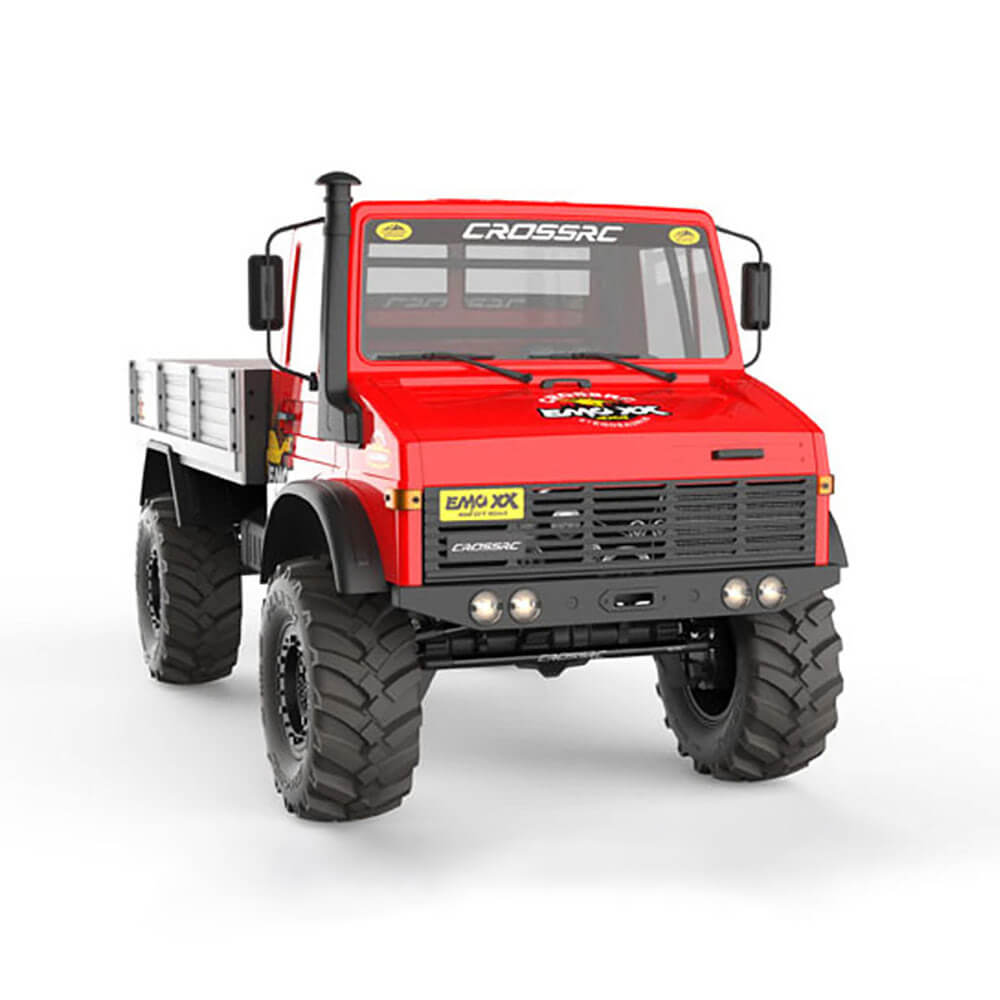

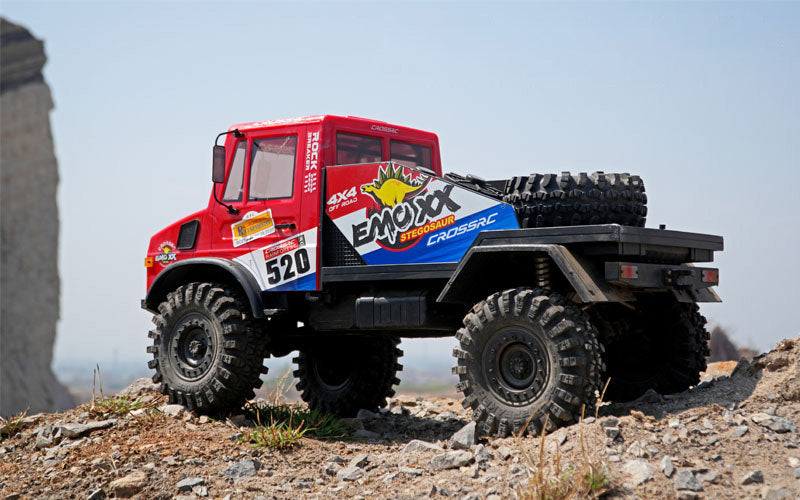

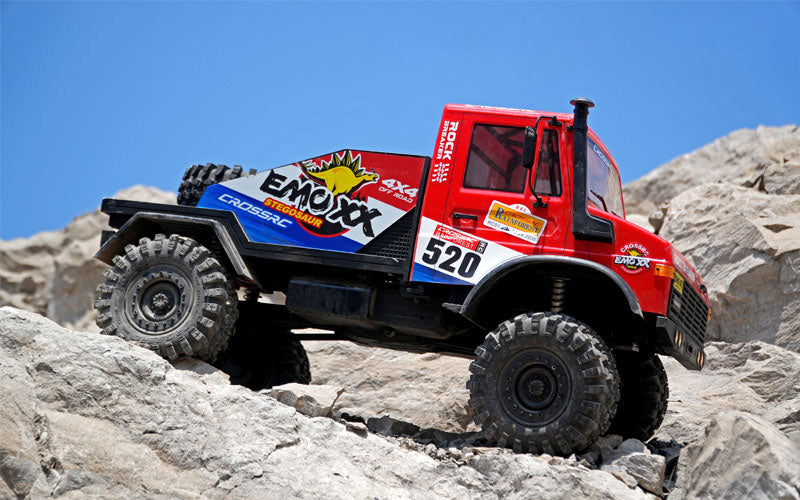

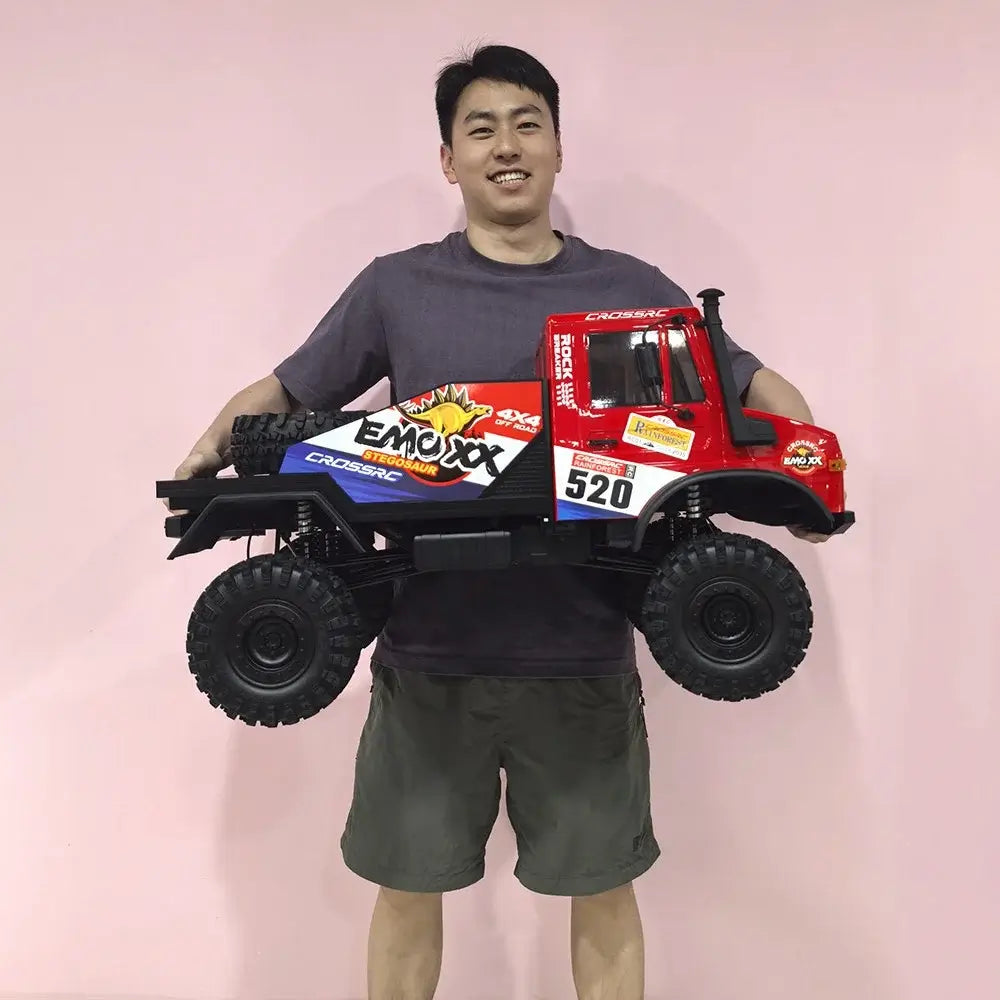

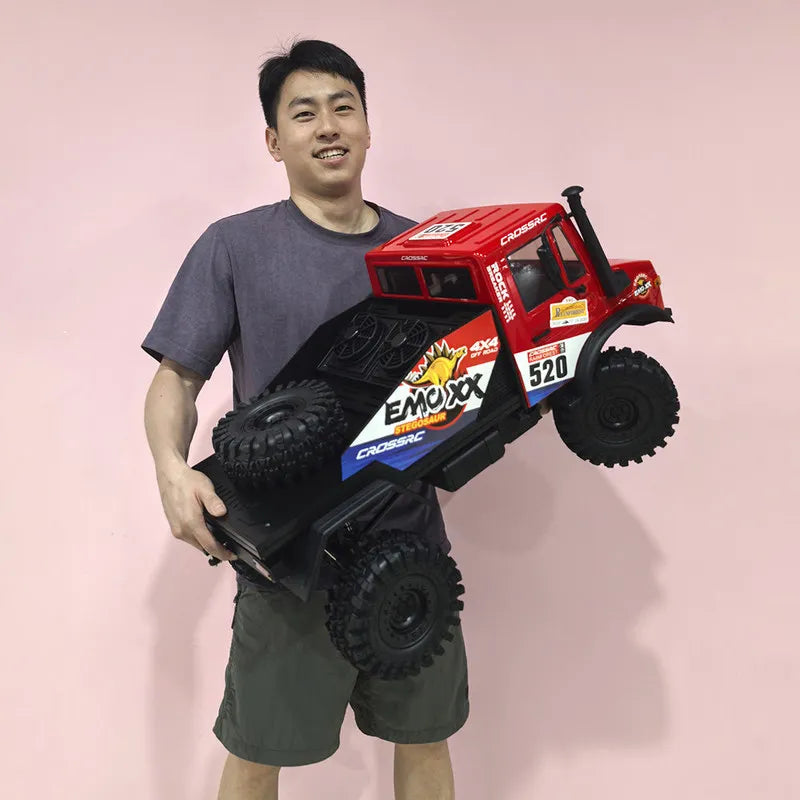

• CROSSRC EMO XX Stegosaurus 4*4 Rally Version

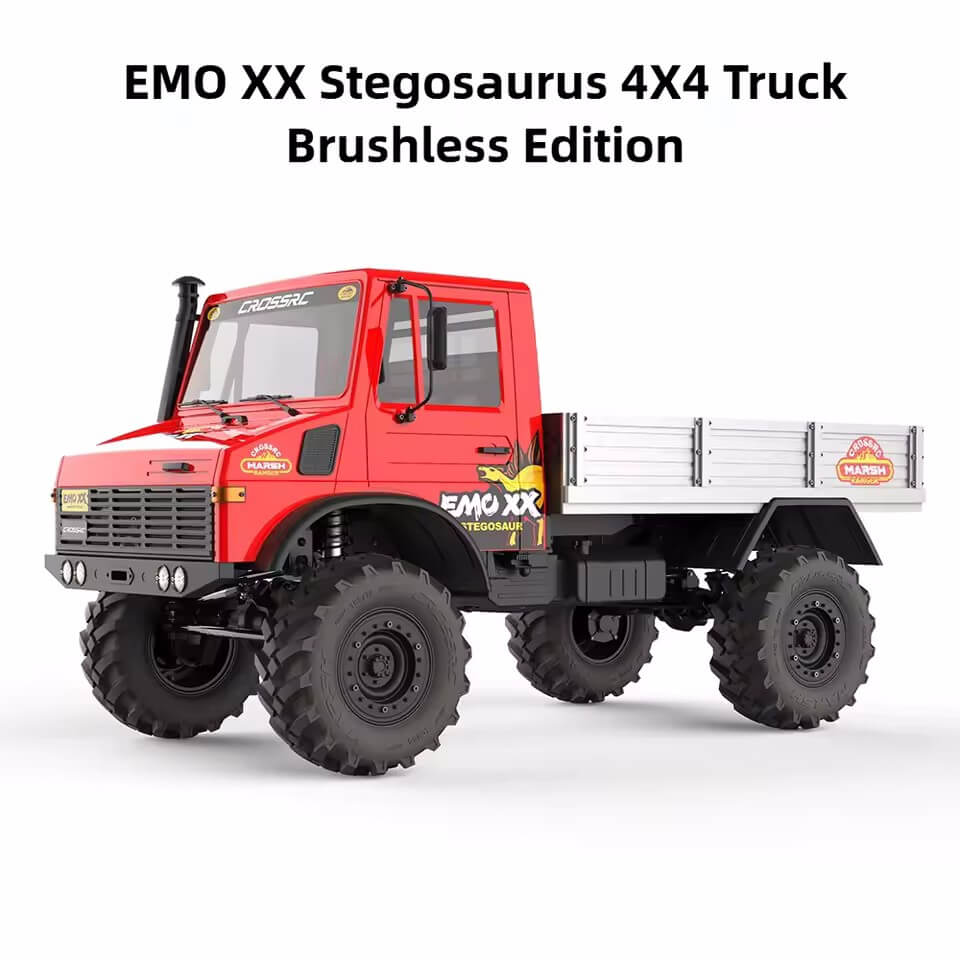

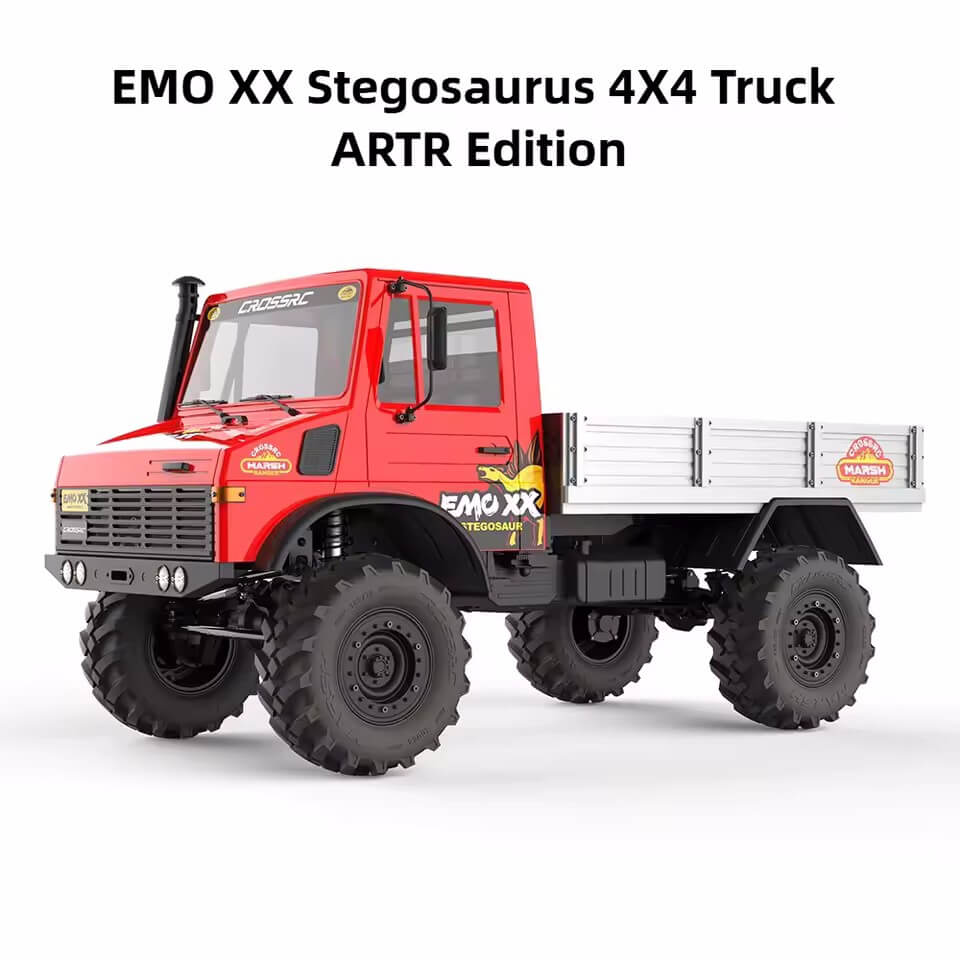

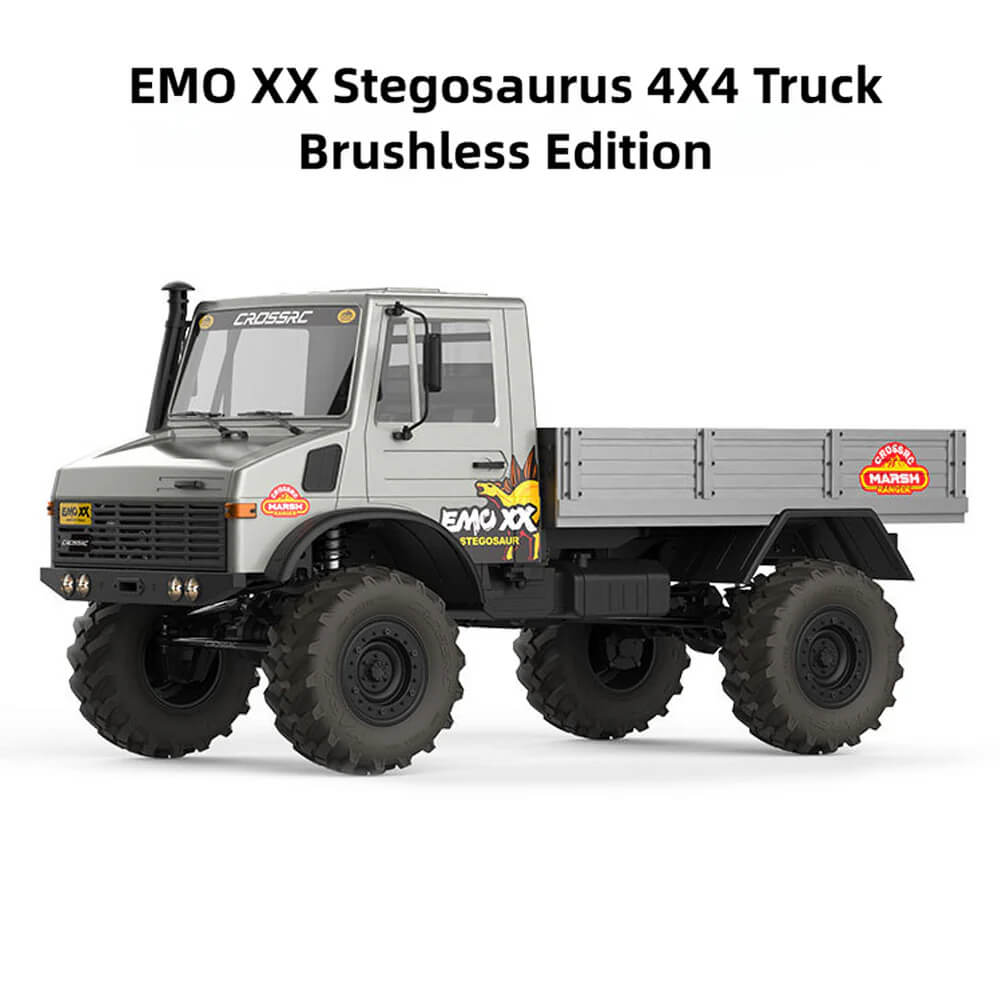

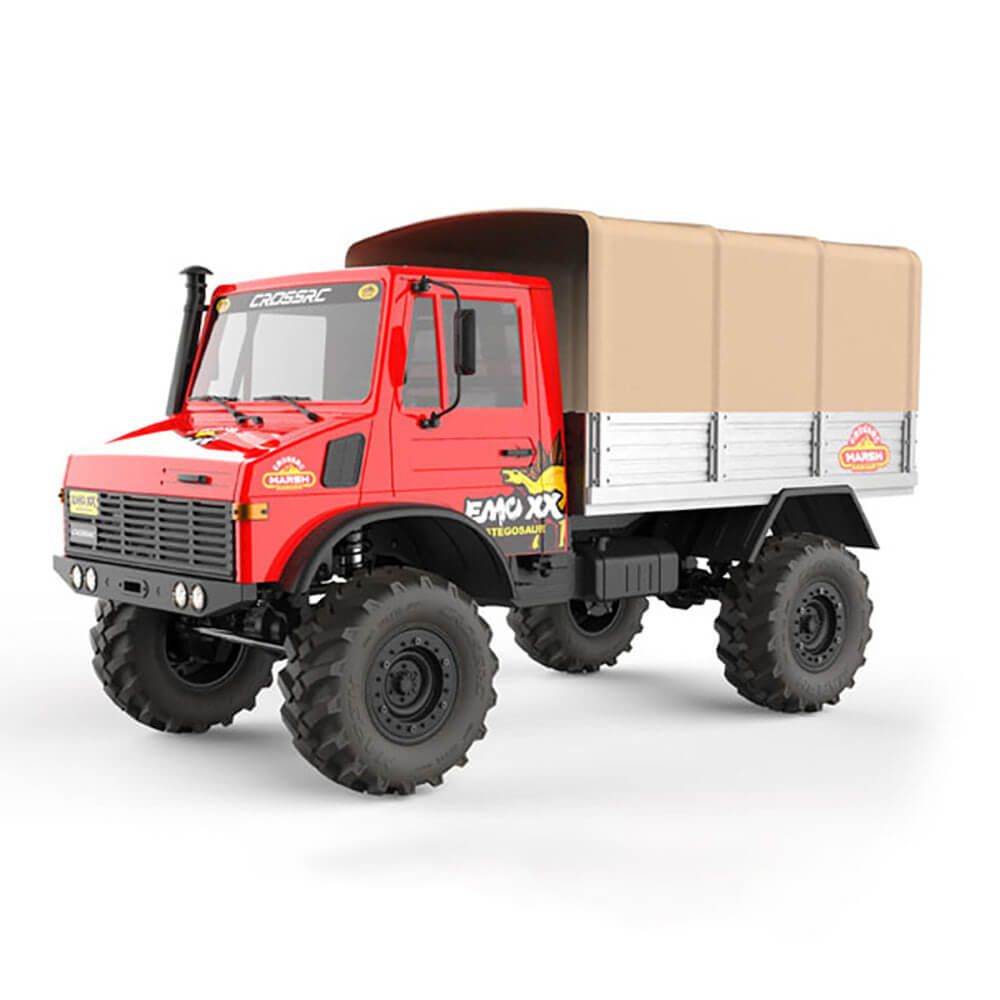

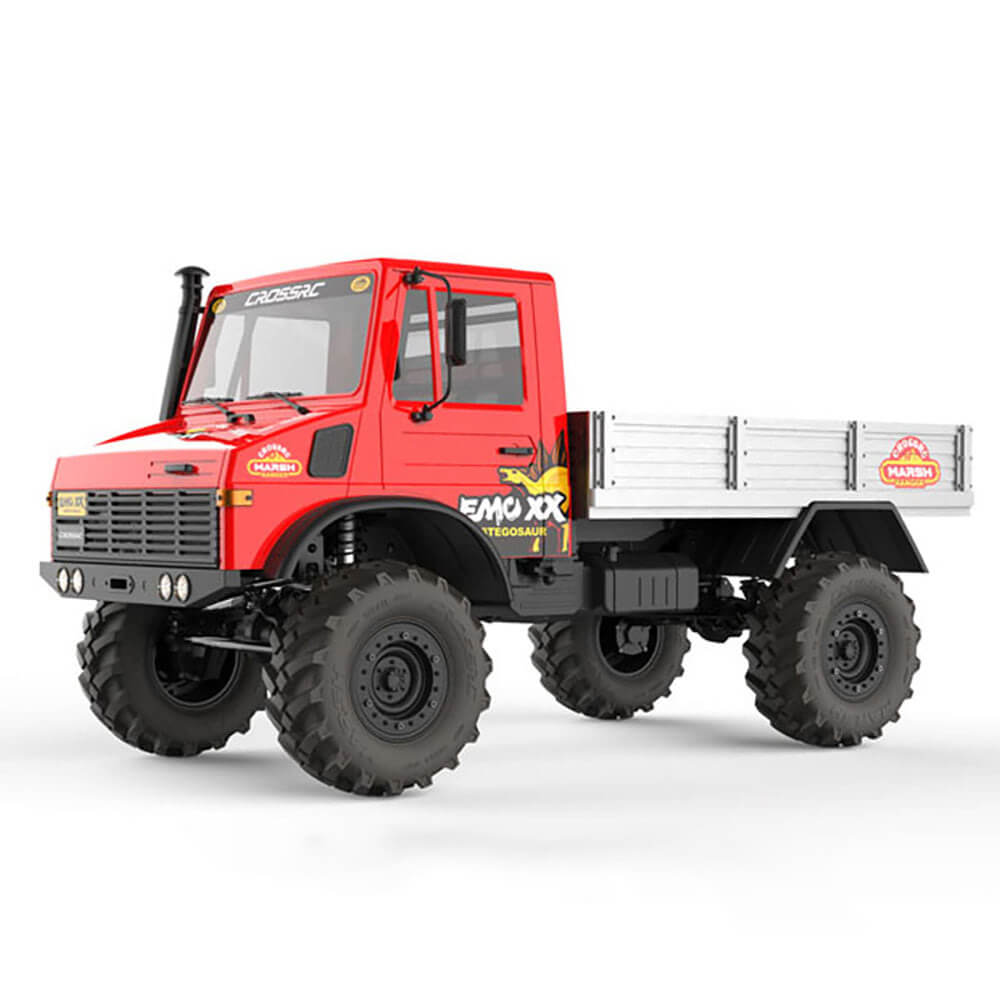

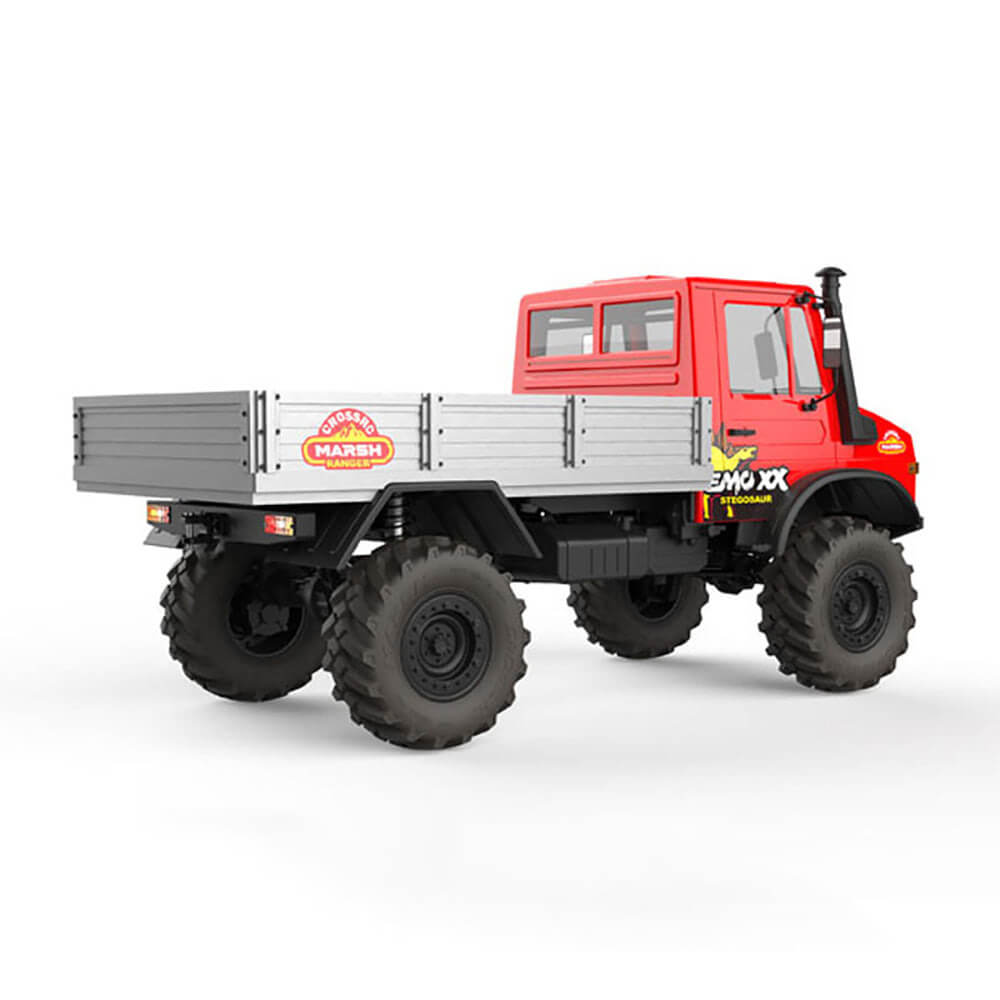

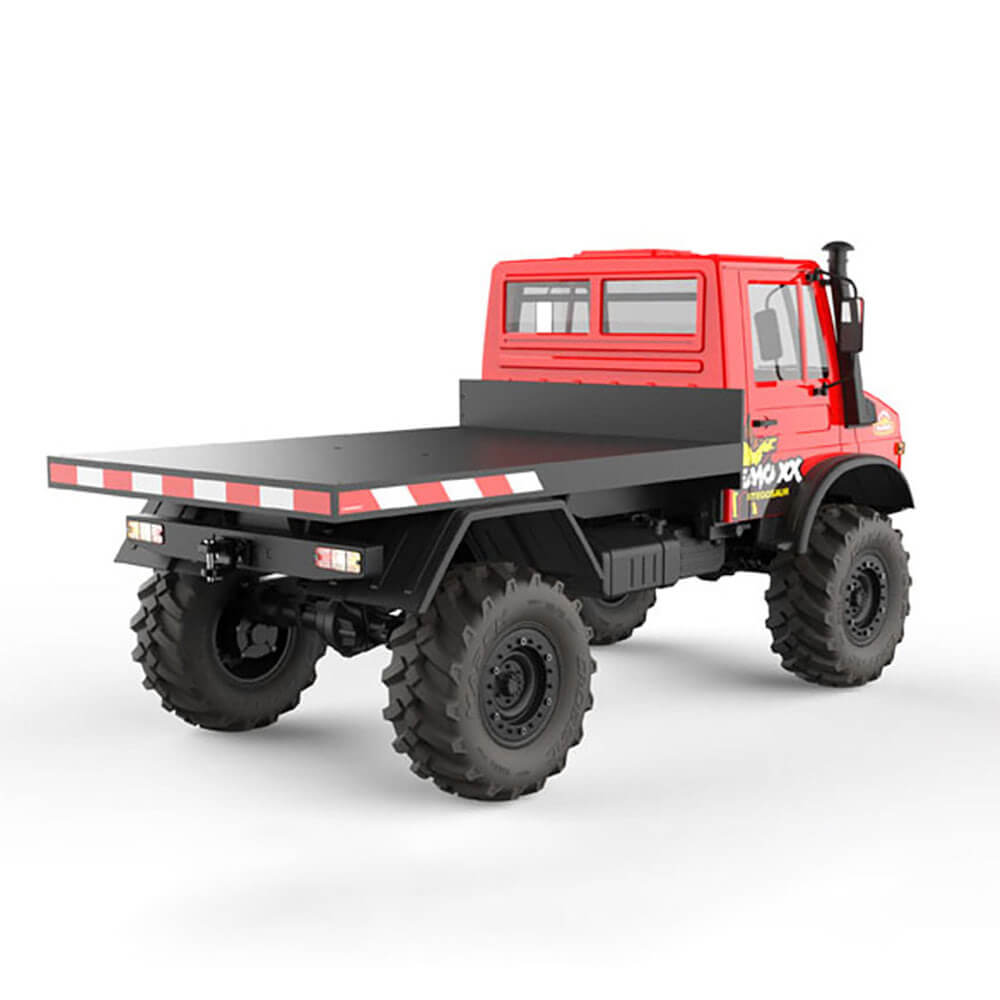

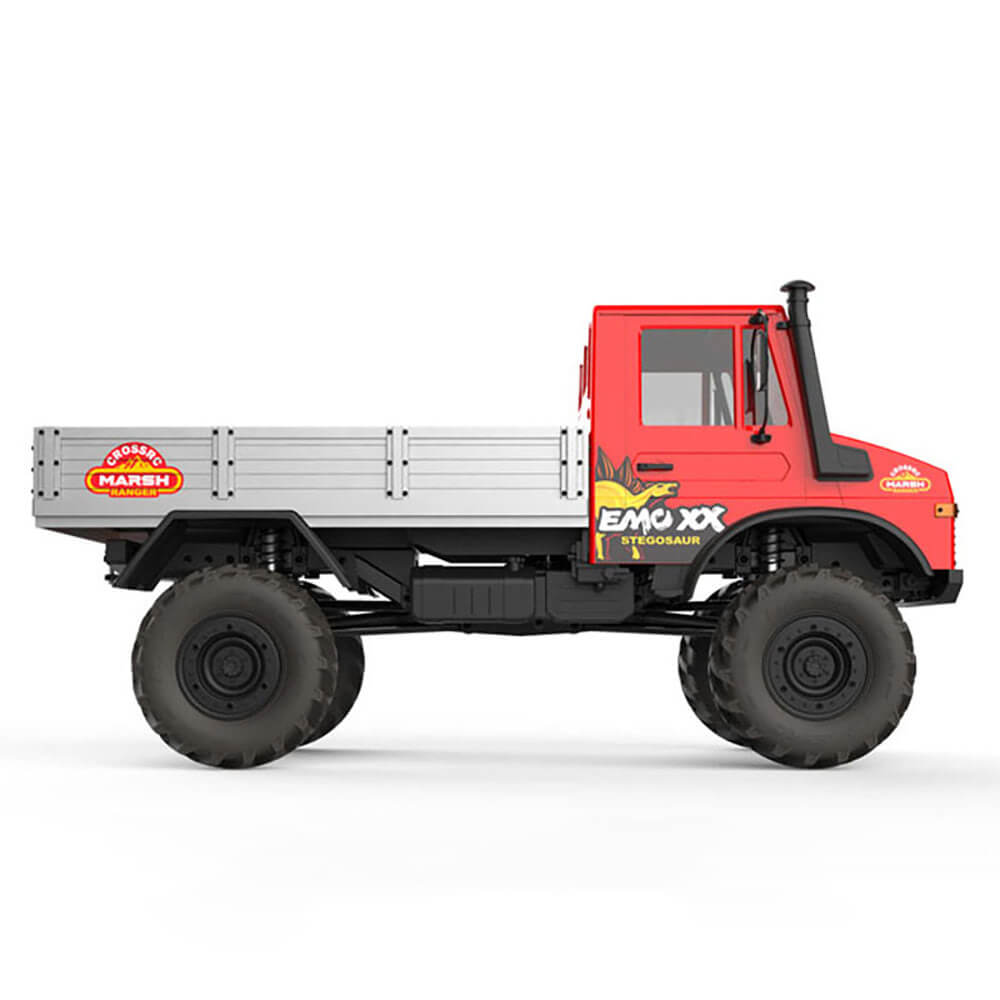

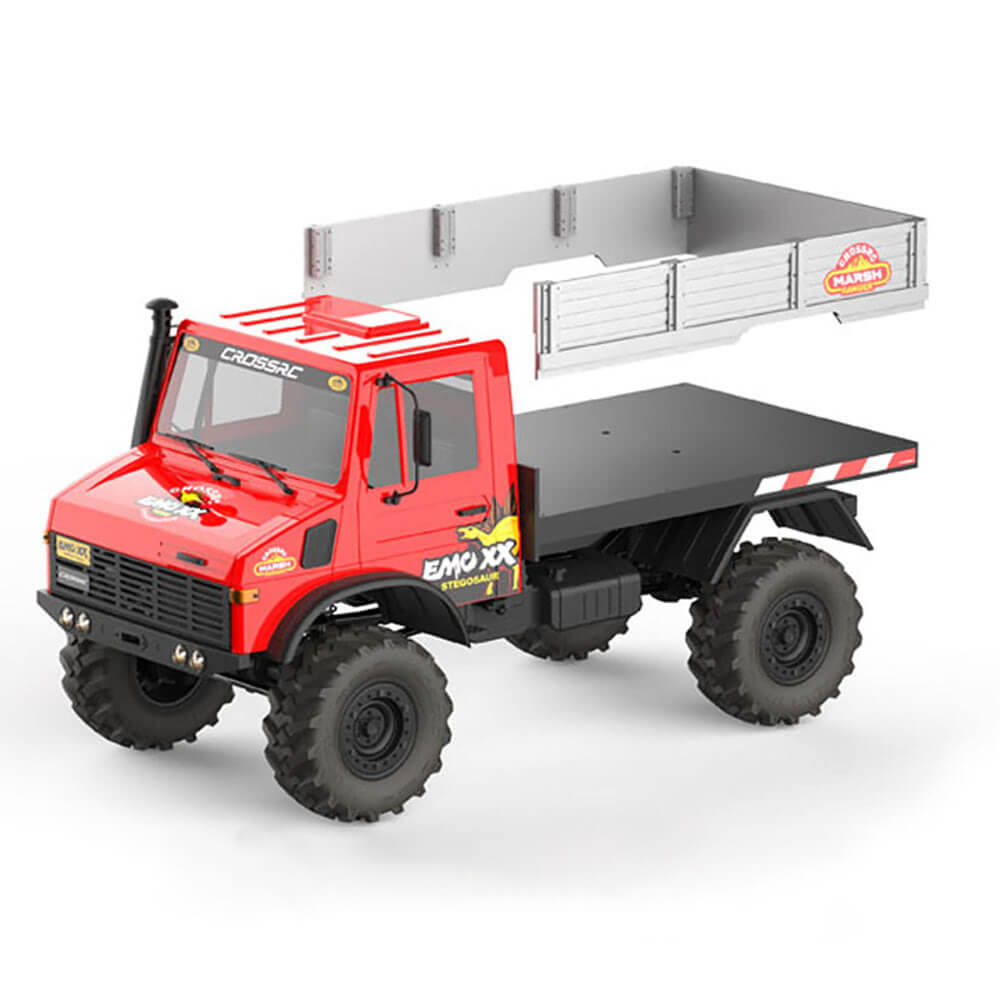

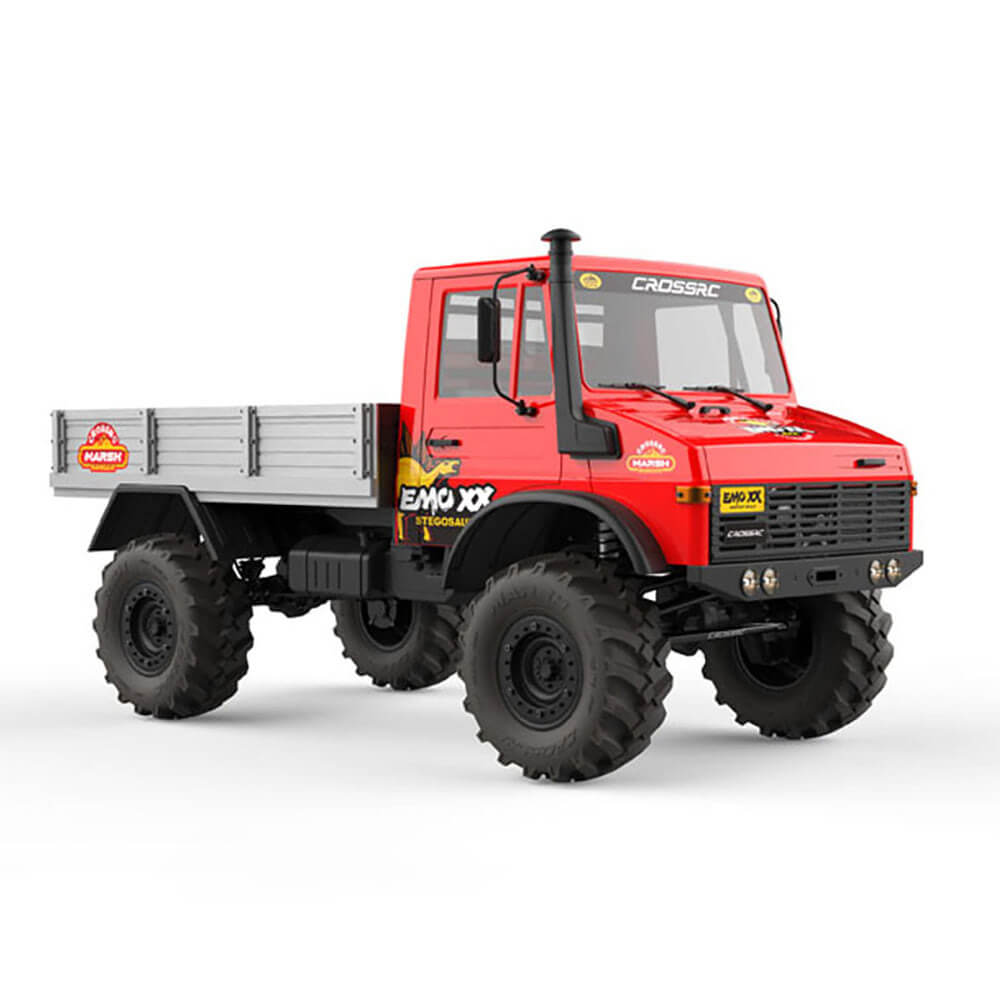

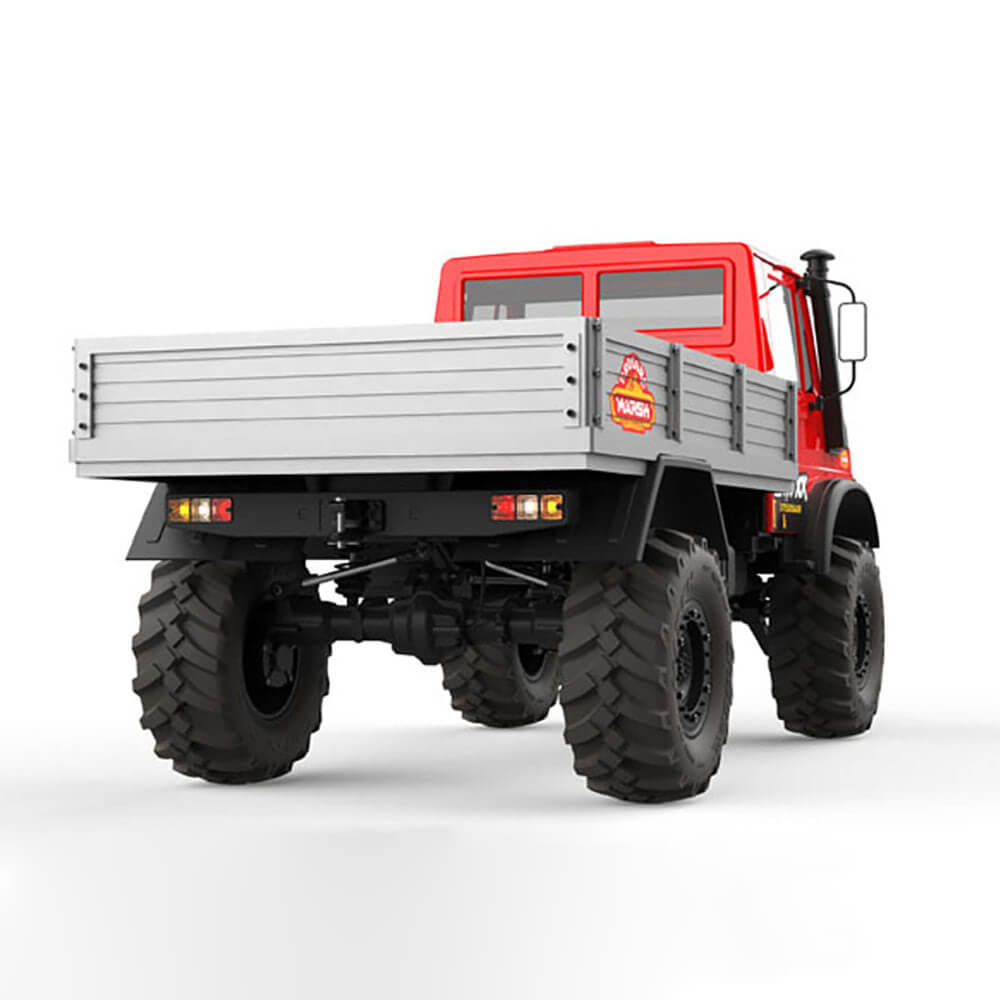

• CROSSRC EMO XX Stegosaurus 4*4 Truck Version

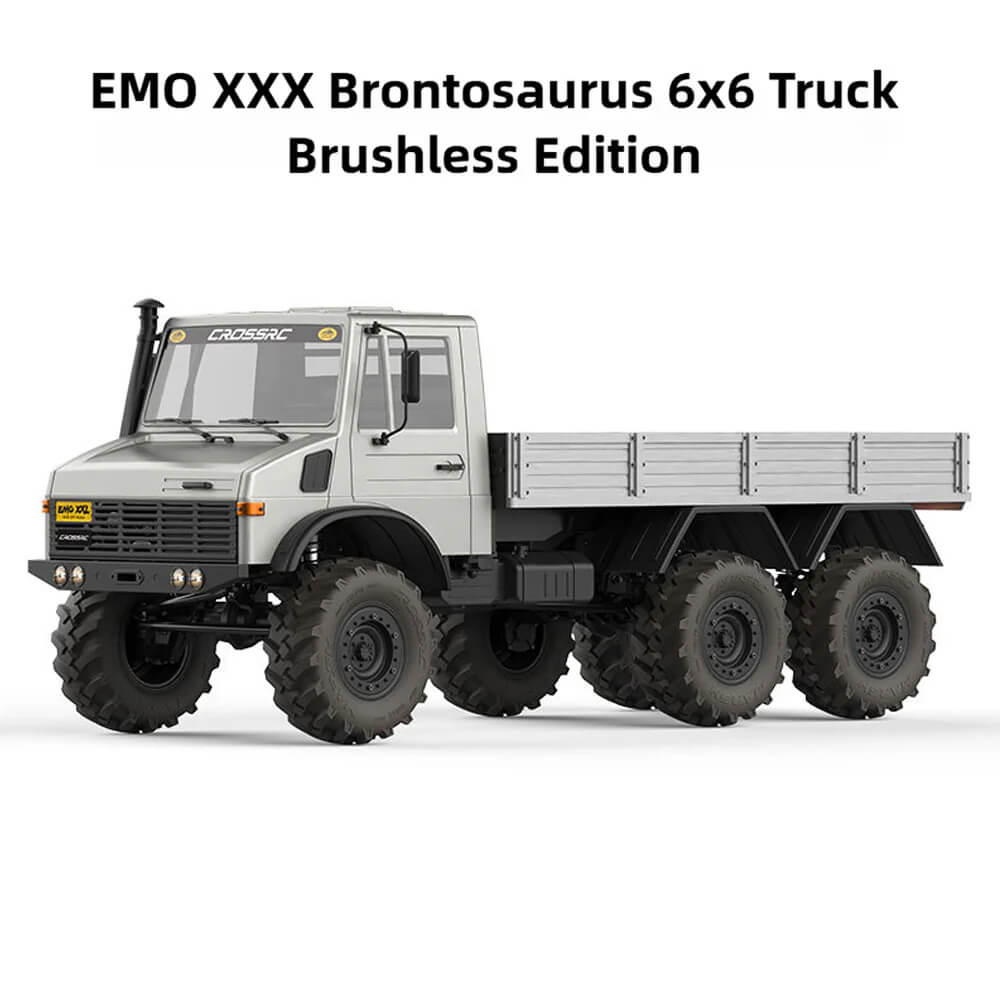

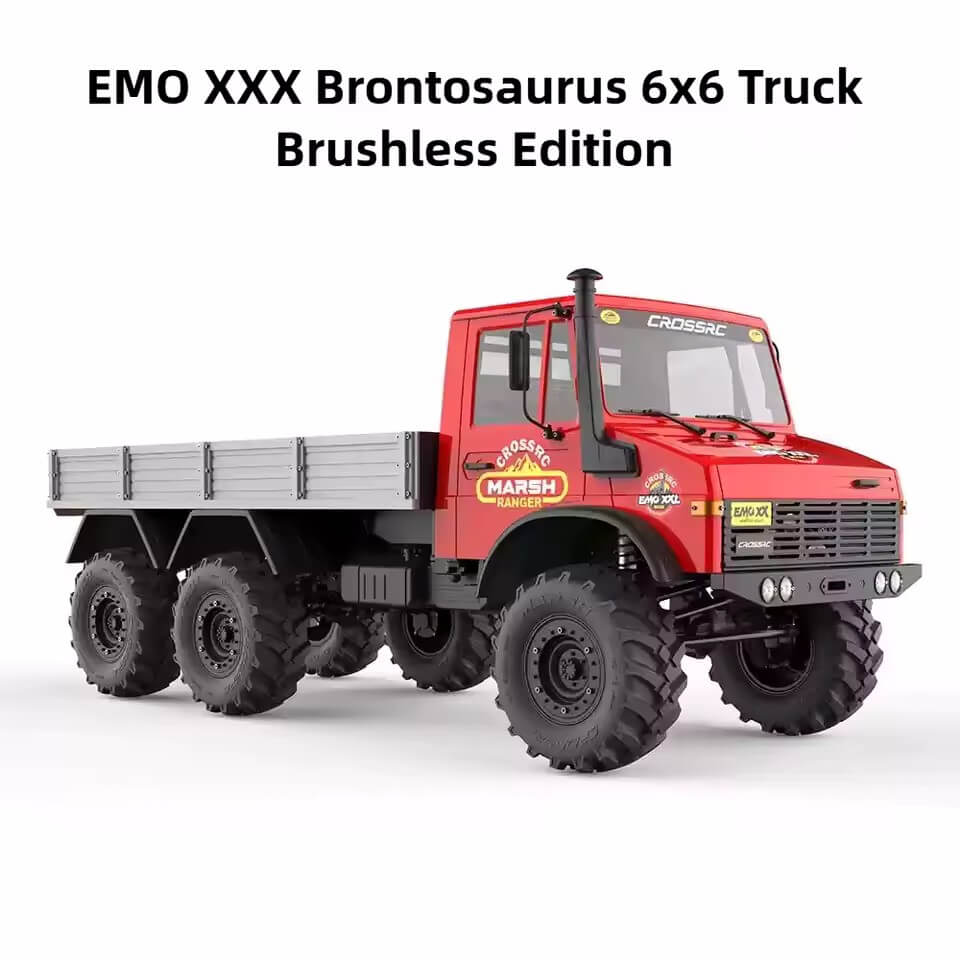

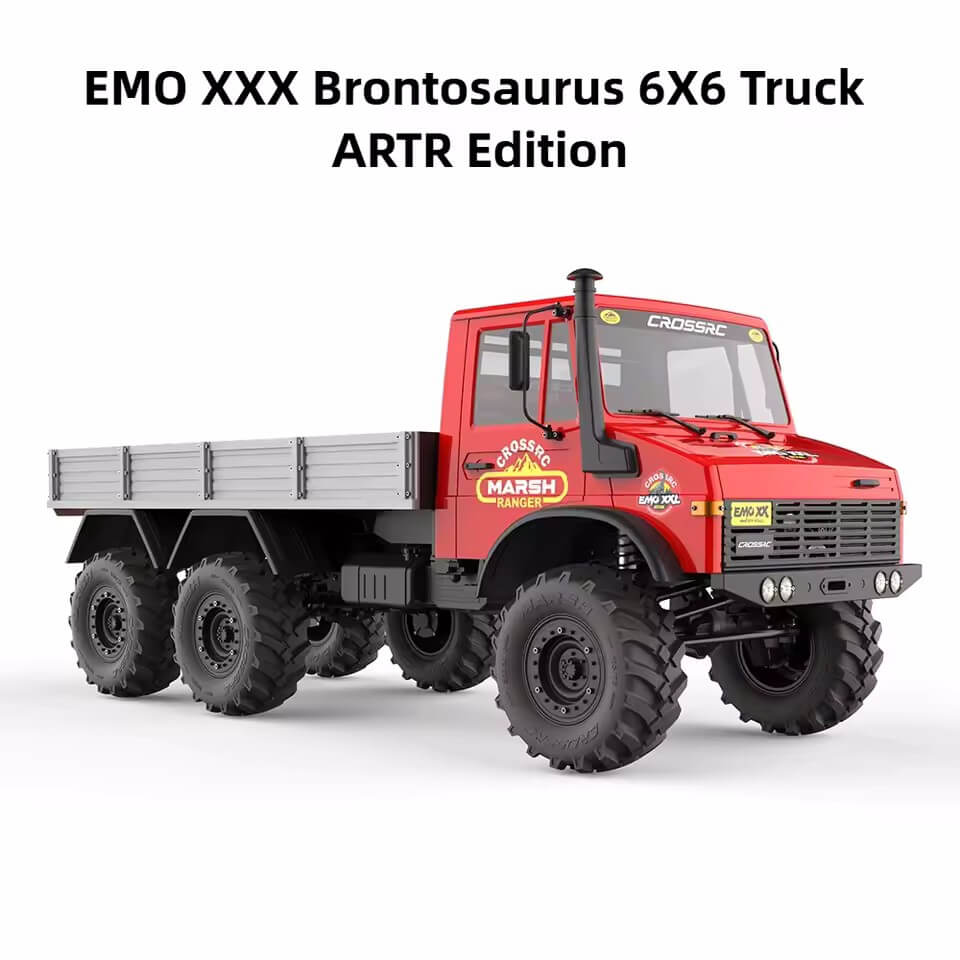

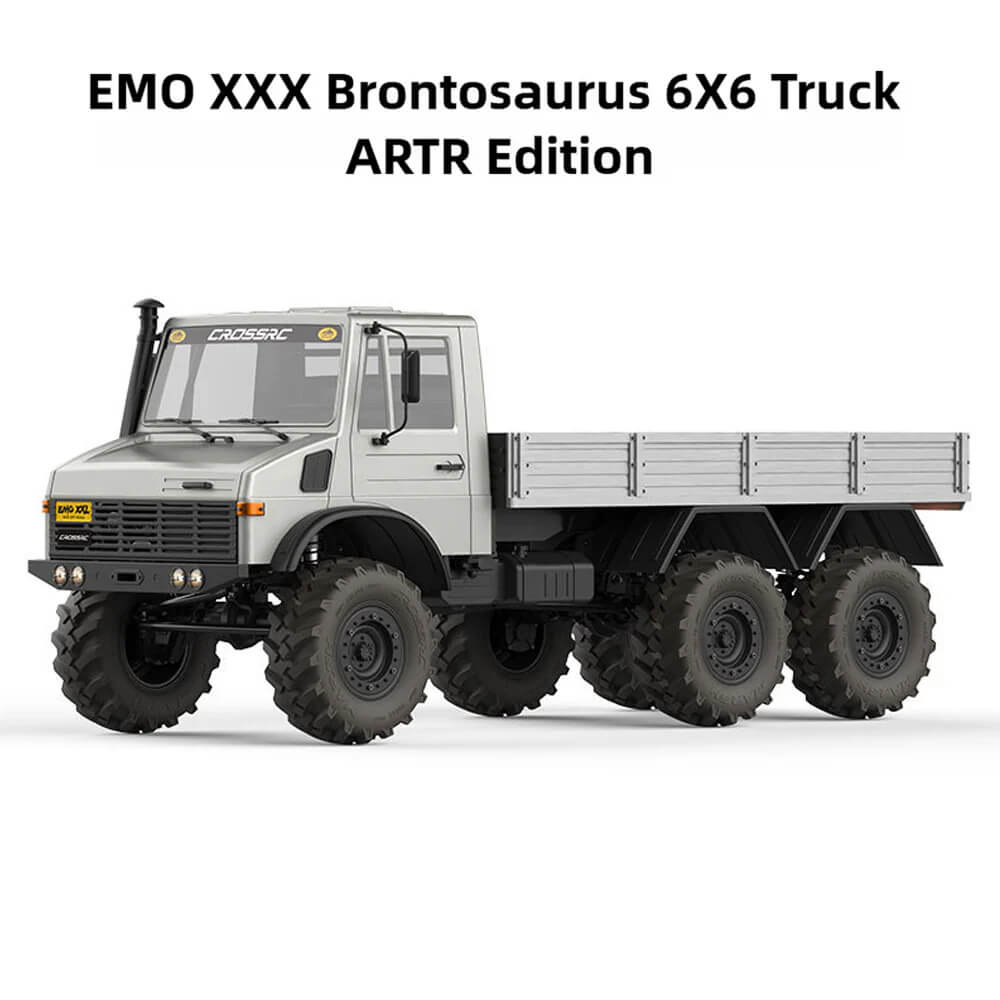

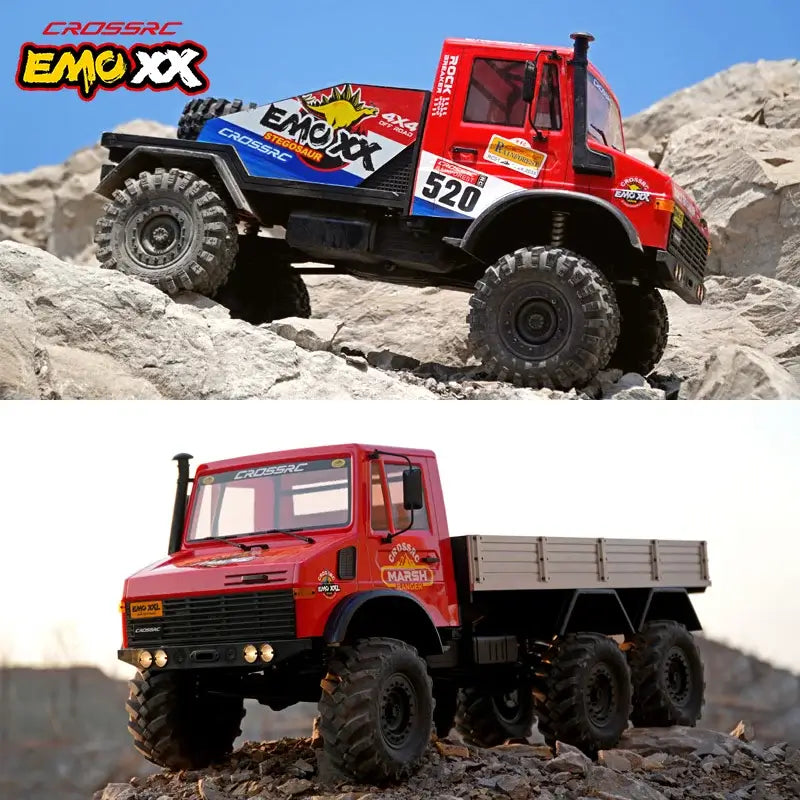

• CROSSRC EMO XXL Thunder Dragon 6*6 Truck Version
