TRACTION HOBBY KM Raptor F150 1/8 Brushless RTR RC Truck – 2-Speed, RWD/FWD/AWD & Remote Diff Locks

A Scale Pickup with More Control on the Trail

The TRACTION HOBBY KM Raptor F150 F150BRS is a 1/8-scale brushless RTR RC truck with a Ford-licensed F-150 body, a two-speed transmission and selectable rear-wheel, front-wheel and all-wheel drive. Remote front and rear differential locks let you change the drivetrain setup from the transmitter as the terrain changes.

A Hobbywing Fusion 8IGHT 1800KV FOC brushless system powers a metal drivetrain mounted on a steel C-channel chassis. Independent front suspension and a solid rear axle give this large-scale pickup a distinctive layout, while detailed lighting and a finished interior complete the scale appearance.

Choose Black F150BRS-DG or Silver F150BRS-SR, with or without the optional battery and charger package. RTR does not mean batteries are included: a compatible drive battery and four AA transmitter batteries are required.

Adjust the Drivetrain as the Route Changes

Move from an open trail to a technical obstacle and you can select a different drivetrain configuration through the radio rather than making manual changes at the truck.

• RWD, FWD and AWD: Select rear-wheel, front-wheel or all-wheel drive from the transmitter.
• Remote differential locks: Control the front and rear differential locks through the radio.
• Two-speed transmission: Choose high or low gear, with forward and reverse available.
• FOC brushless system: The customized 1800KV Hobbywing Fusion 8IGHT motor and ESC combination is supplied installed.

Steel Chassis, Metal Drivetrain and Mixed Suspension

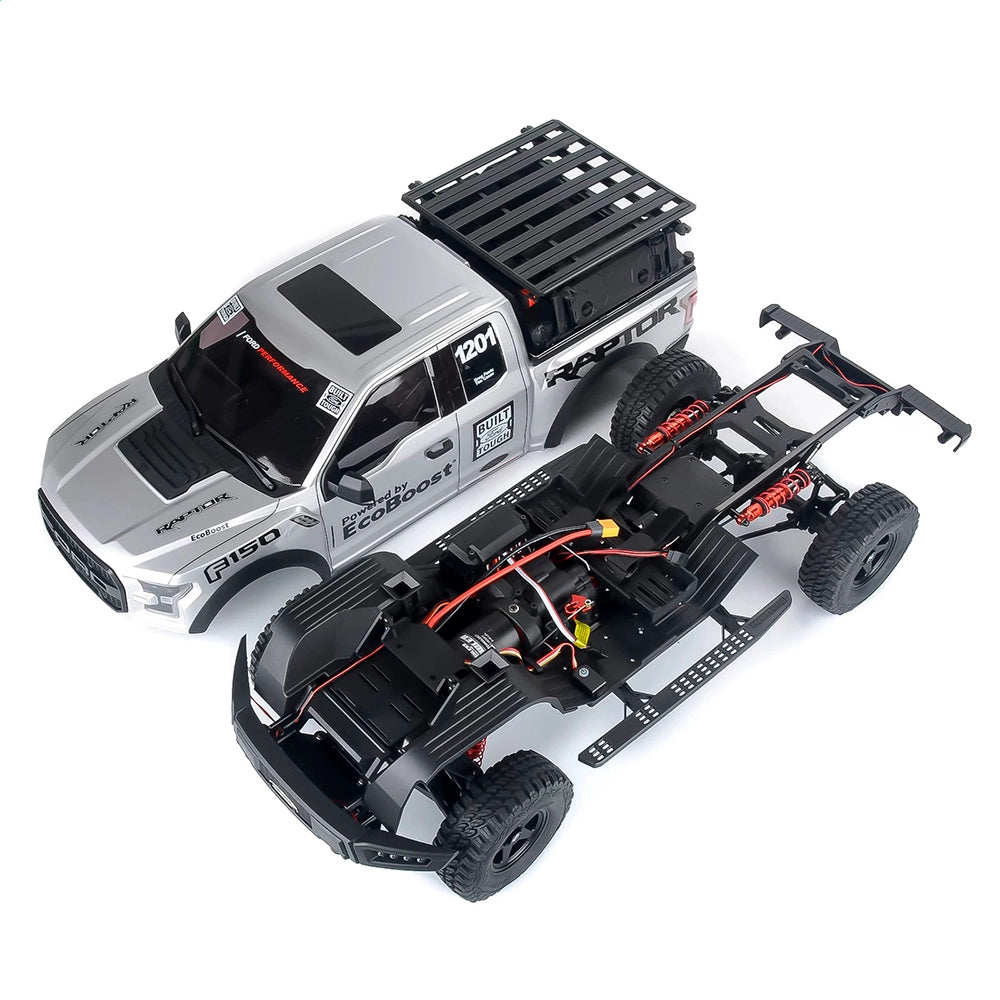

The F150BRS combines independent suspension at the front with a solid axle at the rear. Its 1.5mm steel C-channel chassis carries metal transmission gears, 7mm metal driveshafts and 5mm alloy-steel suspension rods.

Adjustable full-metal oil shocks measure 81mm at the front and 93mm at the rear. The front shocks sit upright, while the rear shocks use a horizontal arrangement. Both are specified with 550CST shock oil.

A TH1230 30kg coreless high-voltage steering servo operates through a 25T metal arm. Four TH1036 4kg auxiliary servos handle shifting, differential locks and drive-mode functions.

Ford F-150 Scale Details

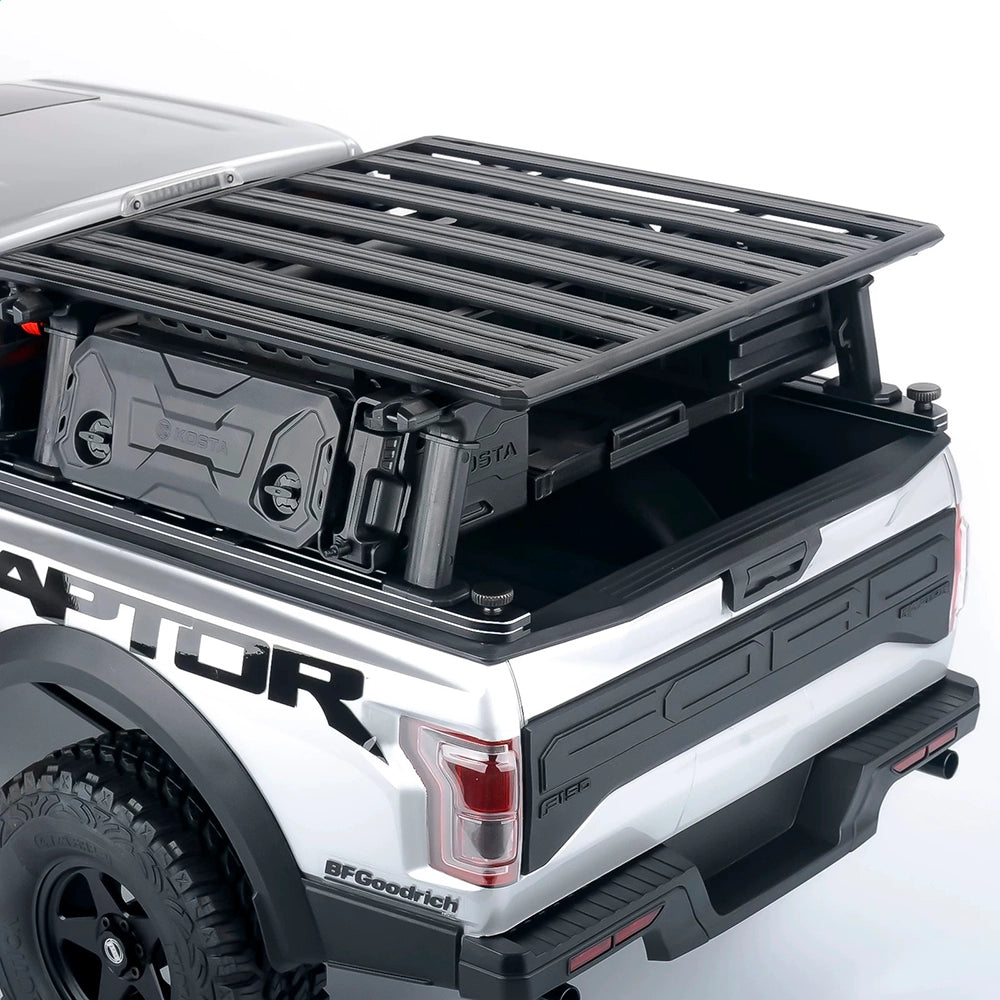

The Ford-licensed pickup body uses 1.5mm PC material, with wiper details, an interior, an SMT + LED lighting kit and a KOSTA simulated tailgate kit. PROCOMP XTREME MT2 tires measure 120 × 42mm and sit on 2.2-inch CNC five-star metal wheels.

Technical Specifications

Choose Your Color and Battery Package

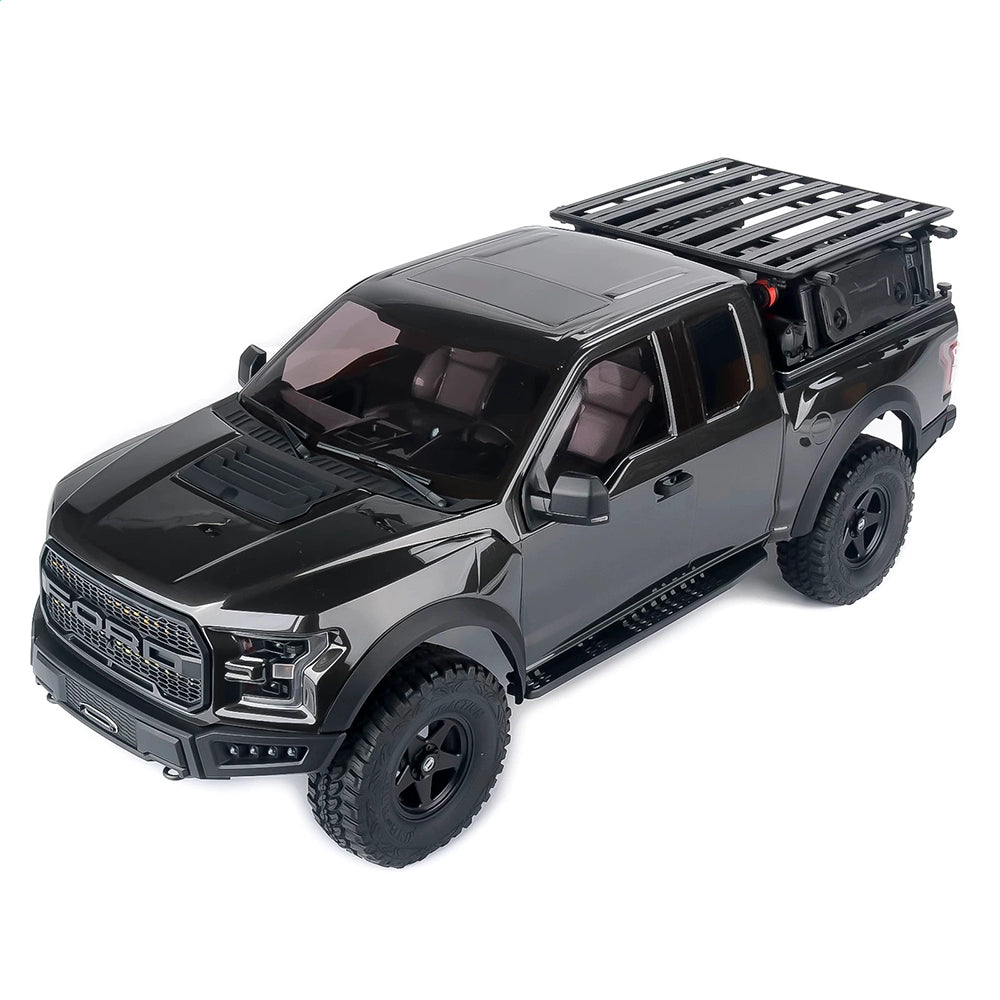

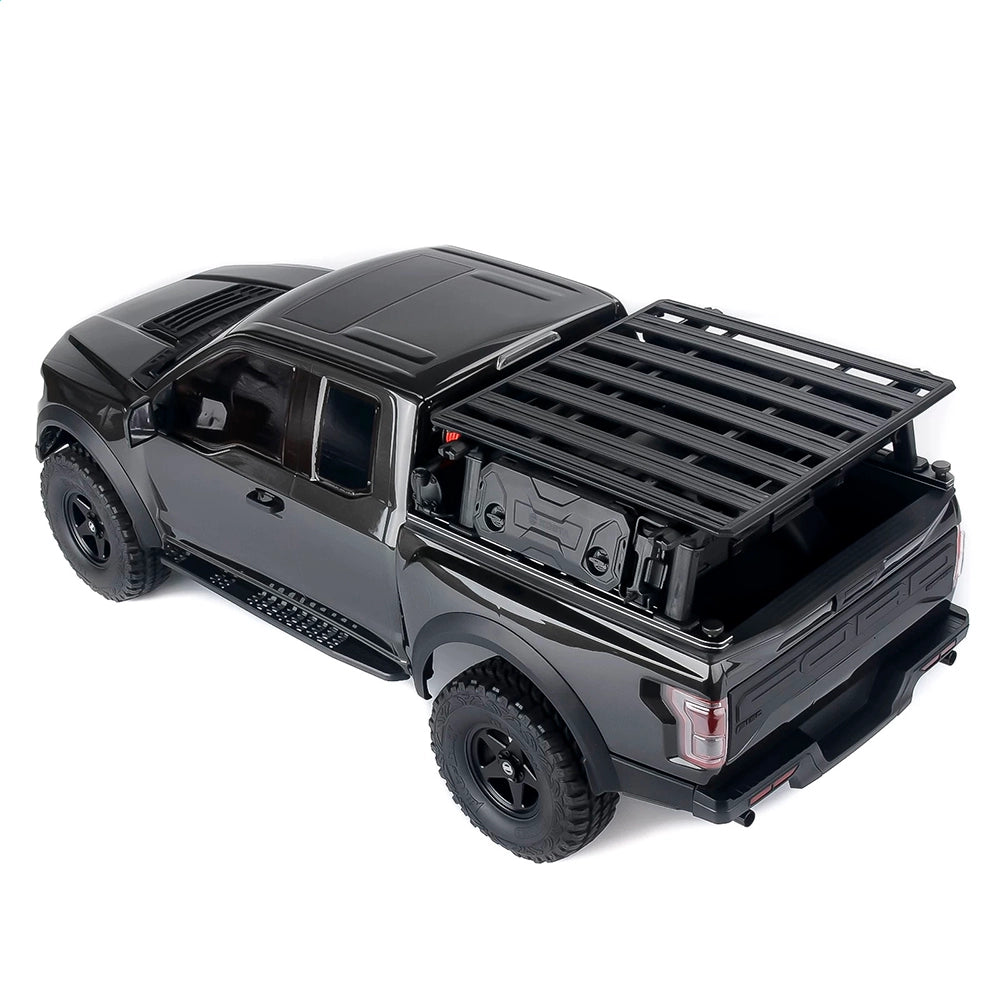

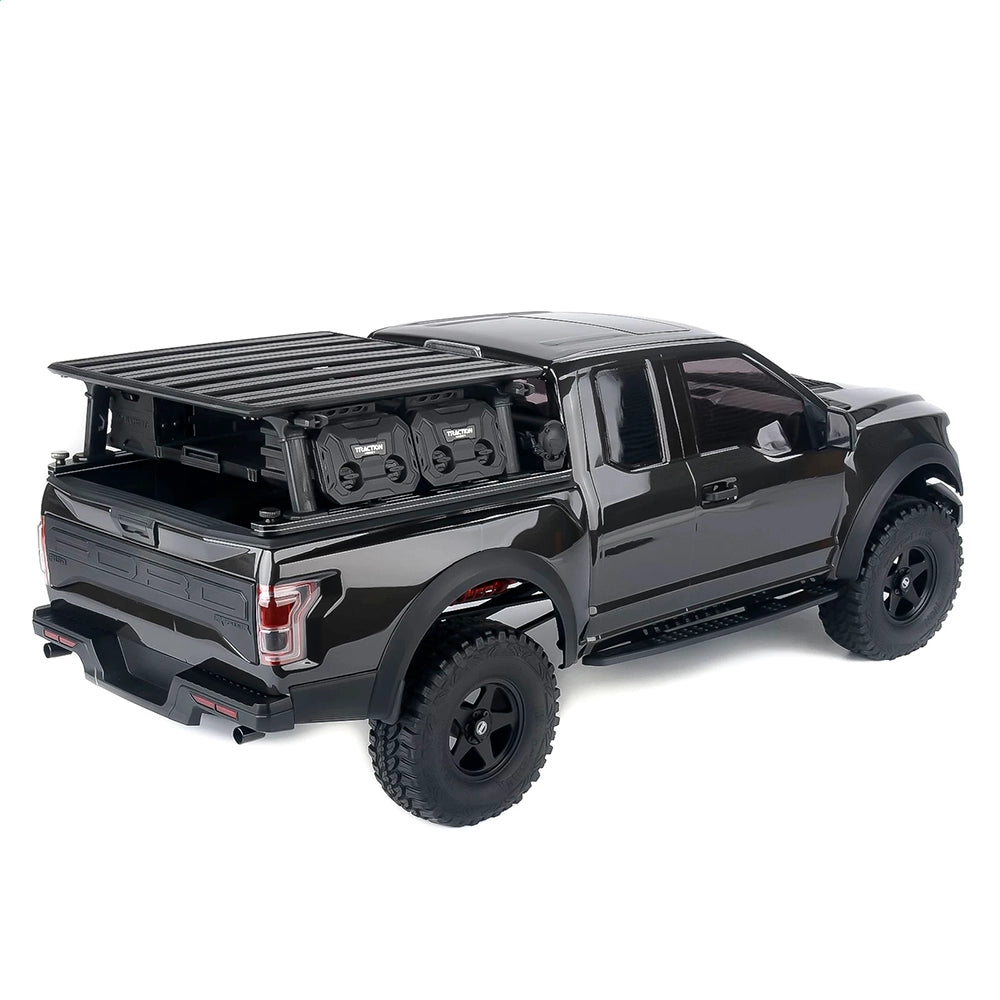

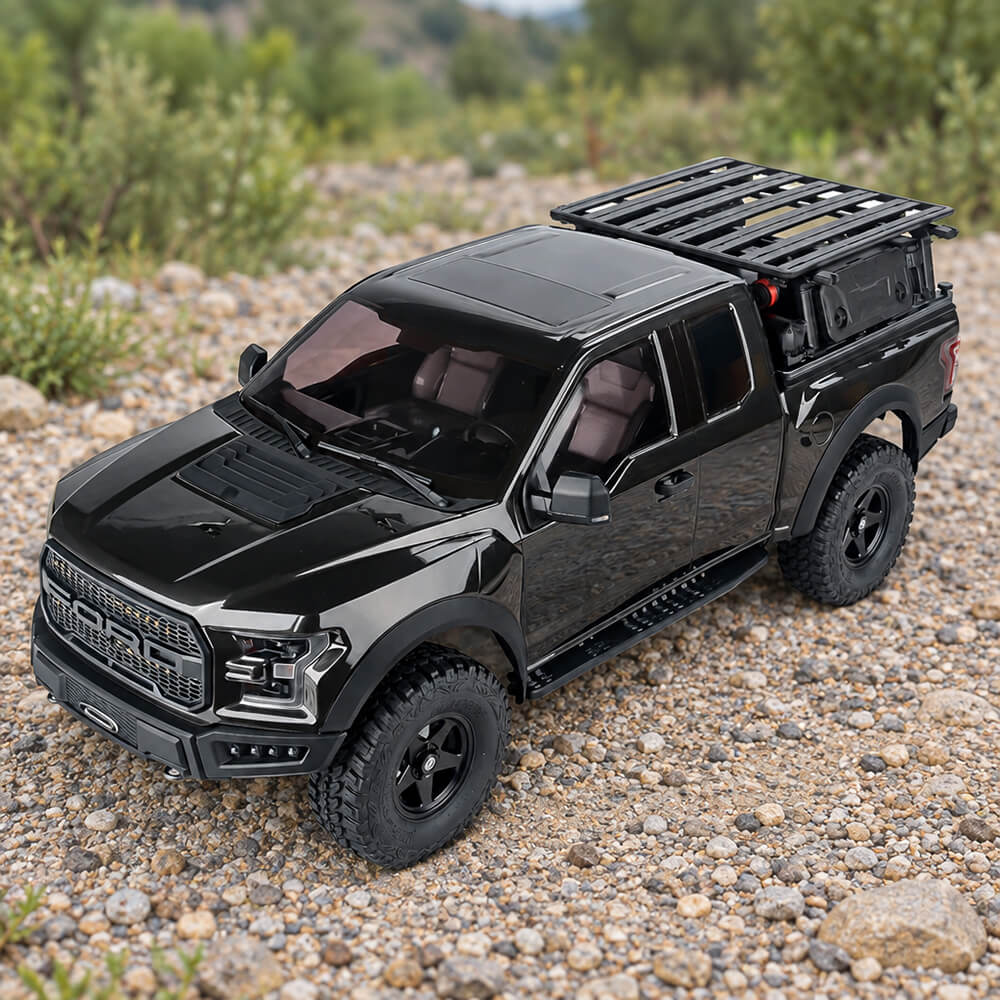

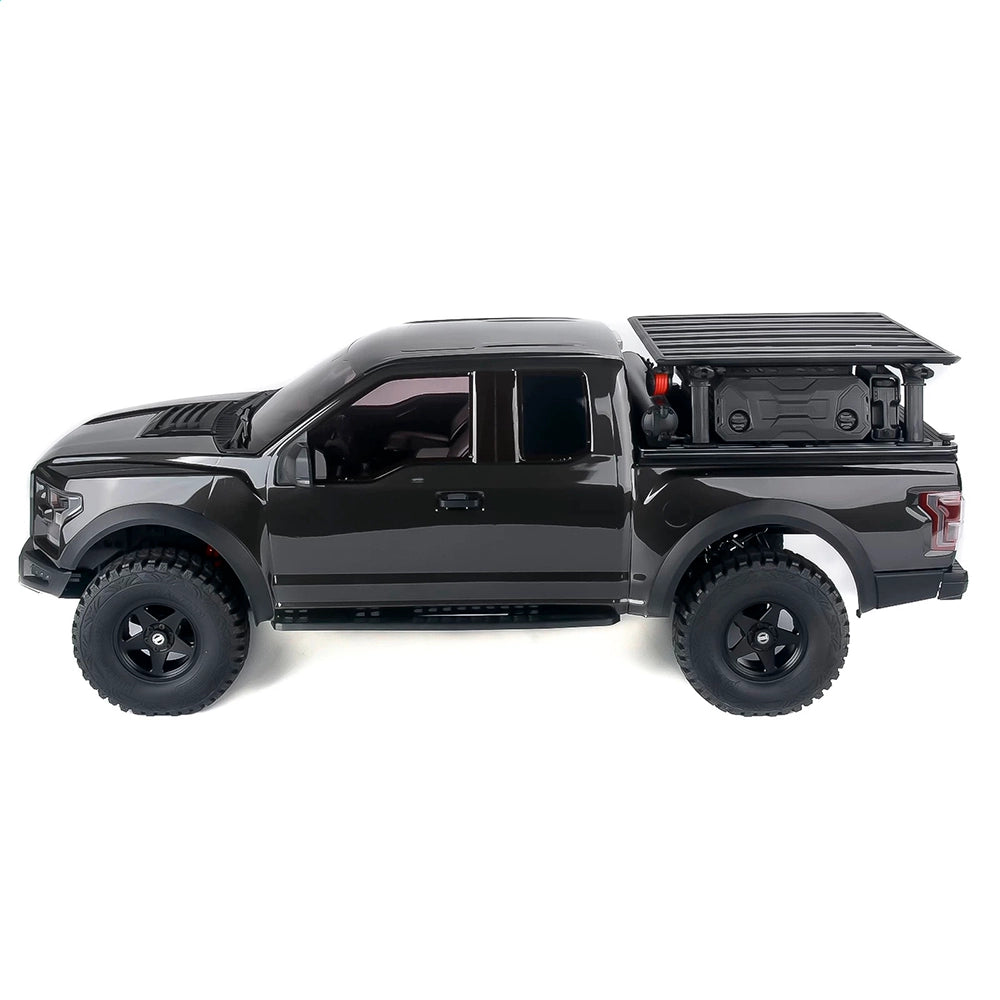

• Black: F150BRS-DG

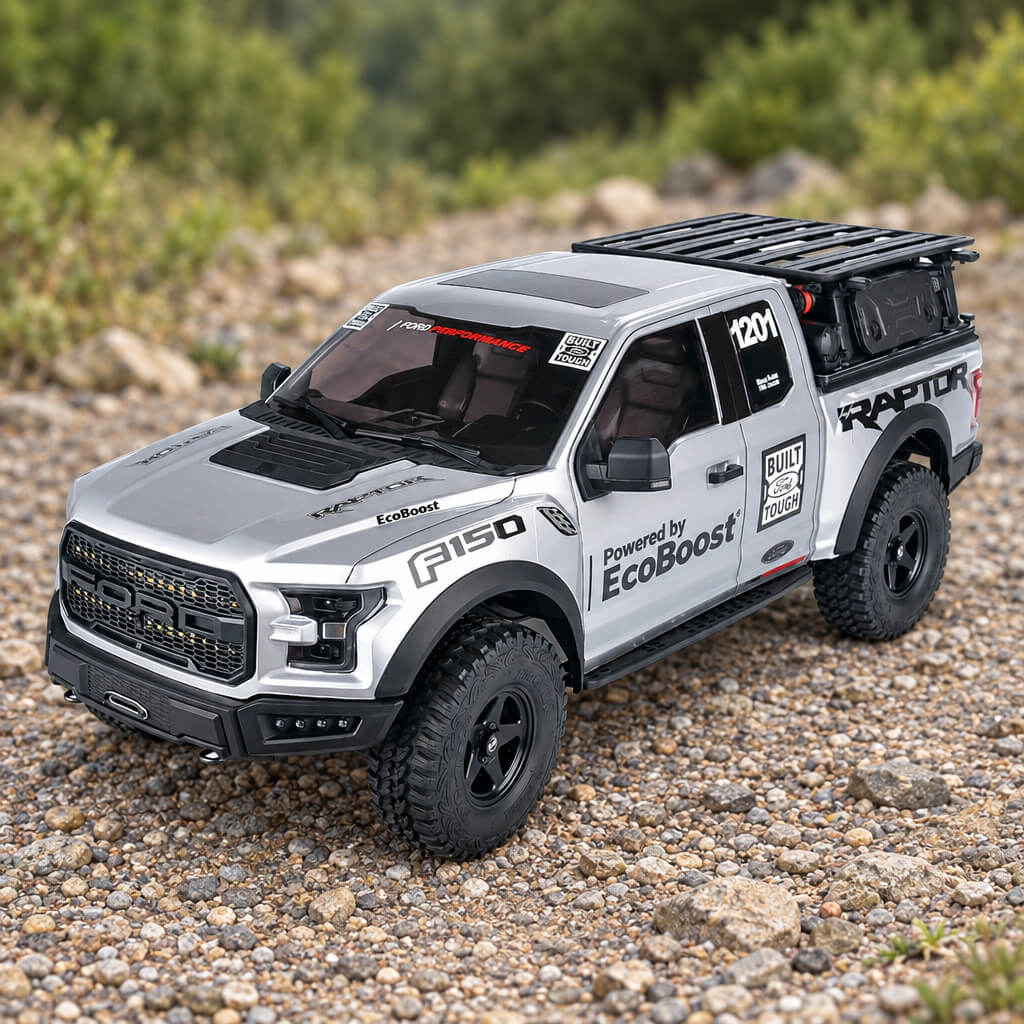

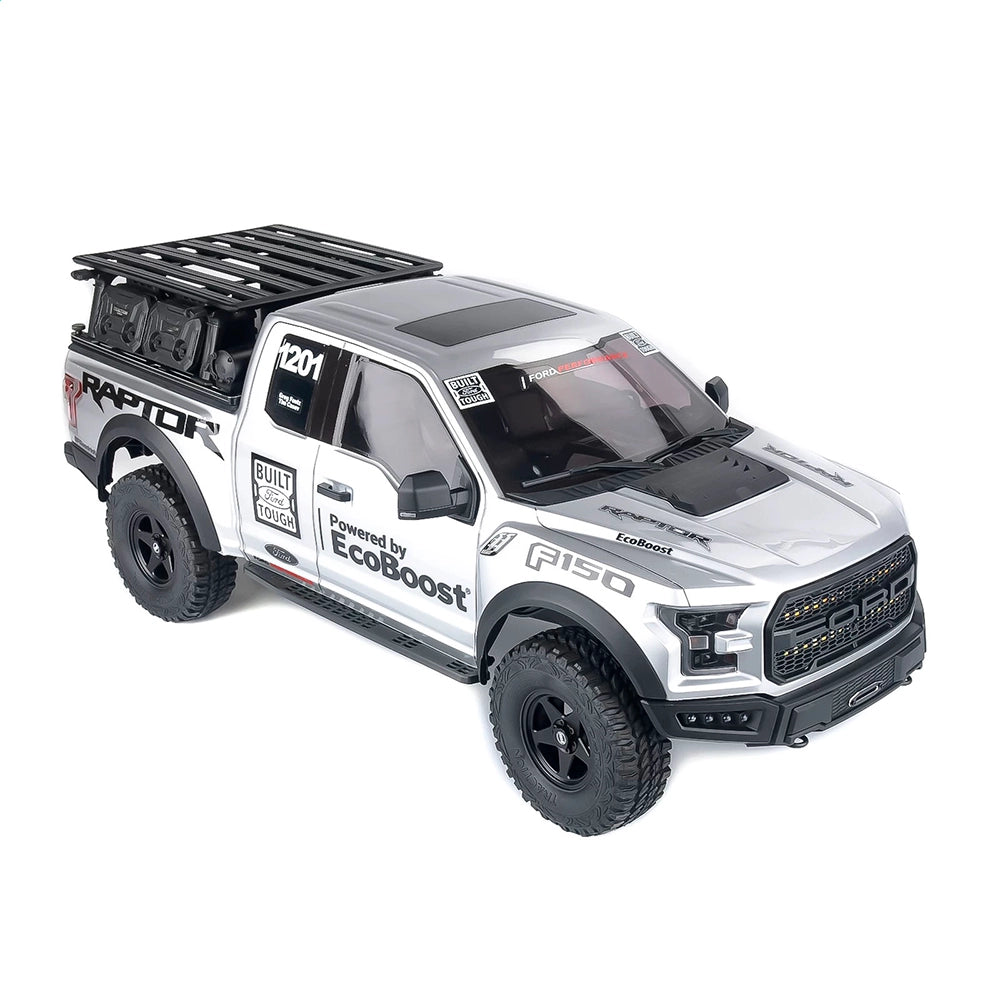

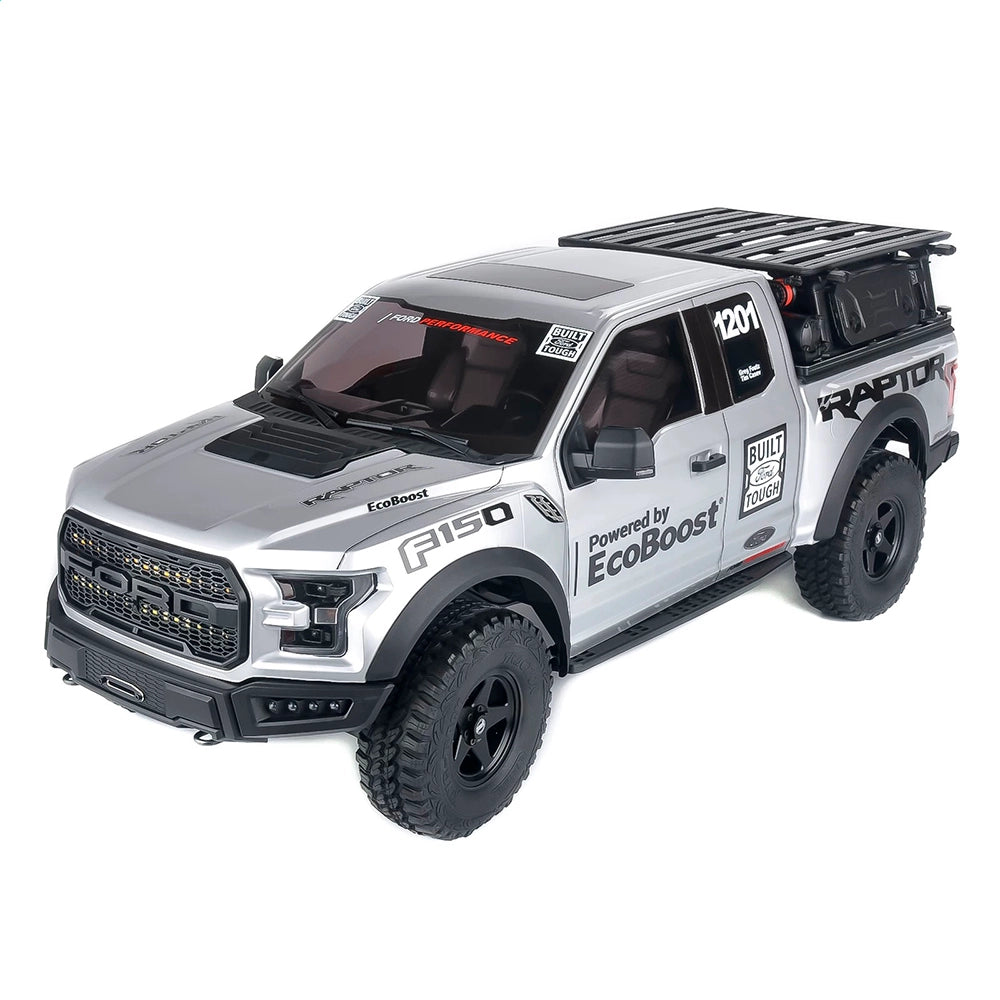

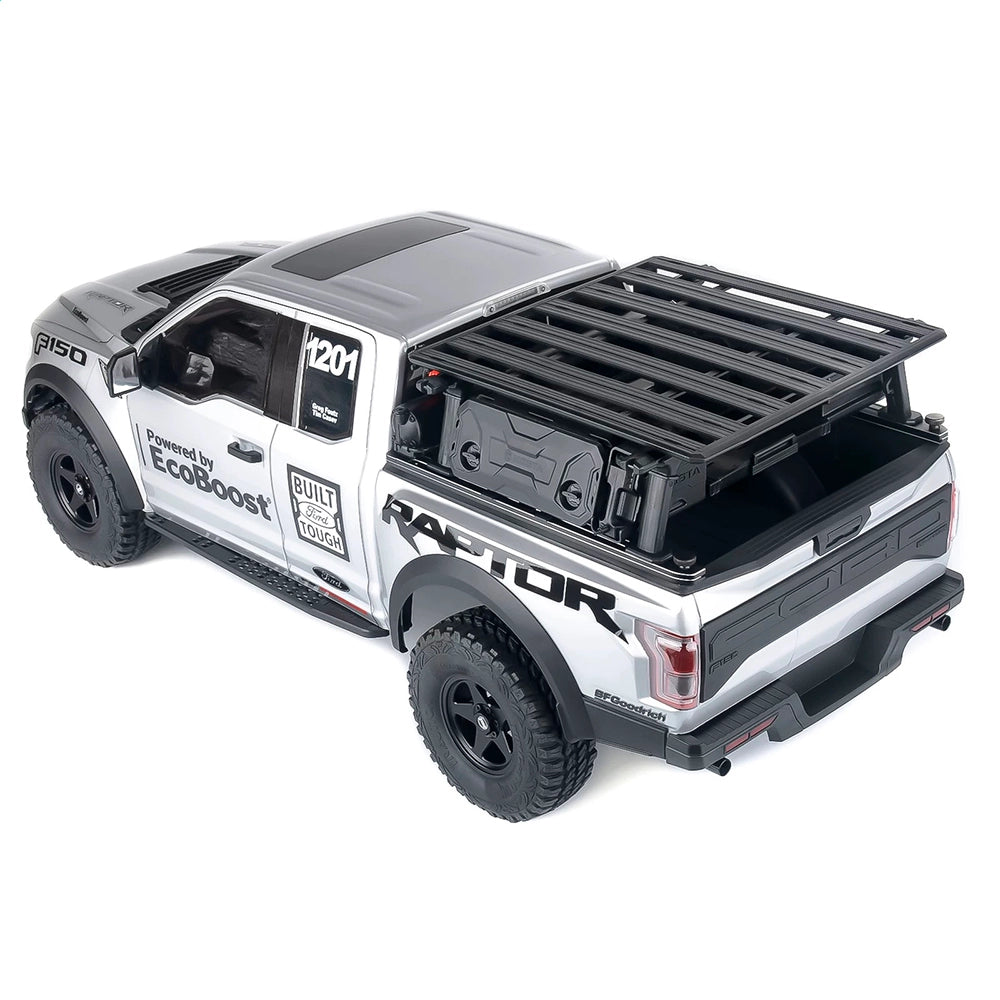

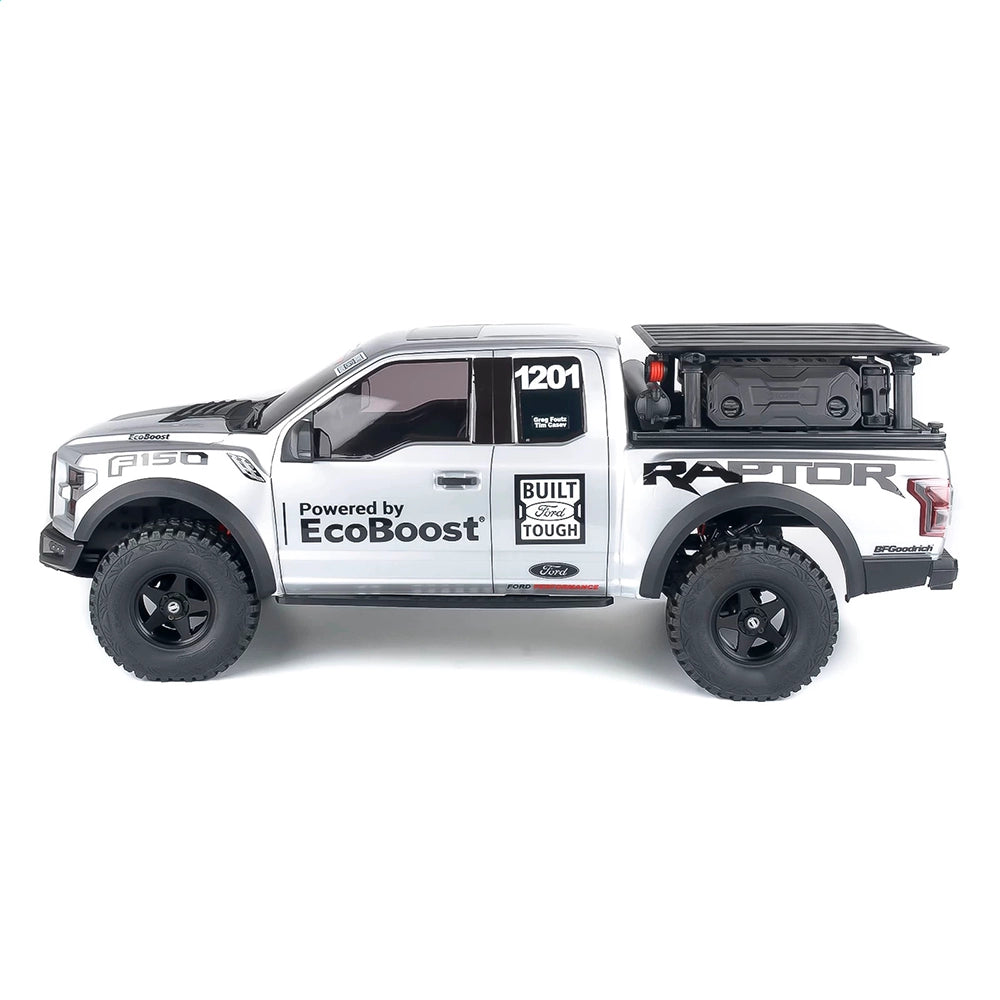

• Silver: F150BRS-SR
• Without battery and charger: RTR truck and transmitter supplied without a drive battery or charger.
• With battery and charger: Adds a Gens ACE Redrock G-tech 5200mAh 50C 11.1V 3S LiPo battery and a Gens ACE iMars S60 smart balance charger.

The truck supports 2–4S LiPo batteries. The optional iMars S60 supports 2–4S LiPo/LiHV batteries. Confirm the selected battery's dimensions and connector against the vehicle requirements before ordering.

Four AA transmitter batteries are not included with either package.

Package Contents

• 1 × TRACTION HOBBY KM Raptor F150 F150BRS RTR truck

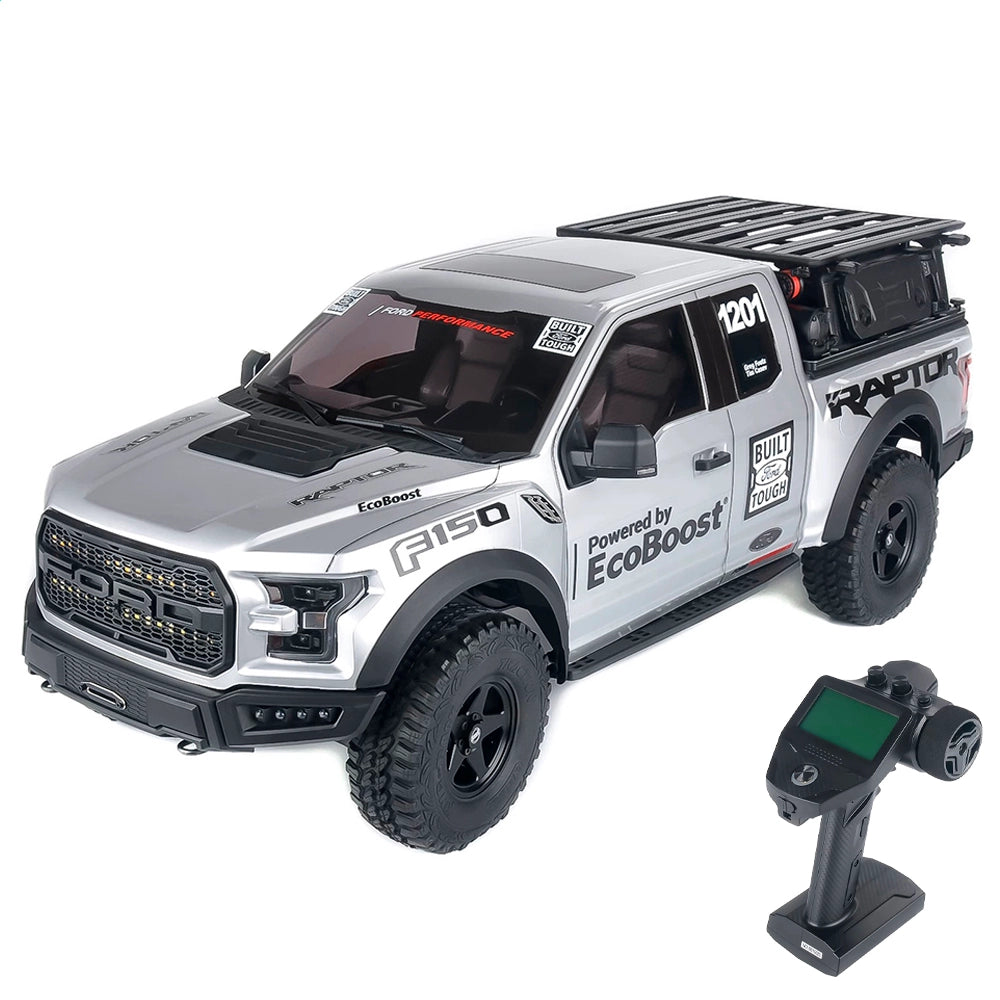

• 1 × FlySky FS-G7P+ 10-channel 2.4GHz transmitter
• Installed Hobbywing Fusion 8IGHT FOC brushless motor and ESC system
• Installed TH1230 30kg steering servo
• 4 × Installed TH1036 4kg auxiliary servos
• Installed SMT + LED simulation lighting kit
• 1 × KOSTA simulated tailgate kit
• User documentation

The motor system, servos and lighting listed above are installed components, not extra spare units. A drive battery and charger are included only with the corresponding package selection. Package contents may vary by batch.

Frequently Asked Questions

Is the TRACTION HOBBY KM Raptor F150 ready to run?

The F150BRS is an assembled RTR truck with its brushless system, radio equipment, servos and lighting installed. To use it, you need a compatible charged drive battery and four AA batteries for the transmitter. A drive battery and charger are available in the optional package.

What colors and model codes are available?

The available choices are Black F150BRS-DG and Silver F150BRS-SR.

Which drive modes can I select?

You can select rear-wheel drive, front-wheel drive or all-wheel drive through the transmitter.

Are the front and rear differential locks remotely controlled?

Yes. Both the front and rear differential locks are controlled through the radio.

Does the truck have high and low gears?

Yes. The transmission offers high and low gears, plus forward and reverse.

What battery fits the F150BRS?

Use a compatible 2–4S LiPo battery that fits within the 150 × 46 × 40mm compartment and connects to the vehicle-side XT60 male plug. The optional package specifies a Gens ACE Redrock G-tech 5200mAh 50C 11.1V 3S LiPo battery. Check its dimensions and connector before ordering.

What comes with the battery and charger package?

The optional package adds the Gens ACE Redrock G-tech 5200mAh 50C 11.1V 3S LiPo battery and Gens ACE iMars S60 smart balance charger.

What are the package dimensions and weight?

The listed package dimensions are 77 × 36 × 33cm, with a package weight of 10.4kg.

Are transmitter batteries included?

No. You will need four AA batteries for the FlySky FS-G7P+ transmitter.
