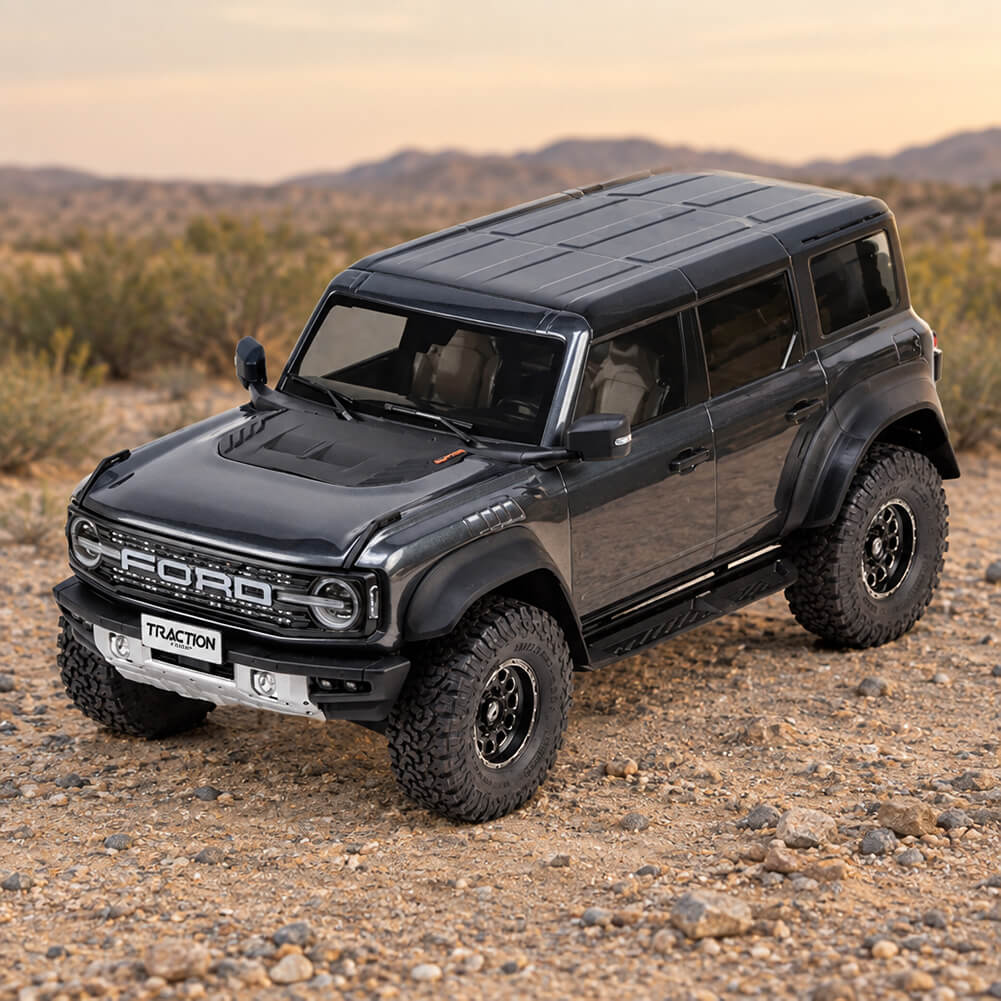

TRACTION HOBBY KM Ford Bronco Raptor 1/8 RTR RC Crawler – Brushless 4WD & Remote Diff Locks

A Large-Scale Bronco with Drivetrain Control at Your Fingertips

The TRACTION HOBBY KM Ford Bronco Raptor is an officially licensed 1/8-scale RTR RC crawler powered by a Hobbywing Fusion 8IGHT 1800KV FOC brushless system. It combines selectable RWD, FWD and AWD with high/low gearing and remotely controlled front and rear differential locks.

Its suspension layout pairs independent double wishbones at the front with a solid axle at the rear. A 1.5mm steel C-channel chassis supports the drivetrain, while the quick-release Ford Bronco Raptor body adds scale detail and access to the components beneath it.

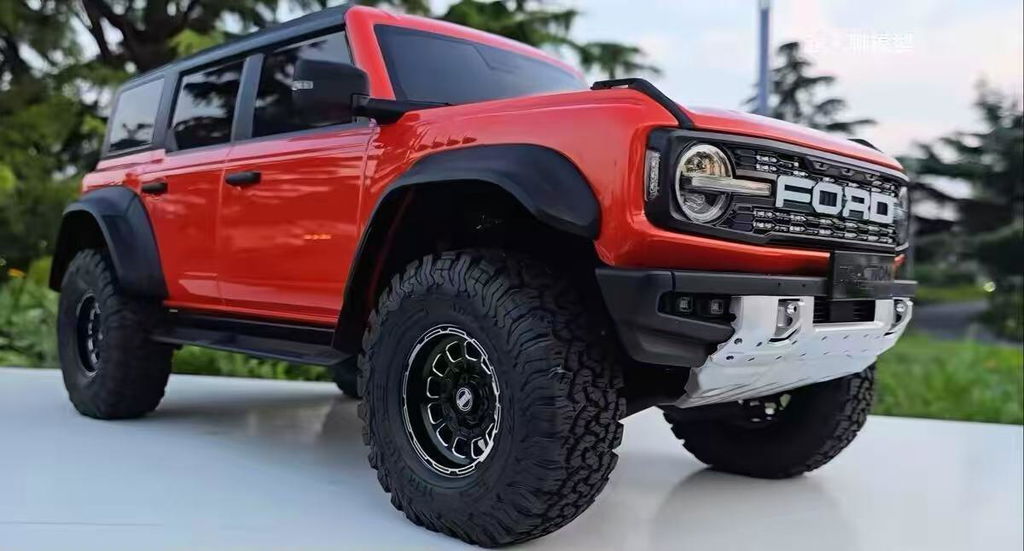

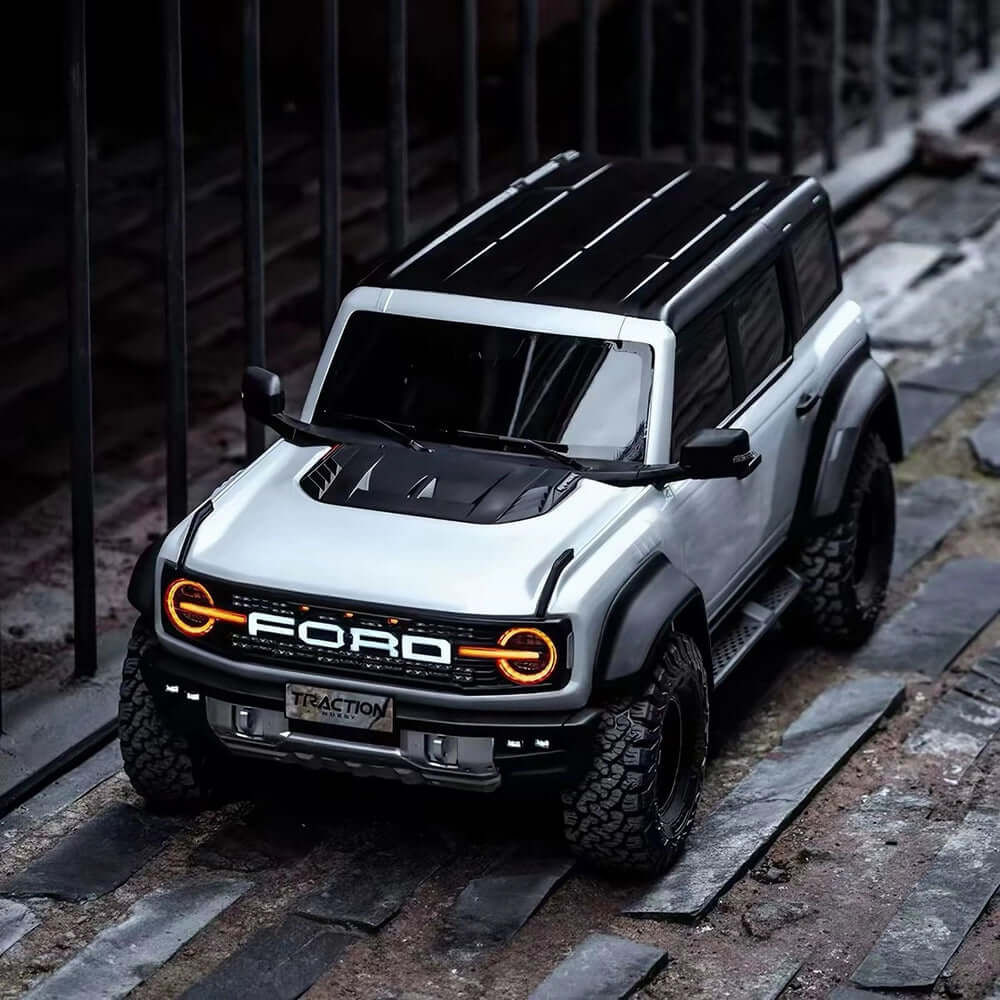

Available in Orange, Gunmetal Grey, White and Yellow, the truck can be ordered without a drive battery and charger or with the optional Gens ACE battery and charger package.

Control More Than Steering and Throttle

When the route changes, the KM Bronco Raptor lets you adjust the drivetrain through the included transmitter. Select the drive mode, choose high or low gear, and operate the differential locks without making manual changes at the axles.

• Three drive modes: Select rear-wheel drive, front-wheel drive or all-wheel drive.
• Remote differential locks: Control the front and rear locks from the radio.
• High/low transmission: Choose between two gear ranges, with reverse available.
• Integrated planetary gearbox: Four-output-shaft transmission design.
• FOC brushless system: Factory-installed Hobbywing Fusion 8IGHT 2-in-1 motor and ESC with a customized 1800KV motor.

Independent Front Suspension, Solid Rear Axle

The front double-wishbone suspension and rear solid axle give this Bronco a different mechanical layout from a crawler with solid axles at both ends. Adjustable metal oil-filled shocks measure 81mm at the front and 93mm at the rear, with 550CST shock oil specified.

Steering is handled by a 30kg coreless servo with a 25T metal arm. TH1036 4kg function servos operate the shifting, differential-lock and drive-mode functions.

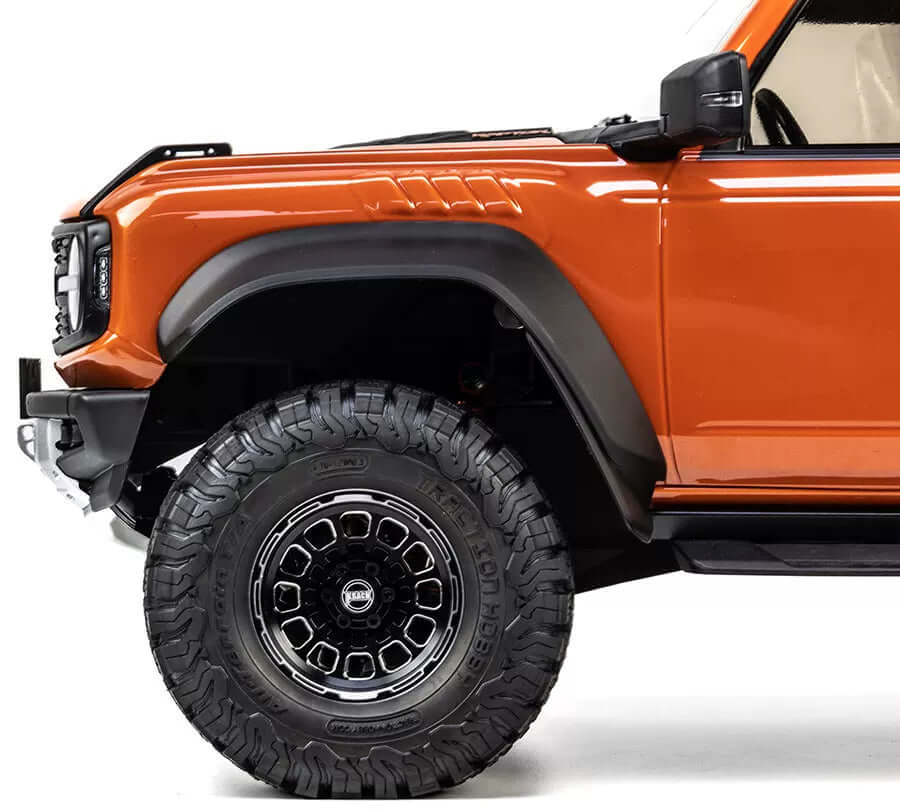

The truck rides on 120 × 43mm KO2-style scale all-terrain tires and 2.2-inch CNC aluminum wheel hubs.

Ford-Licensed Body with Practical Access

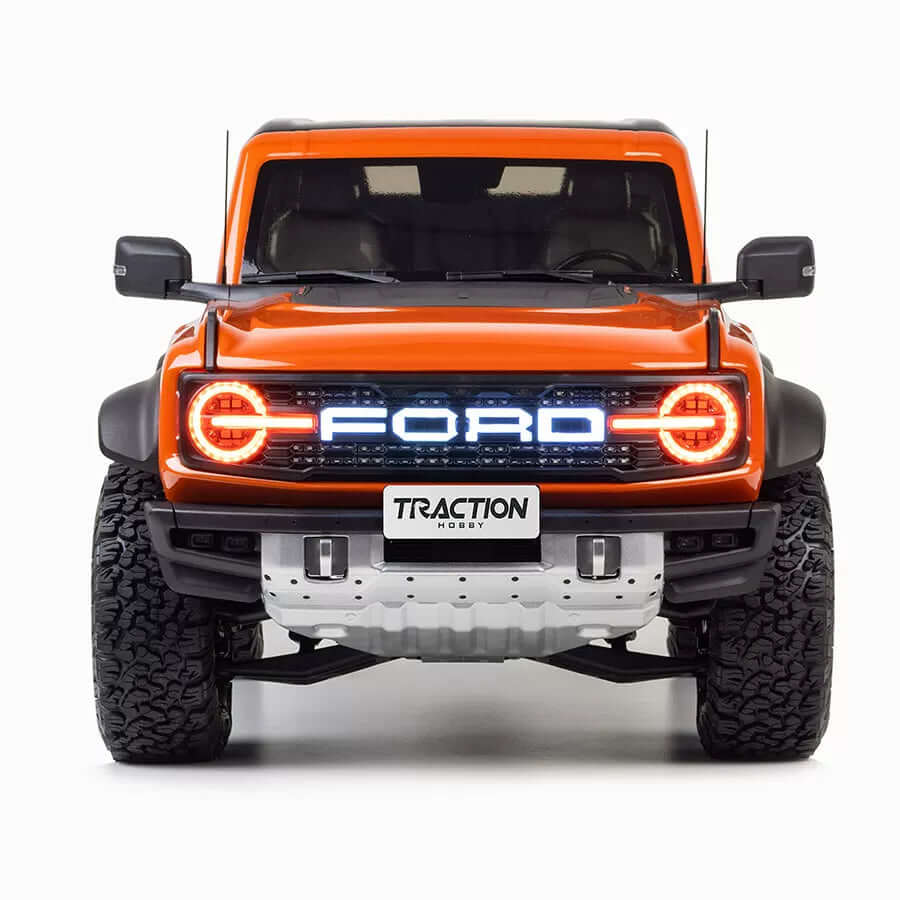

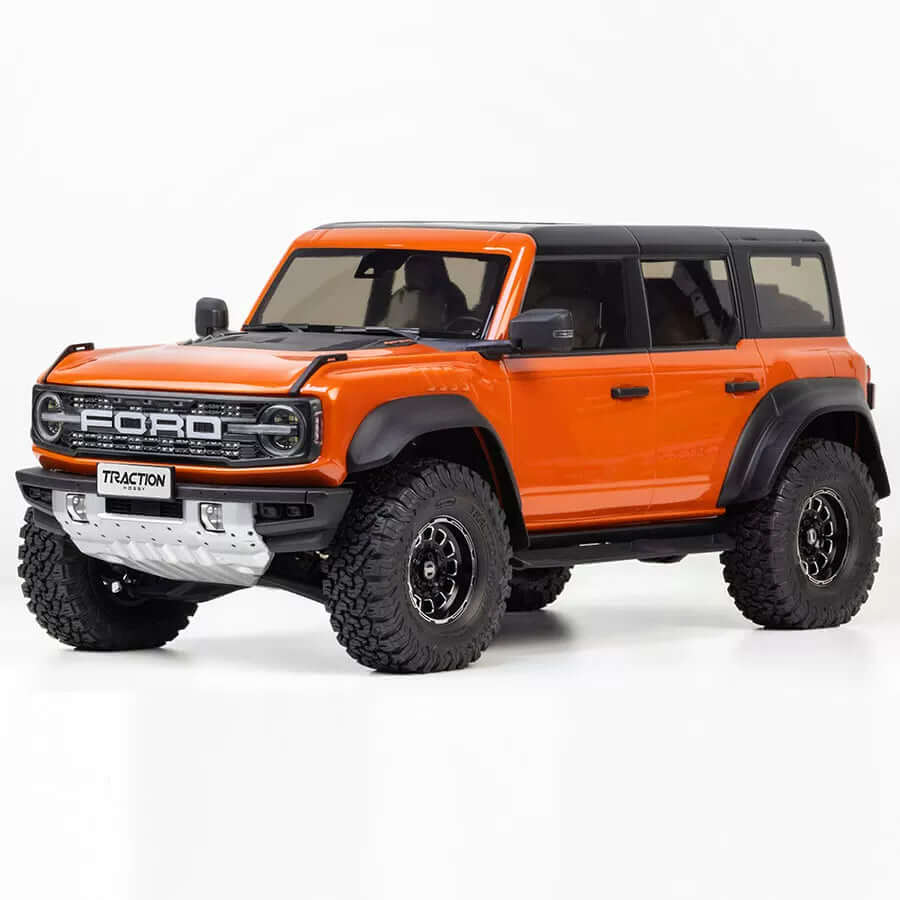

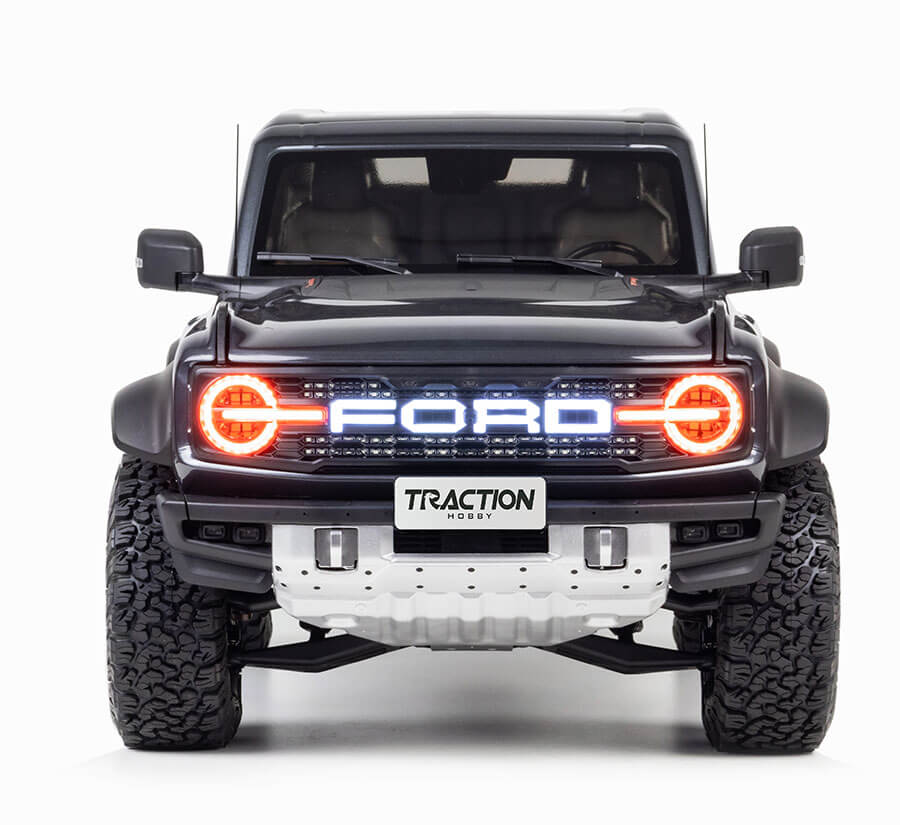

The 1.5mm vacuum-molded PC body reproduces the Ford Bronco Raptor design and uses a quick-release mounting system. Wipers, mirrors, door handles and interior details complete the scale appearance, alongside an integrated lighting system.

The FlySky FS-G7P+ transmitter provides 10-channel, 2.4GHz control with a color LCD display and gyro.

Technical Specifications

Choose Your Color and Power Package

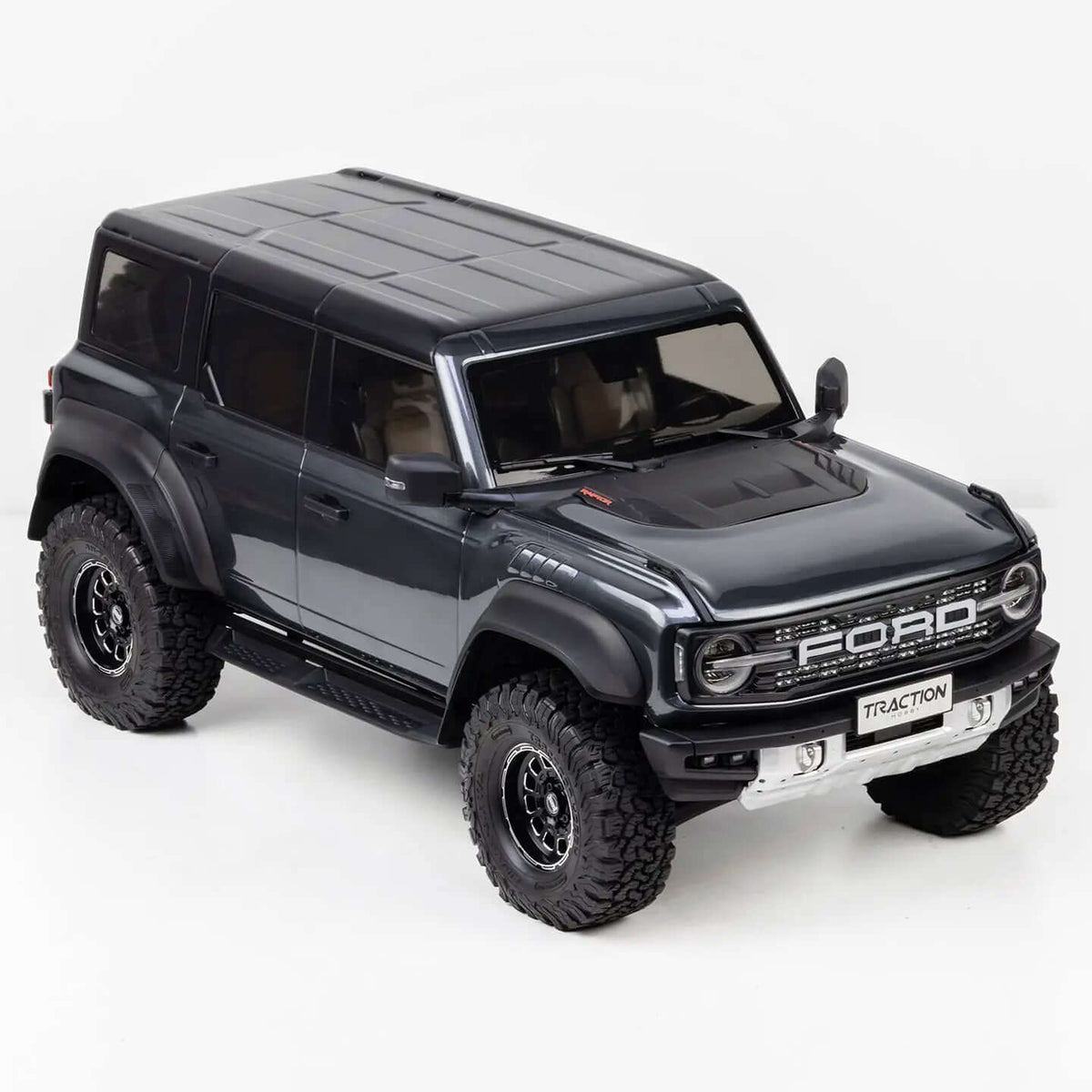

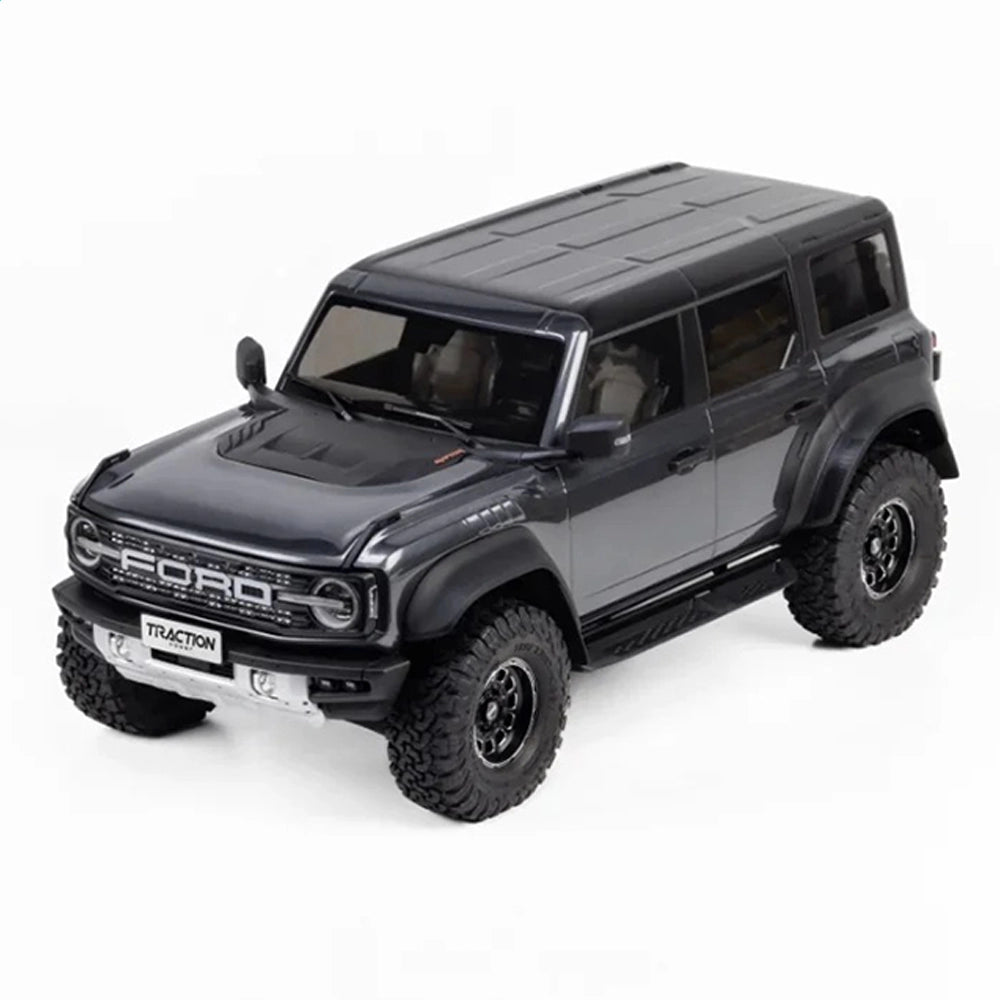

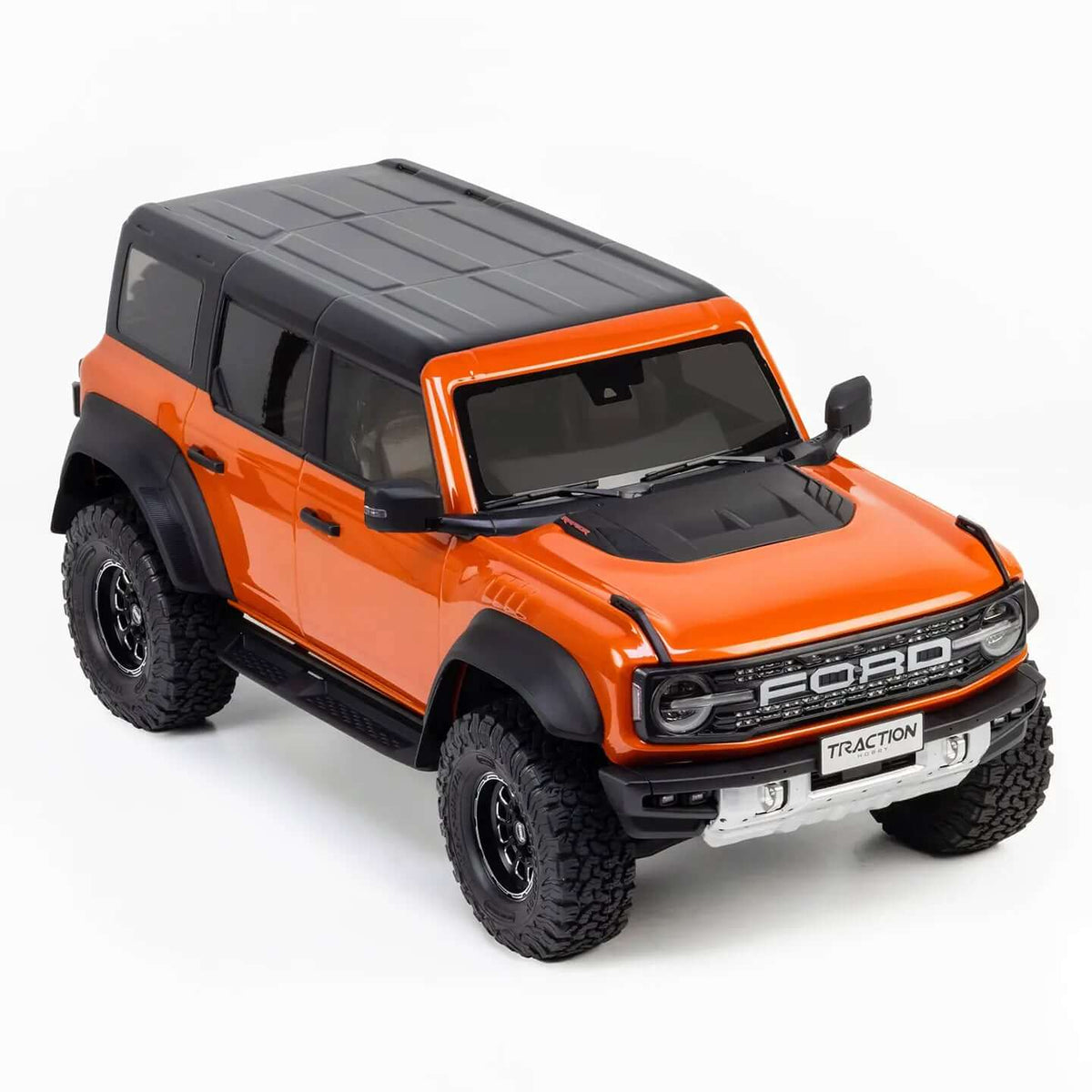

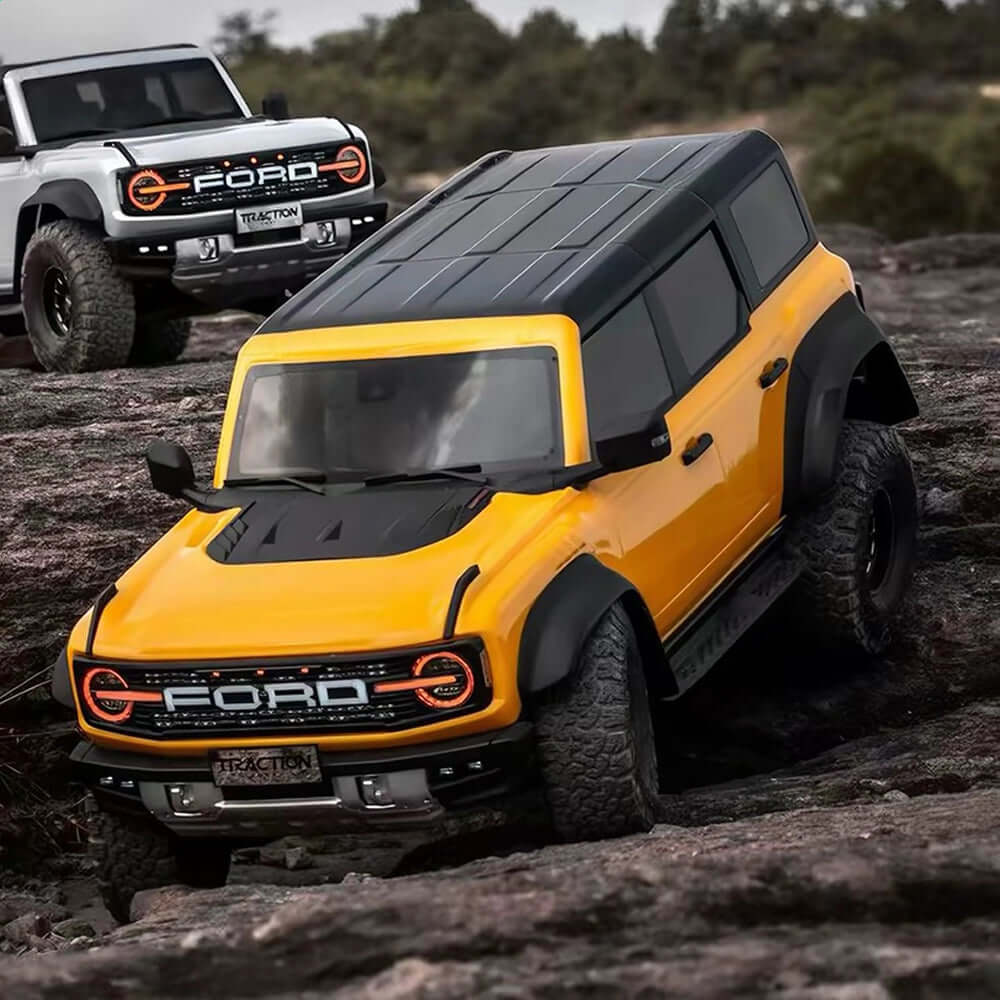

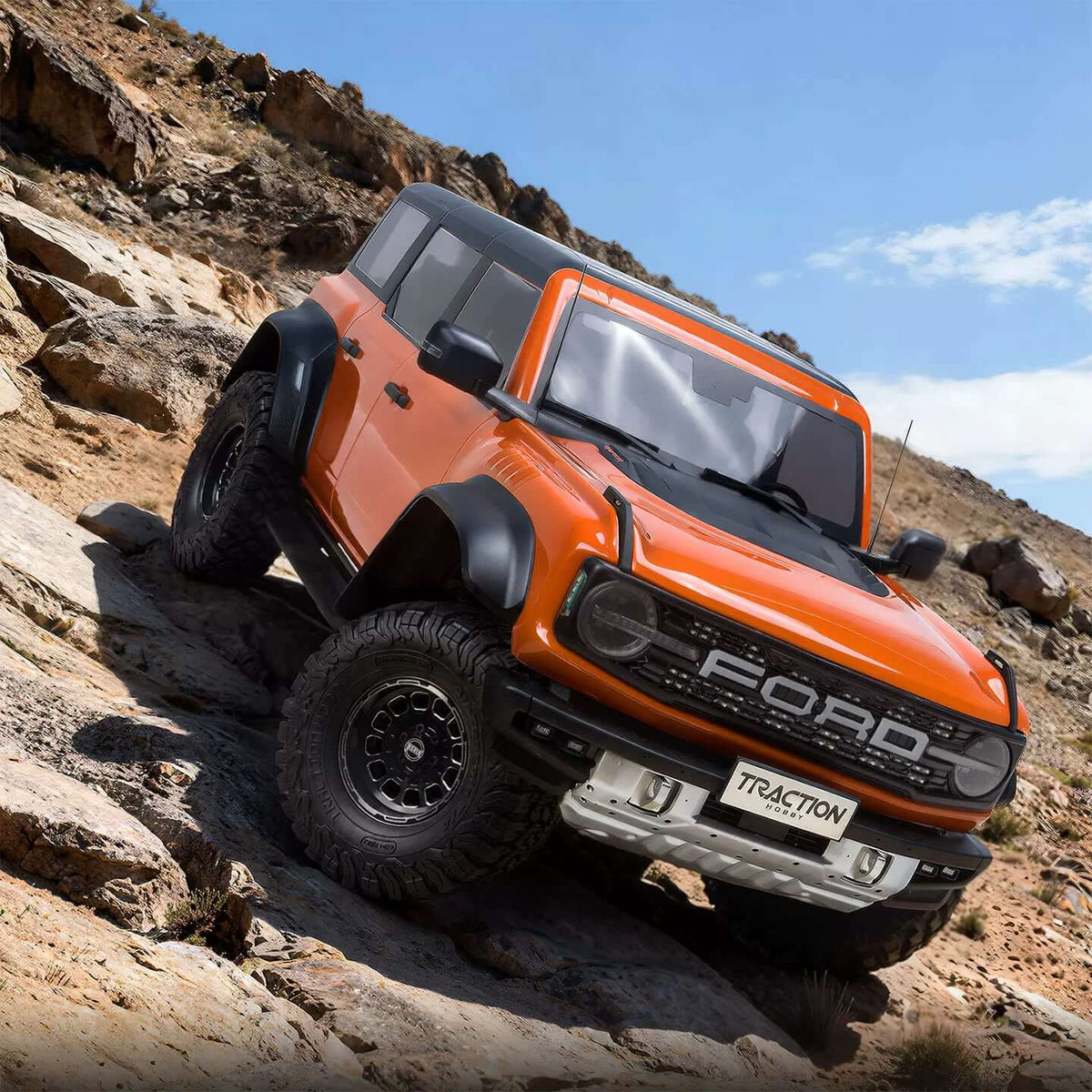

Select Orange, Gunmetal Grey, White or Yellow from the available options.

Without Battery & Charger

Includes the RTR truck and transmitter. A drive battery and charger must be supplied separately.

With Battery & Charger

Adds the following items to the RTR package:

• Gens ACE REDROCK 6000mAh 4S 14.8V 70C LiPo battery
• Gens ACE iMars S60 smart balance charger

Confirm the selected battery's dimensions and connector against the truck's 150 × 46 × 40mm tray and XT60 connection before ordering.

Four AA transmitter batteries are not included with either package.

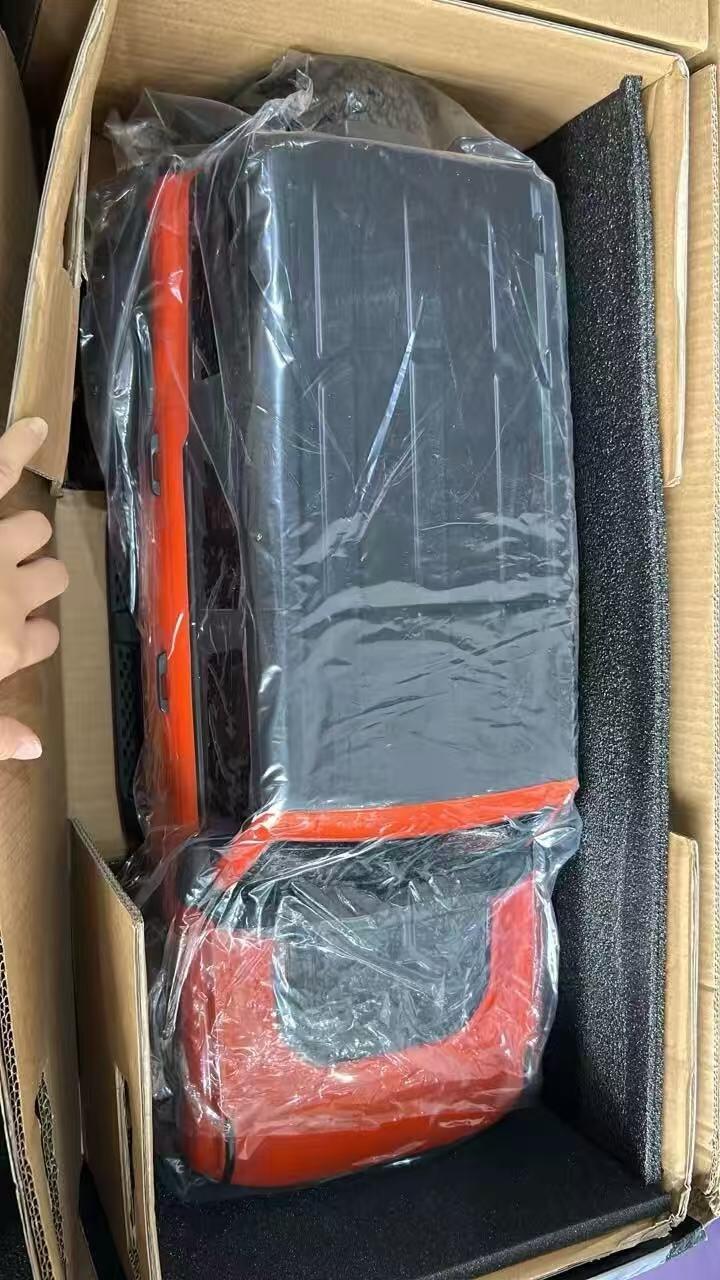

What Comes in the Box?

• 1 × TRACTION HOBBY KM Ford Bronco Raptor 1/8 RTR RC crawler in the selected color
• 1 × FlySky FS-G7P+ 10-channel 2.4GHz transmitter
• Factory-installed Hobbywing Fusion 8IGHT brushless motor and ESC system
• Factory-installed steering and function servos
• Factory-installed lighting system
• User documentation

The installed electronics are components of the vehicle, not extra spare units. The drive battery and charger are included only with the corresponding package option.

Frequently Asked Questions

Is the TRACTION HOBBY KM Ford Bronco Raptor ready to run?

The RTR truck comes assembled with its radio equipment, motor, ESC, servos and lighting installed. You need a compatible charged drive battery and four AA transmitter batteries before use. The listed drive battery and charger are available as an optional bundle.

Is the Bronco Raptor four-wheel drive?

Yes. AWD is available, and the truck also offers selectable rear-wheel and front-wheel drive modes through the transmitter.

Can I operate both differential locks remotely?

Yes. The front and rear differential locks are transmitter-controlled.

Does it have high and low gears?

Yes. The integrated transmission provides high and low gearing, plus reverse.

Which LiPo batteries can it use?

The vehicle supports 2S–4S LiPo batteries with a compatible XT60 connection. Maximum battery tray dimensions are 150 × 46 × 40mm.

What does the battery and charger option include?

It adds a Gens ACE REDROCK 6000mAh 4S 14.8V 70C LiPo battery and a Gens ACE iMars S60 smart balance charger. Four AA transmitter batteries are still required separately.

What suspension does it use?

The Bronco combines independent double-wishbone front suspension with a solid rear axle and adjustable metal oil-filled shocks.

Which colors are available?

Orange, Gunmetal Grey, White and Yellow, subject to availability.
