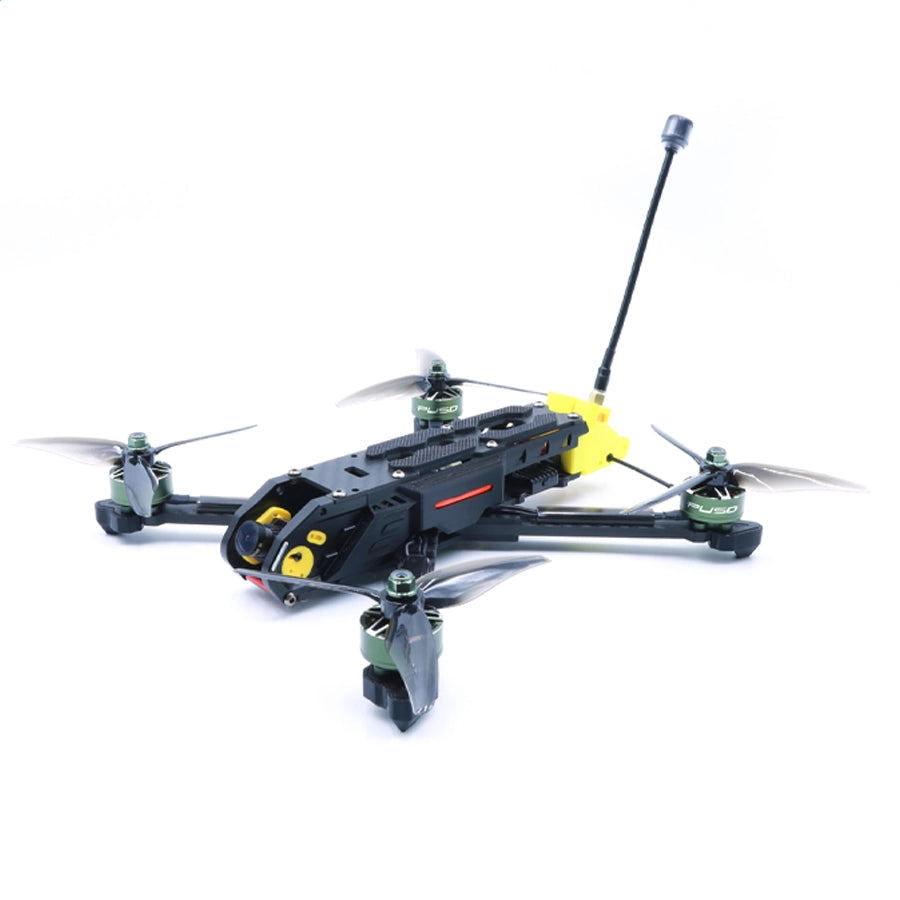

Rhion5 5-Inch FPV Drone RTF Kit with Optional Radio Transmitter and FPV Goggles

Regular price
$272.98
Regular price
Sale price
$272.98
Shipping calculated at checkout.

All U.S. Orders Tax-Free! | Secure Payment | Free Shipping

Color: 5 inch PNP
200 in stock

Why Buy From us

Caret Down

A FEW REASONS WHY BUY FROM US:

SAFE SHOPPING
We try our best to make your shopping experience not only pleasant, seamless and hassle-free, but also secure.

SAFE SHIPPING
Choose high-quality and flexible international shipping companies for cooperation, as well as free shipping and fast shipping options to ensure our quality service and experience.

RETURN PLAN
It's okay to change your mind! You can return your order for a full refund, and we offer you full 30-day buyer protection.

NEW ARRIVALS
Brand new products are available on a regular basis.

EXCELLENT CUSTOMER SERVICE
Knowledgeable and professional support team is always happy to help you.

ACCESSORY SUPPORT
Perfect product accessories service, if the product you purchased is damaged during use, please don't worry, you can contact us directly at service@funyat.com, or communicate with us in live chat, live chat time: Monday-Friday (9:00AM - 8:00PM EST), tell us the product model or your order number and the accessories you need.

EASY TRACKING

You will receive a notification email in your email once the package has been shipped. The tracking number and link inside are for tracking the timely status of the package.You can also track at Our order tracking page . Or if you need a team members help to check up, please contact with our service team service@funyat.com and we will be in touch with a status update.

Order Protection

Caret Down

Shopping cart can choose the package delay, loss, damage claim service!

Note: Opening the insurance service is only to respond to the accidental accident of the order, under normal circumstances, do not open the insurance service order will not be damaged and lost! Customers can choose according to their own needs.

What does Buyer Protection cover?
Buyer Protection is a service provided by Seel (a 17TRACK partner). It covers delayed, damaged, and lost items that meet the following criteria.

*Delay: Domestic packages not delivered before the 10th day following order fulfillment (i.e., the date when the order is shipped by the merchant) or international packages not delivered before the 30th day following order fulfillment are considered delayed. The compensation for delayed packages is $5 USD. (If the order is not transacted in USD, compensation will be made in the currency of the transaction. For example, if an order in euros is delayed, the compensation is €5.)

*Loss: Domestic packages not delivered 30 days after order fulfillment (i.e., the date when the order is shipped by the merchant) are considered lost. (60 days for international packages.) Lost packages will be compensated for the actual item(s) value paid.

*Damage: Buyer Protection covers item damages to the point that the item(s) are unusable, clearly fractured, shattered, bent (if not bendable), crushed, etc., but does not cover cosmetic damage (scratches, dents, etc.), manufacturing damages, packaging errors, or unsealed items. The compensation for damaged items will be up to the value paid for the purchased item(s).

*Buyer Protection also includes carbon-neutral shipment within the recipient’s country.

*Note: Total compensation for one cover is up to the value actually paid for the item(s).

Description

Caret Down

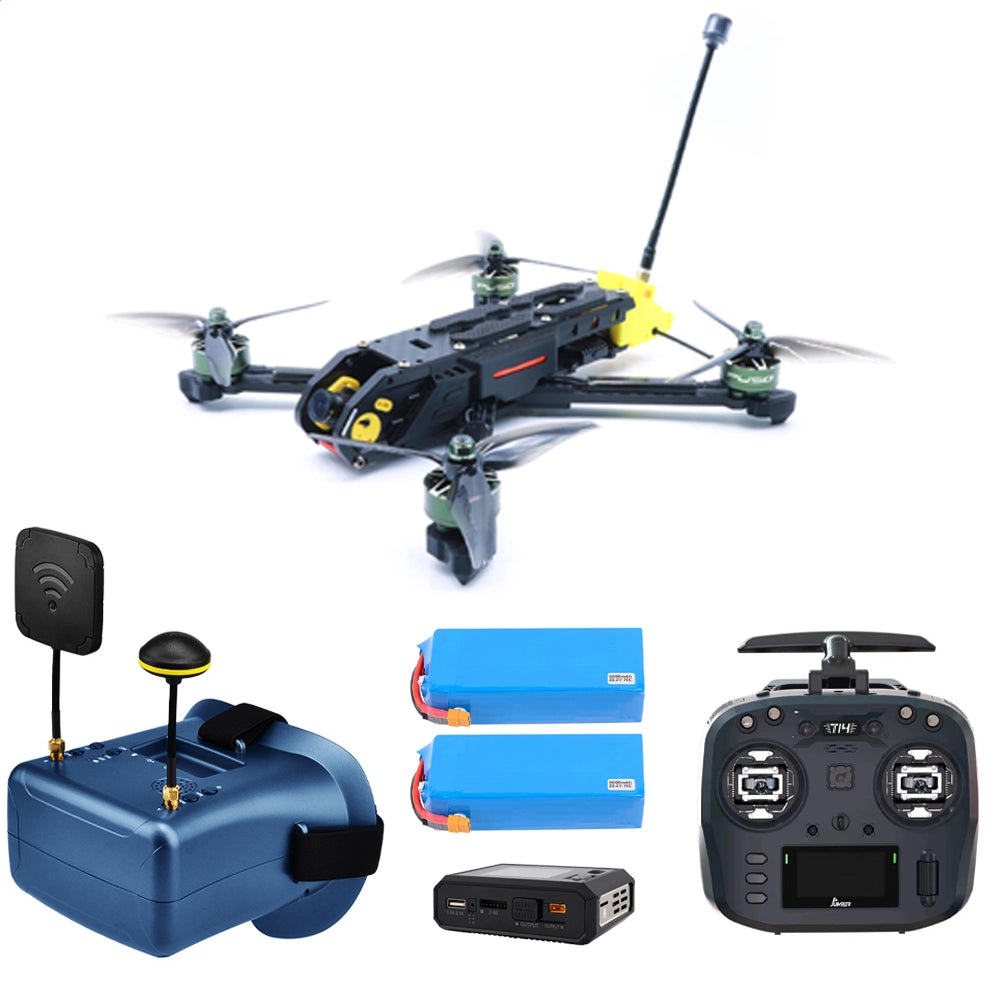

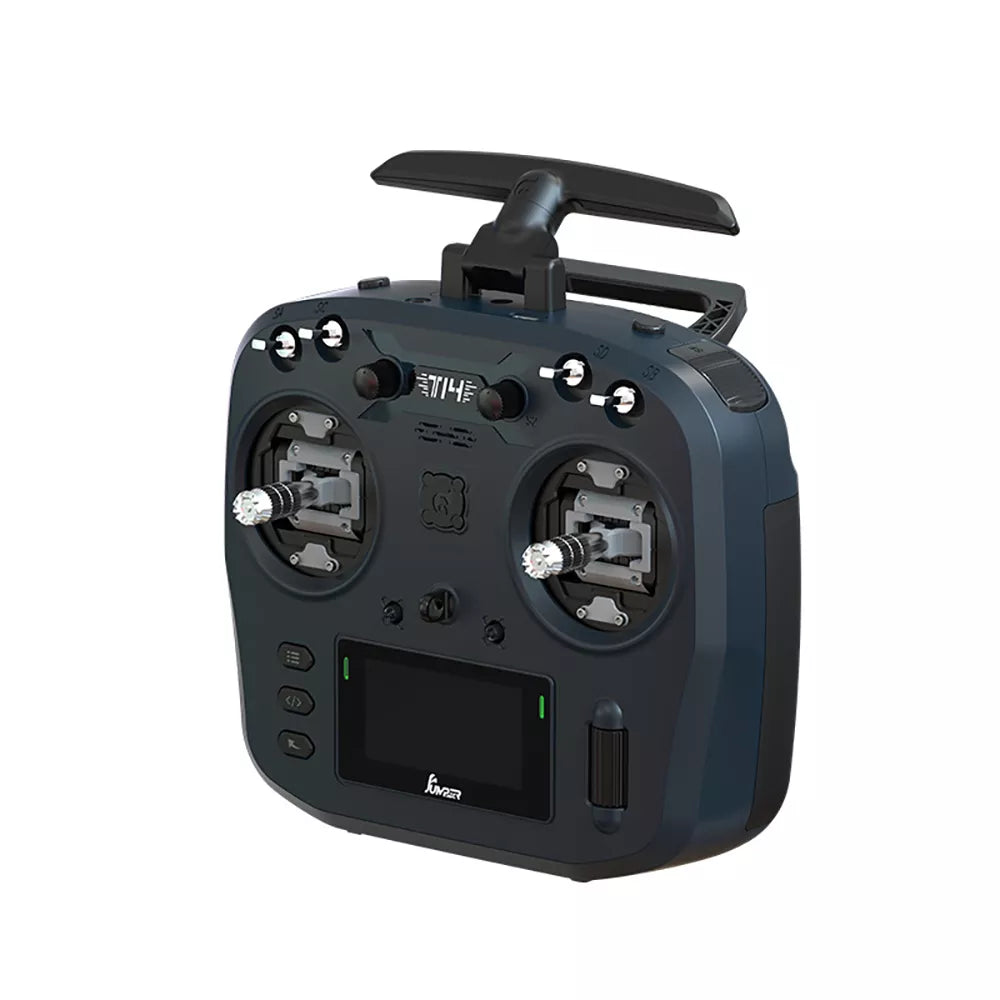

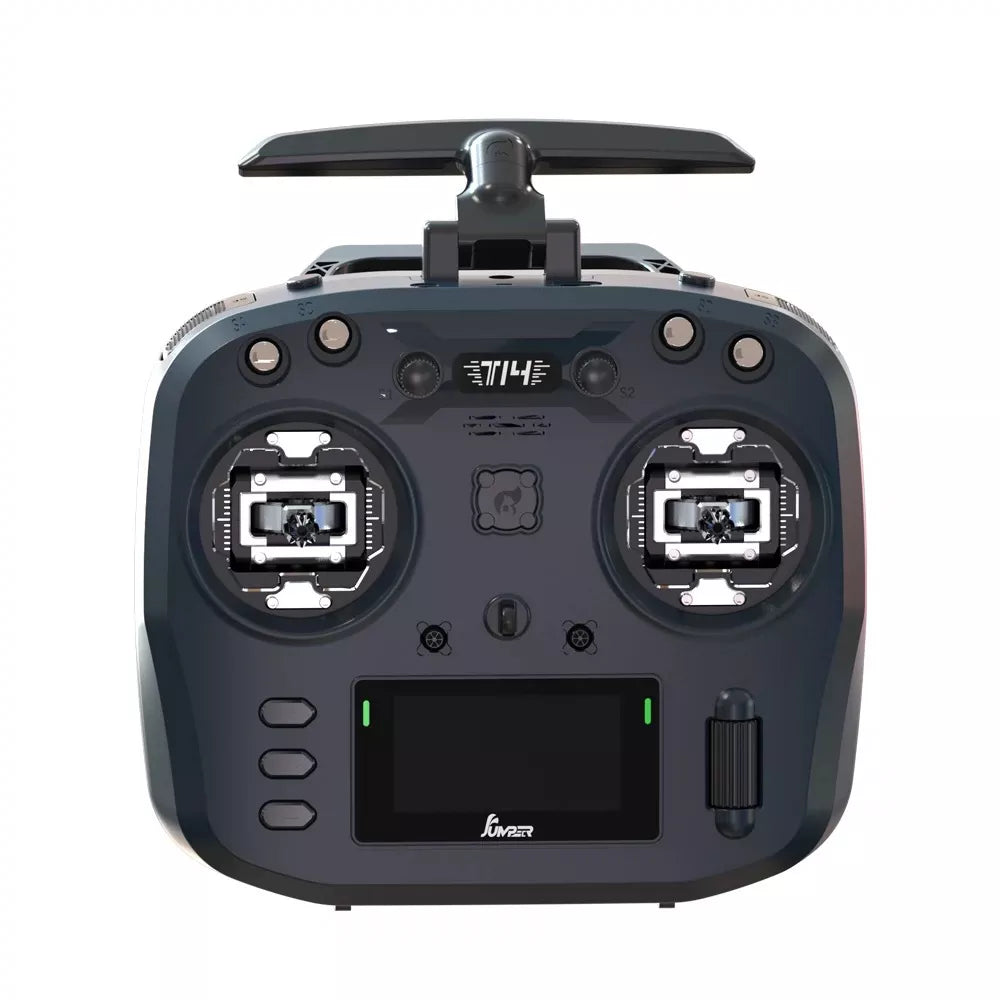

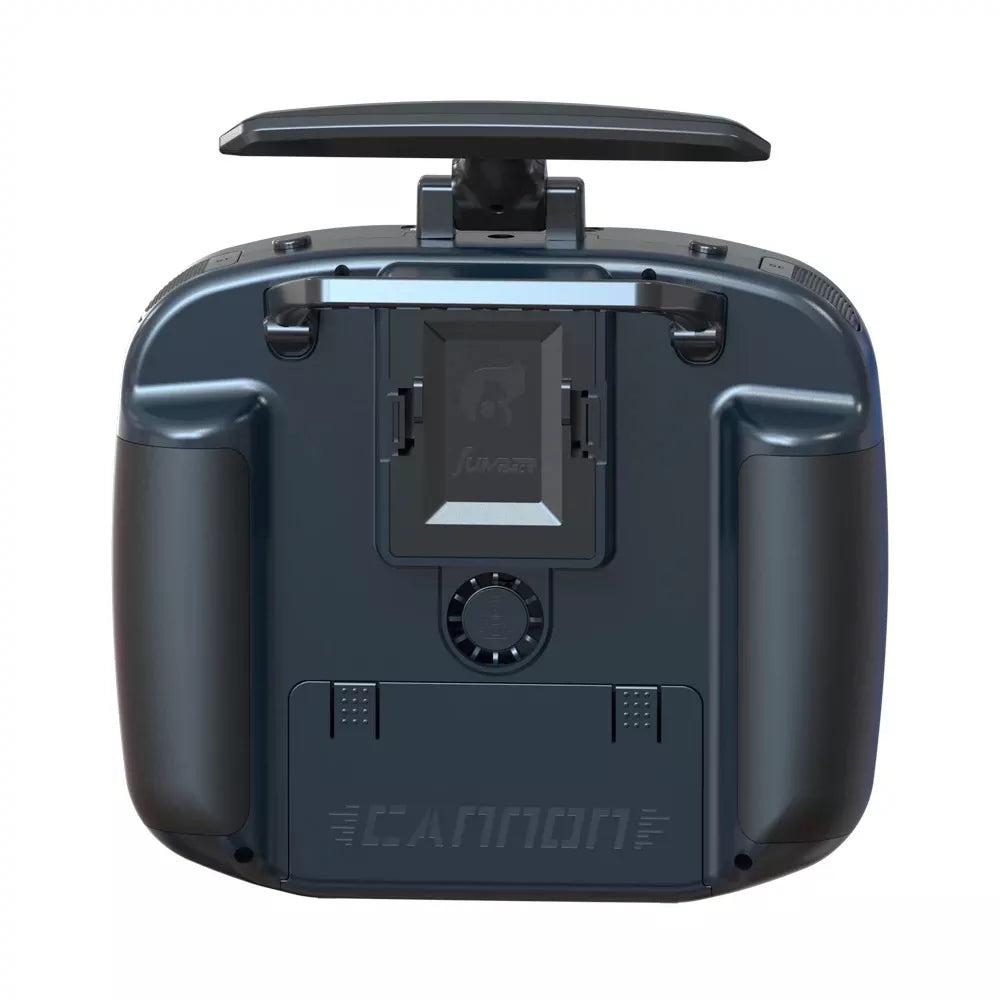

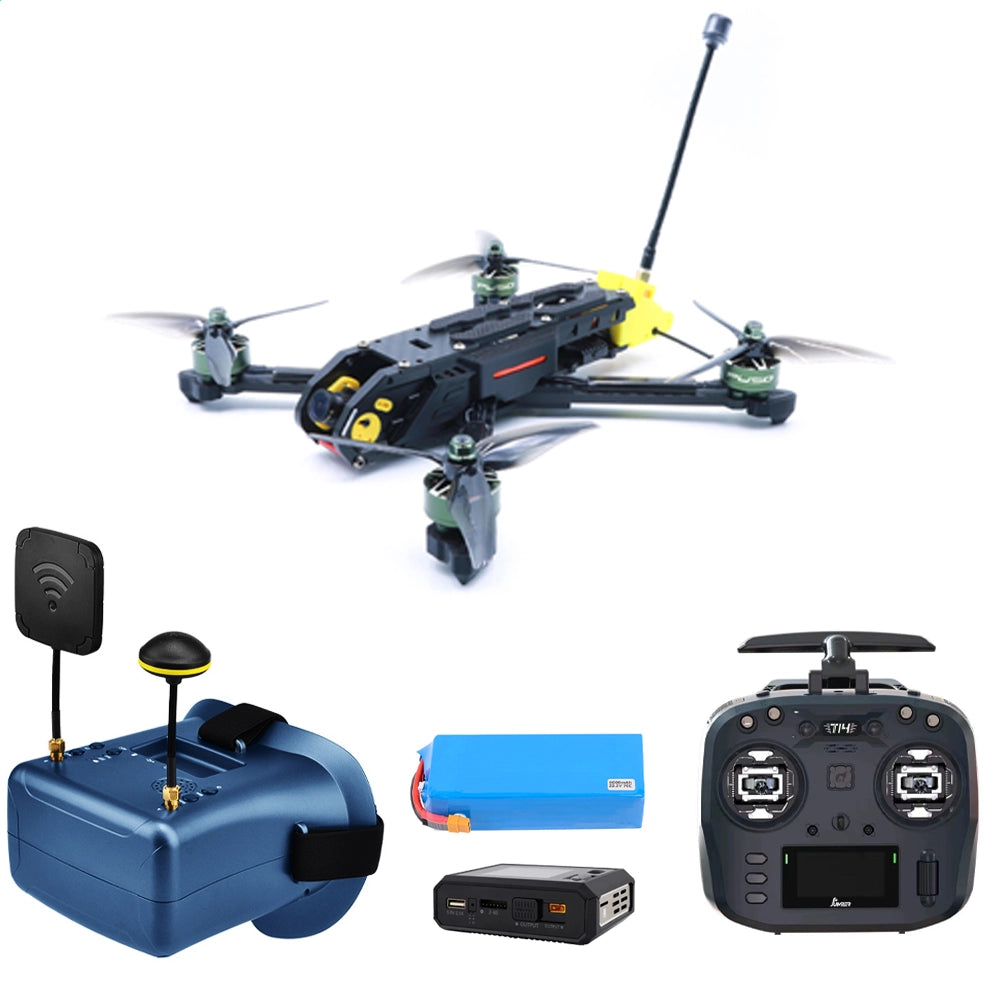

The Rhion5 is a high-performance 5-inch FPV racing drone RTF kit built for speed, precision and long-range flying. With a 160km/h top speed, 6S 3000mAh power system, F405 flight controller, 60A ESC, 2207.5 1950KV brushless motor and 5.8G 3W VTX, this is a complete freestyle and racing platform. ELRS 915MHz receiver included. Optional radio transmitter and FPV goggles available to complete your setup.

Quick Verdict

If you want a ready-to-fly 5-inch FPV drone with a proven electronics stack, 160km/h top speed and 3-5km range, the Rhion5 RTF kit is the platform to build on. 5-12 minutes flight time depending on load, 6000m max altitude, True X frame geometry for maximum agility.

Key Specifications

Spec Detail
Flight Time (with load) ~5 minutes
Flight Time (no load) 5-12 minutes
Battery 6S 3000mAh
Flying Distance 3-5km
Max Speed 160km/h
Max Altitude 6000m
Inner Package Weight 400g
Outer Box (10 sets) 1kg

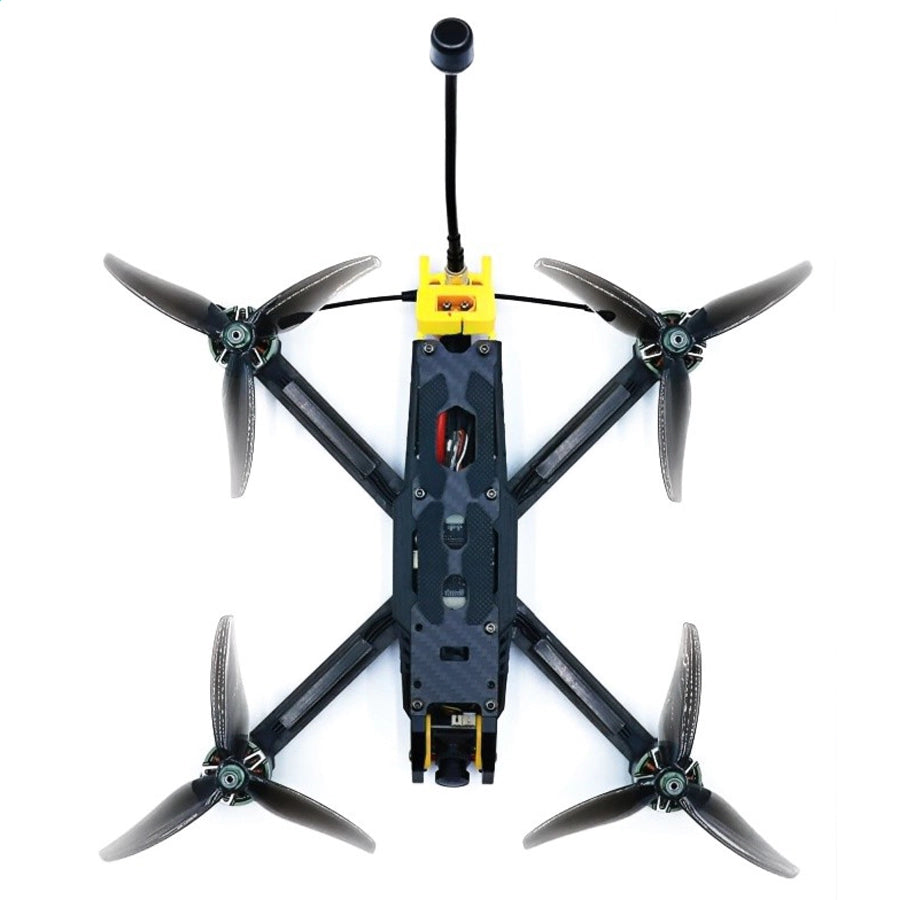

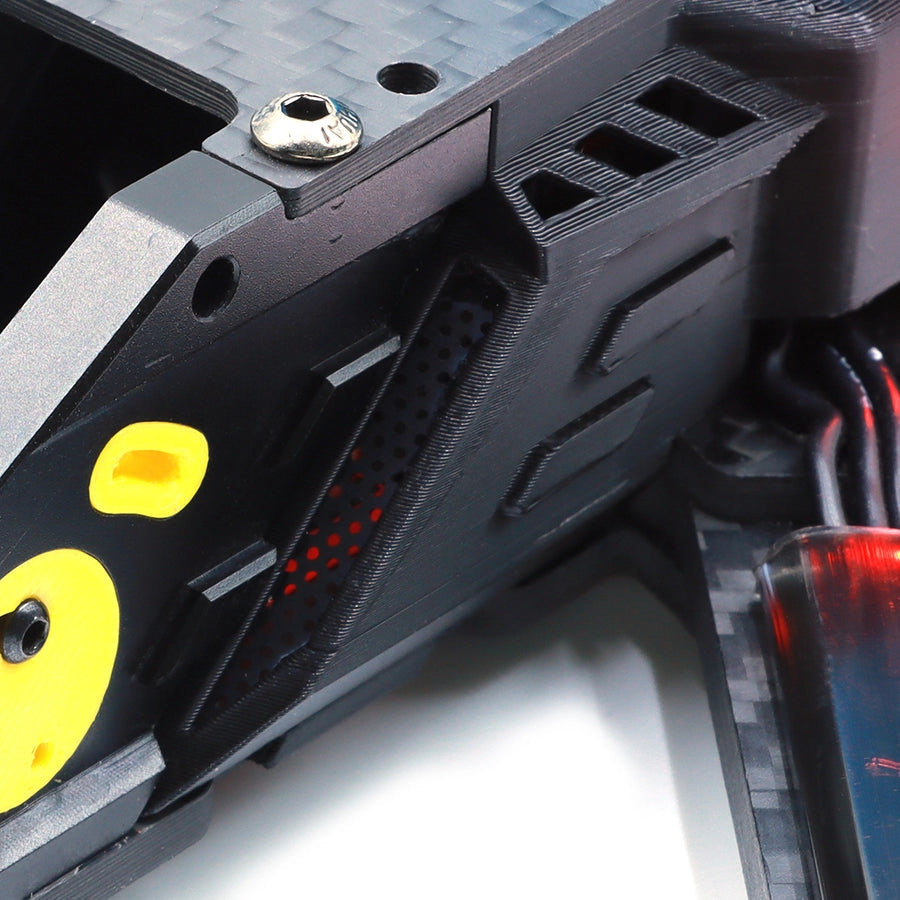

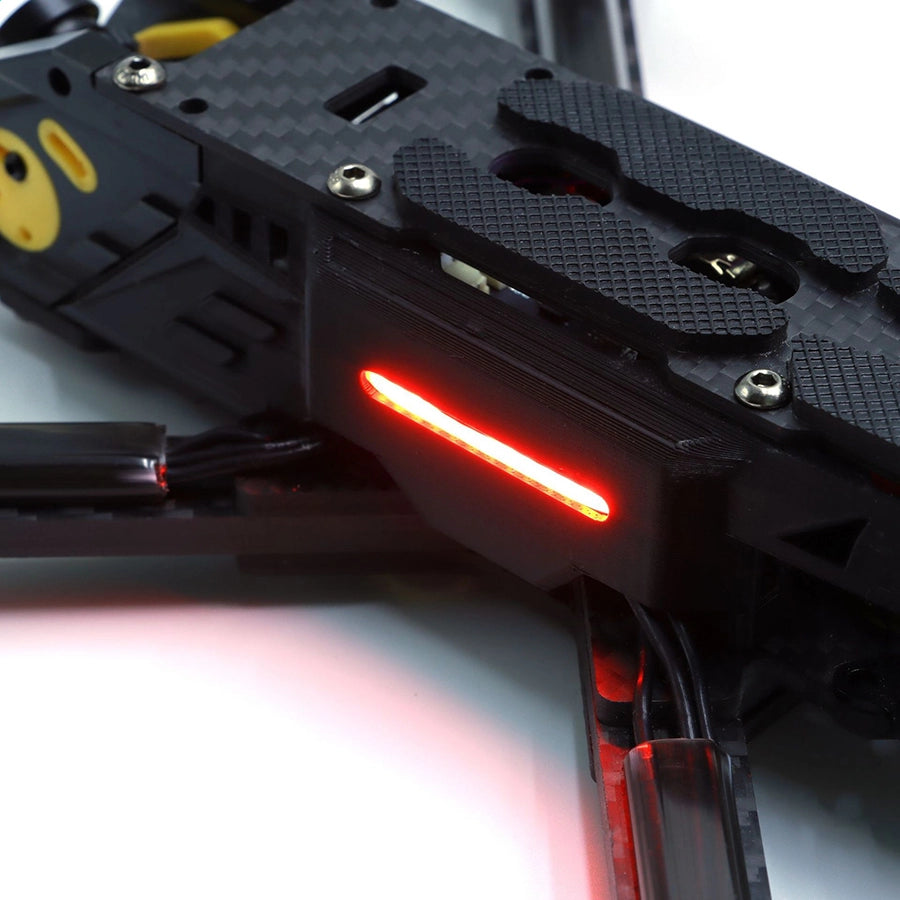

Frame

Spec Detail
Frame Size 5-inch Carbon
Structure True X
Wheelbase 250mm
Bottom Plate Thickness 3mm
Top Plate Thickness 2.5mm
Carbon Plate Material T300
Electronic Device Layer Height 25mm
Arm Thickness 5mm
Camera Spacing 14-20mm
Stack Mounting Hole M3×30.5mm
VTX Mounting Hole M2×20/25.5mm | M3×30.5mm
Motor Mounting Hole 16×16mm / 19×19mm
Max Propeller 5 inch
Top Plate Size 15.8×3.5cm
Bottom Plate Size 15.8×7.9cm

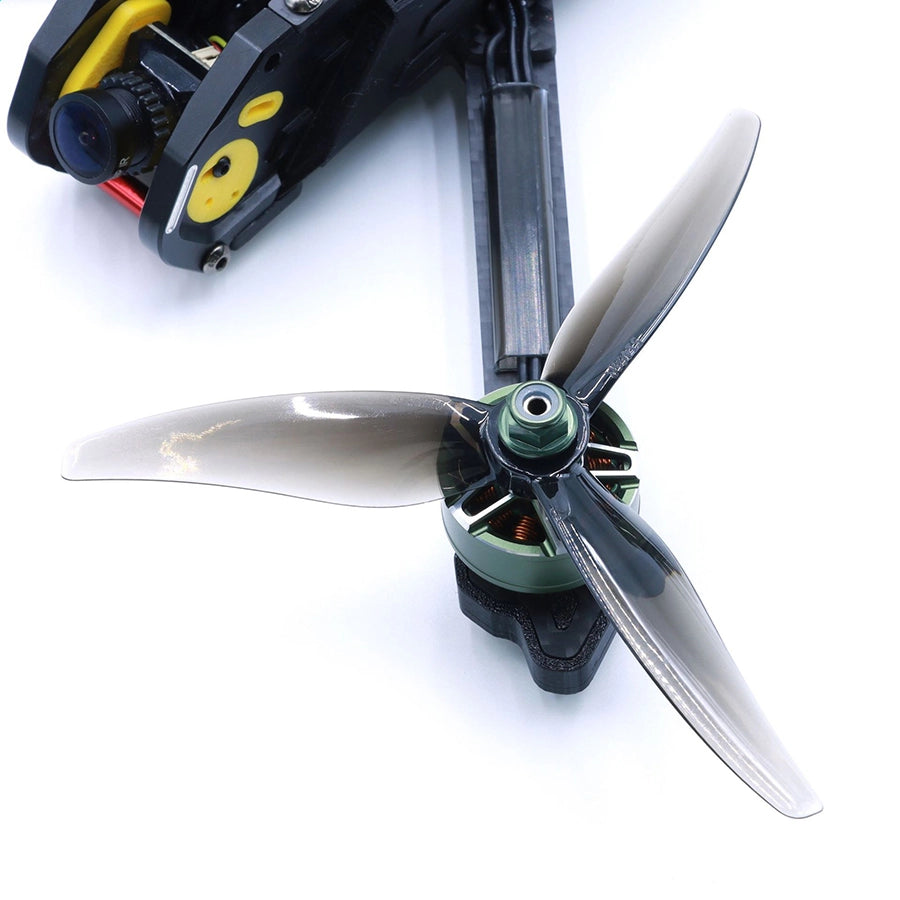

Motor — 2207.5 1950KV Brushless

Spec Detail
KV Value 1950KV
Operating Rated Voltage 6S
No-load Current 0.95A / 10V
Phase Resistance 54.70mΩ
Motor Weight 34.5g
Maximum Current 45.4A
Maximum Power 1071.23W
Maximum Thrust 1819.10g
Recommended Propellers 5146.6 / 5143.3

Flight Controller — F405

Interface Detail
Size 37×37mm
Mounting Holes 30.5×30.5mm
9V 9V regulated power output, max current 2A
5V 5V regulated power output, max current 3A
4.5V Receiver power connector (USB power supply only)
CR Current monitoring port
M1 Camera reference pin (firmware version dependent)
VI Camera input port
VO Graphic output interface
LED RGB light strip interface
B- Buzzer negative terminal (positive connects to B+)
RC Receiver SmartPort interface
Rssi RSSI signal input port

ESC — 60A 6S (BLHeli_S 4IN1)

Spec Detail
Model BLHeli_S 4IN1 60V1
Continuous Current 60A
Burst Current 70A (10s)
BEC No
Current Sensor Yes
Battery Cells 2-6S
Weight 21.5g
Size 37×42.7mm
Mounting Hole Spacing 30.5×30.5mm

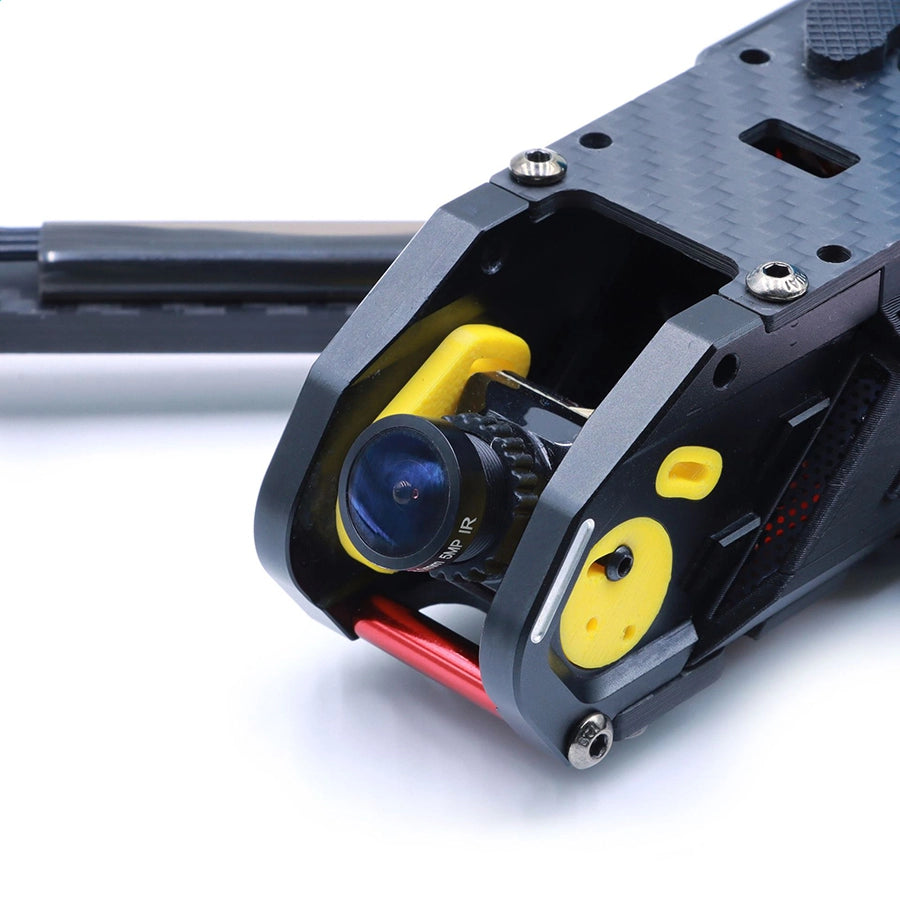

Camera — B19 Manual Cam 1500TVL

Spec Detail
Model HD 1500TVL (upgraded version with OSD tuning board)
Image Sensor 1/3’ CMOS
Pixels 1500TVL
Lens 2.1mm
Signal System PAL / NTSC (adjustable via OSD)
Signal-to-Noise Ratio >60dB (AGC OFF)
Electronic Shutter (PAL) 1/50 – 100,000
Electronic Shutter (NTSC) 1/60 – 100,000
Automatic Gain Control (AGC) Low / Medium / High
Backlight Compensation (BLC) Yes
Minimum Illumination 0.001Lux / 1.2F
WDR D-WDR
DNR 3DNR
Day/Night Auto / Color / B&W
Power Supply DC 5V-30V

VTX — 5.8G 48CH 3W

Spec Detail
Supported Voltage 7-36V
BEC 5V / 500mA
Operating Temperature -10°C ~ +60°C
Antenna Interface MMCX
Output Power 25 / 1000 / 2000 / 3000mW
Standard Channels 48CH: A / B / E / F / R
Video Transmission Protocol IRC Tramp
Mounting Holes 30.5×30.5mm / φ3.15mm
Size 37.7×36.1×11mm
Weight 16g

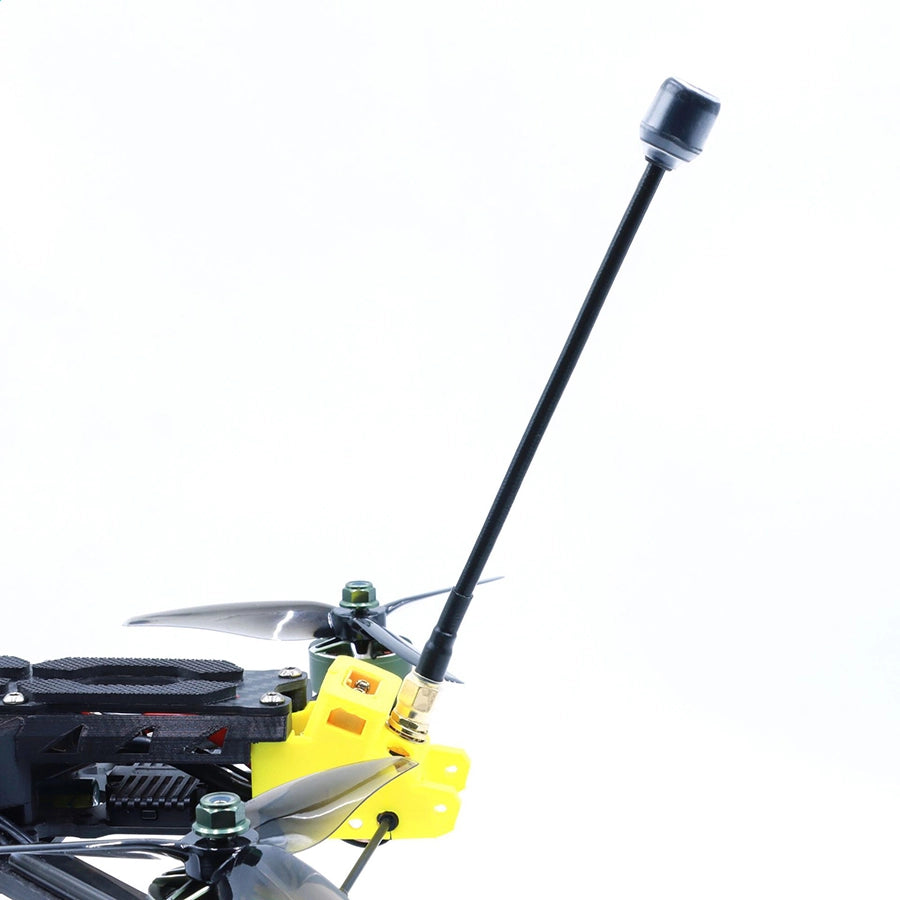

Antenna — 5.8G RHCP 150mm

Spec Detail
Frequency 5.8G
Polarization RHCP (Right-Hand Circular Polarized)
Length 150mm
Material Imported PC+ABS — high-strength impact resistant
Cable Impact-resistant double-sheathed semi-rigid cable
Root Design Root reinforcement, 360° protection

Receiver — ELRS 915MHz

Spec Detail
Processing Chip ESP8285
RF Chip SX1276IMLTRT
Power Input 5V
Operating Current 100mA
Operating Protocol CSRF (ExpressLRS)
Receiving Frequency 915MHz or 868MHz
Telemetry Output Power <17dBm
Antenna Connector IPEX1
Firmware Update WiFi OTA
Size 12×12×3mm
Weight 0.6g (antenna not included)

Propellers — HQ5×4×3 (51466)

Spec Detail
Type 51466
Blades 3
Material PC
Pitch 3.6 inch
Center Hole Inner Diameter 5mm
Weight 16.8g each

Who Is This For?

  • FPV racing pilots who need a proven 5-inch platform with 160km/h top speed and 6S power
  • Freestyle flyers who want a True X frame with stiff T300 carbon and 250mm wheelbase
  • Long-range FPV pilots who need ELRS 915MHz with 3-5km range and 5.8G 3W VTX
  • Beginners stepping up who want an RTF kit with optional goggles and transmitter to complete the setup

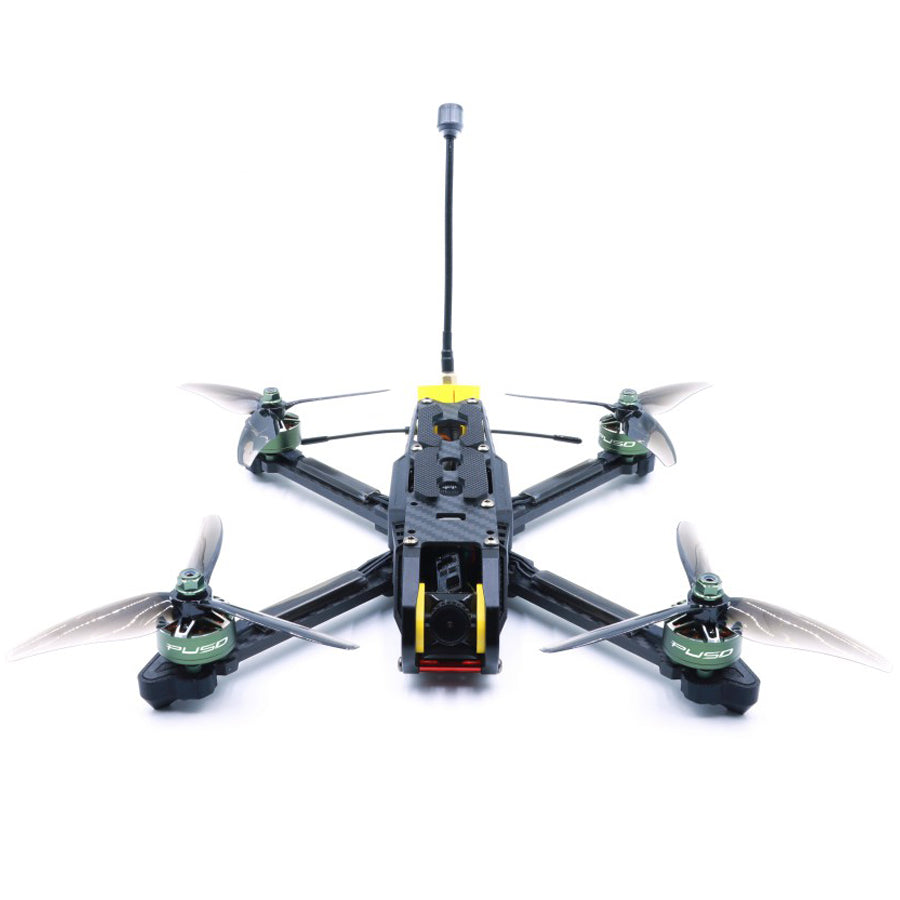

Rhion5 5-inch FPV drone RTF kit True X frame 250mm wheelbase overview
