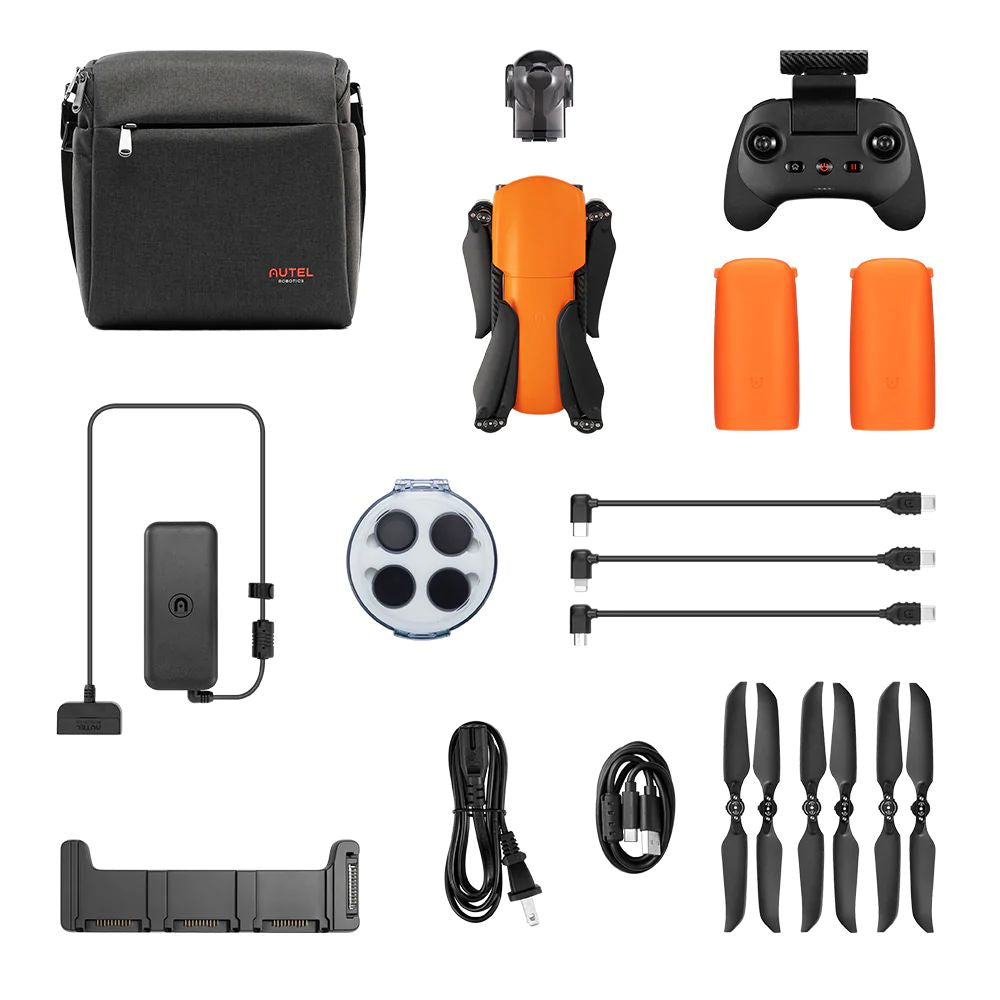

Autel Robotics EVO Lite+ Plus RC Drone 12KM FPV 3-Axis Gimbal Camera 6K 30FPS 40mins Flight Time Obstacle Avoidance Quadcopter

Note: There is a branch in Chicago, USA, and the after-sales service of Autel series can be handled directly in the United States.
Specifications:
Aircraft：
Takeoff Weight: 820 g
Dimensions (including blades): Folded: 210×104×85mm; Unfolded: 430×517×85mm
Wheelbase: 368 mm
Max Ascension Speed: 8 m/s (S Mode); 5 m/s (N Mode); 3 m/s (C Mode)
Max Descent Speed: 4 m/s (S Mode); 3 m/s (N Mode); 2 m/s (C Mode)
Max Level Flight Speed (near sea level, no wind): 19 m/s (S Mode); 10 m/s (N Mode); 5 m/s (C Mode)
Maximum Takeoff Altitude: 5000 m
Max Flying Time (no wind): 40 minutes
Max Hovering Time (no wind): 38min
Max Flying Distance (no wind): 24KM
Max Wind Resistance: Level 7
Max Tilt Angle: 33° (S Mode); 25° (N Mode); 25° (C Mode)
Max Angular Vellocity: 200°/s (S Mode); 120°/s (P Mode); 60°/s (C Mode)
Operating Temperature Range: -10°C ~ 40°C
Operating Frequency: 2.400-2.4835GHz, 5.725-5.850GHz, 5.150-5.250GHz
Transmitter Power (EIRP): FCC:≤30dBm
GNSS: GPS
Hovering Accuracy:
Vertical: ±0.1 m (when the Visual Positioning is active), ±0.5 m (with GPS Positioning);
Horizontal: ±0.3 m (with Vision Positioning), ±1.5 m (with GPS Positioning)

Gimbal:
Mechanical Range:
Lite: Pitch: -135°~45°; Roll: -45°~45°; Yaw: -90°~90°; Rotate: -400°~400°
Lite+: Pitch: -135°~45°; Roll: -45°~45°; Yaw: -90°~90°
Controllable Range:
Lite: Pitch: -90°~30°; Yaw: -80°~80°; Rotate: -360°~360°
Lite+: Pitch: -90°~ +30°; Yaw: -80°~ +80°
Stabilization:
Lite: 4-axis (Horizontal/Vertical/Tilt/Rotation Shooting)
Lite+: 3-axis
Max Control Speed (pitch): 30°/s
Angular Vibration Range: ±0.003°

Sensing System:
Forward:
Accurate Measurement Range: 0.5~18m
Effective Sensing Speed: <12m/s
FOV: Horizontal <70°, Vertical <88°
Backward:
Accurate Measurement Range: 0.5~18m
Effective Sensing Speed: <12m/s
FOV: Horizontal <40°, Vertical <30°
Downward:
Accurate Measurement Range: 0.5~22m
Visual Hovering Range: 0.5~40m
FOV: Horizontal <40°, Vertical <30°
Operating Environment:
Forward, Backward:
Surface with clear pattern and adequate lighting(lux> 15)
Downward:
Surface with clear pattern and adequate lighting(lux> 15);
Detects diffuse reflective surfaces(>20%) (walls, trees, people, etc.)

Remote Controller & Video Transmission:
Operating Frequency: 2.400-2.4835GHz，5.725-5.850GHz, 5.150-5.250GHz
Max Transmission Distance (unobstructed, free of interference): FCC: 12KM
Operating Temperature Range: 0° to 40°C
Transmitter Power (EIRP): FCC: ≤30dBm
Battery Capacity: 3930 mAh
Max Battery Life: 3.5h (when connected to a mobile phone); 2.5h (when not connected to mobile phone)
Interface Types: Type-C
Video Transmission System: SkyLink
Max Transmission Quality: 2.7K(<1km)
Transmission Bitrate: 90 Mbps
Transmission delay: ≤200ms

Intelligent Flight Battery
Capacity: 6175 mAh
Voltage: 11.13 V
Max Charging Voltage: 12.75 V
Battery Type: LiPo 3S
Energy: 68.7Wh
Single Battery Charging Time: 90min
Max Charging Power: 78 W
Charging Temperature: 5° to 45°C

Charger:
Input: 100-240 V, 50/60 Hz
Output: 12.75V⎓5A
Rated Power: 63.75W

APP:
Name: Autel/Sky
Mobile System Required: iOS 12.0 and above; Android 8.0 and above

Storage:
Supported SD Cards: Built-in 6GB Storage; Max. Support 256GB (UHS-3 Rating Required)
