MANTA 15X Lite 15 inch FPV Drone 8KG Payload 20KM 5.8G 3W VTX ELRS RX Long Distance FPV Drone Kit

$934.48
$1,258.93
$934.48
-26%
Shipping calculated at checkout.

All U.S. Orders Tax-Free! | Secure Payment | Free Shipping

Color: 15 inch PNP
200 in stock

Why Buy From us

Caret Down

A FEW REASONS WHY BUY FROM US:

SAFE SHOPPING
We try our best to make your shopping experience not only pleasant, seamless and hassle-free, but also secure.

SAFE SHIPPING
Choose high-quality and flexible international shipping companies for cooperation, as well as free shipping and fast shipping options to ensure our quality service and experience.

RETURN PLAN
It's okay to change your mind! You can return your order for a full refund, and we offer you full 30-day buyer protection.

NEW ARRIVALS
Brand new products are available on a regular basis.

EXCELLENT CUSTOMER SERVICE
Knowledgeable and professional support team is always happy to help you.

ACCESSORY SUPPORT
Perfect product accessories service, if the product you purchased is damaged during use, please don't worry, you can contact us directly at service@funyat.com, or communicate with us in live chat, live chat time: Monday-Friday (9:00AM - 8:00PM EST), tell us the product model or your order number and the accessories you need.

EASY TRACKING

You will receive a notification email in your email once the package has been shipped. The tracking number and link inside are for tracking the timely status of the package.You can also track at Our order tracking page . Or if you need a team members help to check up, please contact with our service team service@funyat.com and we will be in touch with a status update.

Order Protection

Caret Down

Shopping cart can choose the package delay, loss, damage claim service！

Note: Opening the insurance service is only to respond to the accidental accident of the order, under normal circumstances, do not open the insurance service order will not be damaged and lost! Customers can choose according to their own needs.

What does Buyer Protection cover?
Buyer Protection is a service provided by Seel (a 17TRACK partner). It covers delayed, damaged, and lost items that meet the following criteria.
‍
*Delay: Domestic packages not delivered before the 10th day following order fulfillment (i.e., the date when the order is shipped by the merchant) or international packages not delivered before the 30th day following order fulfillment are considered delayed. The compensation for delayed packages is $5 USD. (If the order is not transacted in USD, compensation will be made in the currency of the transaction. For example, if an order in euros is delayed, the compensation is €5.)

*Loss: Domestic packages not delivered 30 days after order fulfillment (i.e., the date when the order is shipped by the merchant) are considered lost. (60 days for international packages.) Lost packages will be compensated for the actual item(s) value paid.

*Damage: Buyer Protection covers item damages to the point that the item(s) are unusable, clearly fractured, shattered, bent (if not bendable), crushed, etc., but does not cover cosmetic damage (scratches, dents, etc.), manufacturing damages, packaging errors, or unsealed items. The compensation for damaged items will be up to the value paid for the purchased item(s).

*Buyer Protection also includes carbon-neutral shipment within the recipient’s country.

*Note: Total compensation for one cover is up to the value actually paid for the item(s).

Description

Caret Down

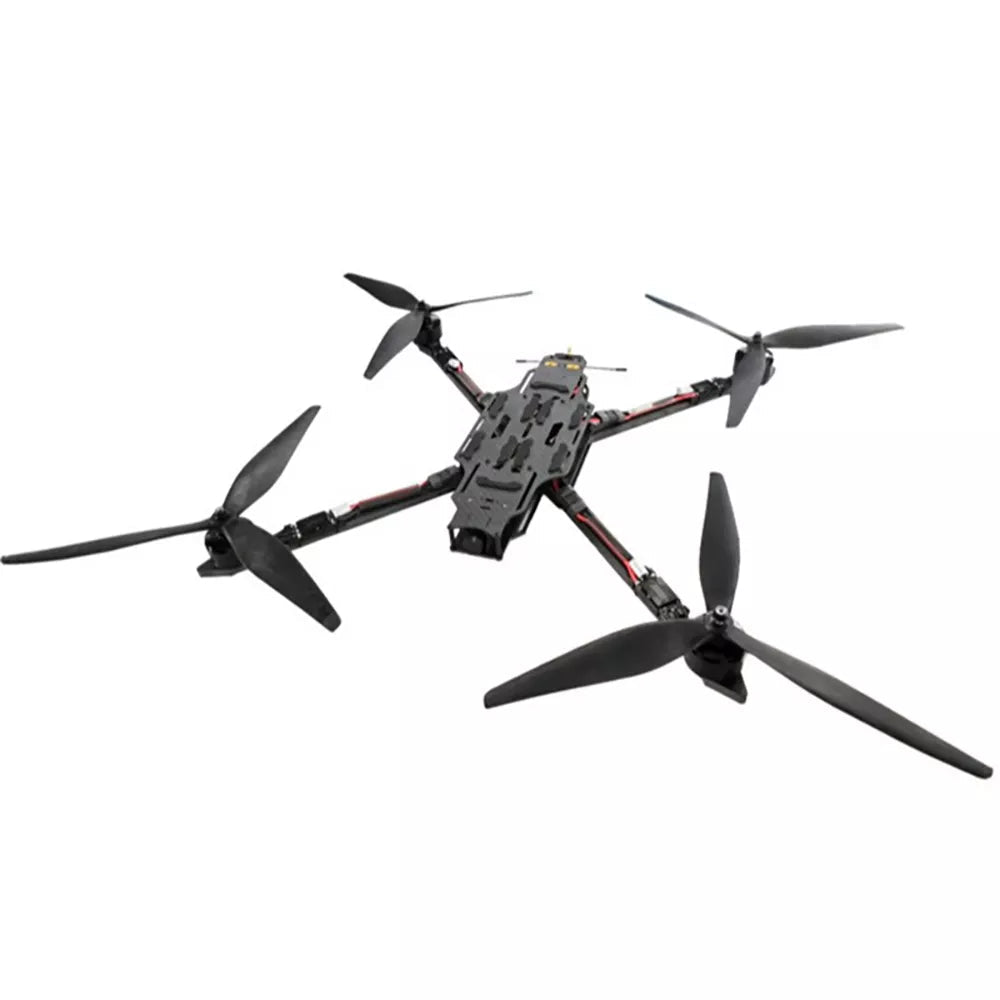

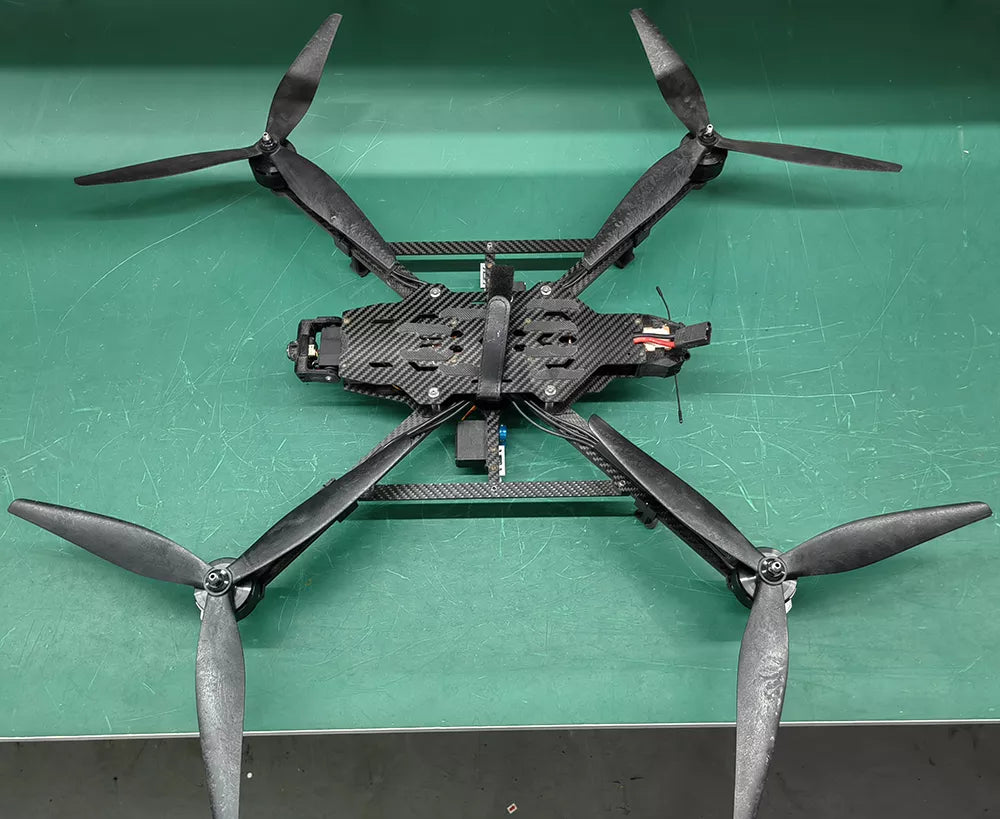

MANTA 15X Lite 15 inch FPV Drone 8KG Payload 20KM 5.8G 3W VTX ELRS RX Long Distance FPV Drone Kit

**We are a source manufacturer and welcome bulk purchases! We also accept deep customization services for one unit. If you have any needs, please contact us!

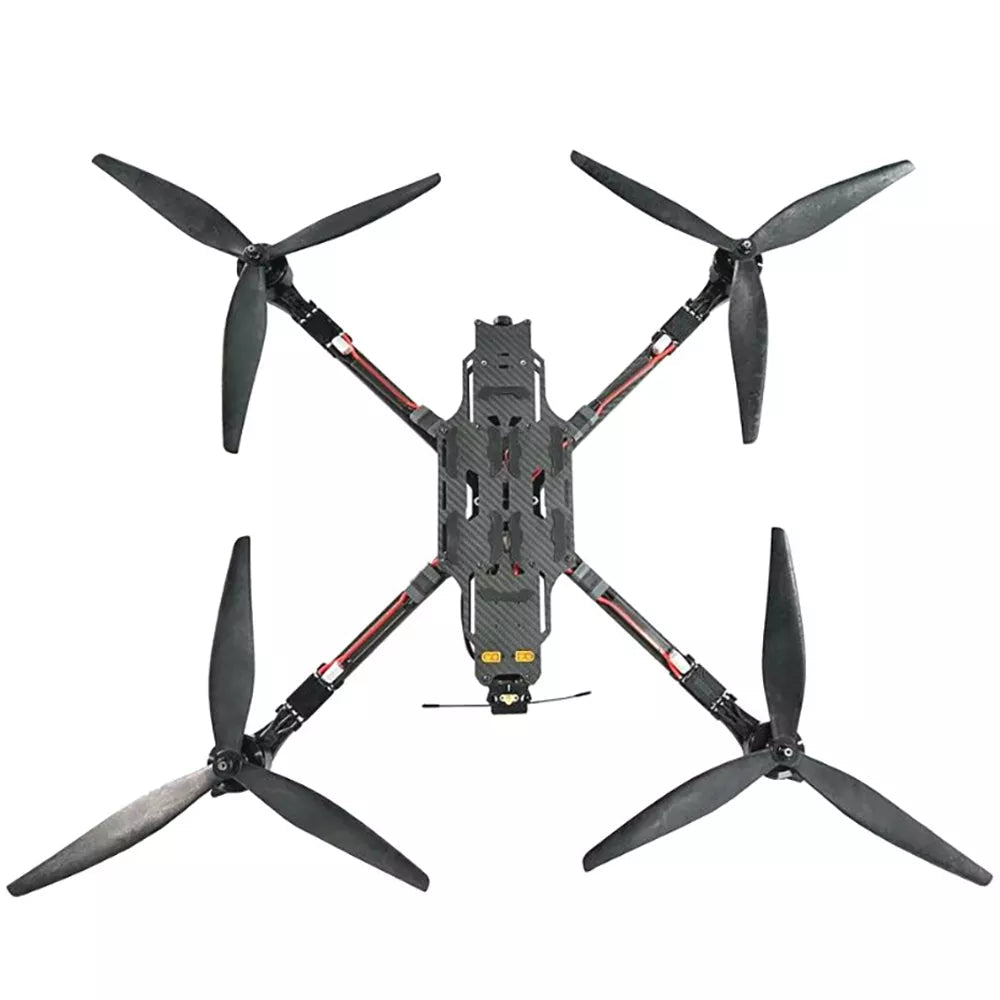

The PNP version includes electronic accessories, but does not include remote control/battery/charger/flight goggles!

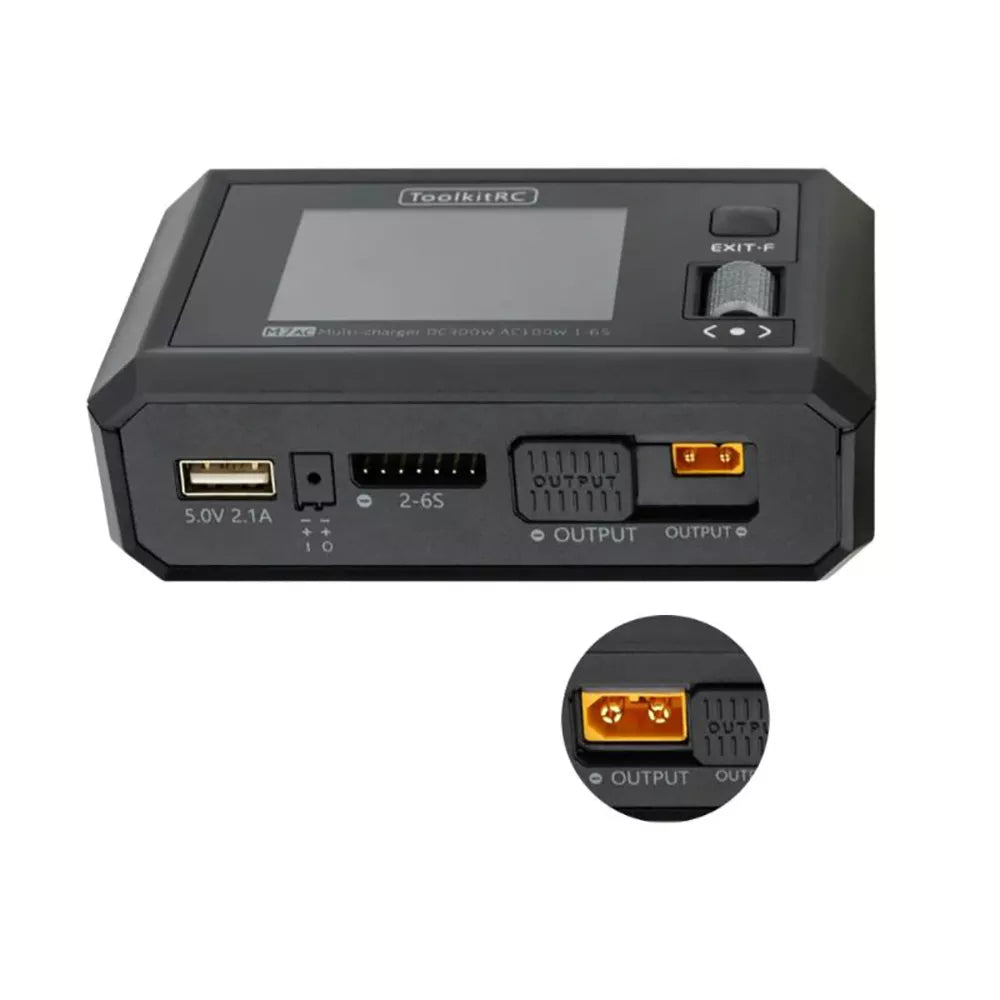

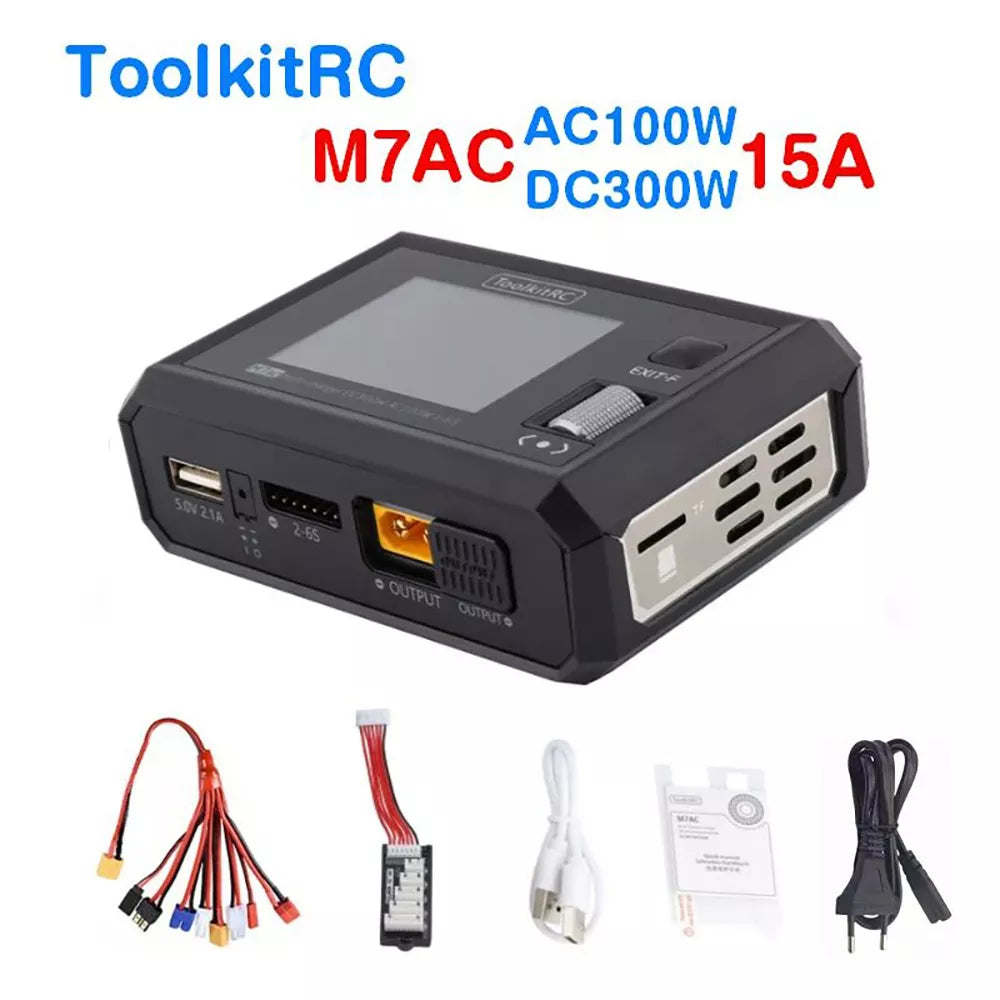

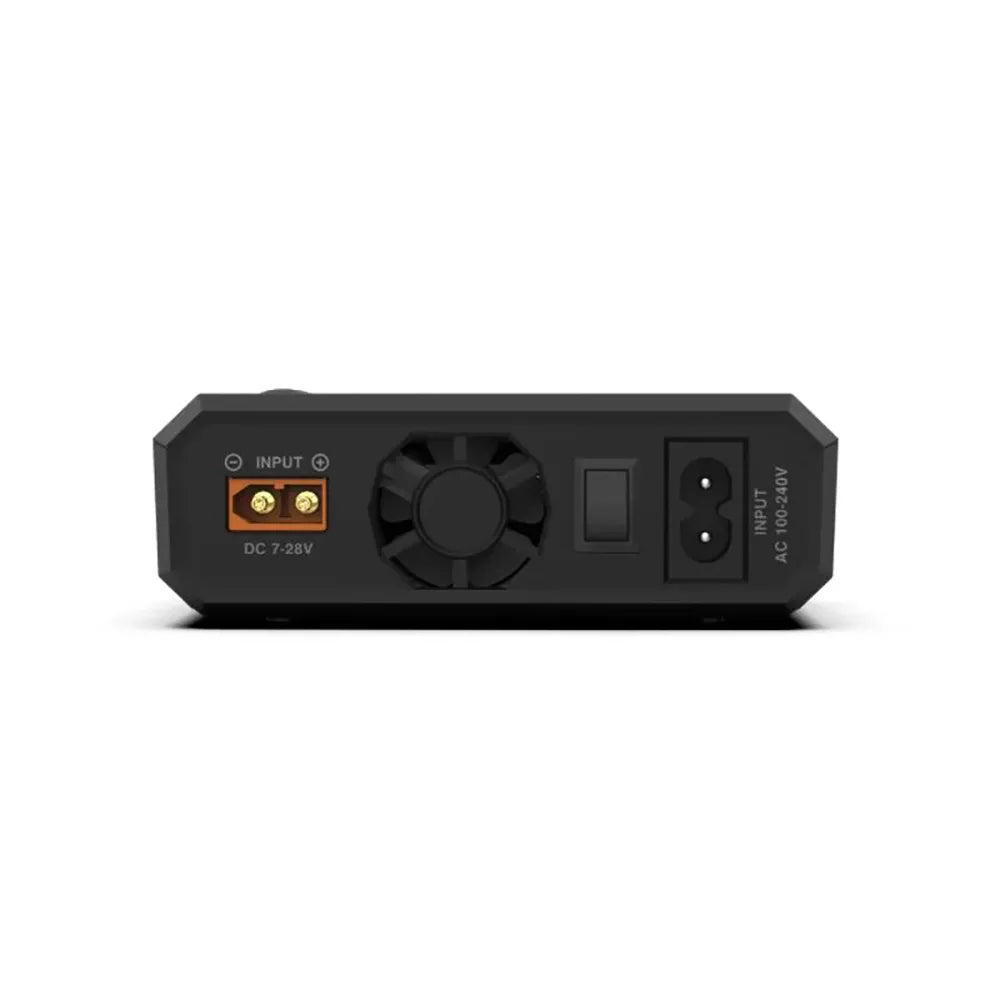

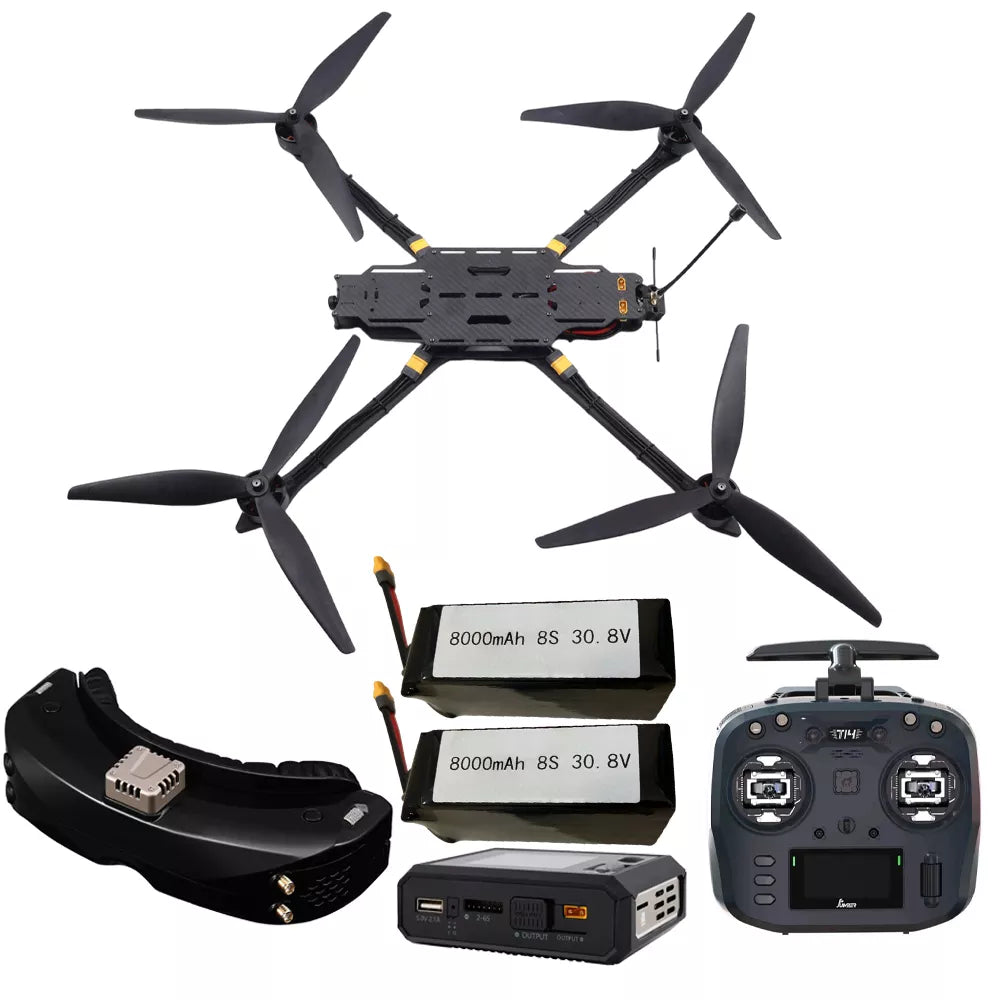

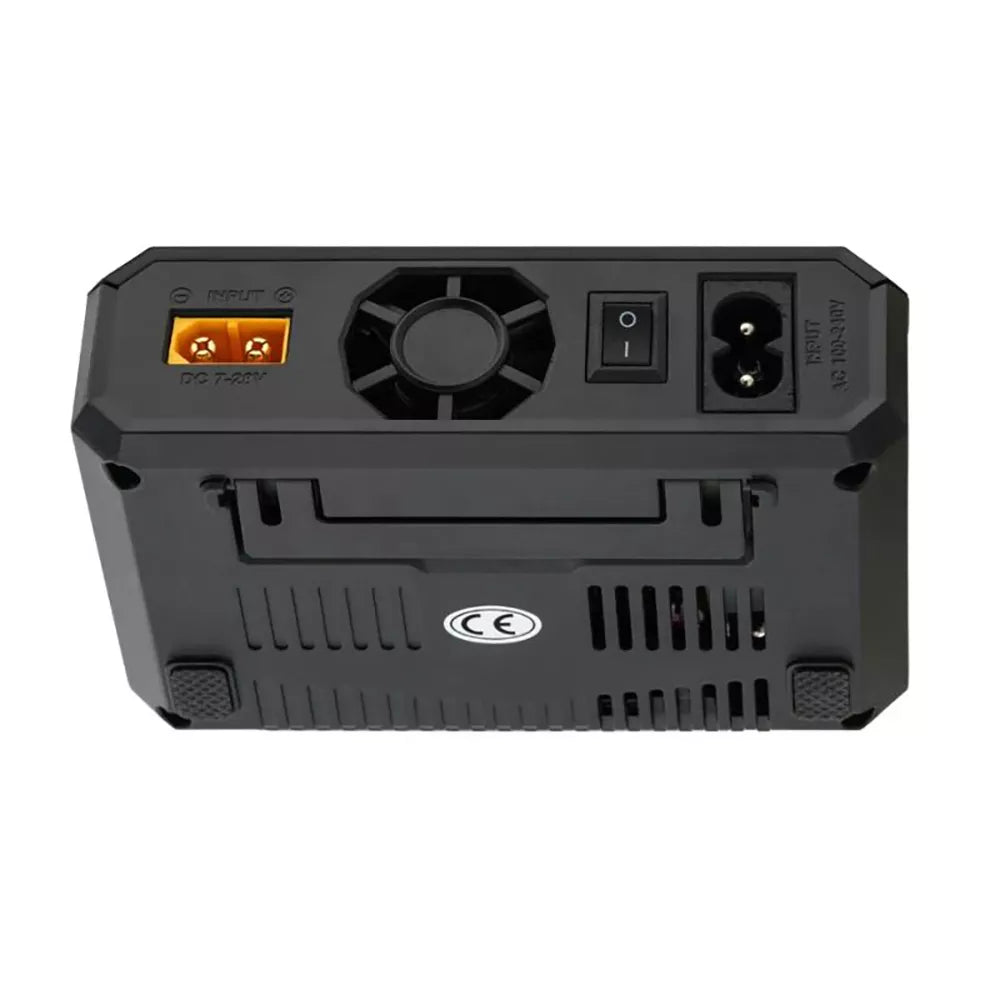

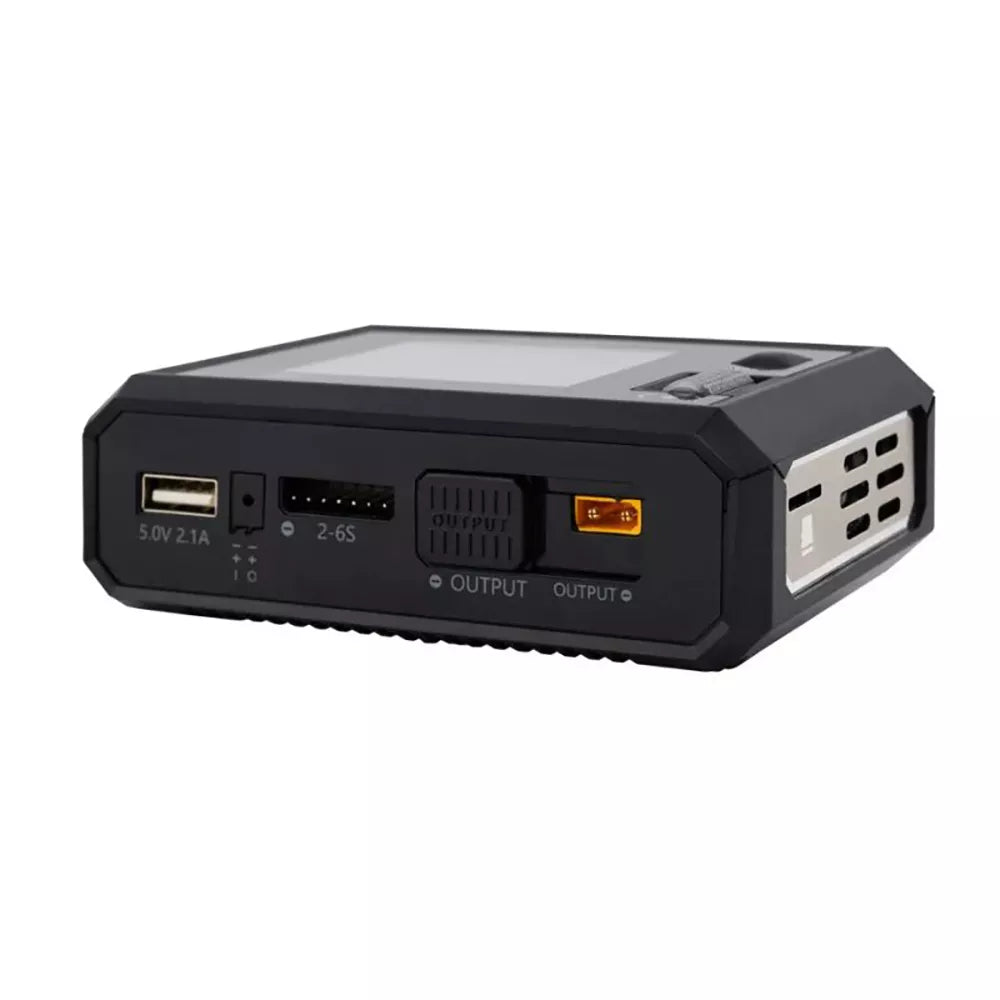

The RTF version includes electronic accessories, including T14 remote control/8s 8000mAh battery*2/charger/SKY04O PRO flying glasses!

Product parameters:
Maximum speed: 130km/h
Rated Load: 7kg
Max Load: 8kg
VTX: 5.8G 48CH 3W
Farthest flight: 20km
Empty endurance: 42min, 2*8s8000mah, 4.9kg
Rated Load time: 12min, 2*8s8000mah, 11.8kg
Product size: 517*517*80mm
Wheelbase: 647mm
Arm Thickness: 10mm

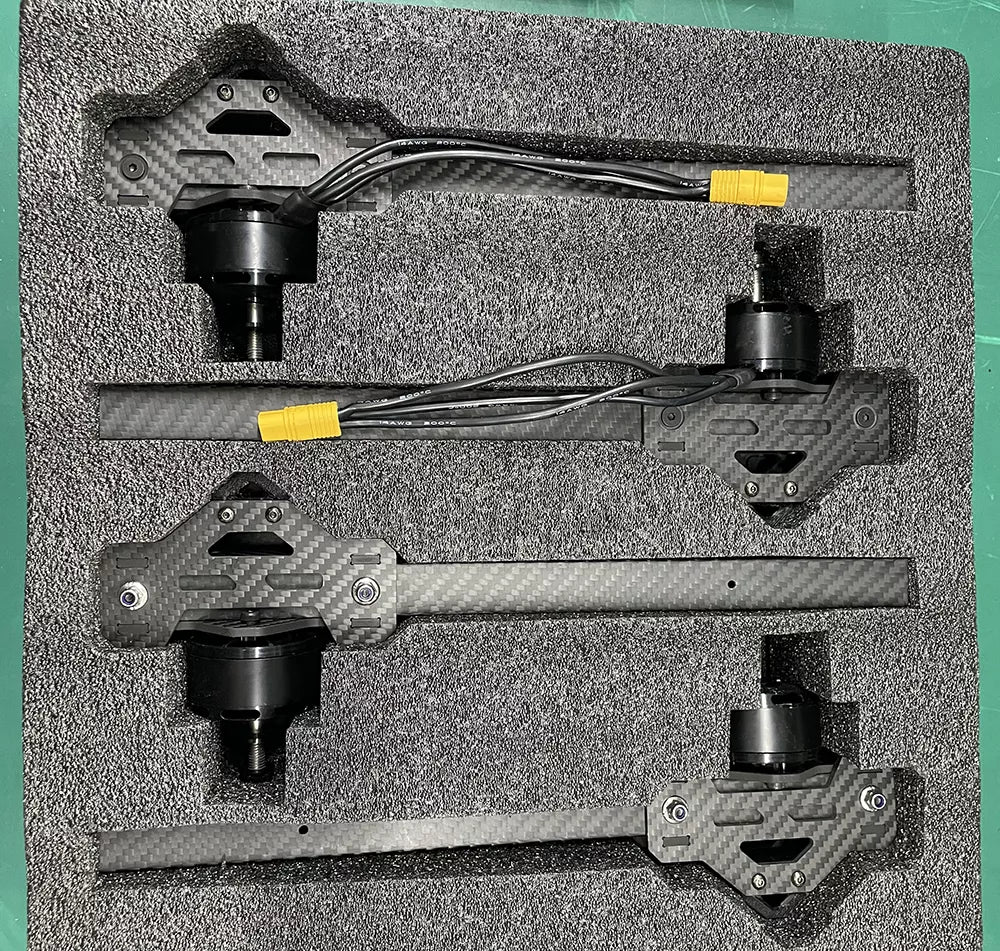

Motor: 4*4214 380KV 8S
FPV Camera: 1800TVL 5-40V(Optional)
Antenna: 5.8G SMA L150mm
Receiver: ELRS915M
GPS: Optional M10
Propetler: 1507 3-blade (4Pcs)
Recommend Lipo Battery: 2*8s 8000mah 30C XT60 2.04kg (only RTF)

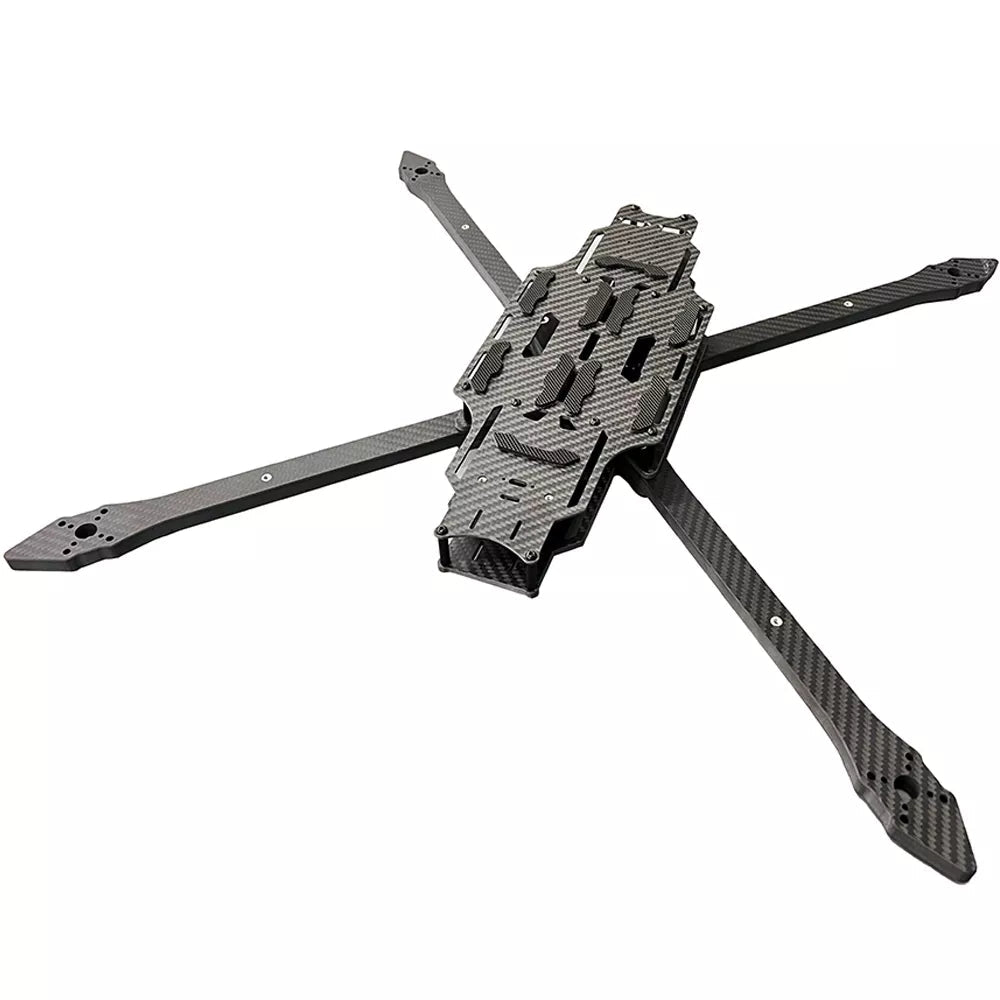

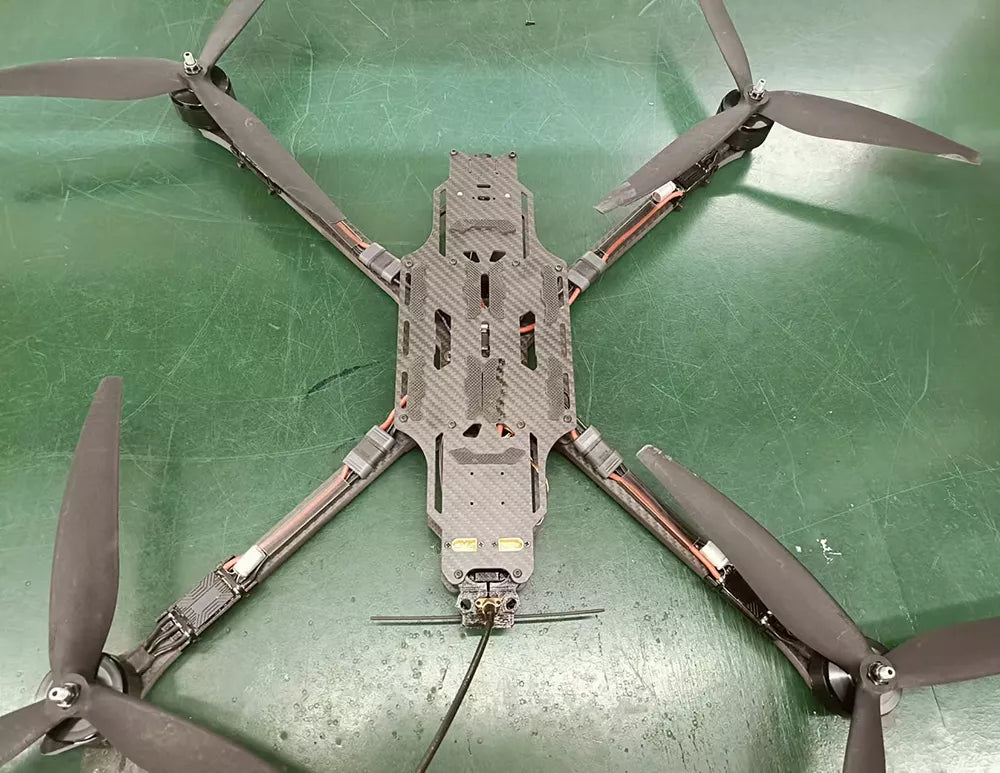

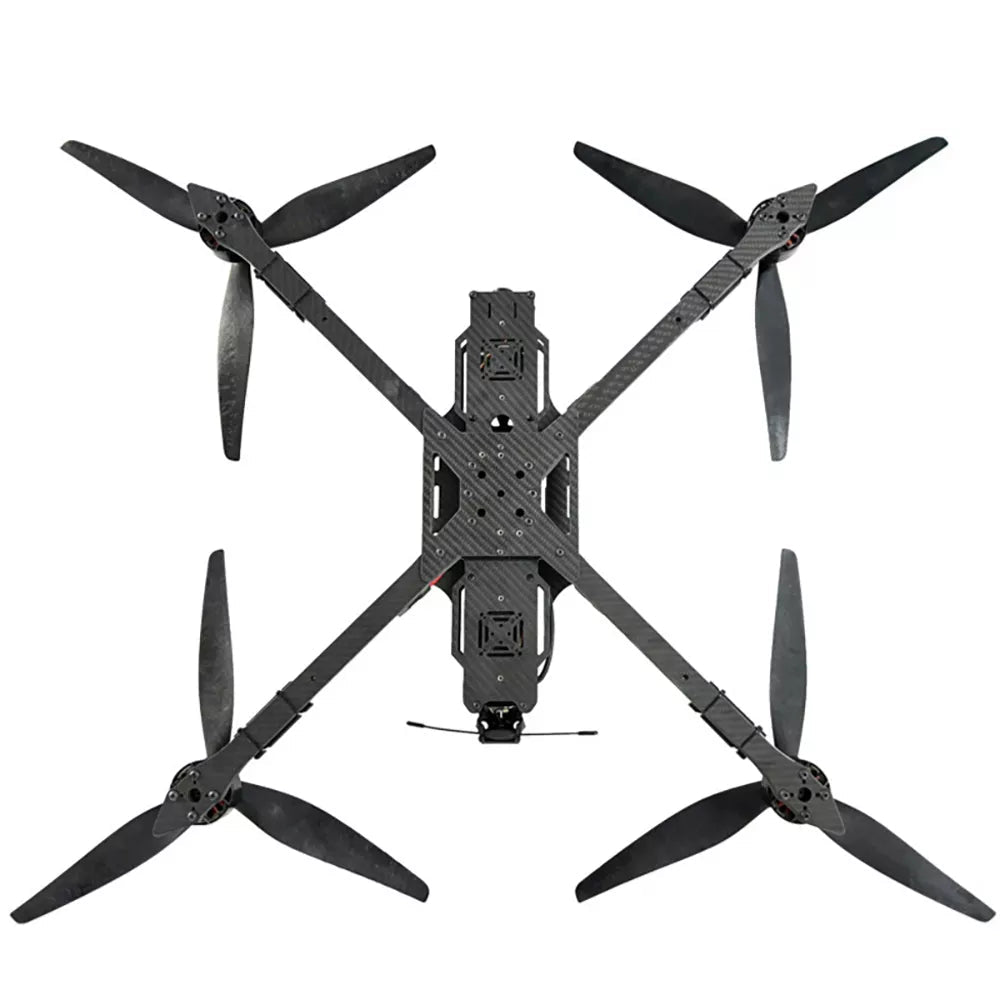

Frame: 15-inch Carbon
Structure: True X
Wheelbase: 700mm
Frame Dimension: L520*W520*H25 mm
Bottom Plate Thickness: 3mm
Top Plate Thickness: 3mm
Carbon Plate Material: T300/T700
Height of Electronic Device Layer: 20mm
Camera Spacing: 20mm
Stack Mounting Hole: M3*30.5mm
VTX Mounting Hole: M2*20/25.5mm M3*30.5mm
Propeller Installation Size: Max 13 inch
Motor Mounting Hole: M4*30mm

Motor: 4214 380 KV
KV Value: 380KV
Operating Rated Voltage: 6-8S
No-load Current: 2.8A/20V
Phase Resistance: 48mΩ
Motor Weight: 246g
Maximum Current: 60A
Maximum Power: 1760 W
Maximum Thrust: 4850g
Motor Size: Ф49x32.5mm

Flight Control: F722
MCU: STM32F722RET6
Gyroscope: ICM42688
Barometer: DPS310 or SPL06
Blackbox: 16 M
On-Screen Display: AT7456
BEC: 5V2A ,9V2A
Input Voltage: 12-50V(3-6S Lipo Recommended)
Firmware: Betaflight
Number of Serial Ports: 6 Groups
Supported Motors: M1 M8
Weight: 40.6x40.6x9.8mm
Size: 19.6g
Mounting Hole Spacing: 30.5mm/M3

ESC: 80A 8S
Firmware Name: QH 40_24_V0.19.2
Current Ratio Value: 200
Input Voltage: 8S
Continuous Current: 80A
Burst Current: 90A
ESC Telemetry: Not supported
BEC: Not supported
Size: 57*56*6mm
Mounting Hole Spacing: 30.5*30.5mm
Weight: 28g

Camera: B19 Product Manual Cam 1500TVL
Model: HD 1500TVL (upgraded version, with OSD tuning board)
Image Sensor: 1 / 3′CMOS
Pixels: 1500TVL
Lens: 2.1mm
Signal System: PAL / NTSC (adjustable via OSD)
Signal-to-Noise Ratio: ＞ 60Db（AGC OFF）
Electronic Shutter Speed: PAL: 1 / 50-100.000, NTSC: 1 / 60-100,000
Electronic Shutter: PAL: /50 - 100,000; NTSC: 1/60 - 100,000
Automatic Gain Control (AGC): Low / Medium / High
Backlight Compensation (BLC): Yes
Minimum Illumination: 0.001Lux / 1.2F
WDR: D-WDR
DNR: 3DNR
Day/Night: Auto/Color/B&W
Power Supply: DC 5V-30V

Image transmission VTX: 5.8G 40CH 3W
Supported Voltage: 7-28V
BEC: 5V / 500mA
Transmission Power: 25mW / 13.95dBm; 2500mW / 34.04dBm
Antenna Interface: MMCX
Output Power: PIT / 25 / 2500mW
Standard 40 Channels: A / B / E / F / R
Video Transmission Protocol: SmartAudio
Mounting Holes: 20X20.M2
Size: 25mmX37mmx6.5mm
Weight: 19g

Antenna: 5.8G RHCP 150MM
*The whole is made of imported PC+ABS material which can withstand high strength impact
*Impact resistant double-sheathed semi-rigid cable
*Root reinforcement design, 360 ° protection

RX: ELRS 915MHz
Processing Chip: ESP8285
RF Chip: SX1276IMLTRT
Power Input: 5V
Operating Current: 100mA
Operating Protocol: CSRF
Receiving Frequency Range: 915MHz or 868MHz
Size: 12mm12mm3mm
Weight: 0.6g (without antenna)
Antenna Connector: IPEX1
Telemetry Output Power: <17dBm
Firmware Update Method: WIFI

Propellers: HQProp 15*7*3
Type: MQ15X7X3-GRN
Blades: 3
Material: Fiberglass Nylon
Pitch: 7 inch
Center Hole lnner diameter: 6mm
Weight/g: 63.9g

Find out about SKYZONE SKY04O PRO FPV Goggles here! (only RTF)

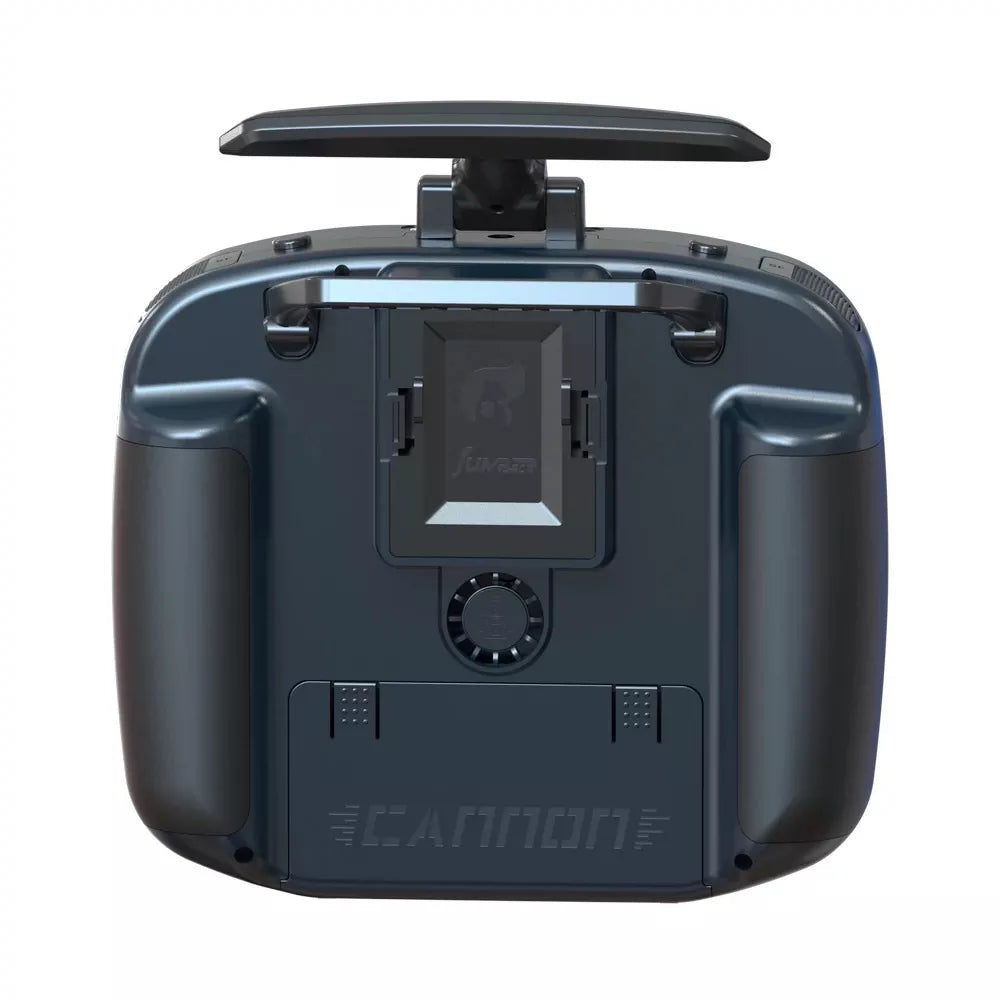

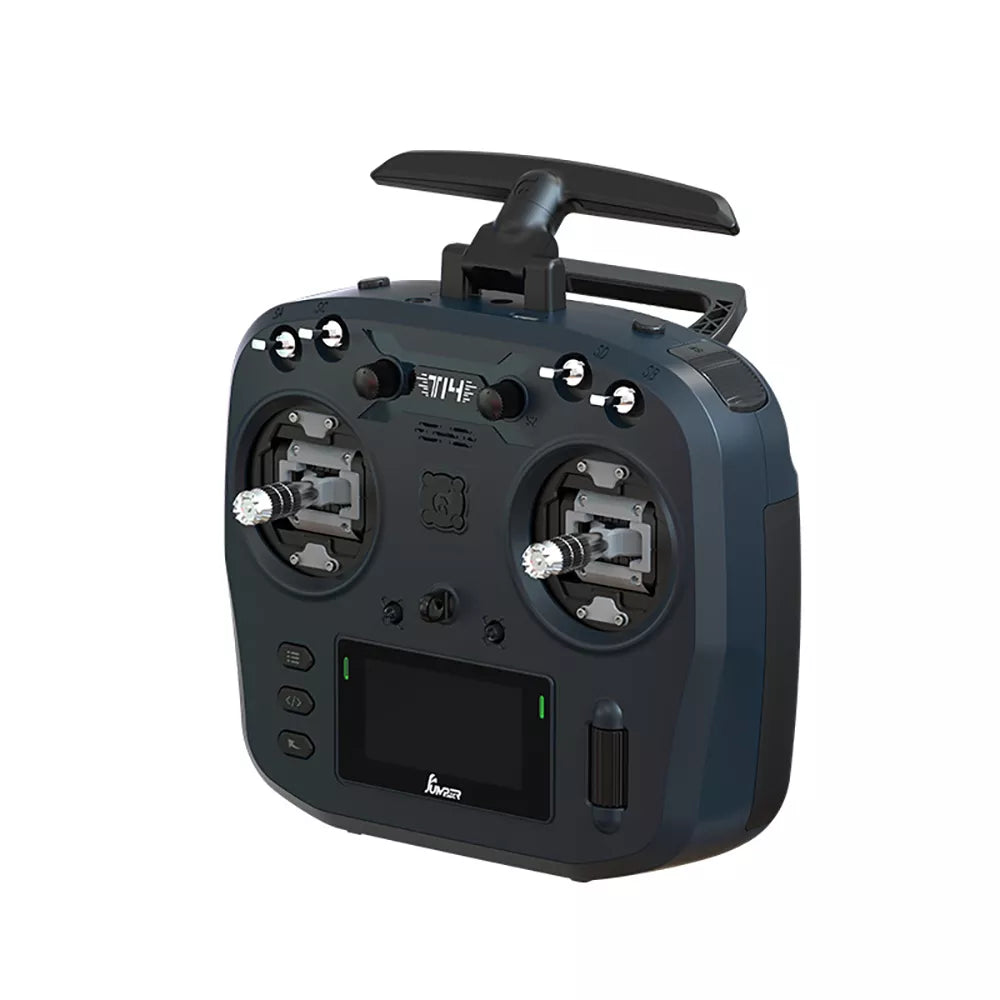

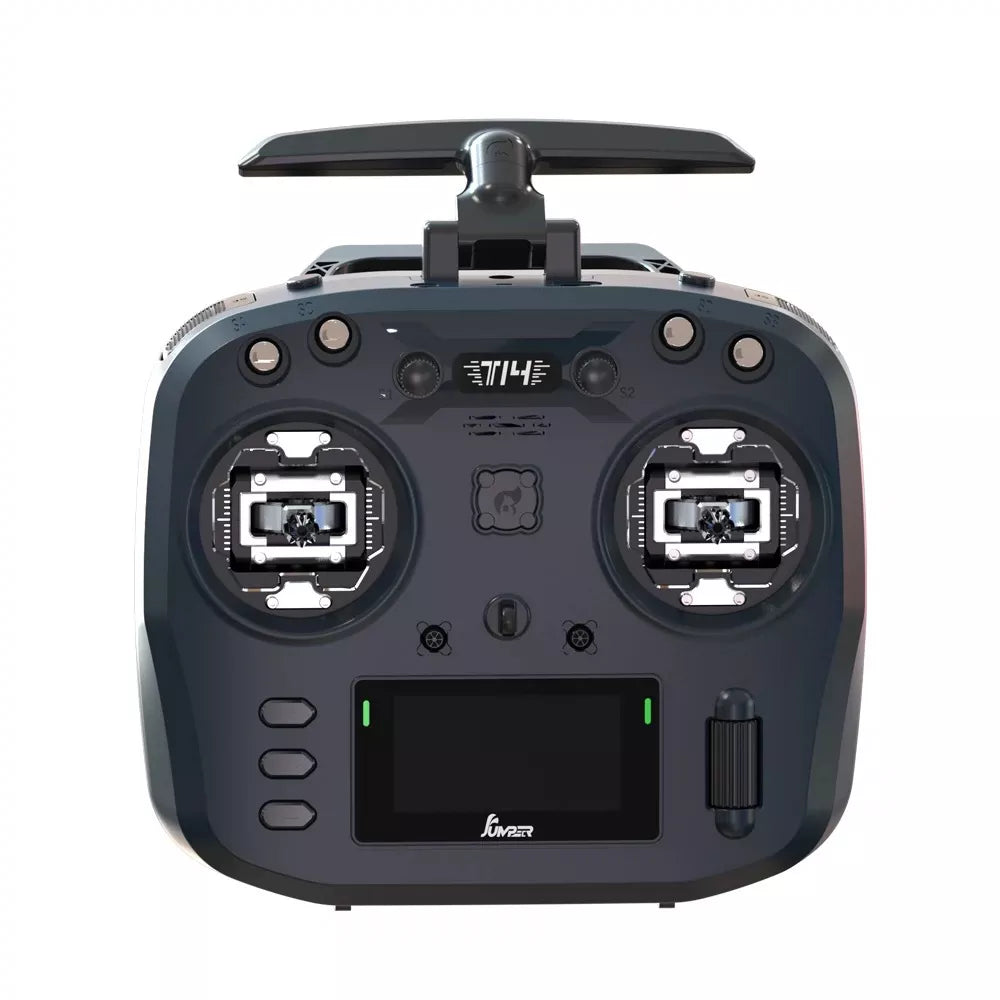

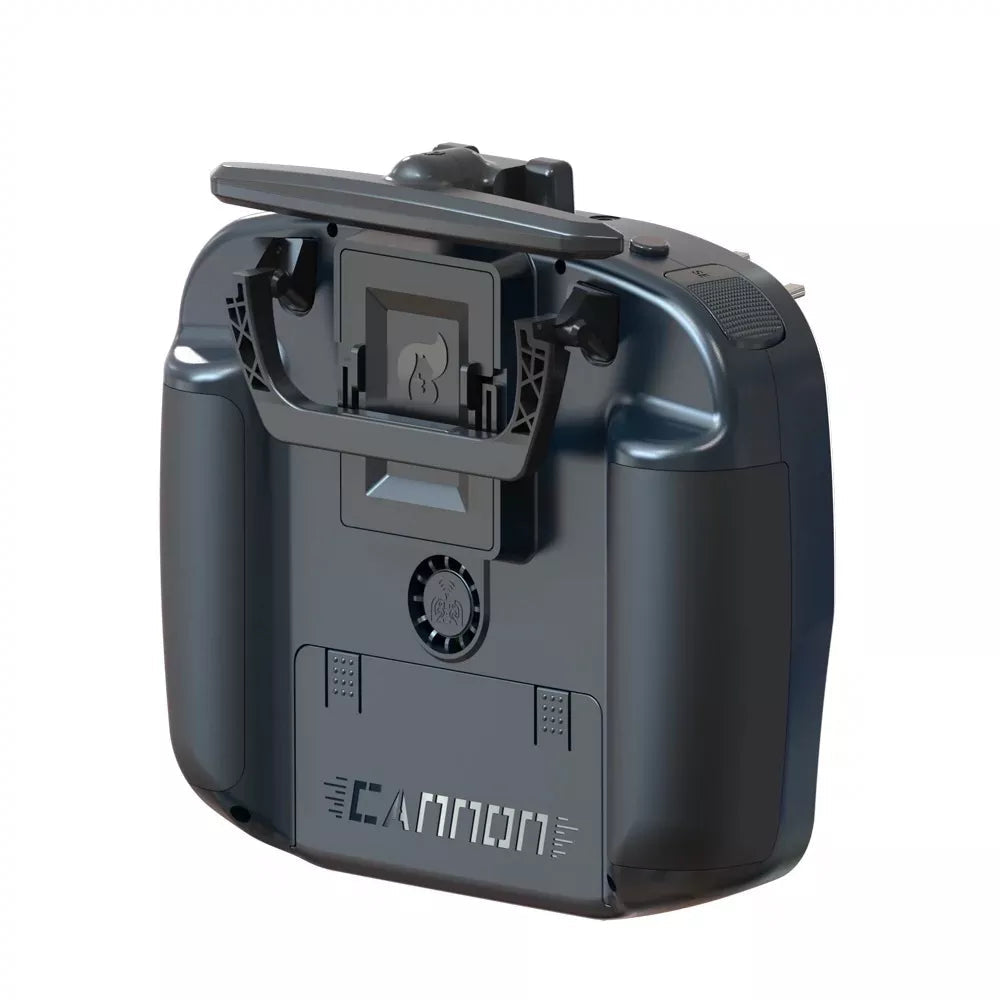

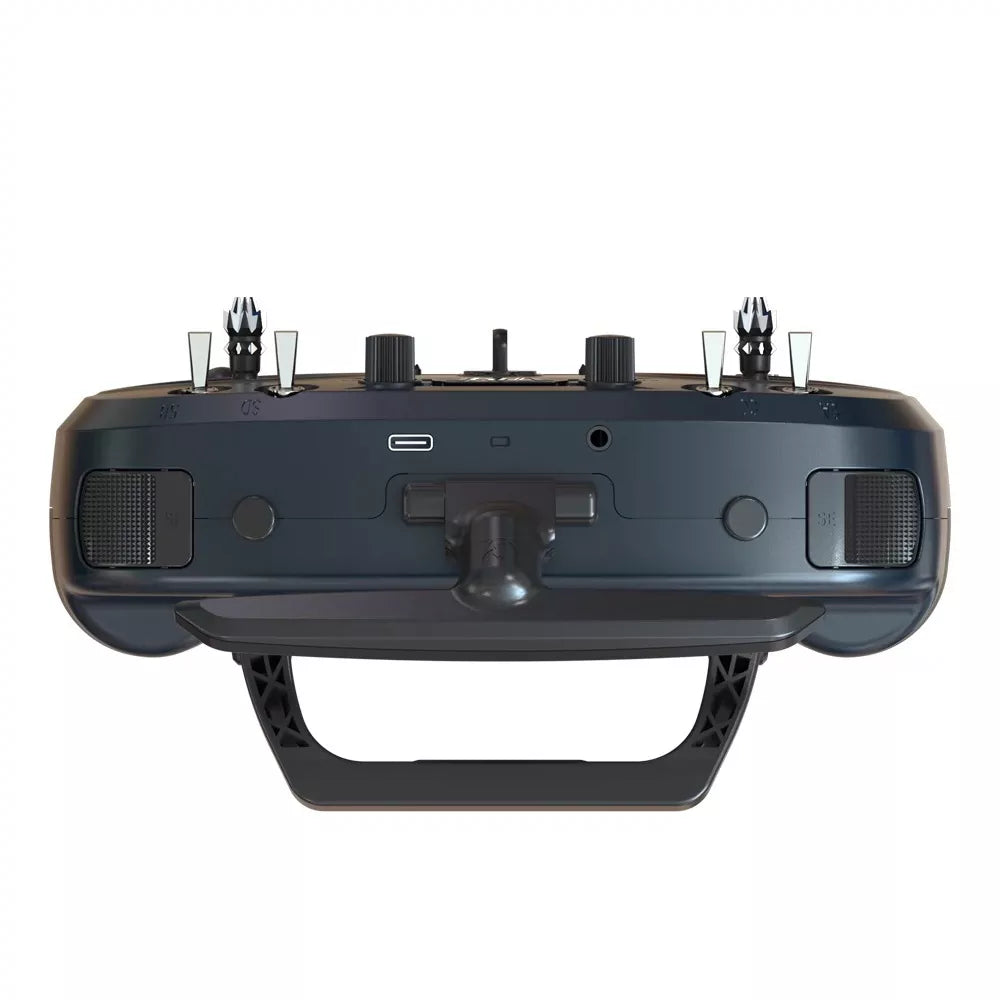

Transmitter: (only RTF)
Item: Jumper T14 Hall/CNC Hall Full Function FPV Remote Control EDGETX/ELRS
MCU:STM32F407ZET6
Screen size: 2.42"(resolution 128*64)
Display method: OLED
Rocker Stick Size:Standard
Hall Sensor gimbals: Hall sensor
Built-in RF:ELRS(915MHz/2.4GHz)
Transmission power: MAX 1000mW
External module interface: reserved (JR M0DULE)
TF card: built-in chip (officially recommended by EDGETX)
Working voltage: 6-8.4v
Battery: 21700*2(battery not included)
Size:185*175*79mm
Weight: 471g (battery not included)

Package weight: 3.2kg
Package size: 35.5*35.5*16cm

**We are the source manufacturer, welcome to purchase in bulk!
