MANTA 13X Lite 13 inch FPV Drone DJI O3 / Axisflying 5.8G 3W VTX Long Distance FPV Drone Kit

Regular price
$839.98
Regular price
Sale price
$839.98
Shipping calculated at checkout.

All U.S. Orders Tax-Free! | Secure Payment | Free Shipping

Color: Axisflying 5.8G 3W
200 in stock

Why Buy From us

Caret Down

A FEW REASONS WHY BUY FROM US:

SAFE SHOPPING
We try our best to make your shopping experience not only pleasant, seamless and hassle-free, but also secure.

SAFE SHIPPING
Choose high-quality and flexible international shipping companies for cooperation, as well as free shipping and fast shipping options to ensure our quality service and experience.

RETURN PLAN
It's okay to change your mind! You can return your order for a full refund, and we offer you full 30-day buyer protection.

NEW ARRIVALS
Brand new products are available on a regular basis.

EXCELLENT CUSTOMER SERVICE
Knowledgeable and professional support team is always happy to help you.

ACCESSORY SUPPORT
Perfect product accessories service, if the product you purchased is damaged during use, please don't worry, you can contact us directly at service@funyat.com, or communicate with us in live chat, live chat time: Monday-Friday (9:00AM - 8:00PM EST), tell us the product model or your order number and the accessories you need.

EASY TRACKING

You will receive a notification email in your email once the package has been shipped. The tracking number and link inside are for tracking the timely status of the package.You can also track at Our order tracking page . Or if you need a team members help to check up, please contact with our service team service@funyat.com and we will be in touch with a status update.

Order Protection

Caret Down

Shopping cart can choose the package delay, loss, damage claim service!

Note: Opening the insurance service is only to respond to the accidental accident of the order, under normal circumstances, do not open the insurance service order will not be damaged and lost! Customers can choose according to their own needs.

What does Buyer Protection cover?
Buyer Protection is a service provided by Seel (a 17TRACK partner). It covers delayed, damaged, and lost items that meet the following criteria.

*Delay: Domestic packages not delivered before the 10th day following order fulfillment (i.e., the date when the order is shipped by the merchant) or international packages not delivered before the 30th day following order fulfillment are considered delayed. The compensation for delayed packages is $5 USD. (If the order is not transacted in USD, compensation will be made in the currency of the transaction. For example, if an order in euros is delayed, the compensation is €5.)

*Loss: Domestic packages not delivered 30 days after order fulfillment (i.e., the date when the order is shipped by the merchant) are considered lost. (60 days for international packages.) Lost packages will be compensated for the actual item(s) value paid.

*Damage: Buyer Protection covers item damages to the point that the item(s) are unusable, clearly fractured, shattered, bent (if not bendable), crushed, etc., but does not cover cosmetic damage (scratches, dents, etc.), manufacturing damages, packaging errors, or unsealed items. The compensation for damaged items will be up to the value paid for the purchased item(s).

*Buyer Protection also includes carbon-neutral shipment within the recipient’s country.

*Note: Total compensation for one cover is up to the value actually paid for the item(s).

Description

Caret Down

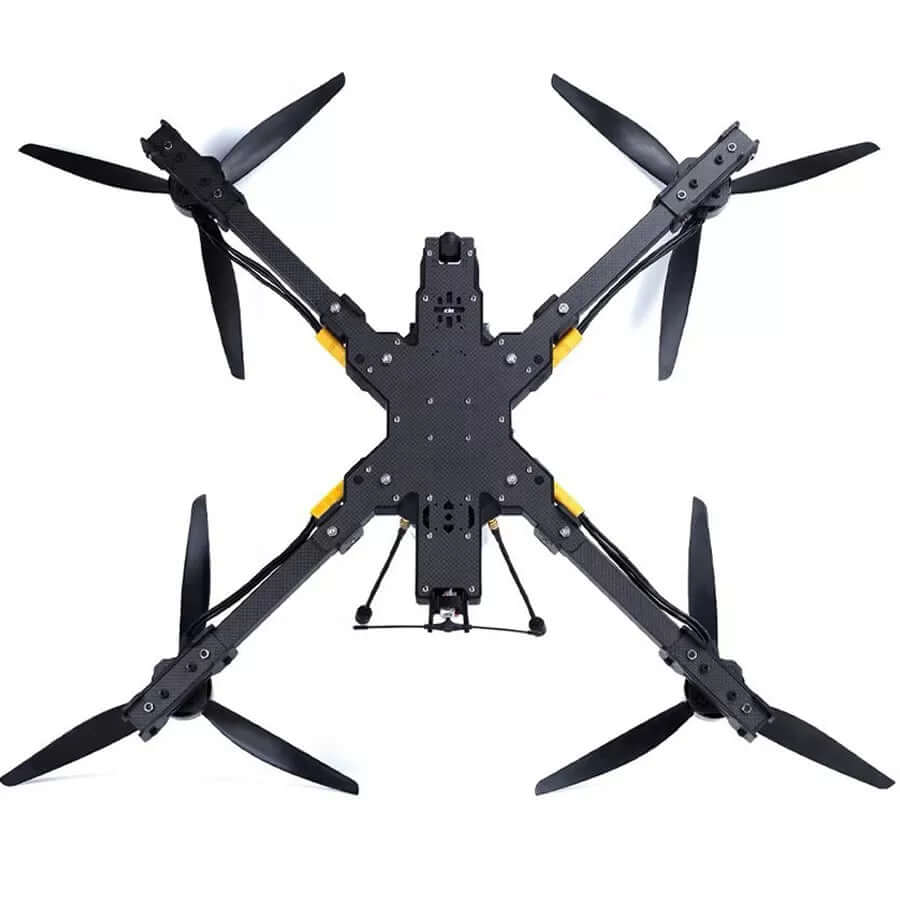

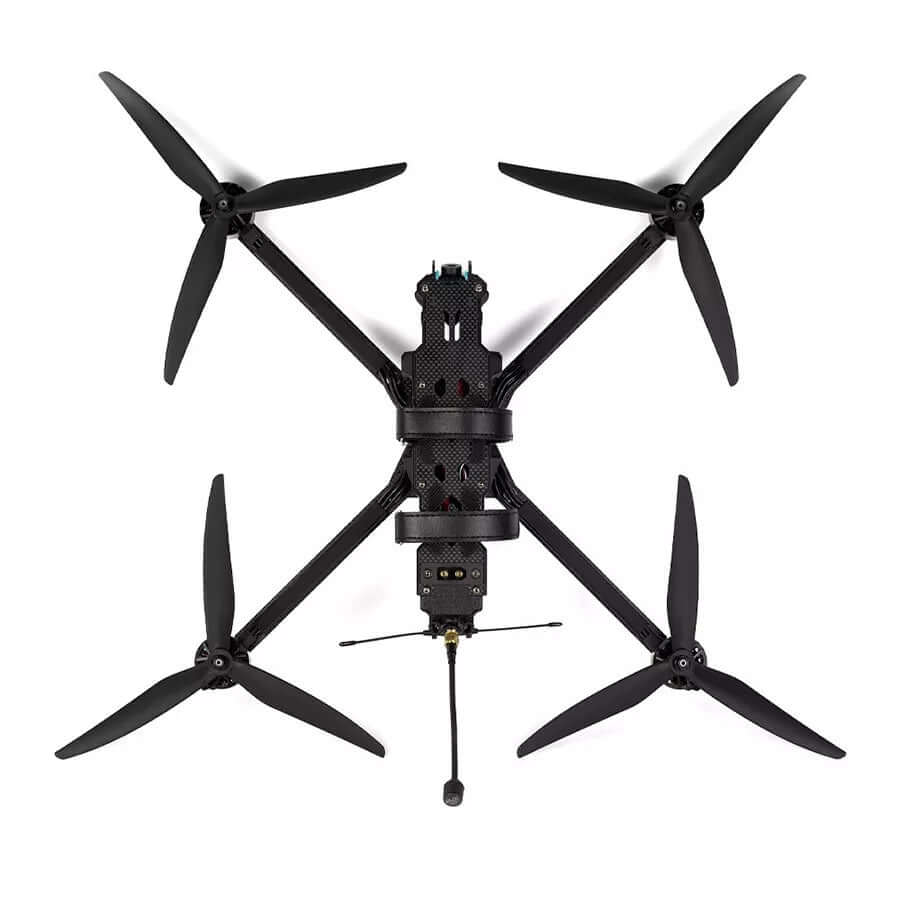

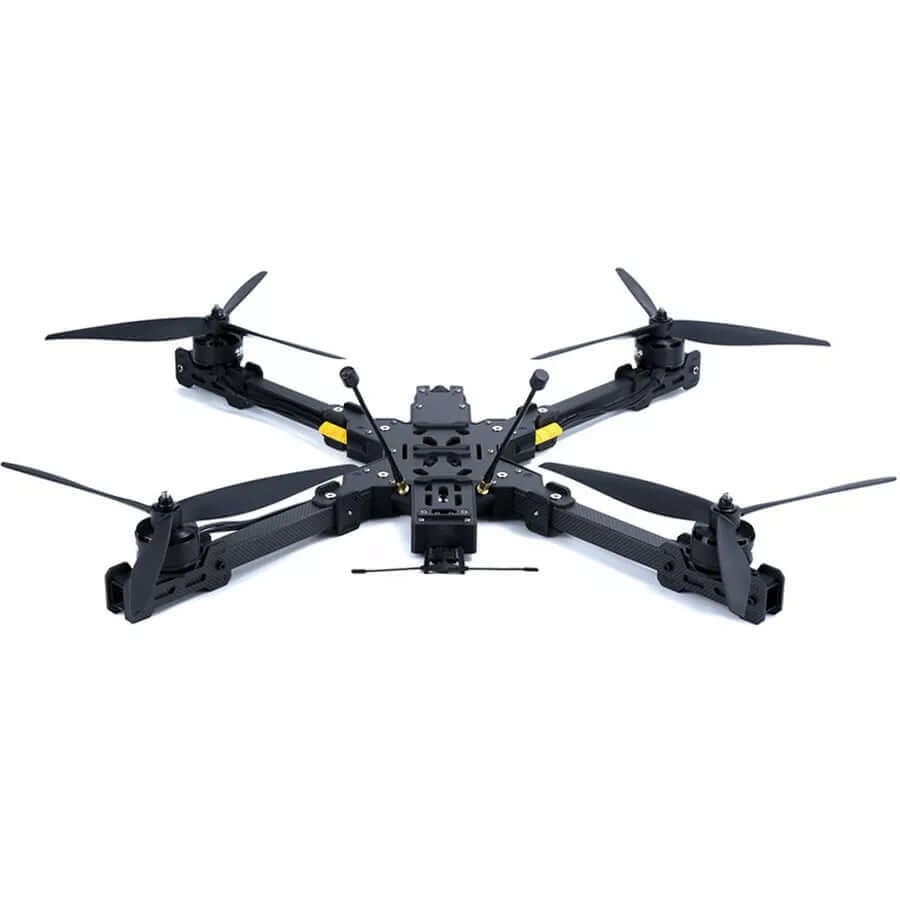

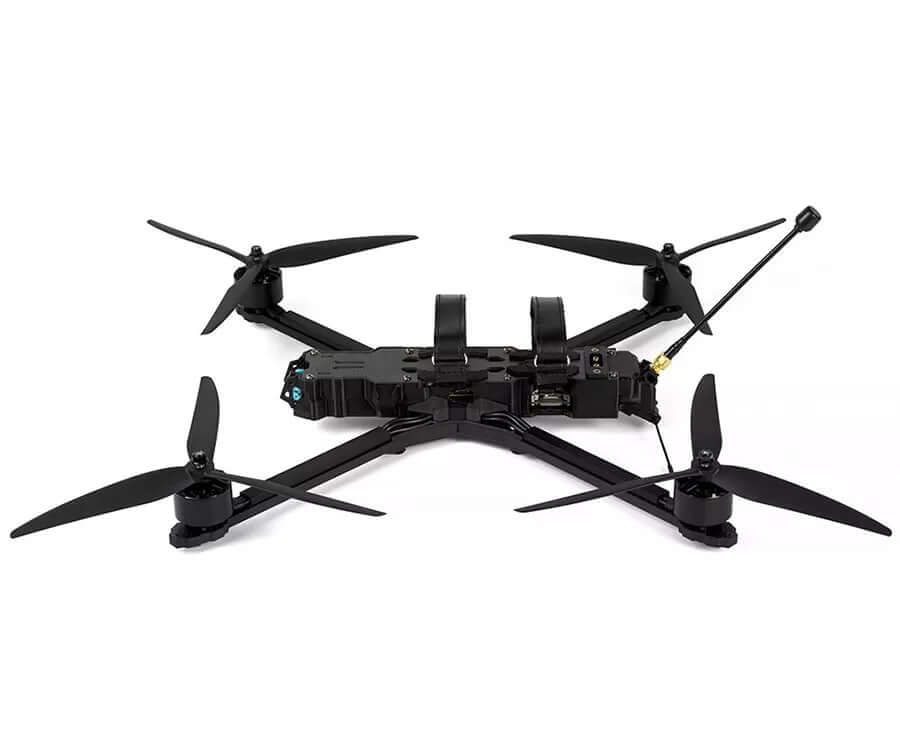

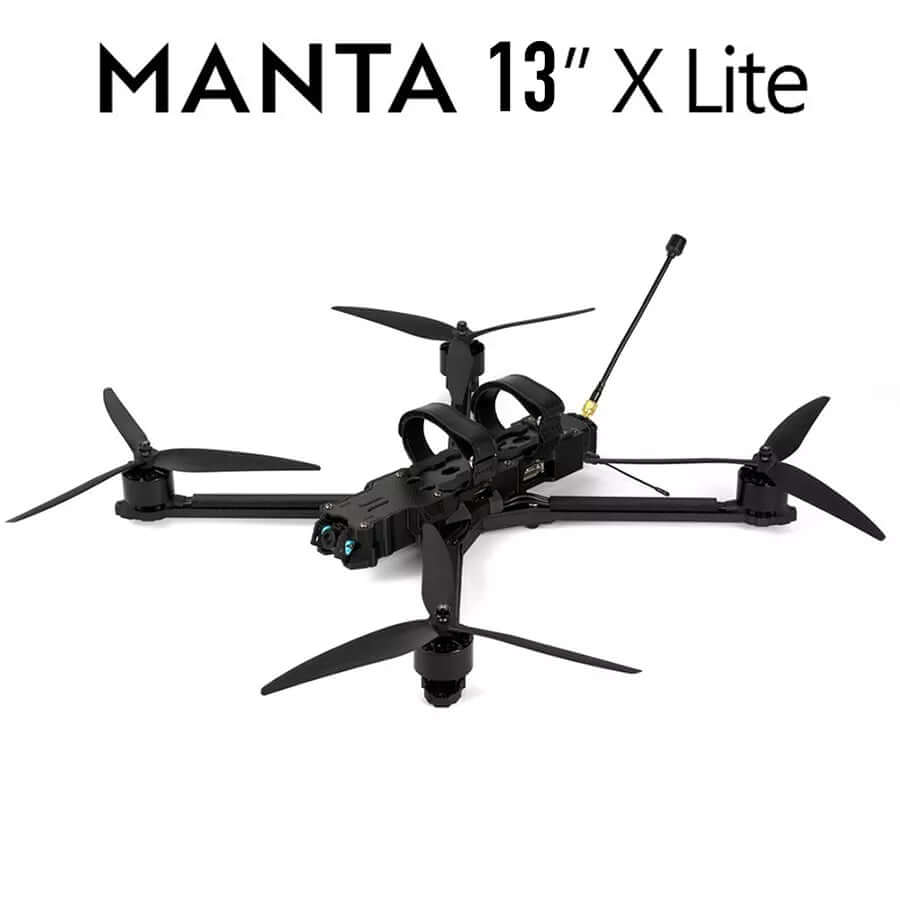

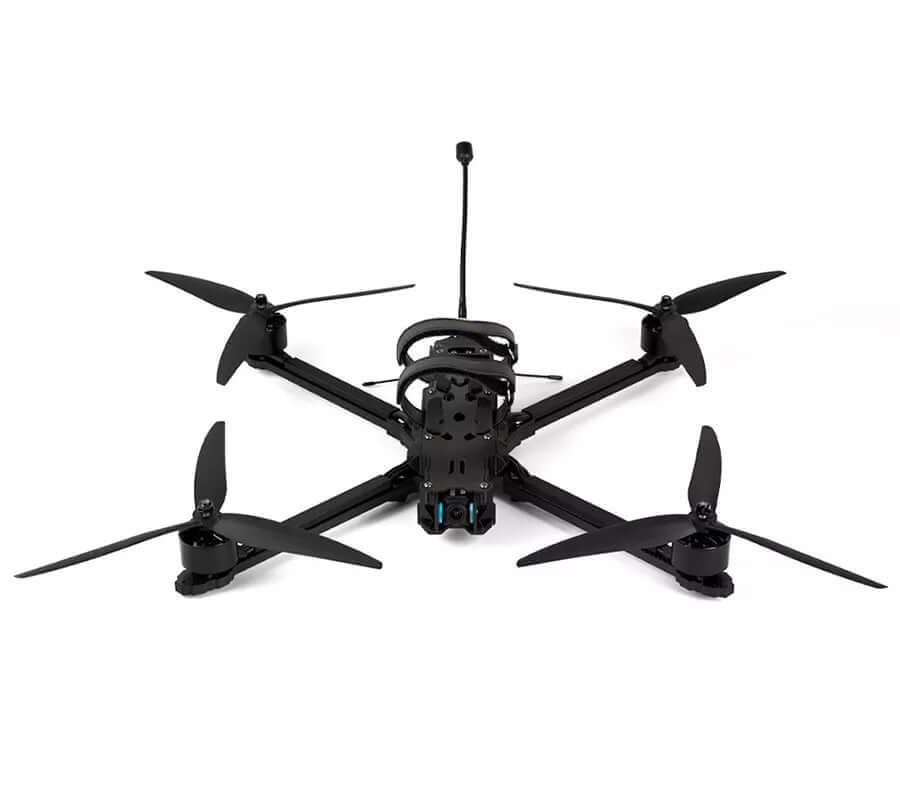

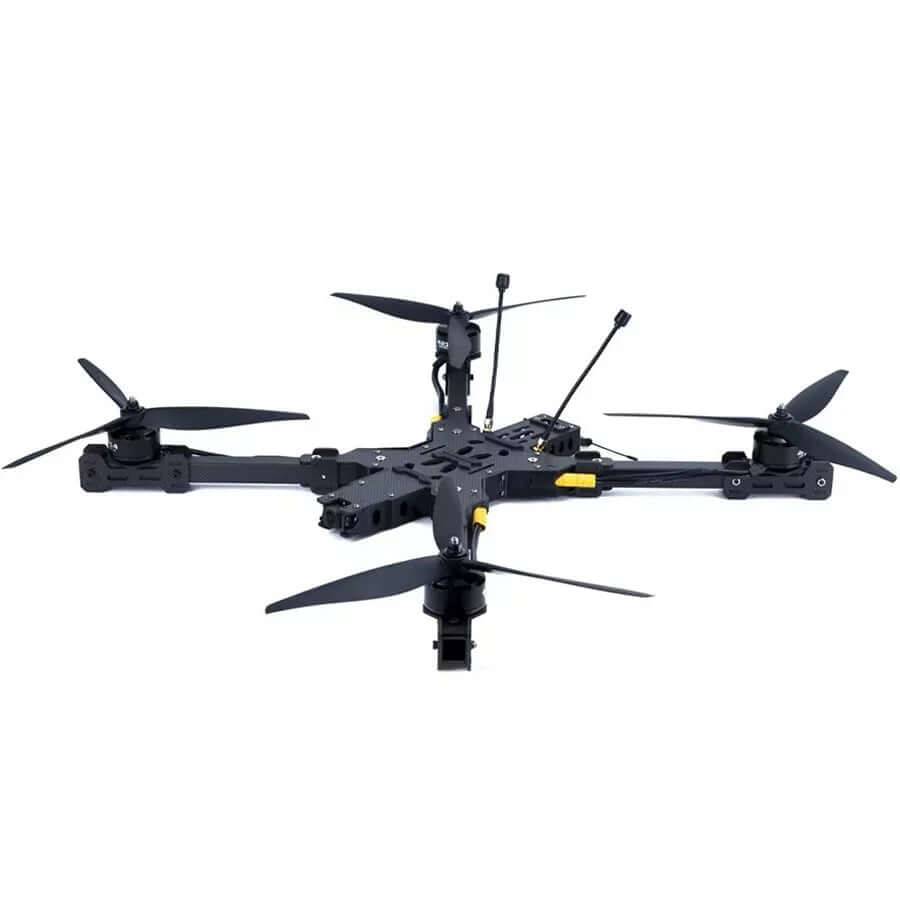

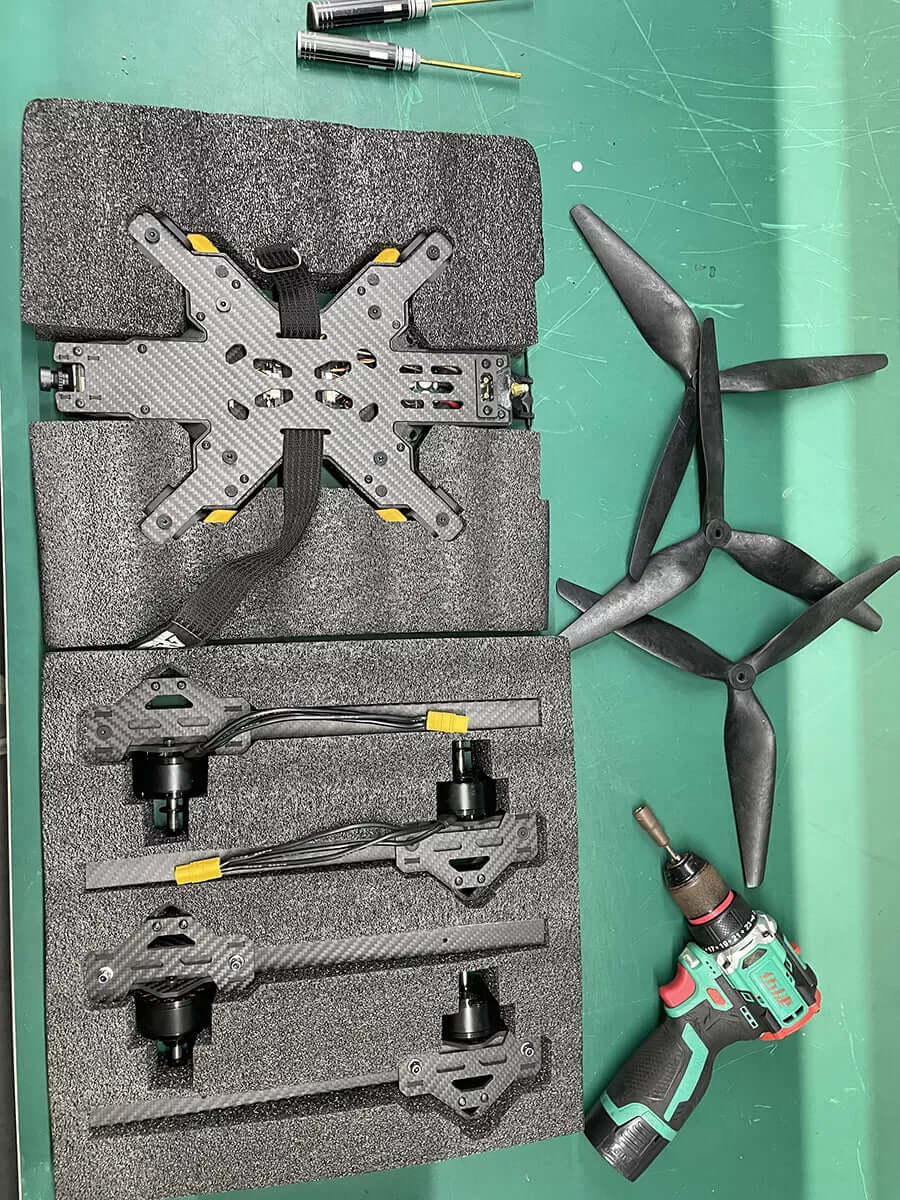

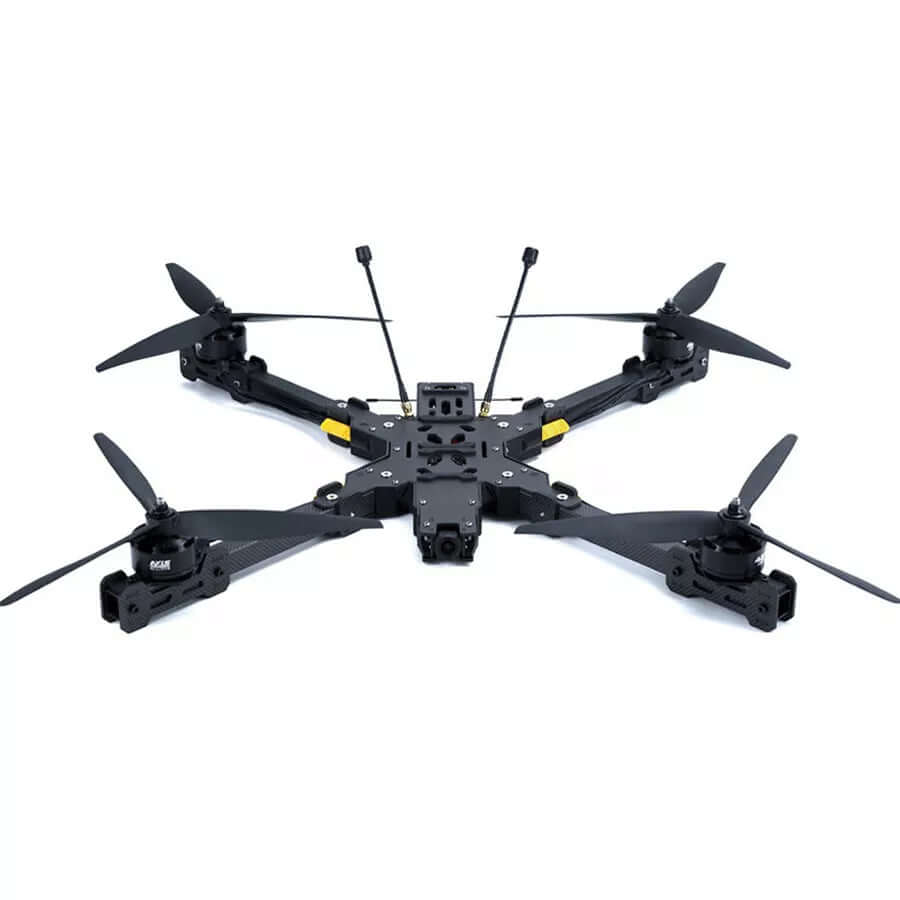

The MANTA 13X Lite FPV Drone Kit is built for long-range and endurance-focused pilots. Featuring a lightweight 13-inch carbon frame, it supports DJI O3 HD systems and includes the Axisflying 5.8GHz 3W VTX for unmatched signal range and penetration. Ideal for cinematic exploration, freestyle power loops, and DIY builds.

Product parameters:
Product name: Manta 13 X Lite
Structure: True X
Wheelbase: 600mm
Lower plate thickness: 3mm
Upper plate thickness: 3mm
Carbon plate material: T700
Arm size: 20mm*20mm*294.3
Camera width: 20mm
Flytower installation hole: M3*30.5mm
Image transmission hole distance: M2*20/25.5mm M3*30.5mm
Propeller installation size: 13inch Motor hole: M4x30mm
Body weight: about 2.8KG

Configuration:
Motor: 4214-380KV
Recommended battery: Lipo 8000mAh 8s
Propeller: 13inch
Flytower: Argus 80A +F722
Image transmission: DJI 03 or Axisflying 5.8G
Payload: 3.5 ~ 6kg
Flying Time: With Load Flying Time 8-15min
No Load: 25min
Flying Distance: 10km
Max Speed: 120km/h
Max Altitude: 5000m

Frame: 13-inch Carbon
Structure: True X
Wheelbase: 600mm
Bottom Plate Thickness: 3mm
Top Plate Thickness: 3mm
Carbon Plate Material: T300/T700
Height of Electronic Device Layer: 20mm
Arm Size: 20mm*20mm*294.3
Camera Spacing: 20mm
Stack Mounting Hole: M3*30.5mm
VTX Mounting Hole: M2*20/25.5mm M3*30.5mm
Propeller Installation Size: Max 13 inch
Motor Mounting Hole: M4 x 30mm

Motor: 4214 380 KV
KV Value: 380KV
Operating Rated Voltage: 6-8S
No-load Current: 2.8A/20V
Phase Resistance: 48mΩ
Motor Weight: 246g
Maximum Current: 60A
Maximum Power: 1760 W
Maximum Thrust: 4850g
Motor Size: Ф49x32.5mm

Flight Control: F722
MCU: STM32F722RET6
Gyroscope: ICM42688
Barometer: DPS310 or SPL06
Blackbox: 16 M
On-Screen Display: AT7456
BEC: 5V2A ,9V2A
Input Voltage: 12-50V(3-6S Lipo Recommended)
Firmware: Betaflight
Number of Serial Ports: 6 Groups
Supported Motors: M1 M8
Weight: 40.6x40.6x9.8mm
Size: 19.6g
Mounting Hole Spacing: 30.5mm/M3

ESC: 80A 8S
Firmware Name: QH 40_24_V0.19.2
Current Ratio Value: 200
Input Voltage: 8S
Continuous Current: 80A
Burst Current: 90A
ESC Telemetry: Not supported
BEC: Not supported
Size: 57*56*6mm
Mounting Hole Spacing: 30.5*30.5mm
Weight: 28g

Camera: B19 Product Manual Cam 1500TVL
Model: HD 1500TVL (upgraded version, with OSD tuning board)
Image Sensor: 1 / 3′CMOS
Pixels: 1500TVL
Lens: 2.1mm
Signal System: PAL / NTSC (adjustable via OSD)
Signal-to-Noise Ratio: > 60Db(AGC OFF)
Electronic Shutter Speed: PAL: 1 / 50-100.000, NTSC: 1 / 60-100,000
Electronic Shutter: PAL: /50 - 100,000; NTSC: 1/60 - 100,000
Automatic Gain Control (AGC): Low / Medium / High
Backlight Compensation (BLC): Yes
Minimum Illumination: 0.001Lux / 1.2F
WDR: D-WDR
DNR: 3DNR
Day/Night: Auto/Color/B&W
Power Supply: DC 5V-30V

Image transmission VTX: 5.8G 40CH 3W
Model: DJI O3 / Axisflying 5.8G (Optional)
Supported Voltage: 7-28V
BEC: 5V / 500mA
Transmission Power: 25mW / 13.95dBm; 2500mW / 34.04dBm
Antenna Interface: MMCX
Output Power: PIT / 25 / 2500mW
Standard 40 Channels: A / B / E / F / R
Video Transmission Protocol: SmartAudio
Mounting Holes: 20X20.M2
Size: 25mmX37mmx6.5mm
Weight: 19g

Antenna: 5.8G RHCP 150MM
*The whole is made of imported PC+ABS material which can withstand high strength impact
*Impact resistant double-sheathed semi-rigid cable
*Root reinforcement design, 360 ° protection

RX: ELRS 915MHz
Processing Chip: ESP8285
RF Chip: SX1276IMLTRT
Power Input: 5V
Operating Current: 100mA
Operating Protocol: CSRF
Receiving Frequency Range: 915MHz or 868MHz
Size: 12mm12mm3mm
Weight: 0.6g (without antenna)
Antenna Connector: IPEX1
Telemetry Output Power: <17dBm
Firmware Update Method: WIFI

Propellers: Gemfan Prop 1308
Type: 1308
Blades: 3
Material: Fiberglass Nylon
Pitch: 8 inch
Center Hole lnner diameter: 6mm
Weight/g: 39g

Package weight: 2.8kg
Package size: 35.5*35.5*16cm

Note: Batteries and transmitters are not included in the package

**We are the source manufacturer, welcome to purchase in bulk!
