Hubsan BlackHawk 1 Obstacle Avoidance Version 4K Drone GPS 9KM FPV Support 4G 3-axis Gimbal 37mins Flight Time Foldable Quadcopter

Hubsan BlackHawk 1 Obstacle Avoidance Version 4K Drone GPS 9KM FPV Support 4G 3-axis Gimbal 37mins Flight Time Foldable Quadcopter

AIRCRAFT：
Dimensions：Expand: 229.55 x 178 x 73.6mm; Folded: 118.7 x 172.5 x 67.6mm
Diagonal Wheelbase: 266mm
Color: Black
Takeoff Weight (with battery): About 590g
Maximum Ascension Speed: 3m/s (N), 4m/s (S)
Maximum Descent Speed: 1.5m/s (N), 3m/s (S)
Maximum Horizontal Flying Speed: Movie Mode: 3m/s (S, No wind at sea level); Normal Mode: 6m/s (N, No wind at sea level); Sports Mode: 10m/s (S, No wind at sea level)
Maximum Take-off Altitude: 5000 meters
Maximum Anti-wind Capability: 12m/s
Max Tilt Angle: 30°(S), 20°(N), 20°(F)
Positioning: GPS / GLONASS / Beidou Satelite
Flight Duration: Hovering for 33 minutes (Windless, measured in 2-4 meters hovering); Slow Flight Time 37 minutes

POWER SYSTEM:
Maximum Working Current: 25A
Propeller: Model: Foldable & Diameter 158.6mm; Color: Black
Motor: Outward Rotation Brushless Motor 1503, KV2820
ESC: Digital ESC Brushless 20A x 4

CAMERA:
CMOS Image Sensor: 1/2.6inch CMOS, 12 million effective pixels
Lens Specifications: FOV 80°; Aperture f/2.2; EFL: 3.5mm; Distortion:<1.5%
Focus Point: 0.5m to ∞
Video Resolution: 4K: 3840×2160@30fps; 2.7K: 2704×1520; 1080P: 1920×1080@30fps
Shutter Speed: 1/30s-1/8000s
Video Bitrate: 45Mbps-100Mbps
Photo Format: JPEG
Video Format: MP4 (H.264/MPEG-4 AVC)
Portrait Mode: Support
Control Method: APP, Remote Control
Firmware Upgrade: OTA
USB Interface: Micro-USB
Supported SD Cards: MicroSD Card, U3 or Class10 above 16G/32G/64G/128G

WIRELESS TRANSMISSION SYSTEM:
Image Transmission System: SyncLeas 2
Wireless Transmission Distance: FCC: 9KM; CE: <= 9KM; SRRC: <= 9KM
Band Mode: Direct Scan to Pair
Transmission Delay: Within 200ms
Antenna Position: Forearm Support Foot (Slightly Inclined)
Remote Control: HT16MY

GIMBAL:
Gimbal: HY817C
Stabilization: 3-Axis (tilt, roll, pan)
Degree of Freedom: Triaxial
Max Pitch Speed: 120°/s
Mechanical Range: Pitch: -120° to 45°; Roll: ± 35°; Yaw: ± 35°

FLIGHT CONTROLLER:
FC Version: Third-generation Flight Controller
Basic Flight Mode: Wind Resistance Mode / Sports Mode / Normal Mode
Altitude Hold Mode: Barometer
Fixed-point: Visual Optical Flow, GPS
Unlock/Lock: Outer ‘Eight’ Unlock/Lock
Fill Light: Support 0.5m-5m low light environment to automatically turn on the light
One Key Take-off/Landing: APP Supported，Remote Control Unsupported
Headless Mode: Yes
Out of Control Protection: Yes
Low Battery Protection: Automatically Return to Home and Land on Low Battery
Home Visual Recognition (search for drone apron): Yes
Visual Tracking: Third-generation Tracking Technology (ATVT 3.0)
Waypoint Flight: Yes
Flying Around: Yes
Auto Drifting: Yes
Intelligent Battery: Cell Balancing, Intelligent Power Estimation; Overcurrent Protection, High Temperature Protection; Overcharge Protection, Over-discharge Protection; Auto-Discharging Protection, Struggling Mode; Intelligent On-Off Control
Motor Stall Protection: Yes

REMOTE CONTROL:
Color: Black
Wireless Transmission Solution: SyncLeas 2
Display: NO Support
Operating Environment Temperature: -5 Deg.C- 50 Deg.C
Effective Range: FCC: 9KM ; CE: <= 9KM; SRRC: <= 9KM
Built-In Battery: 3200mAh
Mode: Mode 2 (Left Hand Throttle)
Buzzer: Support
Support Mobile System: Android, iOS
Working Time: 2.5h (Normal Flight Time)
Interfaces Type: Lighting / Micro USB / Type-C

BATTERY:
Battery Type: Li-Po Battery 4S
Capacity: 3200mAh (Standard); 5000mAh (Long Duration)
Standard Voltage: 3.6Vx4=14.4V
Charging Limit Voltage: 4.2Vx4=16.8V
Discharge Rate: 8C
Charging Time: 120 minutes
Weight: 230g (Standard); 300g (Long Duration)
Working Environment Temperature: -5 Deg.C- 40 Deg.C
Charging Environment Temperature: 0 Deg.C- 40 Deg.C
Smart Battery: Cell Balancing, Intelligent Power Estimation; Overcurrent Protection, High Temperature Protection; Overcharge Protection, Over-discharge Protection; Intelligent On-Off Control
Battery Smart Buckle: Yes
Low Battery Protection: Support; Turn on the battery after the power is less than 1%; In order to prevent over-discharge; the battery no longer provides external power output
Struggling Mode: Yes
Internal Resistance Monitoring: Yes
HBLog: Yes
Intelligent Diagnosis: Yes
Remote Locking: Yes
Online Upgrade: Yes

APP:
APP Name: X-Hubsan 2

MOBILE DEVICE:
Requirements: iOS 10.0 or higher; Android 6.0 Or higher

FEATURES:
– 9KM long digital image transmission distance.

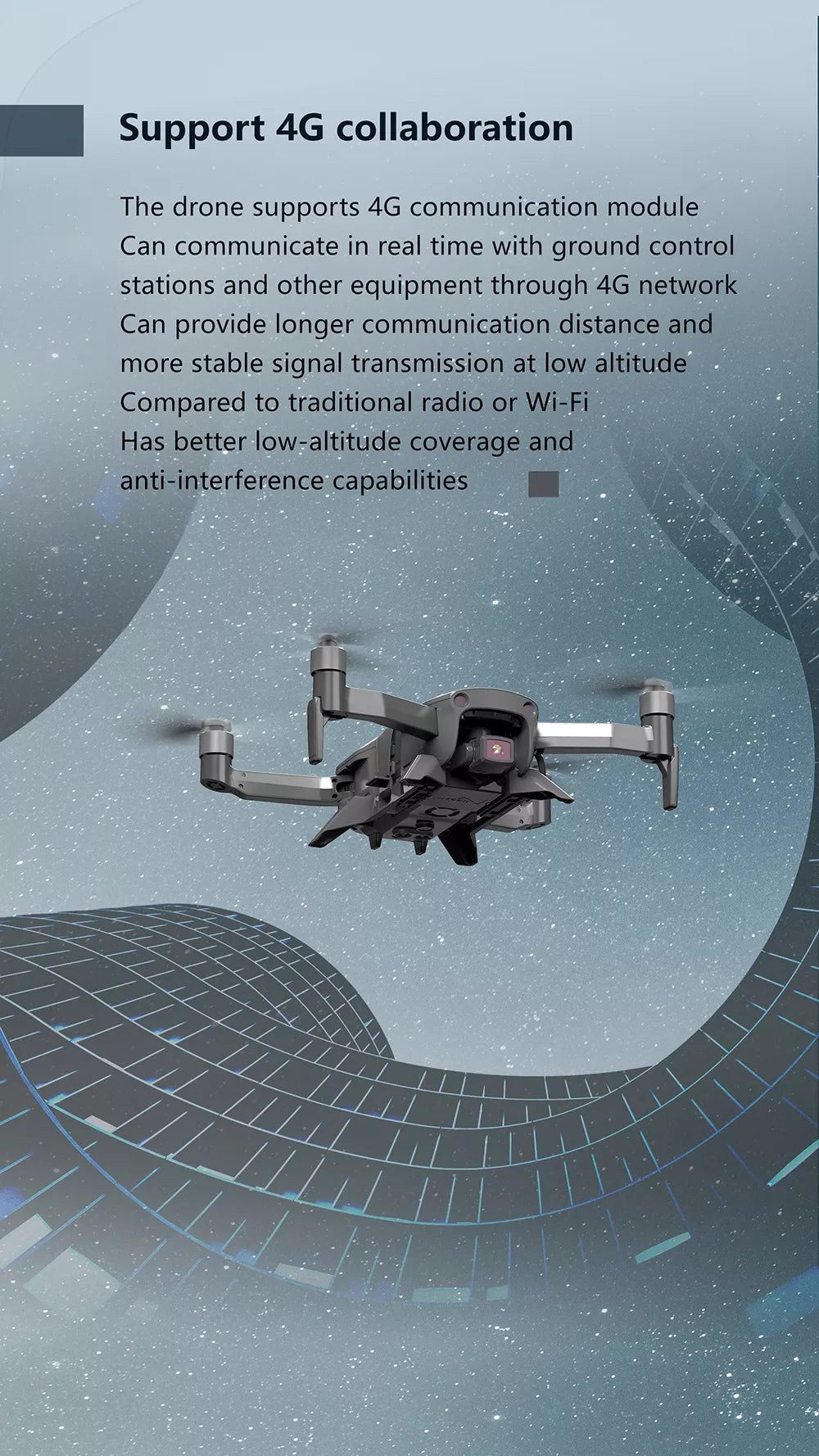

– 4G support for more stable low altitude flight wireless links.
– Ultra-Clear 4K 30-frame Video
– 1/2.6inch image sensor, 100Msbp video bit rate
– 3-Axis mechanically stabilized gimbal
– Portrait Mode & Upward Vision Mode
– Maximum Flying Time up to 37mins

PACKAGE INCLUDED:
1 x Hubsan BlackHawk 1 4K Drone
1 x Remote Controller
2 x BlackHawk 1 Drone Battery (Two 3200mAh or One 3200mAh + One 5000mAh, It can be choose)
2 x Pairs of Propellers
1 x Intelligent Charger
1 x USB Charging Cable
2 x RC Cable
1 x Gimbal Cover
8 x Screw
1 x Screwdriver
1 x Manual
1 x Storage Bag
