Hobbywing XeRun XR14 70A Sensored Brushless ESC
The XeRun XR14 is Hobbywing's dedicated sensored brushless ESC for 1/14 scale RC racing. Two preset profiles — On-Road and Off-Road — mean you're dialed in from the moment you plug in. With 70A continuous output, a full-metal heat sink, switchable BEC voltage, and 26 adjustable parameters, the XR14 gives serious racers the control they need without the complexity they don't.
Key Features
- Two Racing Profiles – Dedicated presets for 1/14 On-Road and 1/14 Off-Road racing — optimized power delivery for each application out of the box
- 70A Continuous / 300A Peak Output – High power output handles the demands of competitive 1/14 racing without thermal throttling
- Full-Metal Heat Sink Top – Efficient heat dissipation keeps operating temperature stable during intensive race sessions
- Switch Mode BEC – Switchable 6V/7.4V output with 4A continuous and 8A peak — powers high-torque, high-voltage servos reliably under load
- 26 Adjustable Parameters – Including PWM frequency, softening, initial throttle response, and Boost/Turbo timing for precise tuning
- Data Logging – Records minimum voltage, maximum current, RPM, ESC temperature, and motor temperature for post-run analysis
- OTA Bluetooth Module Support – Connect via HW Link app for real-time data monitoring and historical data analysis (Bluetooth range ~5 meters; OTA module sold separately)
- Versatile Compatibility – Optimized for 1/14 Blinky and Boost racing; also compatible with 1/10 Blinky competitions
- Firmware Upgradeable – Supports firmware updates via LCD PRO program box
- Comprehensive Protection – Low-voltage cutoff, ESC thermal protection, motor thermal protection, fail-safe, and reverse polarity protection
ESC Specifications
| Parameter | Specification |
|---|---|
| Product Number | 30112622 |
| Scale | 1/14, 1/12, 1/10 (light load, zero-timing) |
| Motor Type | Sensored / Sensorless Brushless |
| Continuous / Peak Current | 70A / 300A |
| Input Voltage | 2S LiPo |
| BEC Output | Switch Mode 6V/7.4V @ 4A (peak 8A) |
| Fan | 25×25×10mm framed fan, powered by BEC (6–7.4V) |
| Input Wires | Black 10AWG 200mm ×1; Black 14AWG 175mm ×2 |
| Output Wires | Black 14AWG 175mm ×3 |
| Input / Output Connectors | None |
| Size | 35.2 × 31.3 × 28.5mm |
| Weight | 66g (including wires) |
| Waterproof | No |
| Applicable Motor | XeRun 2848SD |
Programming Methods
| Method | Supported |
|---|---|
| SET Button on ESC | ❌ Not Supported |
| LED Program Box | ❌ Not Supported |
| LCD G2 Program Box | ✅ Supported |
| LCD PRO Program Box | ✅ Supported |
| OTA Programmer | ❌ Not Supported |
| WiFi Module | ✅ Supported |
Data Recording
| Feature | Supported |
|---|---|
| Extreme Value Recording | ✅ Yes |
| Real-time Data | ✅ Yes |
| Built-in Historical Data (Graph) | ❌ No |
| External OTA Historical Data (Graph) | ✅ Yes (via OTA module) |
Compatible Applications
- 1/14 scale RC racing – primary application (On-Road and Off-Road presets)
- 1/12 scale RC vehicles
- 1/10 scale light load vehicles in zero-timing (blinky) mode
- Best matched with Hobbywing XeRun 2848SD sensored brushless motor
Protection Functions
- Low-voltage cutoff
- ESC thermal protection
- Motor thermal protection
- Fail-safe (throttle signal loss)
- Reverse polarity protection circuit
Important: Reverse polarity protection of the entire power system requires the optional non-polarity capacitor (sold separately). The standard capacitor does not provide full reverse polarity protection — reverse battery connection will damage the capacitor and it must be replaced immediately.

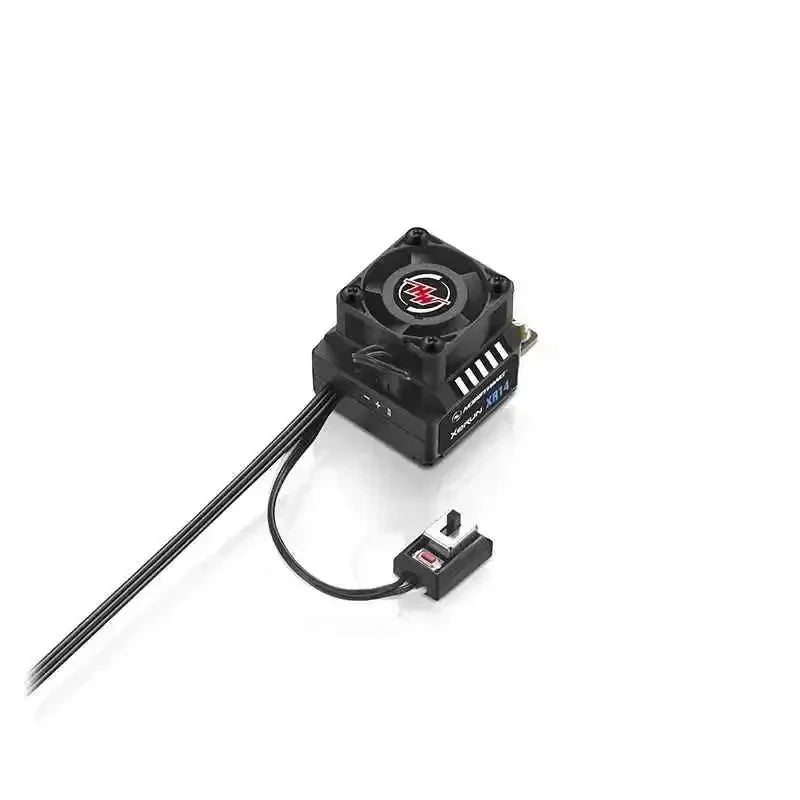

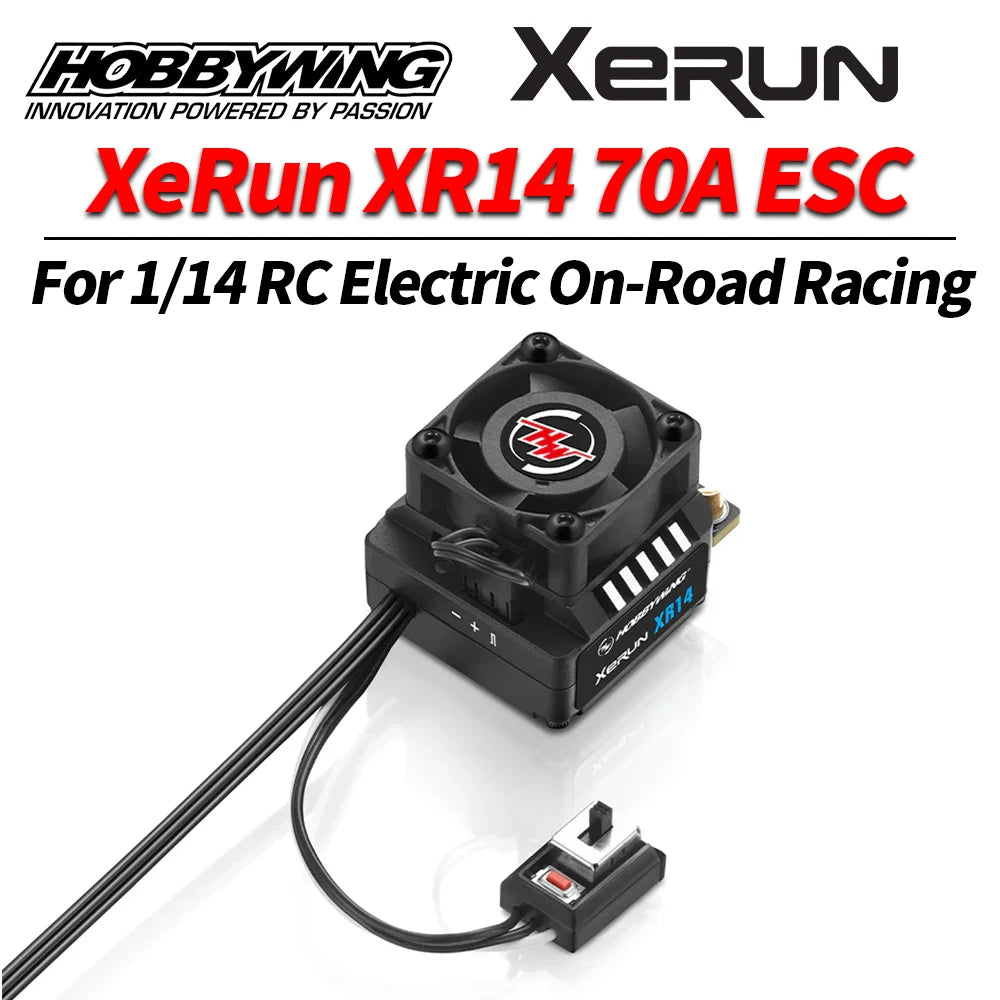

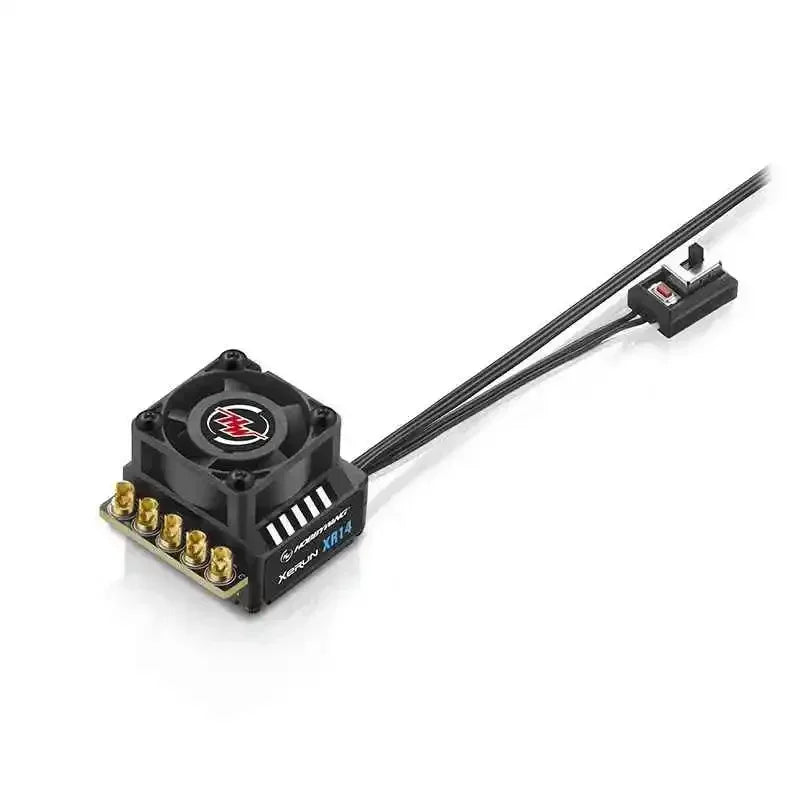

The XeRun XR14 is Hobbywing's purpose-built sensored brushless ESC for 1/14 scale RC racing — compact, powerful, and ready to race with dual preset application modes straight out of the box.

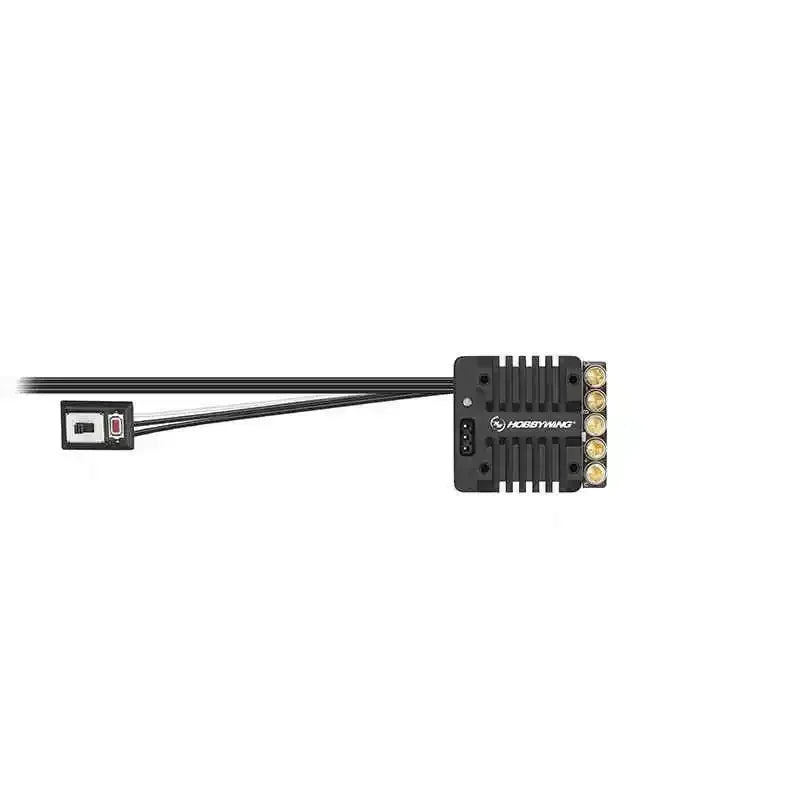

The XR14 features a compact fan-cooled case with clearly laid-out terminals for clean, reliable wiring — making installation straightforward in tight 1/14 scale chassis.

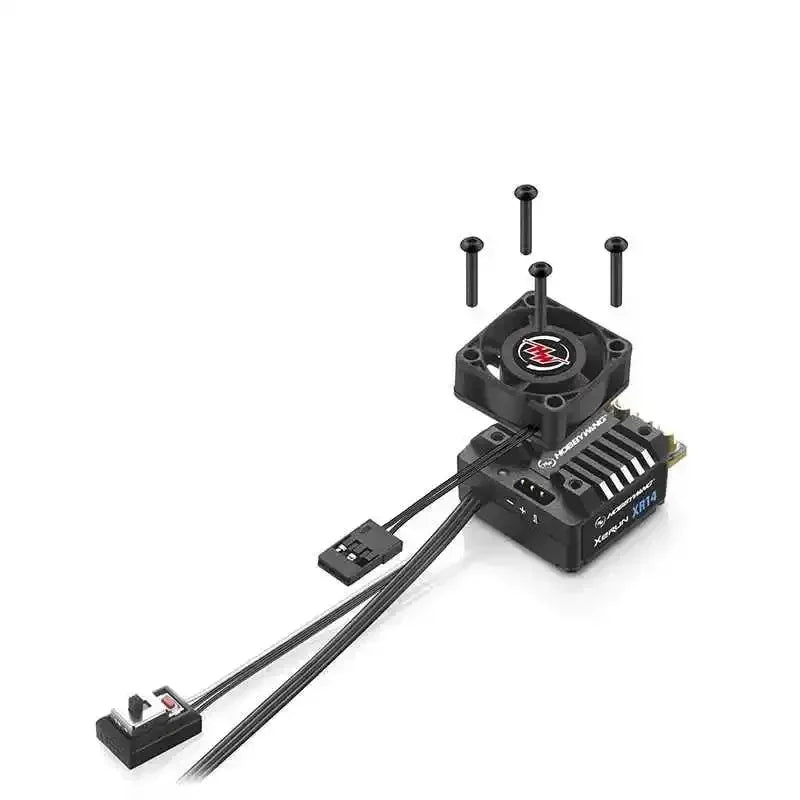

The full-metal heat sink top efficiently dissipates heat during intensive race sessions, keeping the XR14 running at stable operating temperatures with 70A maximum continuous output current.
The XR14 includes a built-in reverse polarity protection circuit to help reduce damage from incorrect battery connections. Note: full system protection requires the optional non-polarity capacitor (sold separately).
The built-in switch mode BEC delivers switchable 6V/7.4V output at 4A continuous and 8A peak — providing ample, stable power for high-torque, high-voltage servos in demanding 1/14 racing setups.
Built-in data logging works with the HW Link mobile app and an optional OTA Bluetooth module to monitor throttle position, voltage, current, temperature, and RPM in real time, with post-race historical data analysis. Bluetooth effective range is approximately 5 meters.
The XR14 supports 26 adjustable parameters via the HW Link mobile app, including PWM drive frequency, softening, initial throttle force, and Boost/Turbo timing — giving you precise control over power delivery for any track condition.
Two pre-set application modes — 1/14 On-Road and 1/14 Off-Road — are built in from the factory. The XR14 is ready to race straight out of the box with optimized power delivery for each racing format.
While optimized for 1/14 Blinky and Boost racing, the XR14 is also compatible with 1/10 Blinky competitions — offering flexibility across different racing formats and vehicle classes.
Official specifications: Product Number 30112622, 70A/300A continuous/peak current, 2S LiPo input, Switch Mode BEC 6V/7.4V @4A, compatible with 1/14, 1/12, and 1/10 scale RC vehicles.

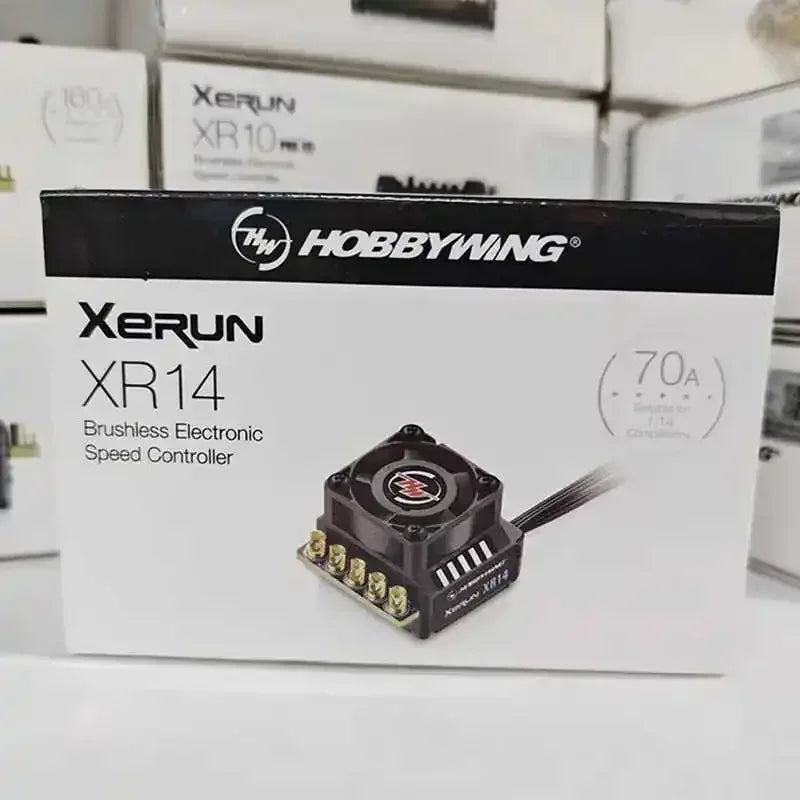

Package includes the XeRun XR14 ESC with pre-fitted input and output wires — ready to install into your 1/14 scale RC racing build.
