Hobbywing XeRun AXE Plus R3 135A ESC & Brushless Motor for 1/10 RC Crawler – FOC System Waterproof

Regular price
$314.98
Regular price
Sale price
$314.98
Shipping calculated at checkout.

All U.S. Orders Tax-Free! | Secure Payment | Free Shipping

Model: AXE Plus R3 ESC + 4274SD 1700KV Combo
100 in stock

Why Buy From us

Caret Down

A FEW REASONS WHY BUY FROM US:

SAFE SHOPPING
We try our best to make your shopping experience not only pleasant, seamless and hassle-free, but also secure.

SAFE SHIPPING
Choose high-quality and flexible international shipping companies for cooperation, as well as free shipping and fast shipping options to ensure our quality service and experience.

RETURN PLAN
It's okay to change your mind! You can return your order for a full refund, and we offer you full 30-day buyer protection.

NEW ARRIVALS
Brand new products are available on a regular basis.

EXCELLENT CUSTOMER SERVICE
Knowledgeable and professional support team is always happy to help you.

ACCESSORY SUPPORT
Perfect product accessories service, if the product you purchased is damaged during use, please don't worry, you can contact us directly at service@funyat.com, or communicate with us in live chat, live chat time: Monday-Friday (9:00AM - 8:00PM EST), tell us the product model or your order number and the accessories you need.

EASY TRACKING

You will receive a notification email in your email once the package has been shipped. The tracking number and link inside are for tracking the timely status of the package.You can also track at Our order tracking page . Or if you need a team members help to check up, please contact with our service team service@funyat.com and we will be in touch with a status update.

Order Protection

Caret Down

Shopping cart can choose the package delay, loss, damage claim service!

Note: Opening the insurance service is only to respond to the accidental accident of the order, under normal circumstances, do not open the insurance service order will not be damaged and lost! Customers can choose according to their own needs.

What does Buyer Protection cover?
Buyer Protection is a service provided by Seel (a 17TRACK partner). It covers delayed, damaged, and lost items that meet the following criteria.

*Delay: Domestic packages not delivered before the 10th day following order fulfillment (i.e., the date when the order is shipped by the merchant) or international packages not delivered before the 30th day following order fulfillment are considered delayed. The compensation for delayed packages is $5 USD. (If the order is not transacted in USD, compensation will be made in the currency of the transaction. For example, if an order in euros is delayed, the compensation is €5.)

*Loss: Domestic packages not delivered 30 days after order fulfillment (i.e., the date when the order is shipped by the merchant) are considered lost. (60 days for international packages.) Lost packages will be compensated for the actual item(s) value paid.

*Damage: Buyer Protection covers item damages to the point that the item(s) are unusable, clearly fractured, shattered, bent (if not bendable), crushed, etc., but does not cover cosmetic damage (scratches, dents, etc.), manufacturing damages, packaging errors, or unsealed items. The compensation for damaged items will be up to the value paid for the purchased item(s).

*Buyer Protection also includes carbon-neutral shipment within the recipient’s country.

*Note: Total compensation for one cover is up to the value actually paid for the item(s).

Description

Caret Down

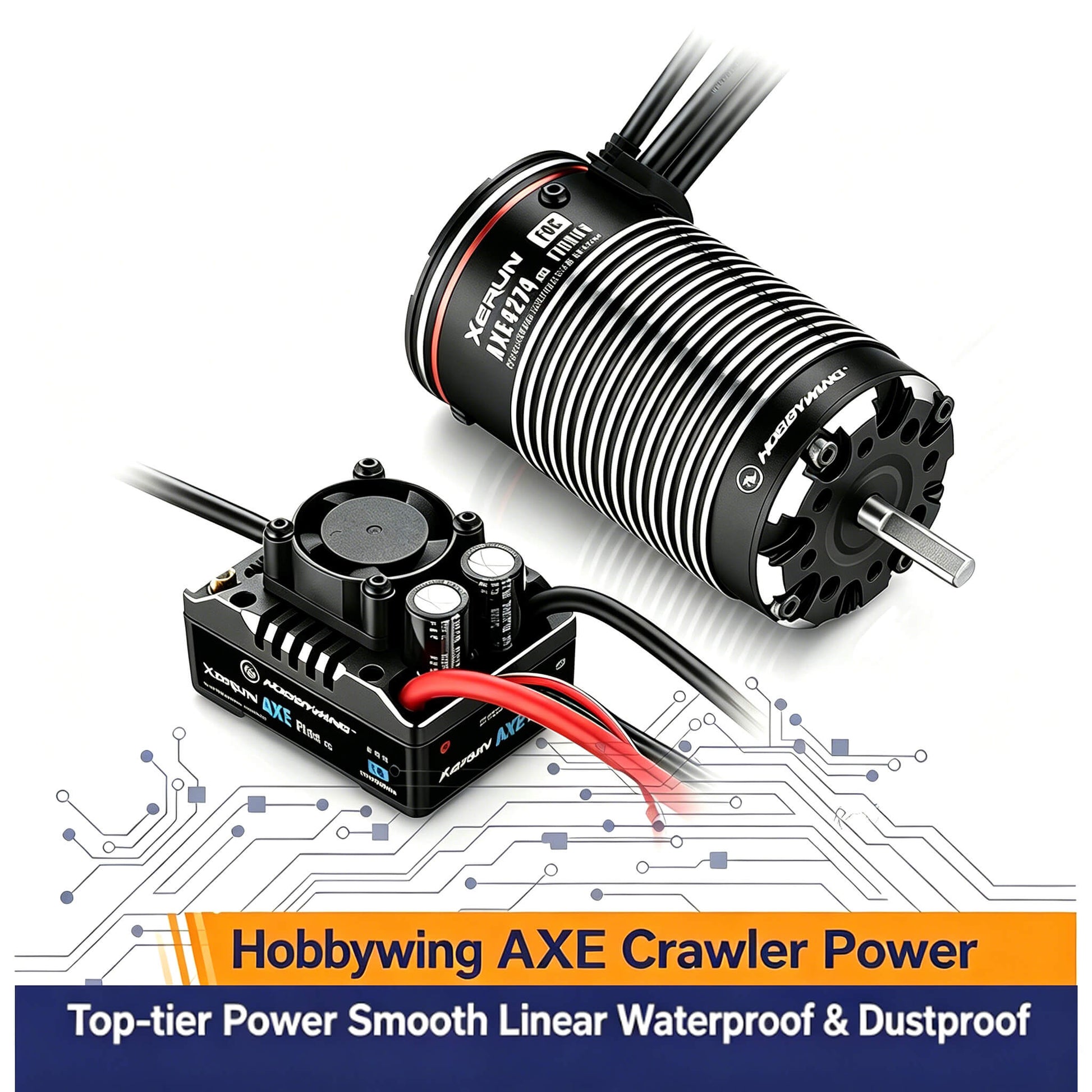

Hobbywing XeRun AXE Plus R3 135A ESC & Brushless Motor

The XeRun AXE Plus R3 is Hobbywing's dedicated FOC (Field-Oriented Control) crawling system designed specifically for 1/10–1/6 scale RC crawlers. Whether you need a complete ESC + motor combo or just the motor or ESC on its own, the AXE Plus R3 system delivers smooth, ultra-low-speed control and maximum crawling performance on any terrain.

Key Features

  • FOC Technology – Ultra-smooth throttle response and precise low-speed control for technical crawling
  • High Torque Output – Sensored brushless motor delivers consistent power from a dead stop
  • Waterproof Design – Fully sealed motor and ESC for all-weather, all-terrain use

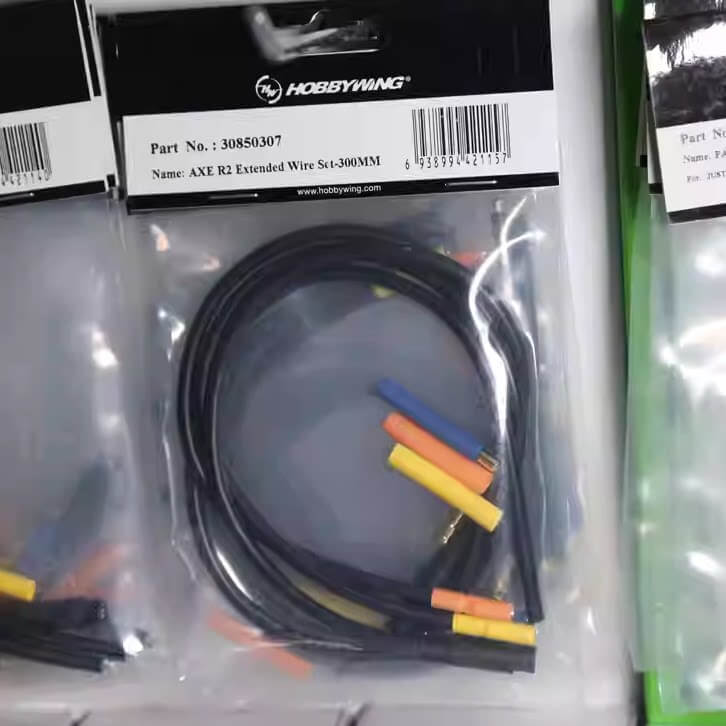

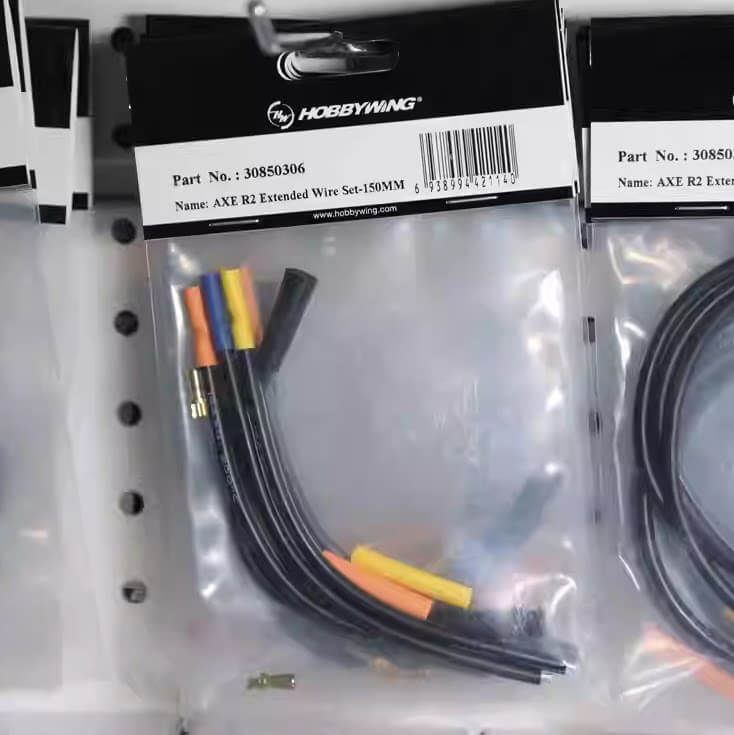

  • Flexible Options – Available as ESC + motor combo, ESC only, motor only, or sensor wire extension
  • Compatible with 1/10–1/6 Scale Crawlers – Fits most popular platforms including SCX10, TRX-4, and more

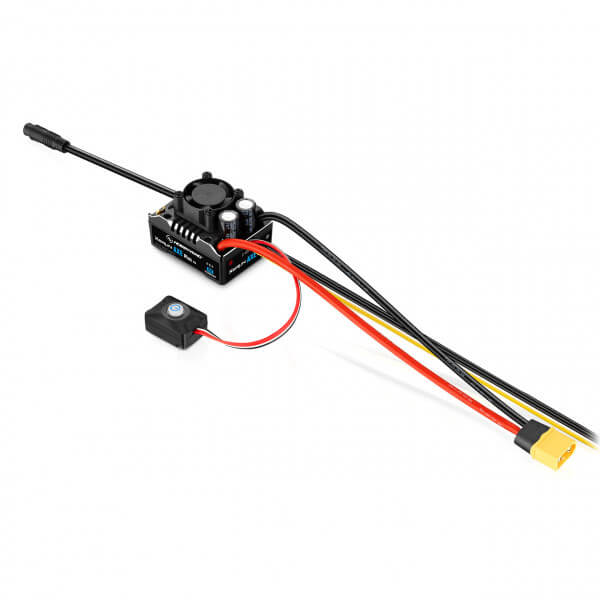

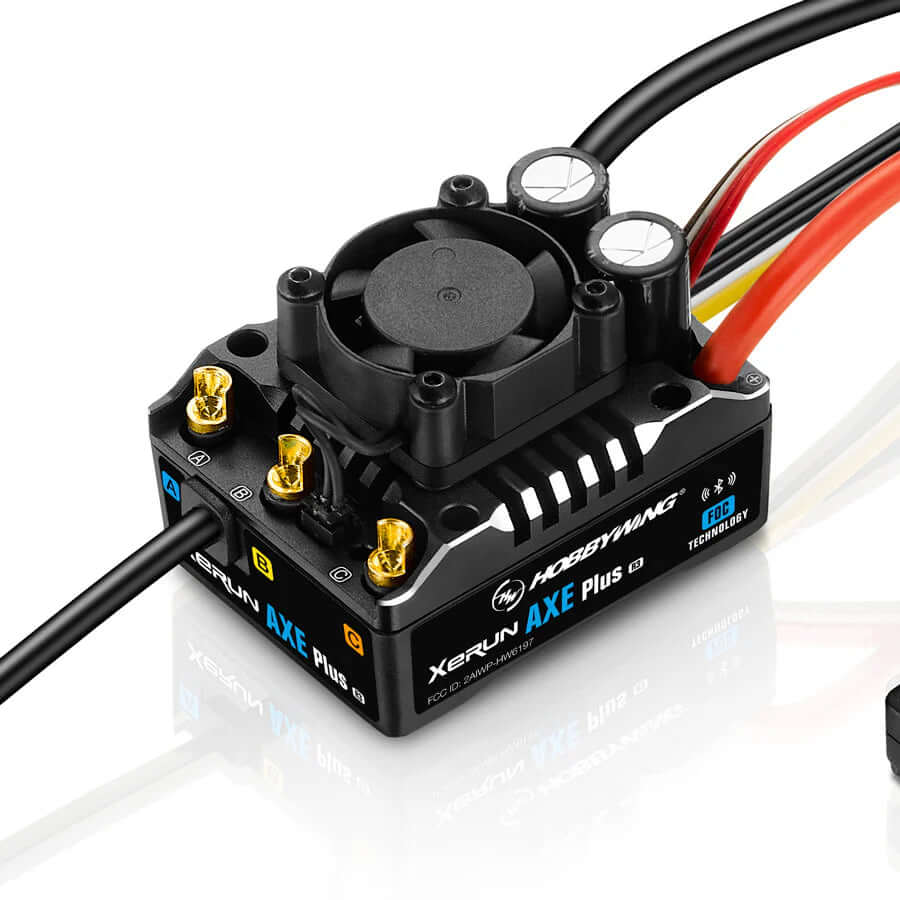

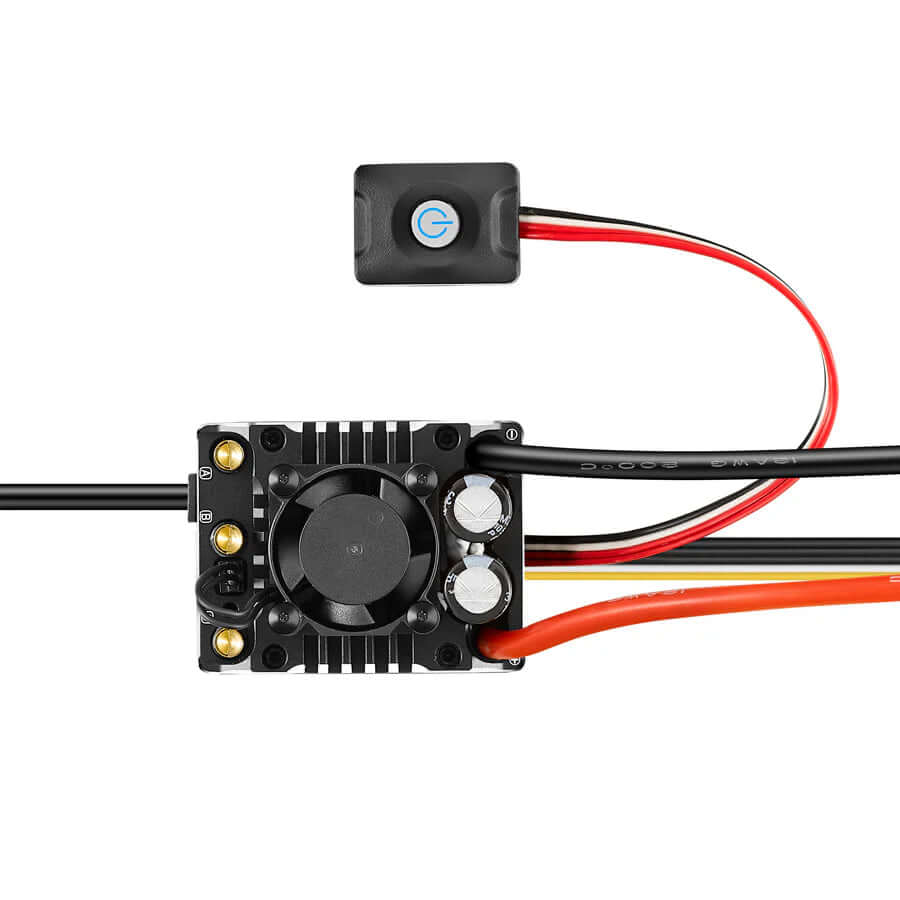

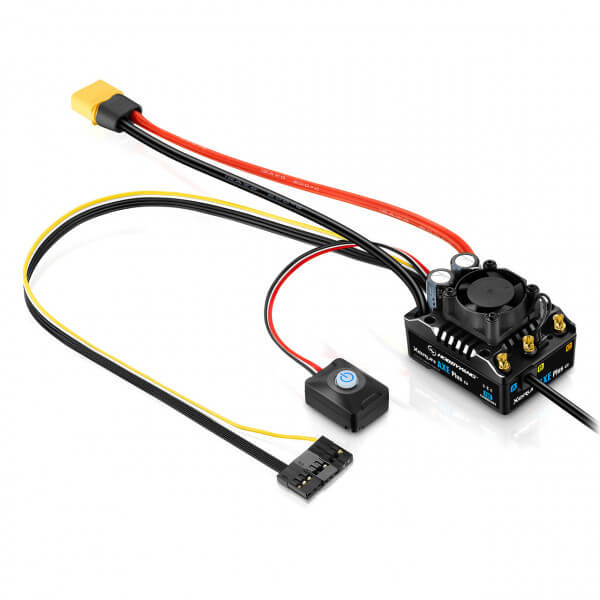

AXE Plus R3 ESC Specifications

Parameter Value
Scale 1/10th, 1/8th, 1/6th
Motor Type Brushless Sensored (FOC)
Waterproof Yes
Continuous / Peak Current 135A / 600A
Input Voltage 2–6S LiPo
BEC Output Switch Mode 6V / 7.4V / 8.4V @ 6A
Size 49.5 × 37.9 × 32.8mm (height with fan)
Weight 126.5g (including input line)
Compatible Motors XERUN AXE R2 / R3 only
Compatible Vehicles 1/10th, 1/8th, 1/6th Rock Crawler
Supported KV / Motor AXE R2: 540 / 540L / 550 | AXE R3: 4274

540L FOC Motor Specifications

1/10 FOC Brushless Motor (Patented) · Waterproof · Diameter: 36.0mm (1.42in) · Length: 48.8mm (1.92in) · Shaft Diameter: 3.175mm (0.125in) · 4-Pole

Spec 1400KV 2100KV 2300KV 2800KV
LiPo 2–3S 2–3S 2–3S 2–3S
Weight 175g 173g 173g 173g

550 R2 FOC Motor Specifications

1/10–1/8th FOC Brushless Motor (Patented) · Waterproof · Diameter: 36.0mm (1.42in) · Length: 66.2mm (2.61in) · Shaft Diameter: 5mm (0.197in) · Shaft Length: 16mm (0.63in) · 4-Pole

Spec 3300KV
LiPo 2–3S
No-load Current 3.8A
Weight 284g

4274SD R3 FOC Motor Specifications

1/10–1/8th Large-format FOC Brushless Motor · Waterproof · 4-Pole

Spec 1700KV 2000KV
LiPo 2–6S 2–6S
Hobbywing XeRun AXE Plus R3 FOC ESC Crawler System Overview 135A Waterproof The XeRun AXE Plus R3 is Hobbywing's complete FOC crawling system — available as ESC + motor combo, ESC only, or motor only to suit your build. Hobbywing XeRun AXE Plus R3 FOC System Key Features High Torque Waterproof 1/10 RC Crawler FOC technology delivers ultra-smooth throttle response and precise low-speed control — the foundation of serious rock crawling performance. Hobbywing XeRun AXE Plus R3 ESC Waterproof Sealed Design for All-terrain RC Crawler Fully sealed waterproof design on both the ESC and motor means the AXE Plus R3 handles rain, mud, and stream crossings without hesitation. Hobbywing XeRun AXE Plus R3 540L Motor Specifications 1400KV 2100KV 2300KV 2800KV The 540L FOC motor is available in 1400KV, 2100KV, 2300KV, and 2800KV — covering a wide range of gearing and terrain preferences for 1/10 crawlers. Hobbywing XeRun AXE Plus R3 550 R2 Motor 3300KV Specifications for 1/10 1/8 RC Crawler The 550 R2 3300KV FOC motor offers more torque in a longer 66.2mm can — ideal for heavier 1/10 and 1/8 scale crawler builds. Hobbywing XeRun AXE Plus R3 ESC Wiring Connector Guide XT60 2-6S LiPo The AXE Plus R3 ESC comes with XT60 connector and supports 2–6S LiPo input, with a switch mode BEC outputting 6V/7.4V/8.4V at 6A for servo power. Hobbywing XeRun AXE Plus R3 FOC System Performance vs Traditional ESC Comparison FOC control delivers significantly smoother low-speed performance compared to traditional ESC systems — less cogging, more precise throttle, better rock crawling control. Hobbywing XeRun AXE Plus R3 Compatible RC Crawler Platforms Axial SCX10 TRX-4 Compatible with most popular 1/10–1/6 scale crawler platforms including Axial SCX10, Traxxas TRX-4, and other standard motor mount configurations. Hobbywing XeRun AXE Plus R3 ESC BEC Output 6V 7.4V 8.4V Settings for High Voltage Servo The switchable BEC output (6V / 7.4V / 8.4V @ 6A) supports standard and high-voltage servos — no external BEC needed for most crawler builds. Hobbywing XeRun AXE Plus R3 150mm 300mm Sensor Wire Extension Accessories Optional 150mm and 300mm sensor wire extensions are available for builds where the standard cable length doesn't reach — select from the options above. Hobbywing XeRun AXE Plus R3 Full Package Contents ESC Motor Combo Accessories Full combo package includes the AXE Plus R3 ESC, selected motor, sensor cable, and factory accessories — everything needed to upgrade your crawler's power system.

Important: The AXE Plus R3 ESC is only compatible with XERUN AXE R2 and R3 series motors. Do not use with other motor brands or models. Stop use if ESC or motor temperature becomes excessively hot.
