Hobbywing XeRun AXE 540L / 550 R2 Sensored Brushless Motor & ESC Combo for 1/10 RC Rock Crawler
- Regular price
- $125.98
- Regular price
-
- Sale price
- $125.98
- Unit price
- per
All U.S. Orders Tax-Free! | Secure Payment | Free Shipping
Couldn't load pickup availability
Why Buy From us
Why Buy From us
A FEW REASONS WHY BUY FROM US:
SAFE SHOPPING
We try our best to make your shopping experience not only pleasant, seamless and hassle-free, but also secure.
SAFE SHIPPING
Choose high-quality and flexible international shipping companies for cooperation, as well as free shipping and fast shipping options to ensure our quality service and experience.
RETURN PLAN
It's okay to change your mind! You can return your order for a full refund, and we offer you full 30-day buyer protection.
NEW ARRIVALS
Brand new products are available on a regular basis.
EXCELLENT CUSTOMER SERVICE
Knowledgeable and professional support team is always happy to help you.
ACCESSORY SUPPORT
Perfect product accessories service, if the product you purchased is damaged during use, please don't worry, you can contact us directly at service@funyat.com, or communicate with us in live chat, live chat time: Monday-Friday (9:00AM - 8:00PM EST), tell us the product model or your order number and the accessories you need.
EASY TRACKING
You will receive a notification email in your email once the package has been shipped. The tracking number and link inside are for tracking the timely status of the package.You can also track at Our order tracking page . Or if you need a team members help to check up, please contact with our service team service@funyat.com and we will be in touch with a status update.
Order Protection
Order Protection
Shopping cart can choose the package delay, loss, damage claim service！
Note: Opening the insurance service is only to respond to the accidental accident of the order, under normal circumstances, do not open the insurance service order will not be damaged and lost! Customers can choose according to their own needs.
What does Buyer Protection cover?
Buyer Protection is a service provided by Seel (a 17TRACK partner). It covers delayed, damaged, and lost items that meet the following criteria.
*Delay: Domestic packages not delivered before the 10th day following order fulfillment (i.e., the date when the order is shipped by the merchant) or international packages not delivered before the 30th day following order fulfillment are considered delayed. The compensation for delayed packages is $5 USD. (If the order is not transacted in USD, compensation will be made in the currency of the transaction. For example, if an order in euros is delayed, the compensation is €5.)
*Loss: Domestic packages not delivered 30 days after order fulfillment (i.e., the date when the order is shipped by the merchant) are considered lost. (60 days for international packages.) Lost packages will be compensated for the actual item(s) value paid.
*Damage: Buyer Protection covers item damages to the point that the item(s) are unusable, clearly fractured, shattered, bent (if not bendable), crushed, etc., but does not cover cosmetic damage (scratches, dents, etc.), manufacturing damages, packaging errors, or unsealed items. The compensation for damaged items will be up to the value paid for the purchased item(s).
*Buyer Protection also includes carbon-neutral shipment within the recipient’s country.
*Note: Total compensation for one cover is up to the value actually paid for the item(s).
Description
Description

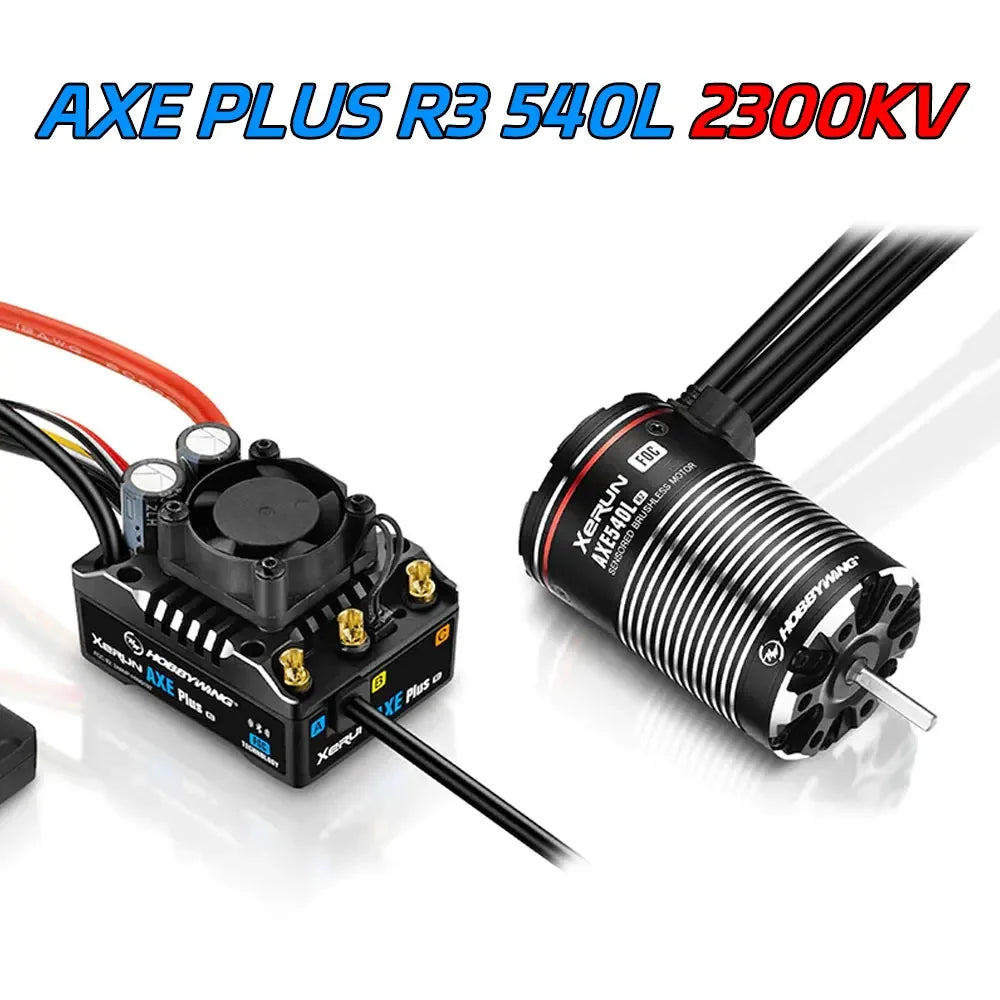

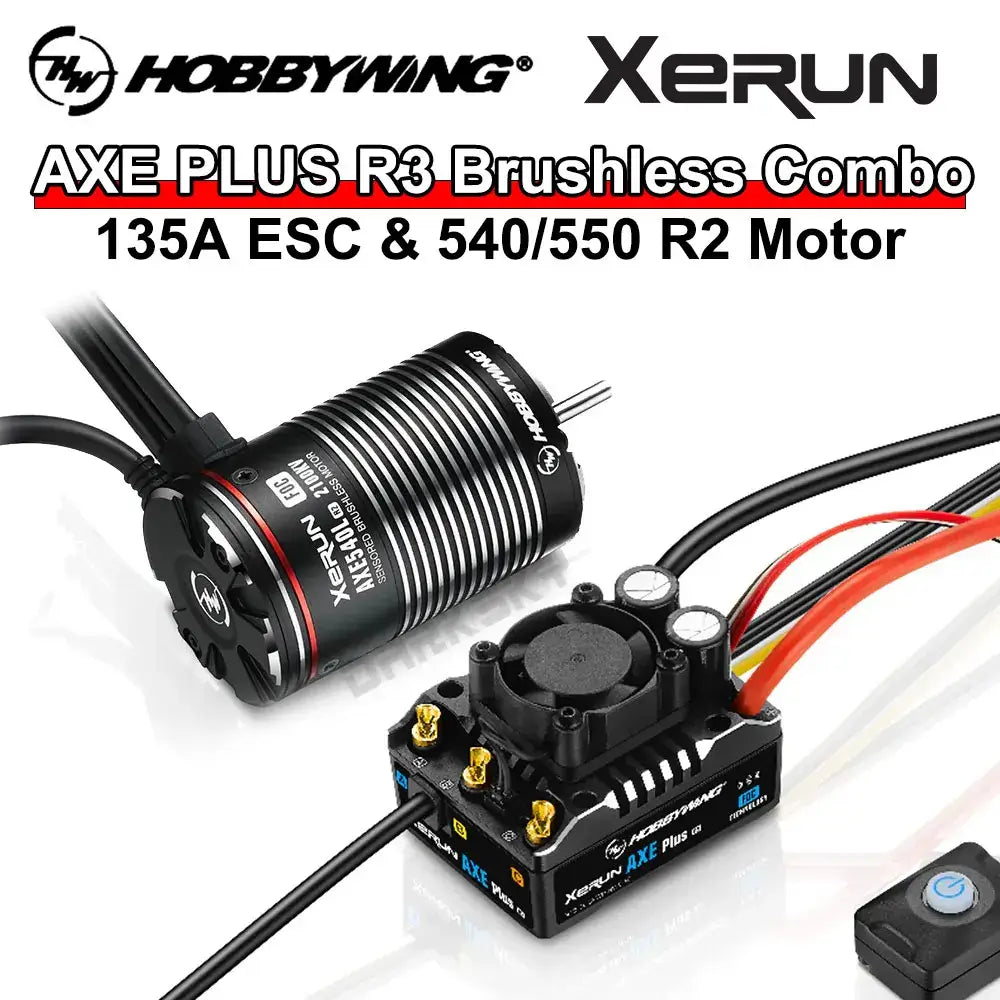

Hobbywing XeRun AXE 540L / 550 R2 Sensored Brushless Motor
The XeRun AXE 540L and 550 R2 are Hobbywing's purpose-built FOC brushless motors for rock crawling and trail driving. Using Field-Oriented Control technology, these motors deliver super-linear throttle response, high torque from a dead stop, and near-silent operation — everything a serious crawler driver needs on technical terrain. IP67 waterproof and dust-proof, they handle whatever the trail throws at them.
Key Features
- FOC Technology – Super-linear throttle response, high torque output, and extreme silence — the gold standard for rock crawling motor control
- IP67 Waterproof & Dustproof – Fully sealed for all-weather and all-terrain use, including water crossings and muddy trails
- Built-in High-Precision Magnetic Encoder – Provides more precise and consistent rotor position data to the ESC than standard Hall-type sensors — Hobbywing calls this "Polarity Protection"
- Ultra-Low Cogging – 4-pole, 12-magnet design with Hobbywing's patented "staggered pole" rotor for ultra-low torque ripple and smooth low-speed operation with zero cogging
- Intelligent Torque & Speed Closed-Loop Control – Maintains consistent motor RPM under varying loads for predictable crawling performance
- Innovative Sensor Port Design – Plug-and-screw connector with silicone O-ring sealing prevents loosening and improves waterproofing at the sensor connection
- High Driving Efficiency – FOC sensors deliver significant efficiency improvements over standard brushless setups for longer battery life per run

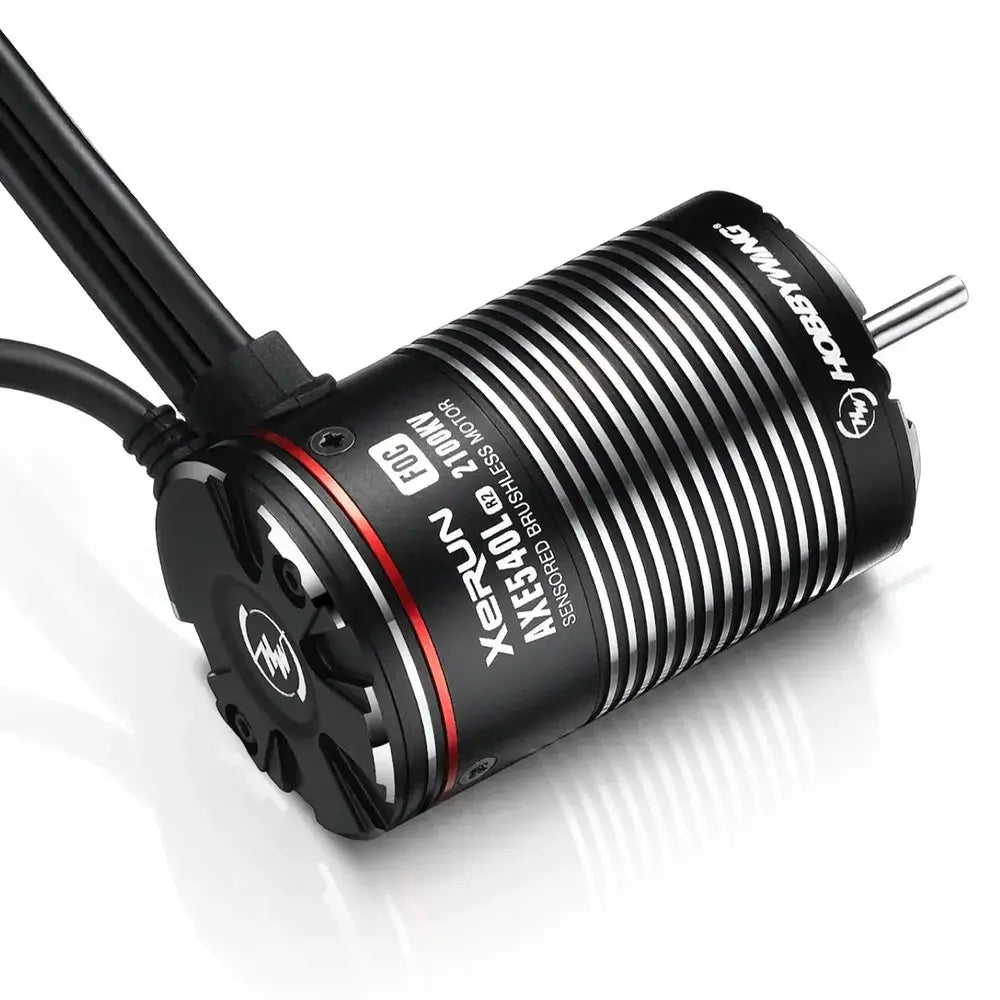

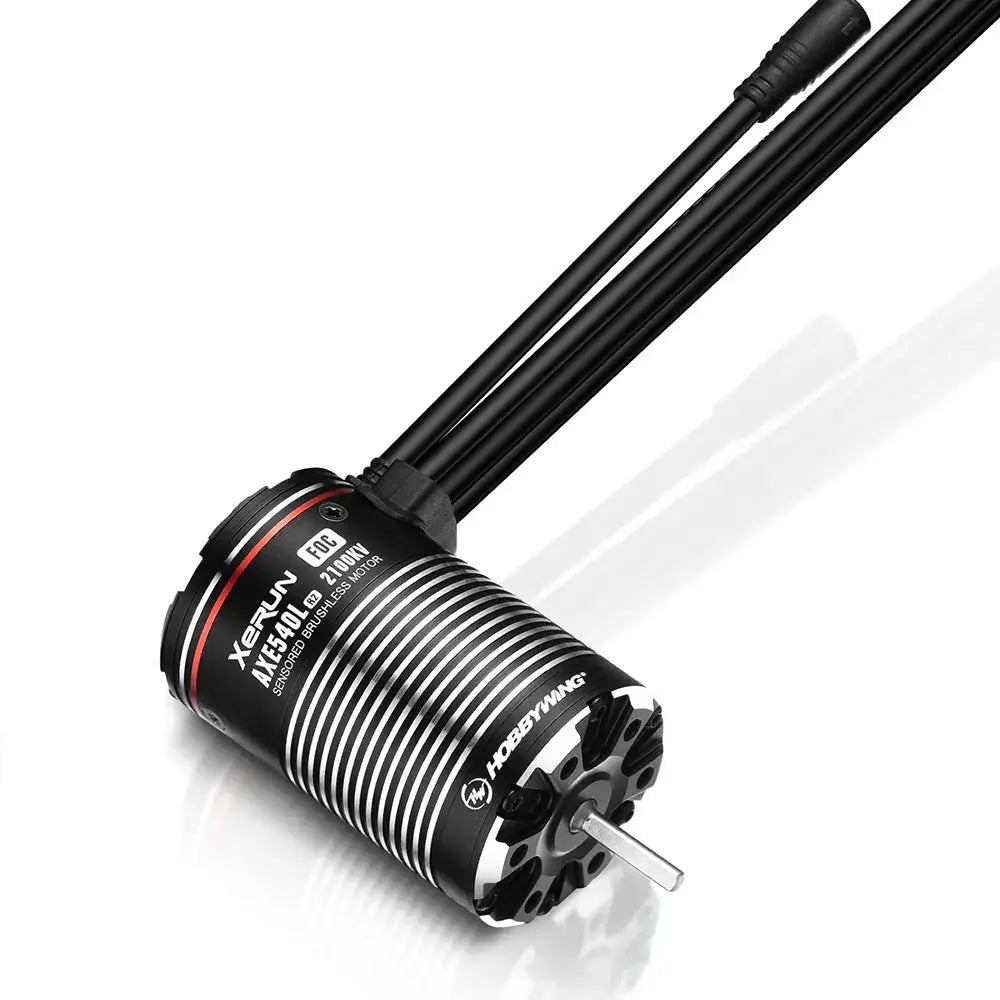

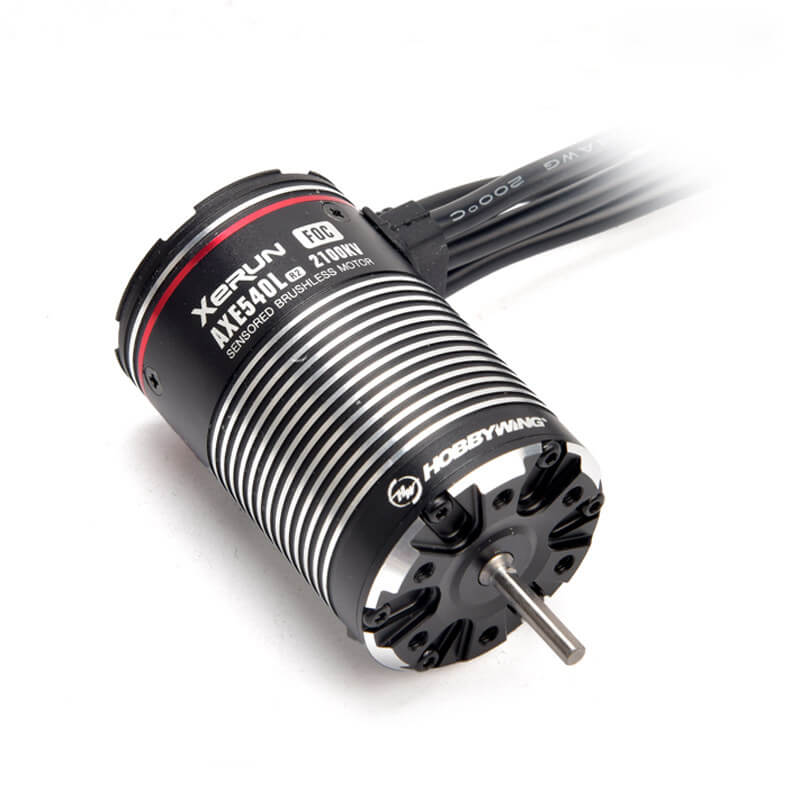

540L Motor Specifications
1/10 FOC Brushless Motor (Patented) · IP67 Waterproof · 4-Pole · 12 Magnets
| Spec | 2100KV | 2300KV | 2800KV |
|---|---|---|---|
| LiPo | 2–3S | 2–3S | 2–3S |
| Weight | 173g | 173g | 173g |
| Diameter | 36.0mm (1.42in) | ||
| Length | 48.8mm (1.92in) | ||
| Shaft Diameter | 3.175mm (0.125in) | ||

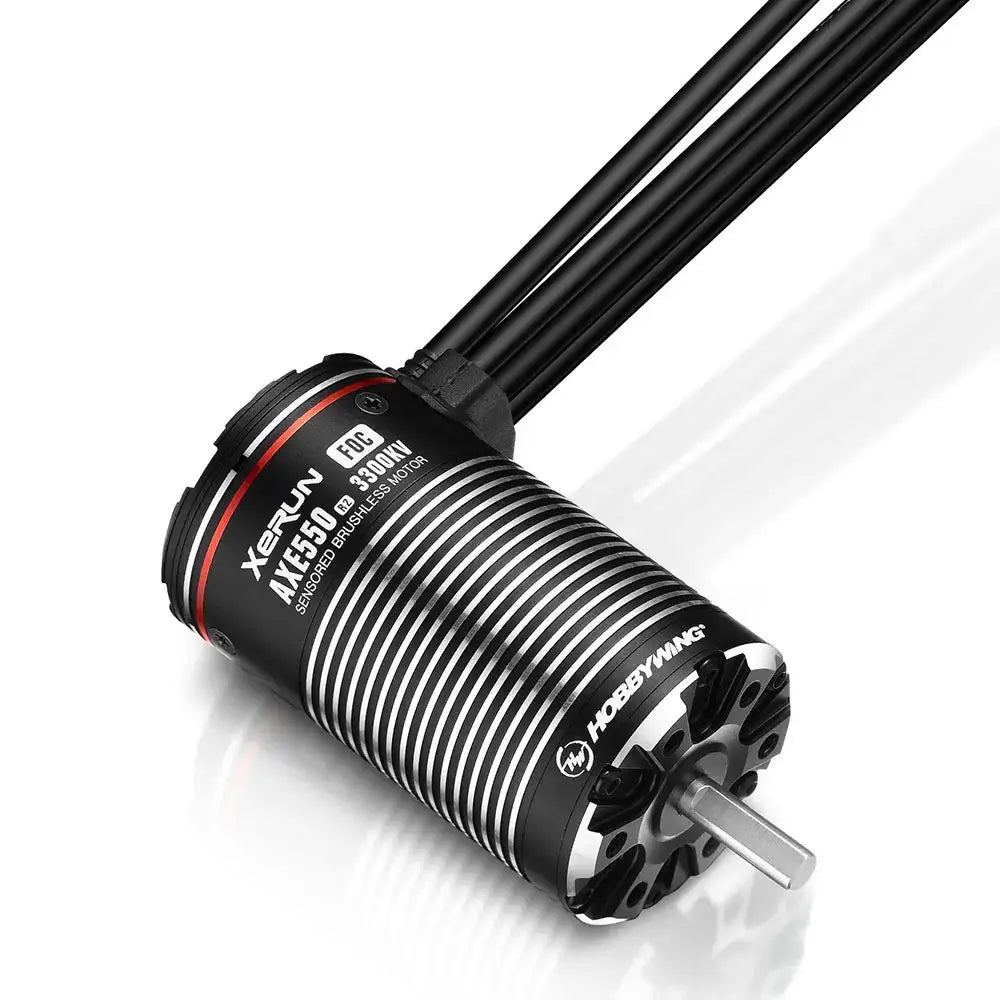

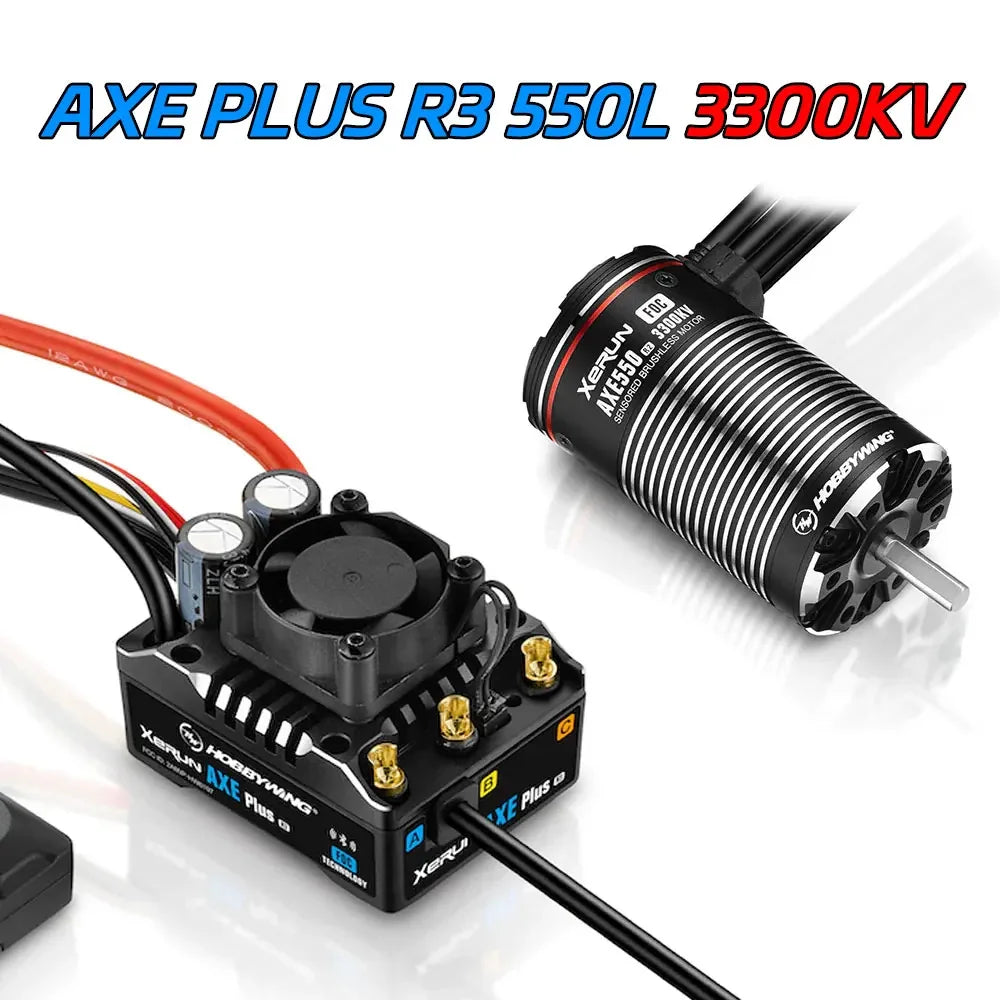

550 R2 Motor Specifications
1/10–1/8th FOC Brushless Motor (Patented) · IP67 Waterproof · 4-Pole · 12 Magnets
| Spec | 3300KV |
|---|---|
| LiPo | 2–3S |
| No-load Current | 3.8A |
| Weight | 284g |
| Diameter | 36.0mm (1.42in) |
| Length | 66.2mm (2.61in) |
| Shaft Diameter | 5mm (0.197in) |
| Shaft Length | 16mm (0.63in) |
Which Motor Should You Choose?
- 540L 2100KV – Maximum torque for slow technical crawling — best for competition-style rock crawling on 2–3S
- 540L 2300KV – All-round choice for trail driving and moderate crawling on 2–3S
- 540L 2800KV – Higher speed for trail bashing and faster terrain on 2–3S
- 550 R2 3300KV – More torque in a longer can for heavier 1/10–1/8 scale crawler builds on 2–3S
Compatibility

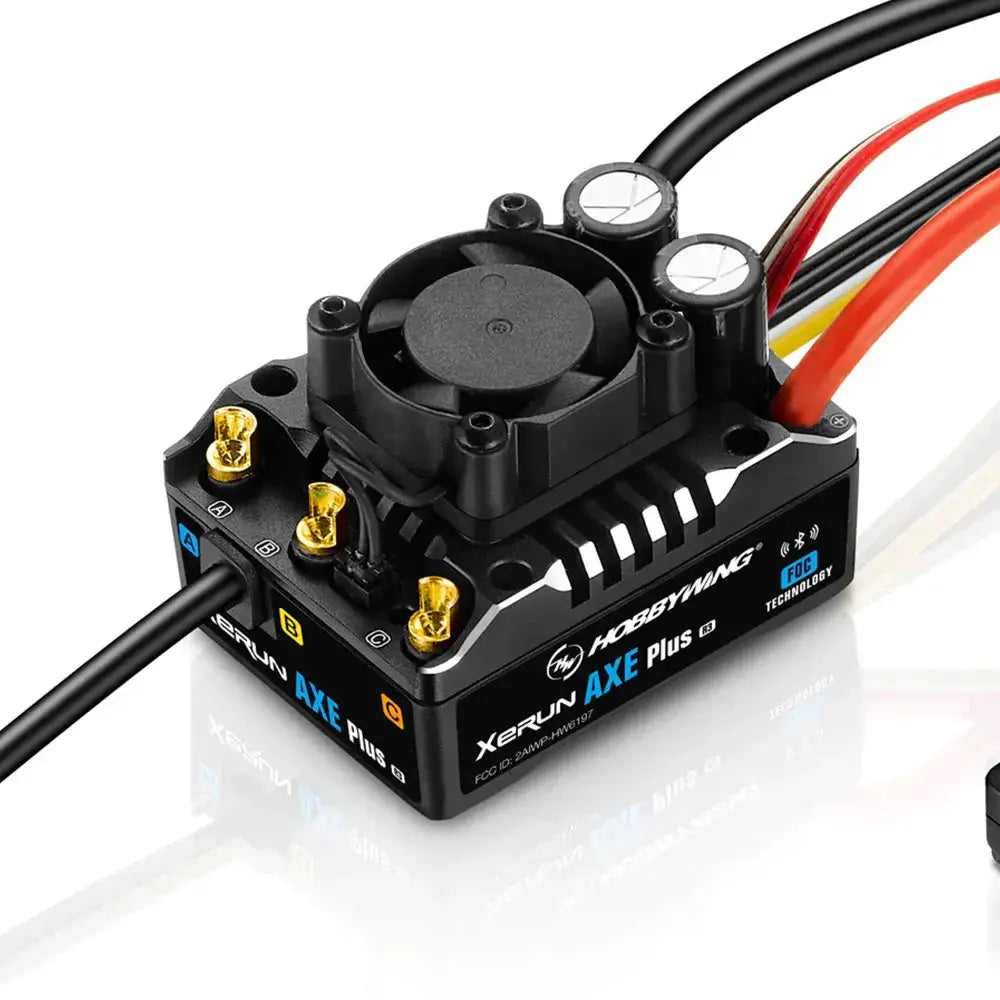

- Compatible with Hobbywing XeRun AXE v1.1 ESC and AXE Plus R3 ESC only
- 1/10 scale rock crawlers and trail trucks (540L)
- 1/10–1/8 scale rock crawlers (550 R2)
- Popular platforms: Axial SCX10, Traxxas TRX-4, Redcat Gen9, and other standard 540/550 motor mount builds
Important: The XeRun AXE series is a closed system. These motors work exclusively with Hobbywing XeRun AXE v1.1 or AXE Plus R3 ESCs. Do not use with other ESC brands. After use in harsh conditions, dismantle and clean the motor and apply lubricant to the bearings.
The AXE 540L uses Hobbywing's patented "staggered pole" rotor design with 4 poles and 12 magnets, delivering ultra-low torque ripple and smooth low-speed operation with zero cogging — critical for precise rock crawling control.
The XeRun AXE motor line is available in 540L (2100KV / 2300KV / 2800KV) and 550 R2 (3300KV) to match different crawler setups, gearing preferences, and terrain types.
FOC technology delivers significantly higher driving efficiency compared to standard brushless setups — less heat, more run time per charge, and consistent performance throughout the battery pack.
IP67 waterproof and dustproof sealing means the AXE 540L handles rain, mud, stream crossings, and dusty trails without hesitation — built for all-weather, all-terrain use.
The built-in high-precision magnetic encoder provides more accurate and consistent rotor position signals to the ESC than standard Hall-type sensors — Hobbywing's "Polarity Protection" ensures reliable three-phase signal consistency.
The innovative plug-and-screw sensor port with silicone O-ring sealing prevents the connector from loosening during rough terrain use and maintains waterproofing at the sensor connection point.
