Hobbywing XeRun 3652SD / 3660SD G3 Sensored Brushless Motor for 1/10 RC Truck & Off-Road (2-3S)
- Regular price
- $136.48
- Regular price
-
- Sale price
- $136.48
- Unit price
- per
All U.S. Orders Tax-Free! | Secure Payment | Free Shipping
Couldn't load pickup availability
Why Buy From us
Why Buy From us
A FEW REASONS WHY BUY FROM US:
SAFE SHOPPING
We try our best to make your shopping experience not only pleasant, seamless and hassle-free, but also secure.
SAFE SHIPPING
Choose high-quality and flexible international shipping companies for cooperation, as well as free shipping and fast shipping options to ensure our quality service and experience.
RETURN PLAN
It's okay to change your mind! You can return your order for a full refund, and we offer you full 30-day buyer protection.
NEW ARRIVALS
Brand new products are available on a regular basis.
EXCELLENT CUSTOMER SERVICE
Knowledgeable and professional support team is always happy to help you.
ACCESSORY SUPPORT
Perfect product accessories service, if the product you purchased is damaged during use, please don't worry, you can contact us directly at service@funyat.com, or communicate with us in live chat, live chat time: Monday-Friday (9:00AM - 8:00PM EST), tell us the product model or your order number and the accessories you need.
EASY TRACKING
You will receive a notification email in your email once the package has been shipped. The tracking number and link inside are for tracking the timely status of the package.You can also track at Our order tracking page . Or if you need a team members help to check up, please contact with our service team service@funyat.com and we will be in touch with a status update.
Order Protection
Order Protection
Shopping cart can choose the package delay, loss, damage claim service！
Note: Opening the insurance service is only to respond to the accidental accident of the order, under normal circumstances, do not open the insurance service order will not be damaged and lost! Customers can choose according to their own needs.
What does Buyer Protection cover?
Buyer Protection is a service provided by Seel (a 17TRACK partner). It covers delayed, damaged, and lost items that meet the following criteria.
*Delay: Domestic packages not delivered before the 10th day following order fulfillment (i.e., the date when the order is shipped by the merchant) or international packages not delivered before the 30th day following order fulfillment are considered delayed. The compensation for delayed packages is $5 USD. (If the order is not transacted in USD, compensation will be made in the currency of the transaction. For example, if an order in euros is delayed, the compensation is €5.)
*Loss: Domestic packages not delivered 30 days after order fulfillment (i.e., the date when the order is shipped by the merchant) are considered lost. (60 days for international packages.) Lost packages will be compensated for the actual item(s) value paid.
*Damage: Buyer Protection covers item damages to the point that the item(s) are unusable, clearly fractured, shattered, bent (if not bendable), crushed, etc., but does not cover cosmetic damage (scratches, dents, etc.), manufacturing damages, packaging errors, or unsealed items. The compensation for damaged items will be up to the value paid for the purchased item(s).
*Buyer Protection also includes carbon-neutral shipment within the recipient’s country.
*Note: Total compensation for one cover is up to the value actually paid for the item(s).
Description
Description

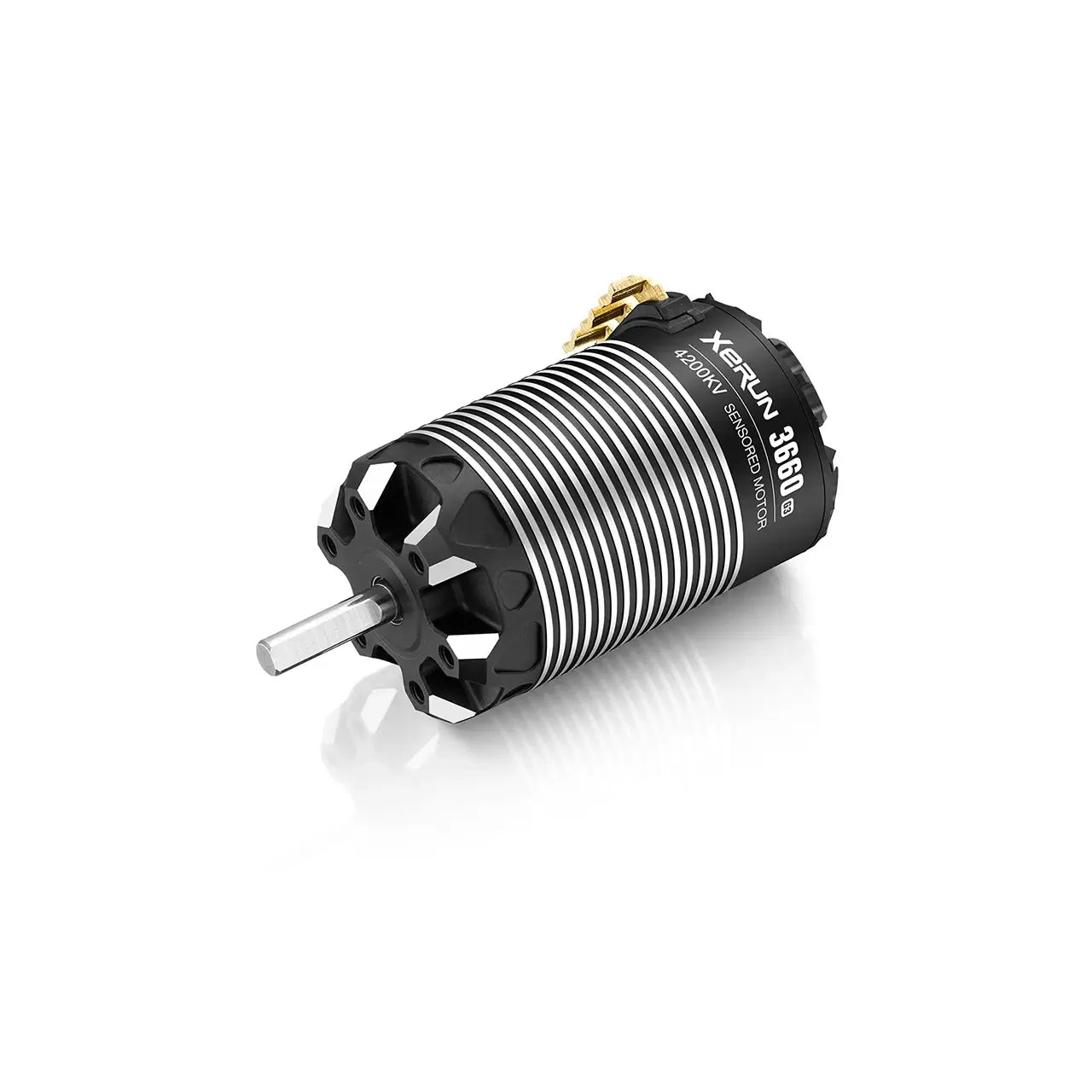

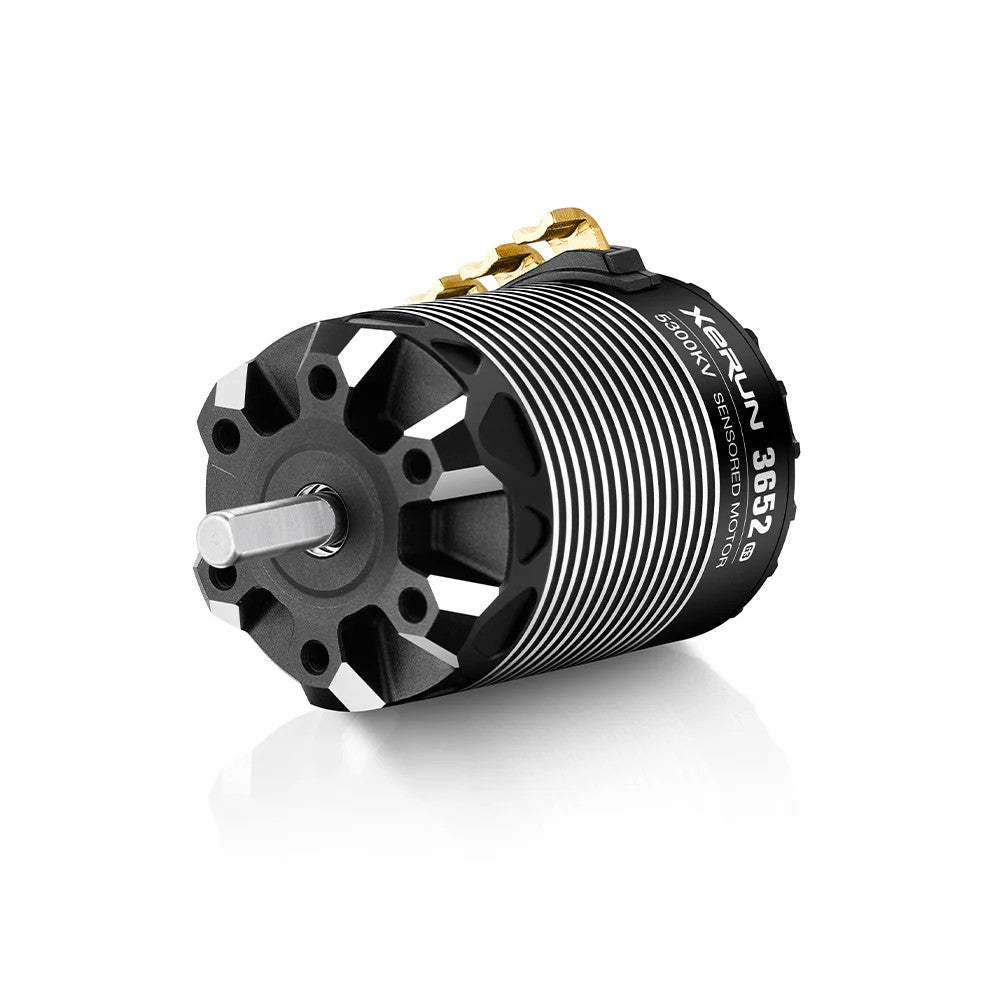

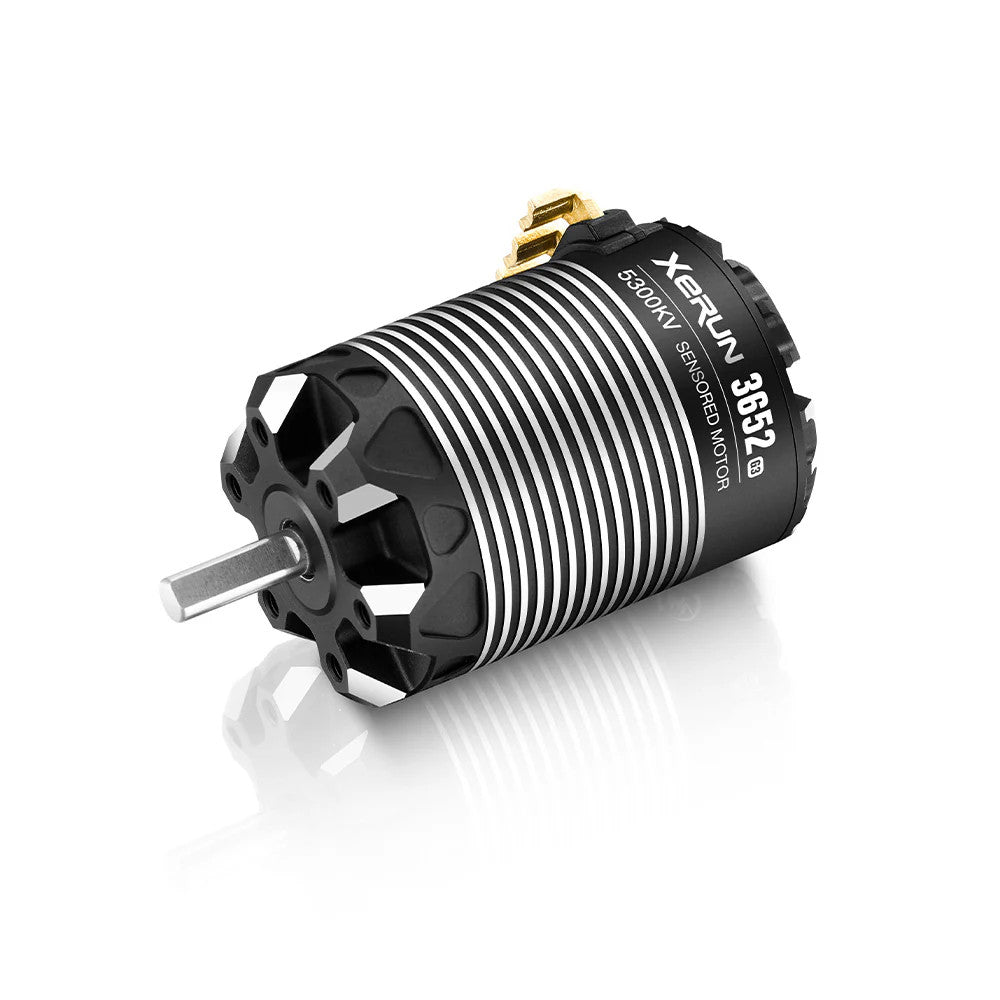

Hobbywing XeRun 3652SD / 3660SD G3 Sensored Brushless Motor
The XeRun 3652SD and 3660SD G3 are Hobbywing's high-performance sensored brushless motors built for 1/10 RC trucks, buggies, short course cars, and monster trucks. With IP5X dust protection, dual Hall sensor ports, adjustable mechanical timing, and a modular design built for easy maintenance, the G3 series is engineered to perform lap after lap in demanding track conditions.
Key Features
- IP5X Dust Protection – Sealed against dust for reliable performance in dusty track environments
- Adjustable Mechanical Timing – Two-way advance timing (CW/CCW) adjustable from 20–40° for tuning power delivery to your track and driving style
- Smooth Low-Cogging Design – Minimal torque pulsation for precise, predictable low-speed operation and consistent throttle response
- Dual Hall Sensor Ports – Two sensor output sockets for flexible wiring layouts; unused socket protected by included dust-proof plug
- High-Efficiency Cooling Design – Optimized airflow keeps operating temperatures in a safe range during intensive race sessions
- 200°C High-Temperature Enameled Wire – Premium windings with widened U-shaped gold-plated copper solder tabs and added solder tab spacing for easier wiring
- Ultra-Reliable Rotor Design – Rated up to 75,000 RPM and 140°C; rotor durability increased by over 15% vs XeRun 3660 G2
- Turbo Timing Performance – Maximum motor RPM increases by 50–100% when turbo timing is activated at 24° (vs XeRun 3652/3660 G2)
- 5% Power Improvement – 3652-4500KV G3 shows 5% power increase compared to previous G2 generation

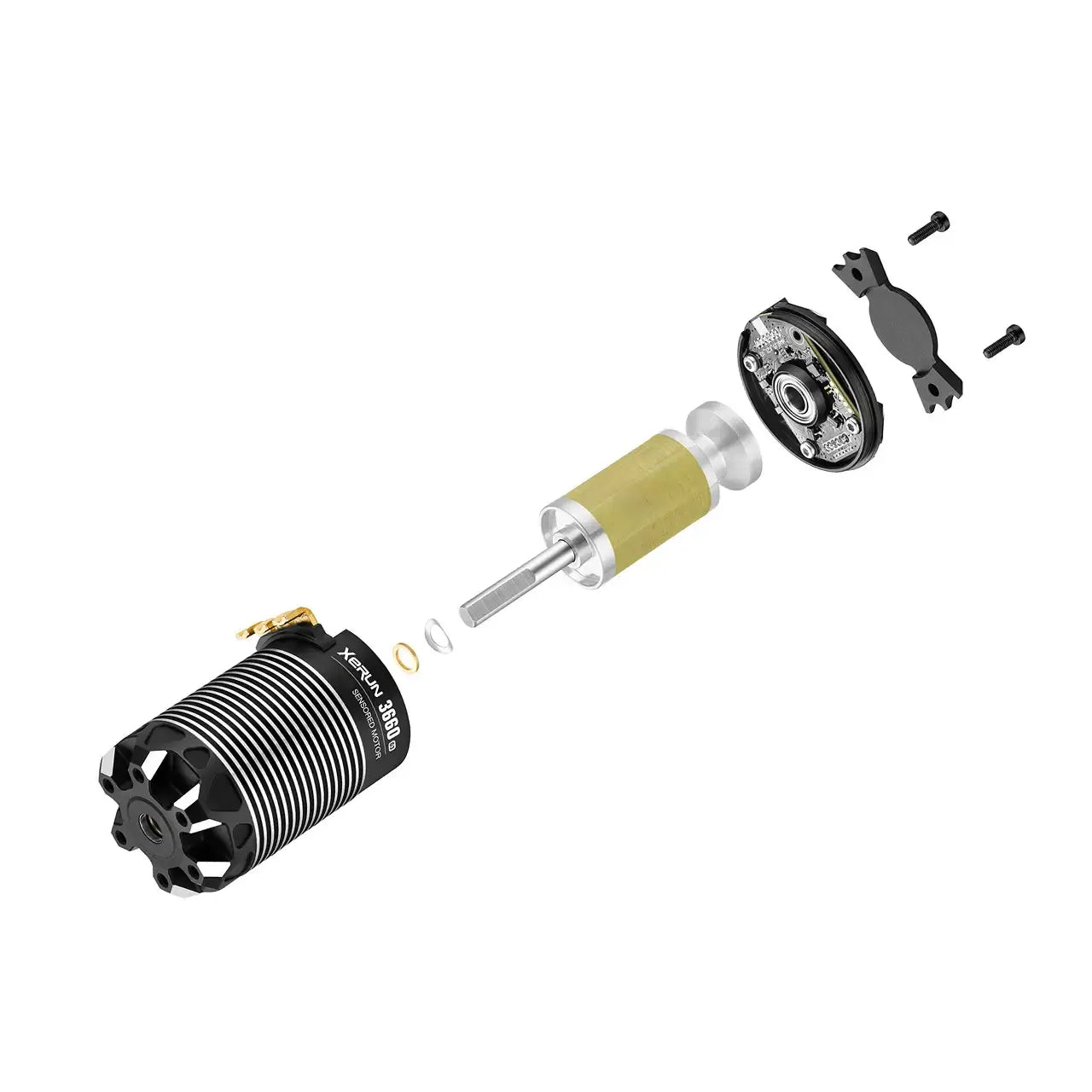

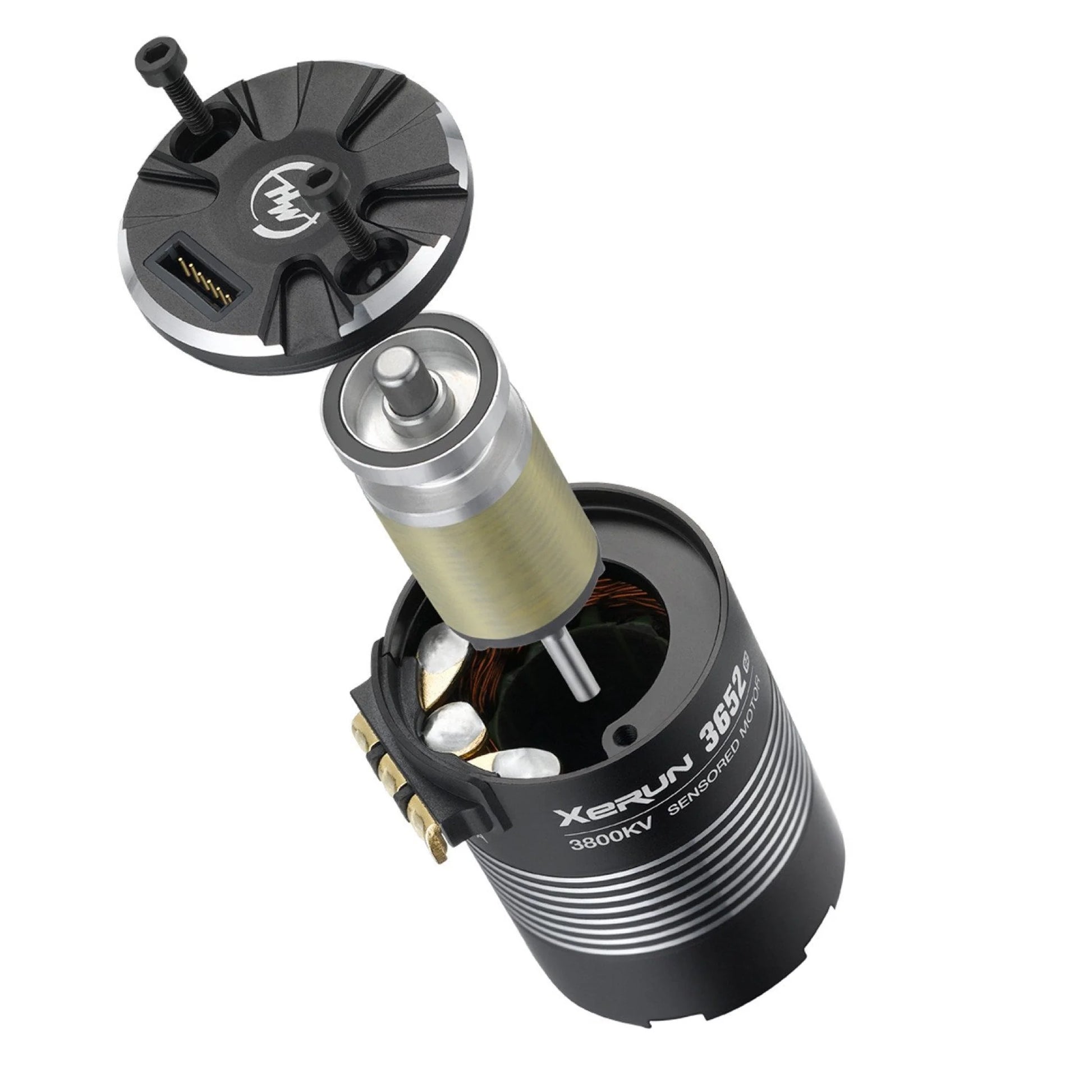

- Modular Structure Design – Easy disassembly for cleaning and maintenance; designed to prolong service life
Motor Specifications
| Parameter | 3652SD 5300KV | 3652SD 4500KV | 3660SD 4200KV | 3660SD 3200KV |
|---|---|---|---|---|
| KV Rating | 5300KV | 4500KV | 4200KV | 3200KV |
| LiPo Cells | 2S | 2S | 2–3S | 2–3S |
| No-load Current | 7.5A | 6.1A | 5.7A | 4.4A |
| Weight | 194g | 189g | 230g | 227g |
| O.D. | 36.6mm (1.44in) | |||
| Length | 53mm (2.09in) | 60.1mm (2.37in) | ||
| Shaft Diameter | 5mm | |||
| Shaft Length | 15mm (0.59in) | 18.5mm (0.73in) | ||
| Pole Count | 4 | |||
| Front Bearing | D13×D5×T4 | |||
| Rear Bearing | D11×D5×T5 | |||
| Mounting | 6×M3 | |||
| Recommended ESC | XeRun XR8 PRO G3 | |||
Which Model Should You Choose?
- 3652SD 5300KV – Highest speed for 1/10 2WD short course, buggy, and rally on 2S
- 3652SD 4500KV – Balanced power for 1/10 2WD short course, buggy, and rally on 2S
- 3660SD 4200KV – More torque for 1/10 4WD short course, truck, and monster truck on 2–3S
- 3660SD 3200KV – Maximum torque for heavy 1/10 4WD truck and monster truck builds on 2–3S
Applications
- 3652SD 5300KV / 4500KV – 1/10 Short course car (2WD), Buggy, Rally
- 3660SD 4200KV / 3200KV – 1/10 Short course car (4WD), Truck, Monster truck
Important: Compatible with XeRun XR8 PRO G3 ESC. Turbo timing and power figures are stated comparisons vs XeRun 3652/3660 G2. Always verify ESC compatibility before purchase.
Meet the XeRun 3652 and 3660 G3 — Hobbywing's next-generation sensored brushless motors engineered for 1/10 RC short course, truck, buggy, and rally applications.
Unique design meets high quality materials. The widened U-shaped, gold-plated copper solder tab delivers extremely low internal resistance with added spacing for easier soldering. Built with a high-performance iron core, international top-tier brand bearings, and 200°C high-temperature resistant enameled wire — engineered to handle the demands of harsh competition.
Overall power has been improved. With the 3652-4500KV motor showing a power increase of 5%, the new G3 series offers better overall power and efficiency compared to the previous G2 generation.
Large power gains after turbo is turned on. Compared to the XeRun 3652/3660 G2 motor, the maximum motor RPM increases by 50% to 100% when turbo timing is activated at 24°. Note: due to the differences in KV characteristics of each motor, there is a slight difference in speed increment.
Ultra reliable rotor design. Compared with the XeRun 3660 G2 motor, the XeRun 3660 G3 boasts up to 75,000 RPM, even under high temperatures of up to 140°C. The rotor durability has been increased by over 15%, ensuring trouble-free operation in the most demanding conditions.

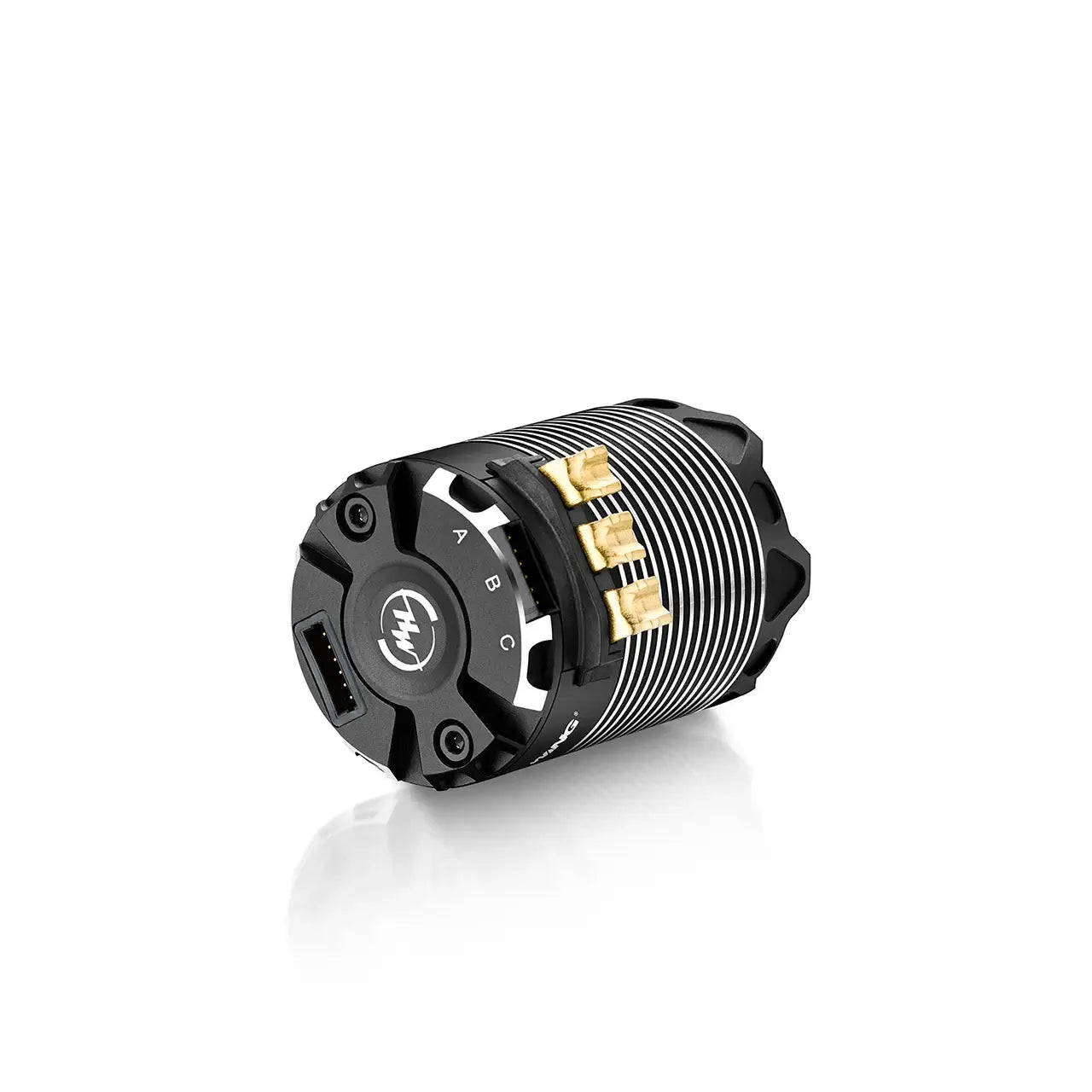

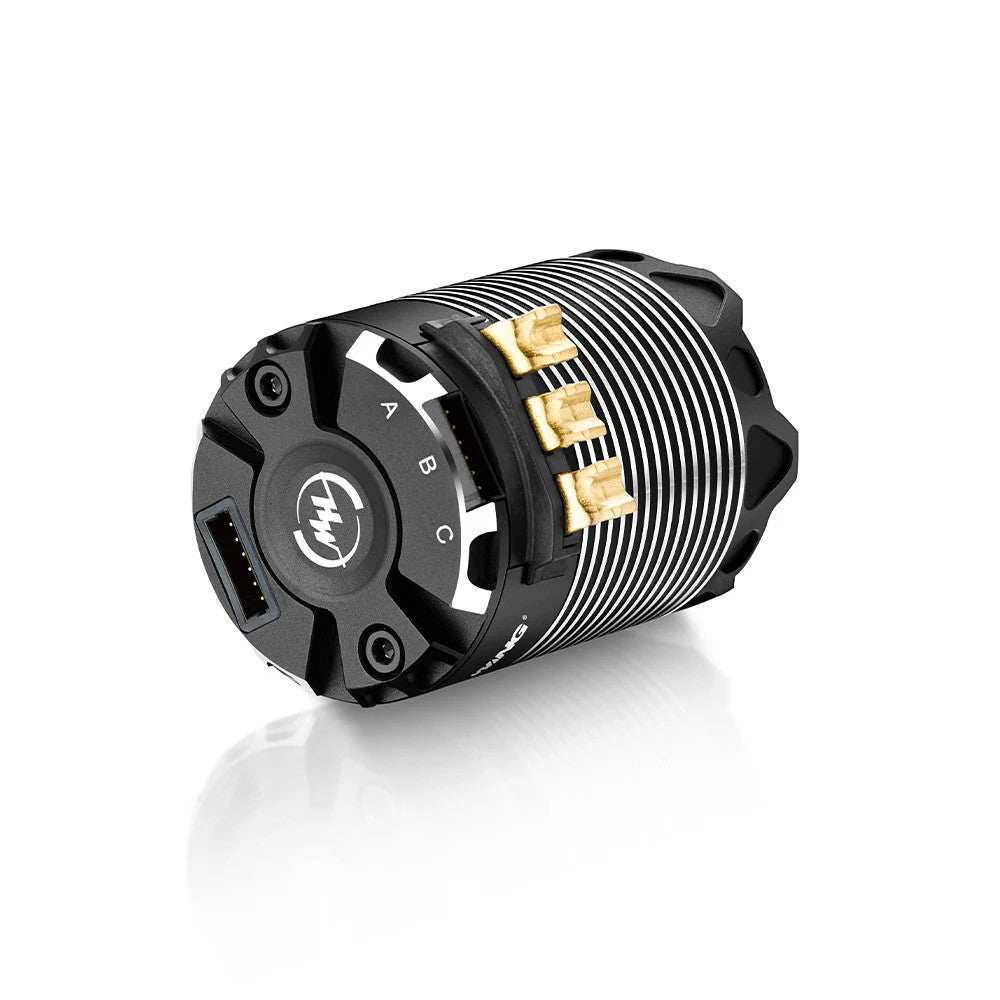

Dual hall sensor ports design for ease of wiring. The dual hall sensor output socket design on the endbell of the motor accommodates various wiring needs. Additionally, a custom-made dust-proof plug protects unused sockets, preventing dirt from entering them.

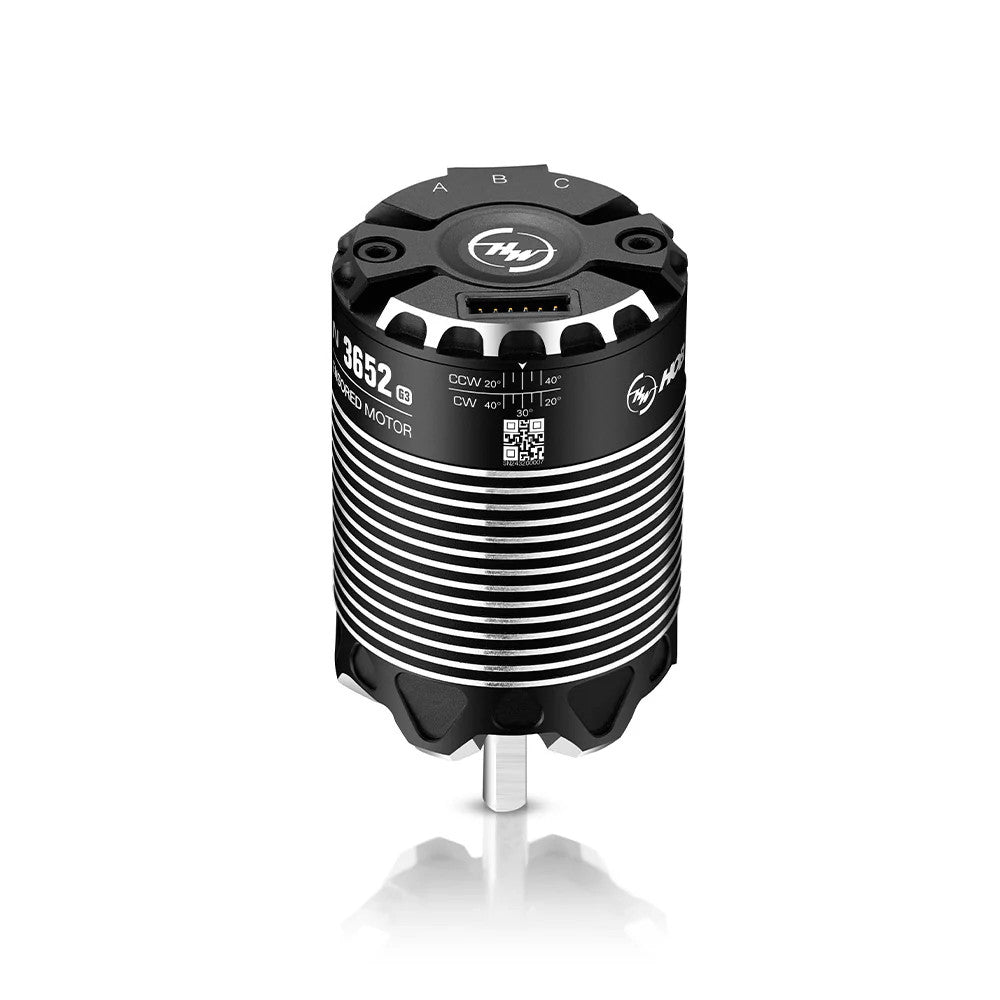

Precise adjustment of two-way mechanical advance timing. The mechanical advance timing of the motor is adjustable in both directions (CW/CCW) within a range of 20–40°. This flexibility allows users to fine-tune the motor's output power, ensuring it meets the specific power needs of various applications.
Smooth cog free operation. The motor features a low cogging design and minimal torque pulsation, ensuring smooth and precise operation, especially at low speed. This results in excellent feel and performance.
