HG P806 1:12 U.S. M747 SEMI Trailer RTR/DIY For HG-P801/P802 M983 US Army Military Truck

• Models: HG P806

• Model:1/12
• Material: Hardware, plastic and electronic components
• Speed: According to tractor performance and load
• Tail Plate Lifting Motor:JTE-260S-13260-38

• Main Control Board: HGP806 main control board with lighting effects and stuck protection
• Frequency:2.4 GHZ
• Channel: 8 Channels
• Battery: 3XAA battery(not included)
• Control distance: ≥80m
• Proportional control:proportional control
• Trailer Size:1172（1038）×269×245mm

• Wheelbase:102mm × 102mm

• Wheel Margin: 269mm

• Wheel Diameter: R85mm
• Size: 74×33×25 cm
• Package size: 74×33×21cm
• Weight: 13.5 KG

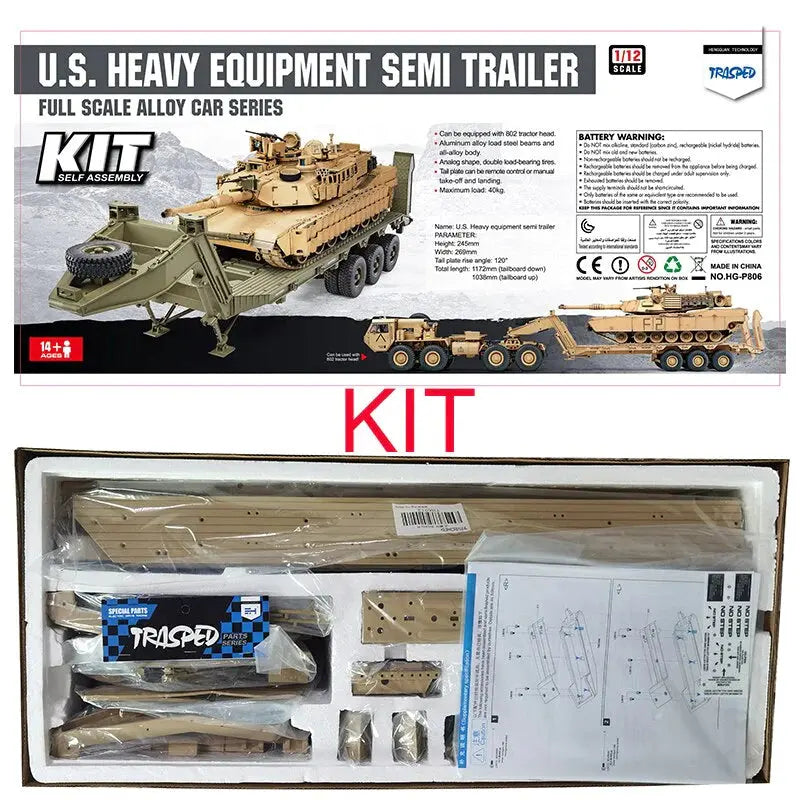

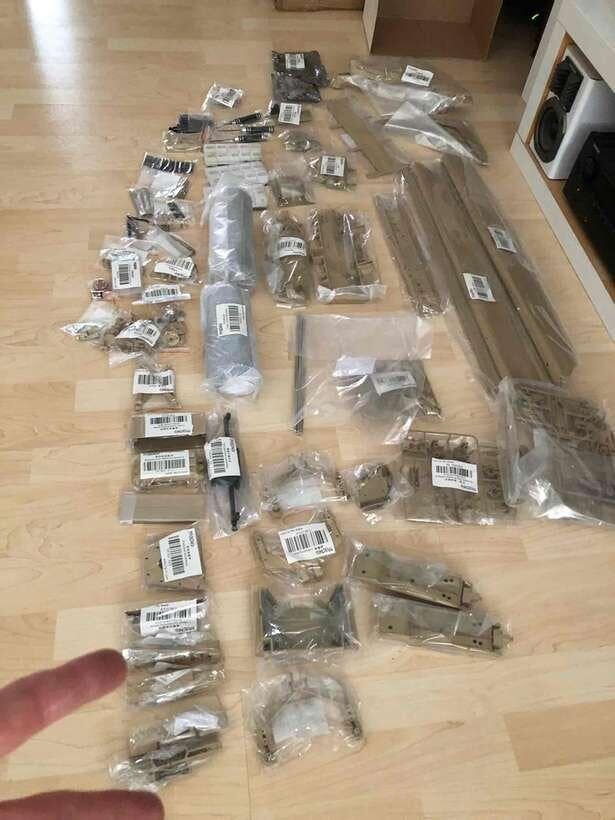

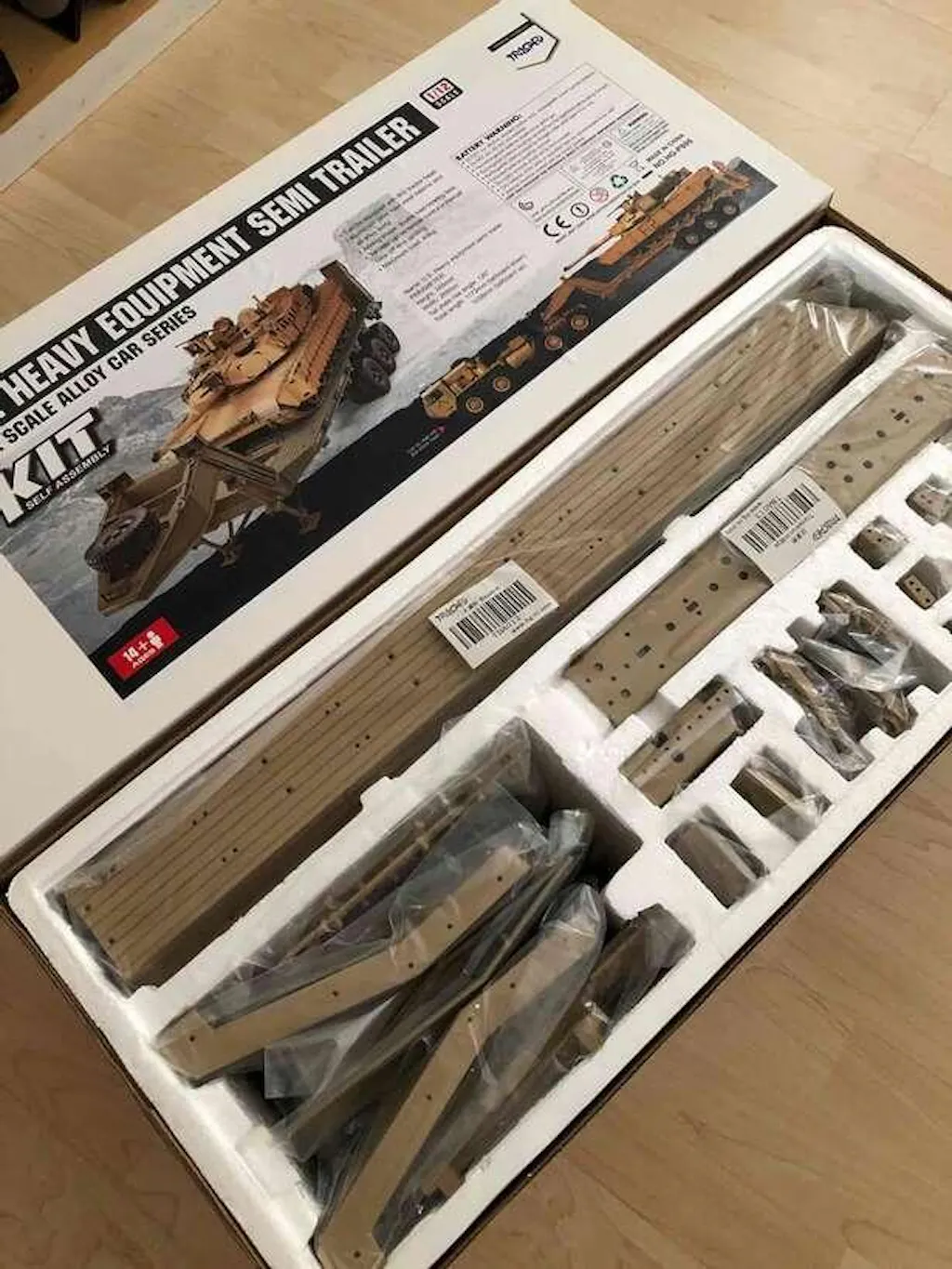

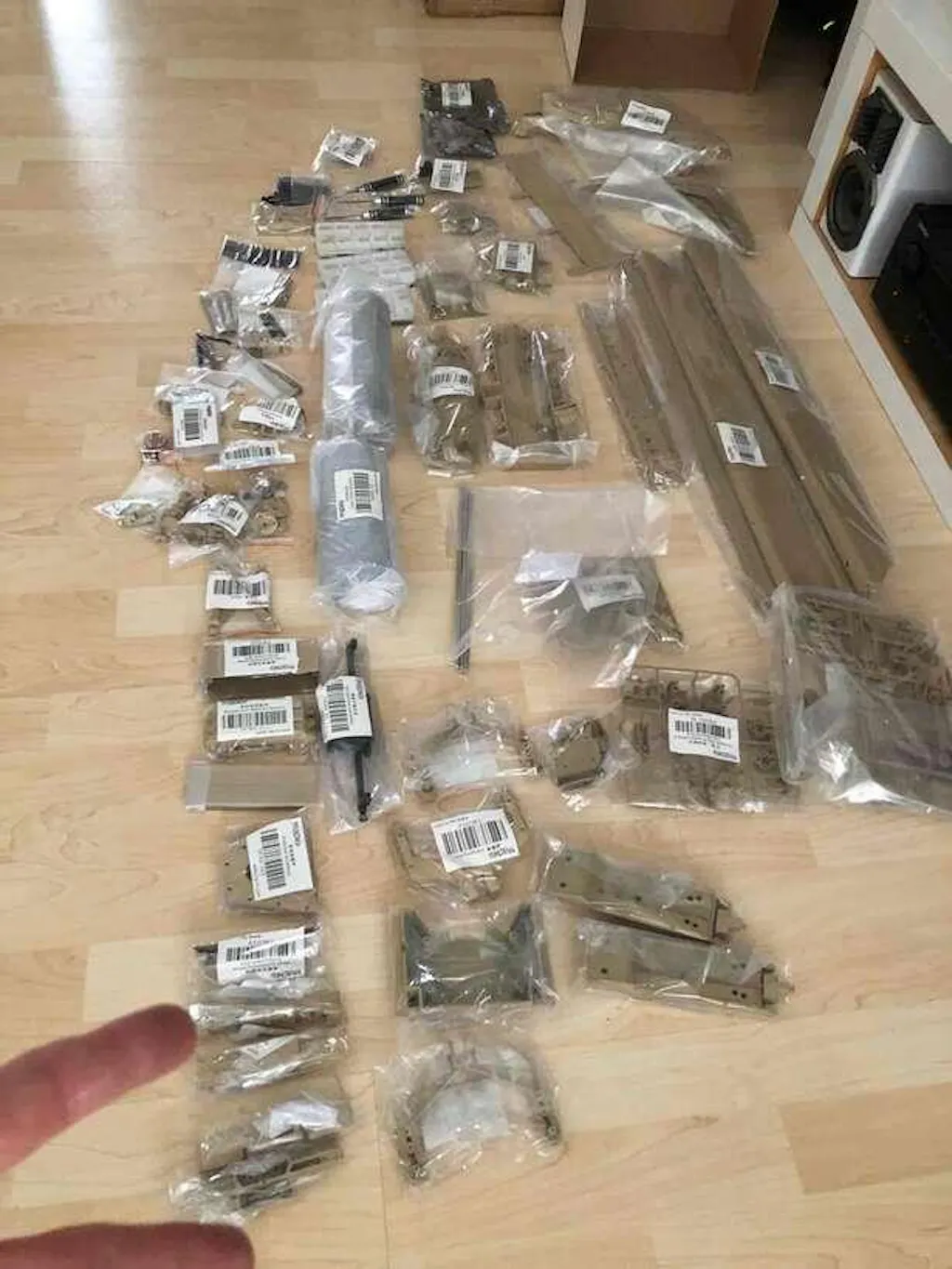

Note: The DIY version is a bulk accessory, the buyer has to install it, and the RTR version is already assembled by the manufacturer!

Parameters:
1.Max Climbing Angle: 15°/ 2 meters long slope
2.Max Turning: 2 meters
3. Max Load: 40KG
4.Raising Angle of Tail Plate: 120°
5.Max Span Width: 180mm
6.Protection Function: When the tailboard is blocked when rising or falling, it will automatically stop to prevent the tailboard from being damaged due to excessive force.
7.Total length: 1172mm (the tail plate is lowered) 1038mm (the tail plate is raised)

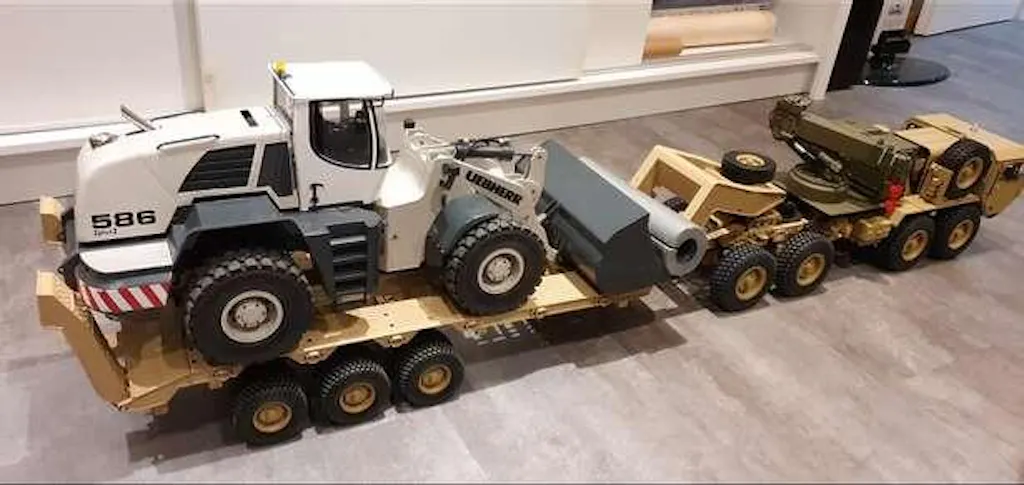

-This product belongs to low panel semi trailer category, the beam adopts the same ladder frame structure as the real car, choose high quality alloy material, the net weight of whole vehicle reaches 10.5KG,solid and reliable.The rated load of semi trailer loading zone is 40KG, mainly used to transport large construction machinery, large military equipments, tanks and other large model vehicles.

-The front part of semi trailer is equipped with an all-metal semi-automatic retractable front foot support, simple and reliable operation, and more outstanding mechanical sense, practical simulation combined. HG-P806 adopts the "double line and three axes" active balanced steel suspension structure, The front and rear axles of the suspension are stressed equally, and the left and right do not interfere with each other.

-The semi trailer of HG-P806 is equipped with automatic elevator ladder and double pass-through load protection electric control module, with double flashing lights, which can be directly taken by the receiver and independently controlled by the remote controller, or manually realized by the button switch at the front of the semi trailer.HG-P806 belongs to the whole box of bulk configuration, which has been finished at the factory (the buttom color has been finished). Players can DIY all the appearance parts and the assembly of the activity mechanism by themselves, and they can add the personalized painting according to their preference.

-The drag and drop join structure of semi trailer is mainly made to suit HENGGUAN MODEL HG-P802 military towing grinder, also compatible with the same proportion of tractor truck on the market, and can be controlled by changing the tractor truck at will.
