HG P415A 4WD U.S.4X4 Hummer H1 Military Truck 1/10 RC Car Metal Simulation Pickup Upgraded Sound/Light effect Toys

NOTE: Only the sound and light version with sound and headlight source, Standard version without sound and light

Standard product function introduction:
1. Equipped with a new 570-level brushed motor (12500 rpm, built-in fan, strong magnetism, and double bearings), it can effectively reduce the torque attenuation caused by the heat generated by the motor during work.
2. 9KG waterproof alloy gear digital steering gear.
3. 45A ESC: Braking and non-braking modes can be switched, and it can switch between Li-PO and NI-HM battery protection modes.
a. ESC with low-voltage protection: When the battery voltage is too low, the ESC will activate power-off protection.
b. High temperature protection: When the operating temperature of the ESC is higher than the set value, the ESC will start the power-off protection; when the temperature drops to the normal value, it will return to normal.
4. The independent suspension structure also adopts the wheel reducer structure. This type of suspension has better elasticity, can absorb road vibrations, and drives stably at high speeds.
5. The manual differential lock structure can realize the independent locking and unlocking of the front and rear axles to meet the driving needs of more terrains.
6. Adjustable shock absorber, the best and ideal shock absorber effect can be obtained by adjusting the compression of the shock absorber ring or releasing the length of the spring.
7. The remote electric two-speed transmission ratio can be switched arbitrarily (TOP GEAR 1:20.77 LOW GEAR 1:38.77).
8. Throttle drive neutral adjustment, brake or no brake mode switch, positive and negative switching.
9. Steering percentage adjustment, angle percentage and gear percentage adjustment, forward and reverse switching.
10. The new front and rear all-metal anti-collisions are added as standard to make the model car more solid and playable.
11. With 5 all-terrain natural rubber tires, tire size: 22x38x55mm-R100-12mm hexagonal wheel connector-maximum width of left and right tires: 225mm.
12. The all-alloy car bottom, with front and rear metal anti-collision, and nylon fenders on the left and right sides, enhances the off-road impact resistance and easily copes with various terrains.
13. 2.4G-new 16-channel full-scale remote control system.
14. The wheel axle is upgraded to Φ6 steel axle, which greatly increases the service life and off-road capability, and replaces the planetary gear material of the differential, so that it has more power upgrade space.
15. The gearbox adopts "570 motor" to provide more powerful power to the car.
16. New 17-channel remote control: support digital communication

Brief introduction of the new functions of the high-end version of sound and light:
1. The simulated whole car lighting system and simulated sound system are suitable for any model car on the market.
2. New front ambient headlights: the ambient light ring (color, flashing effect adjustable) and the main light (monochrome, brightness adjustable) can be controlled independently and remotely.
The light board comes with buttons to control the light color change, flashing effect, on-off and other functions, which is convenient for customers to use this product to modify any car model by themselves.
3. Increase the lighting system: enrich the lighting effect of the product and make the product look more cool. The bar lamp comes with key switch control, which can be used in the market
Any car model on the surface can be modified.
4. The new high-power regulated power supply board (6V power supply) provides a more convenient and stable power supply mode and comes with an electronic switch that can turn off the vehicle power supply with one key.
Power source (including ESC power supply), compatible with 2S-3S batteries, blocked protection (automatic power-off protection when the current is abnormal), long press the power switch for 3 seconds to
Restart.
5. Add license plate decorations and stickers: customers can freely combine their favorite numbers.
6. The smoke emitter is remotely controllable: off-on, and equipped with a bottle of 5ml aerosol.
7. The front remote controllable traction winch adds more playability.

45A ESC Features:
1. It can switch between braking and non-braking modes, and it can switch between Li-PO and NI-HM battery protection modes.
2. ESC with low-voltage protection: When the battery voltage is too low, the ESC will activate power-off protection.
3. High temperature protection: When the operating temperature of the ESC is higher than the set value, the ESC will start the power-off protection; when the temperature drops to the normal value, it will return to normal.
4. Then it also comes with a drag brake function
5. In addition. The drag brake function is very good for climbing, because as long as the accelerator is in the middle position when the power is on, the ESC will brake, and the brake function can prevent the car from sliding down when climbing a slope

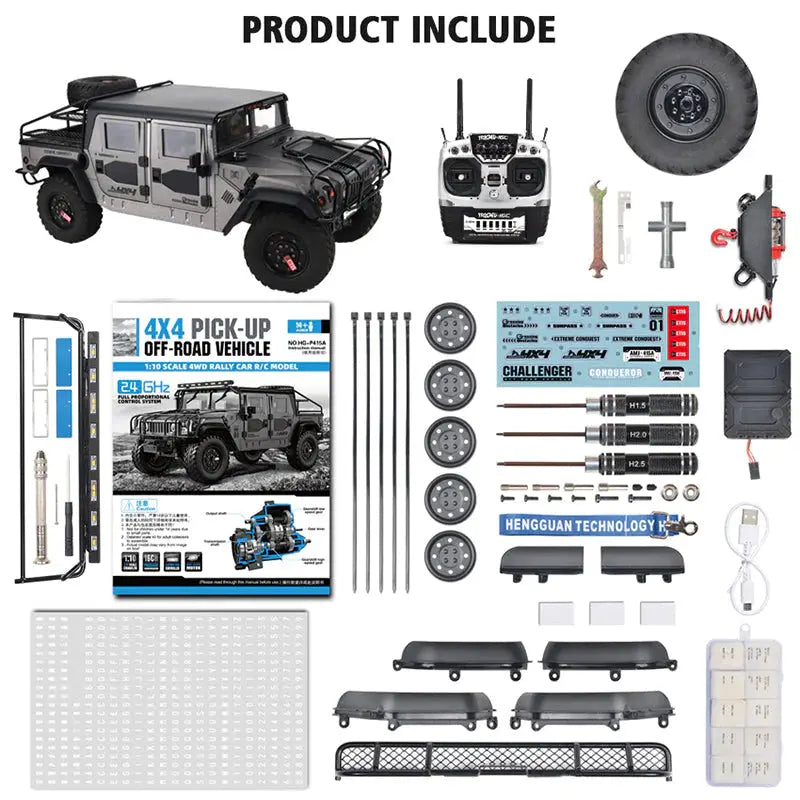

HG-P415A Standard Edition Accessories delivery details:
Operation Manual *1 Screw Box Hexagon TB Screws (ø2.6x8mm) *11
P415A body sticker *1 Hexagon socket HB screw (ø2x6mm) *4
Wheel fender (HG2021-294) *1 set Hexagon socket KB screw (ø2x4mm) *2
Wheel *1 Rear view mirror stainless steel pipe (ø2.5*ø2.1*5.6) *2
Wheel frame cover *5 Flange toothed nylon locknut M4 *1
1.5mm hexagon socket screwdriver *1 Hexagon socket HB screw (ø2x8mm) *40
2.0mm hexagon socket screwdriver *1 Hexagon socket HM screw (ø2x12mm) *2
2.5mm hexagon socket screwdriver *1 Hexagon socket TB screw (ø2.6x12mm) *1
Accessories Package A Nylon cable tie 3*150mm *5 Hexagon HM machine wire (ø2x4mm) *2
Wrench *1 Wheel trim *5
Cross wrench (small) *1 Rearview mirror L *1
Cross wrench (large) *1 Rearview mirror R *1
Phillips screwdriver *1 Hex nut M2 *2
Differential plug *2 Remote control accessories bag Sling hook *1
Sponge double-sided sticker *2 USB cable *1
Tip machine meter (ø3x4mm) *2 Rocker positioning piece *1
Flange nylon lock nut M5 *2 Hexagon inner HM machine wire (ø2x8mm) *4
Pin screw (ø2.5x11mm x M3) *2 Phillips self-tapping screw (ø1.7x5mm) *4
Pin screw (ø2.5x12mm x M4) *2

HG-P415A Sound and light high-end version Accessories delivery details：
Operation Manual *1 Screw Box Hexagon TB Screws (ø2.6x8mm) *11
P415A body sticker *1 Hexagon socket HB screw (ø2x6mm) *8
Wheel fender (HG2021-294) *1 set Hexagon socket KB screw (ø2x4mm) *2
Wheel *1 Rear view mirror stainless steel pipe (ø2.5*ø2.1*5.6) *2
Wheel frame cover *5 Flange toothed nylon locknut M4 *1
1.5mm hexagon socket screwdriver *1 Hexagon socket HB screw (ø2x8mm) *40
2.0mm hexagon socket screwdriver *1 Hexagon socket HM screw (ø2x12mm) *2
2.5mm hexagon socket screwdriver *1 Hexagon socket TB screw (ø2.6x12mm) *1
Accessories Package A Nylon cable tie 3*150mm *5 Hexagon HM machine wire (ø2x4mm) *2
Wrench *1 Wheel trim *5
Cross wrench (small) *1 Rearview mirror L *1
Cross wrench (large) *1 Rearview mirror R *1
Phillips screwdriver *1 Hex nut M2 *2
Differential plug *2 Hexagon HM machine wire (ø2x6mm) *6
Sponge double-sided sticker *2 Cross machine wire (PM ø1.4*6mm) *4
Tip machine meter (ø3x4mm) *2 Stainless steel tube II (ø2xø1.5x2.3mm) *2
Flange nylon lock nut M5 *2 Window iron frame fixing frame A *2
Pin screw (ø2.5x11mm x M3) *2 Window iron frame fixing bracket B *2
Pin screw (ø2.5x12mm x M4) *2 Pull ring press piece *2
Accessory package B Hand drill grip *1 Front pull ring *2
Hand drill twist drill bit Φ1.7 *1 Remote control accessory bag Sling with hook *1
Accessory package C License plate base *1 USB cable *1
License plate frame *1 Rocker positioning piece *1
License plate self-adhesive *1 set Inner hexagonal HM wire (ø2x8mm) *4
Winch *1 Phillips self-tapping screw (ø1.7x5mm) *4
Bar lamp stand *1
Smoker *1
Aerosol *1 (not included due to transportation reasons)
