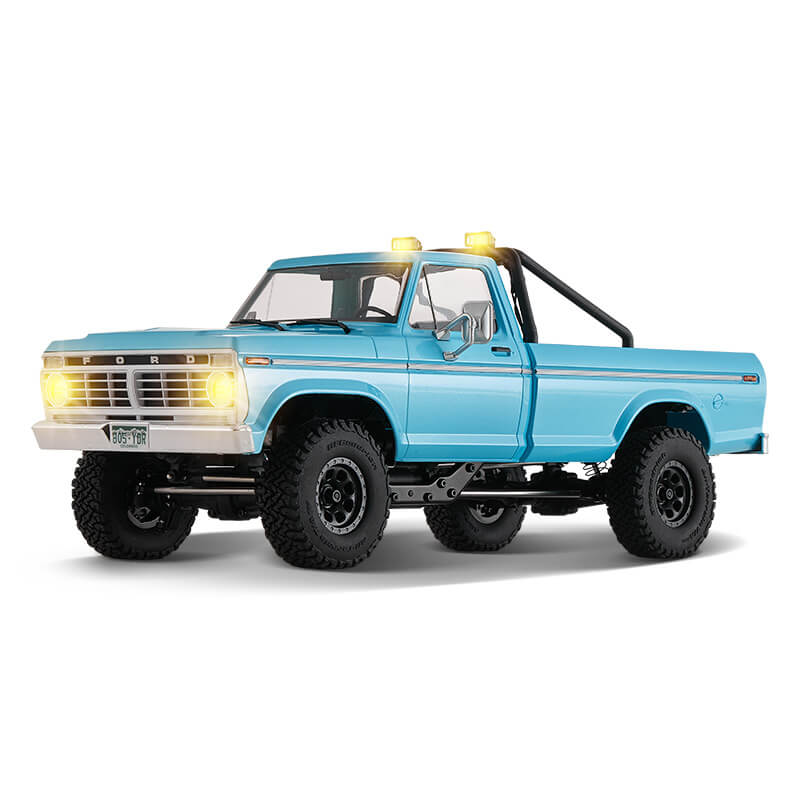

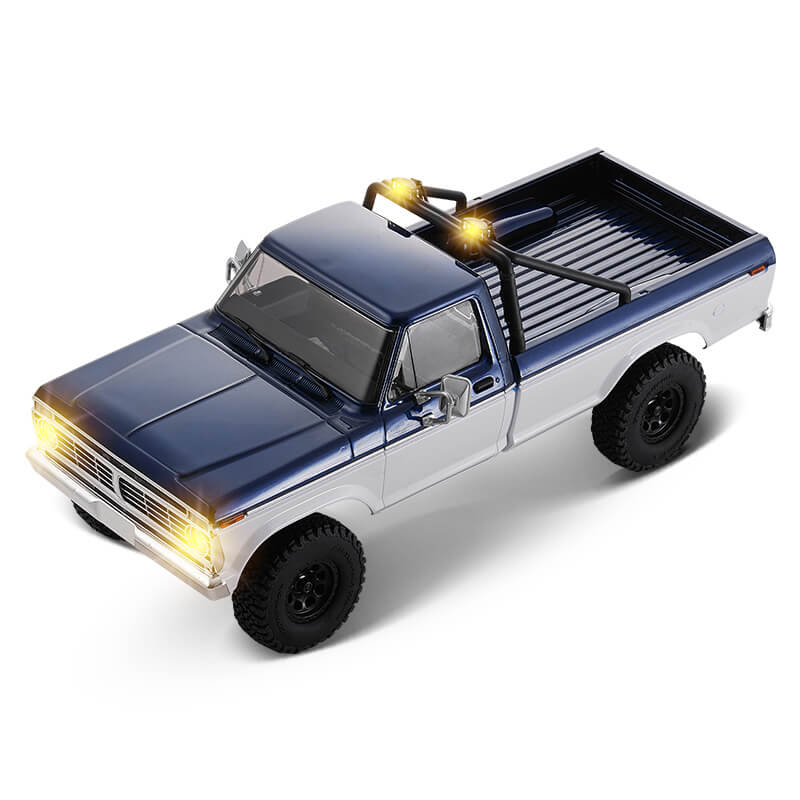

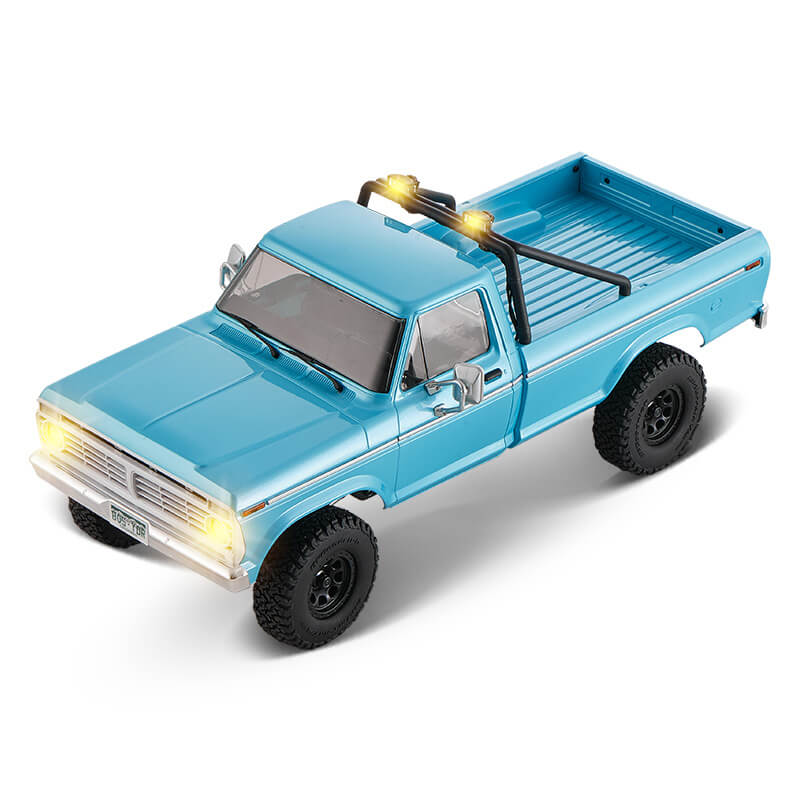

FMS FCX18 II Ford F-100 1:18 Scale 4WD RC Crawler — LCG Chassis, 2-Speed Gearbox, Magnetic Body Release, RTR

What Is the FMS FCX18 II Ford F-100?

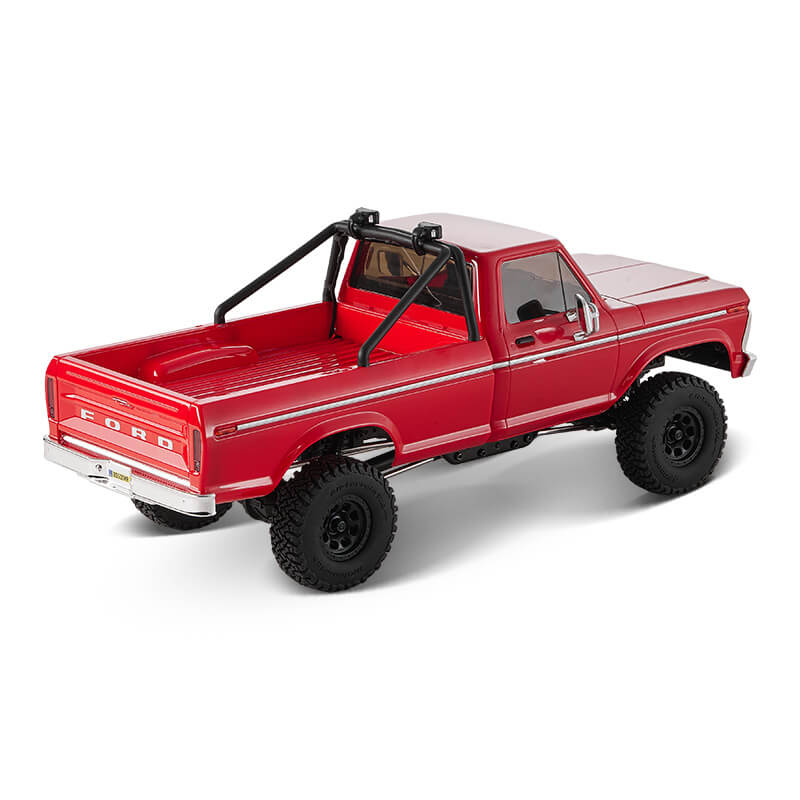

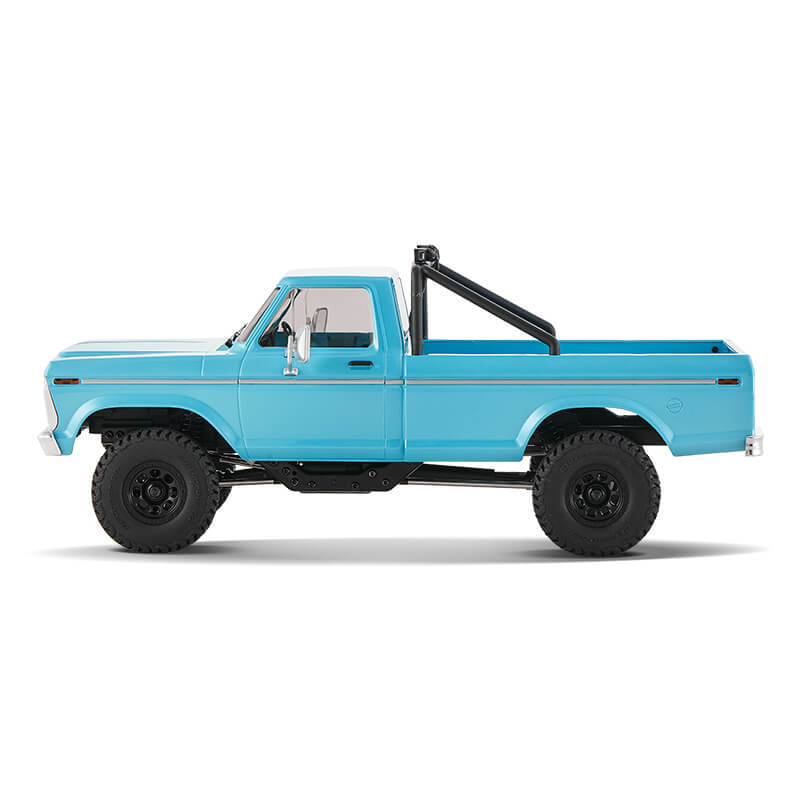

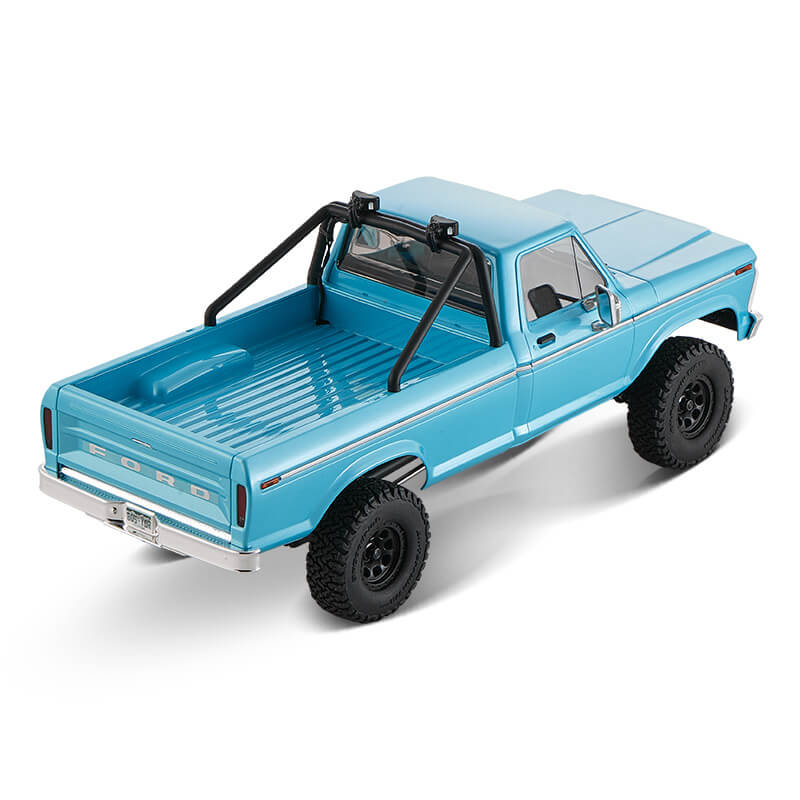

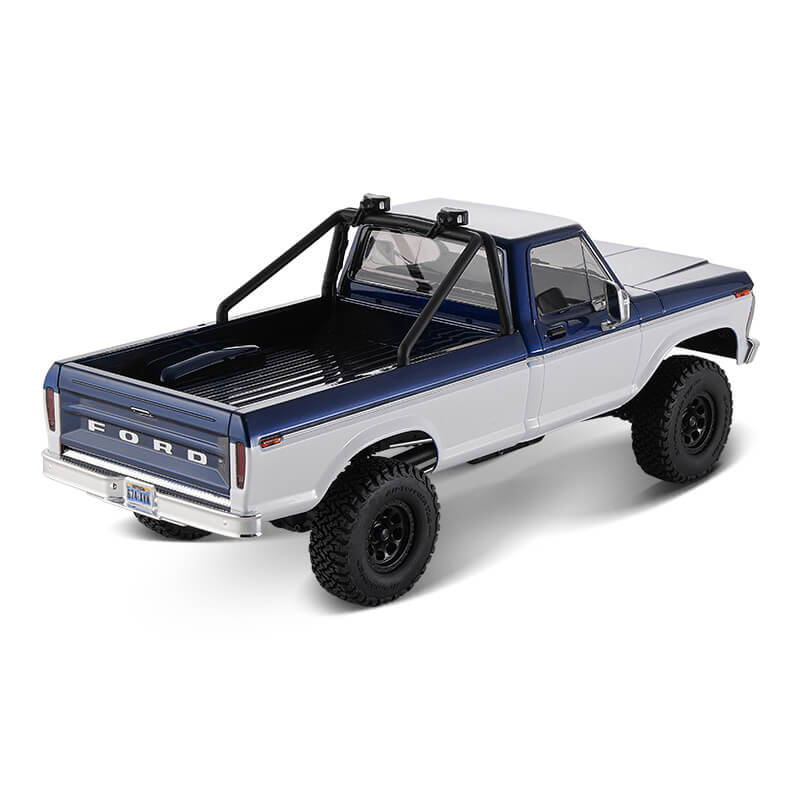

The FMS FCX18 II Ford F-100 is a 1:18 scale RC crawler built on the second-generation FCX18 low center of gravity (LCG) platform. It carries an officially licensed Ford F-100 hard-shell body and comes ready to run straight out of the box. The truck is aimed at hobbyists who want genuine scale realism — including a fully molded interior, licensed BFGoodrich KO3 tires, and a working multi-function lighting system — combined with a capable crawling chassis that can handle real off-road terrain.

LCG Chassis — Built to Stay Upright

The FCX18 II platform uses a low center of gravity chassis layout that keeps the F-100 stable on steep inclines and technical terrain. Compared to a standard-height chassis, the LCG design reduces rollover risk and improves the truck's posture when climbing. The chassis also uses a reverse transmission design and solid axle setup with a four-link suspension system — the same configuration used on full-size crawlers scaled up from this platform.

2-Speed Transmission

The FCX18 II F-100 includes a 2-speed gearbox that can be switched from the transmitter without stopping the truck. High gear (17.7:1) is suited for open terrain and faster driving. Low gear (94.2:1) delivers the torque needed for slow, precise crawling over rocks, roots, and obstacles that would stop a single-speed crawler. This is one of the features that separates the FCX18 II from most competitors in the 1:18 class.

Magnetic Quick-Release Body System

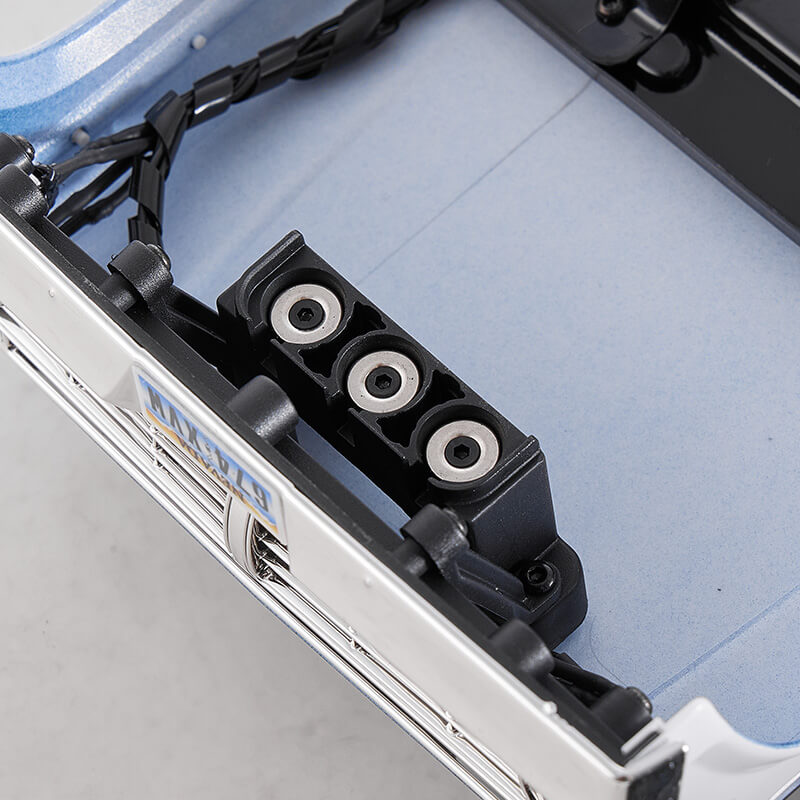

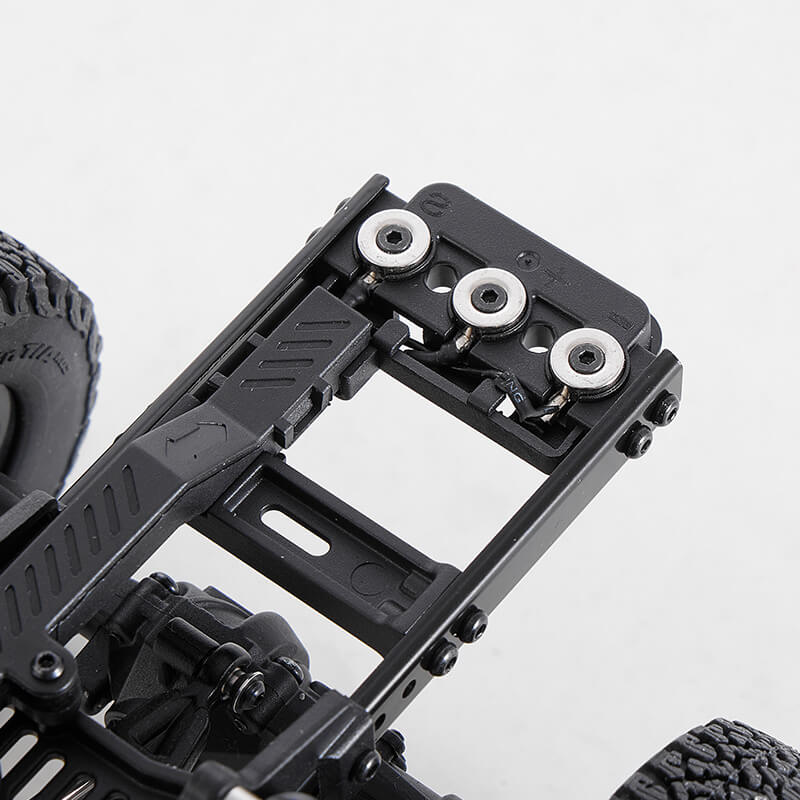

The body removal system uses a magnetic interface that holds the F-100 shell in place during driving and releases it without tools. When the body is mounted, the magnetic contacts automatically supply power to the body-mounted lighting system — no separate plug connections required. Body swap takes approximately two seconds. Different painted shells can be swapped using the same interface, and the lighting activates automatically each time.

Metal Drivetrain Throughout

The FCX18 II F-100 uses metal chassis rails, metal gears, metal bearings, oil-filled metal shocks, and metal steering links across the drivetrain. The 180 brushed motor pairs with a 2-in-1 receiver/ESC unit (FMS-R3D-BS) that includes a selectable switching function for easy future upgrades. Extensive upgrade parts are available for this platform. Hidden wiring runs through the body and chassis to keep the interior clean and simplify maintenance.

Ford F-100 Body — Scale Detail Up Close

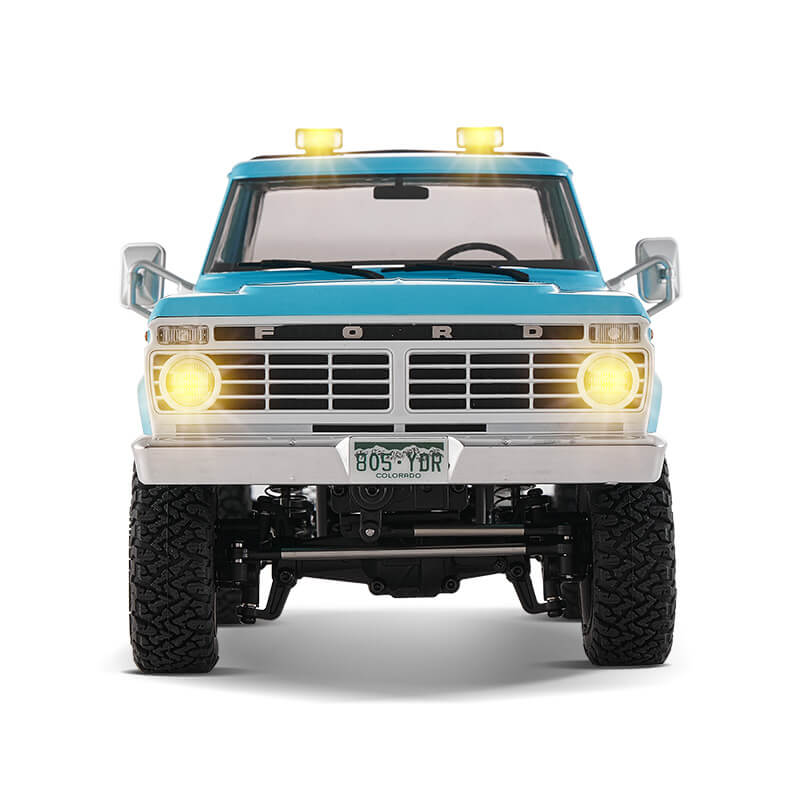

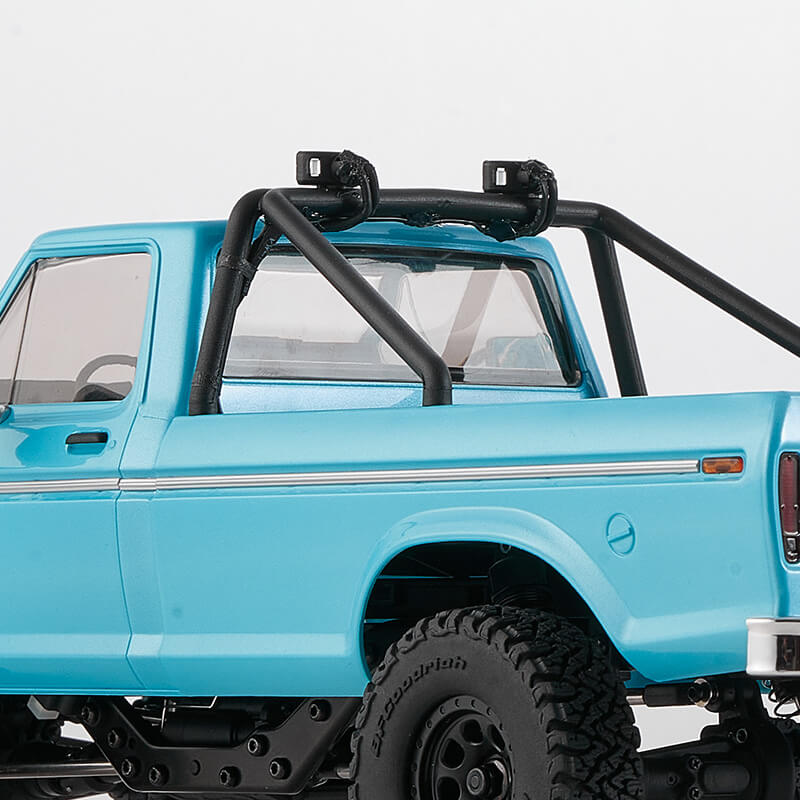

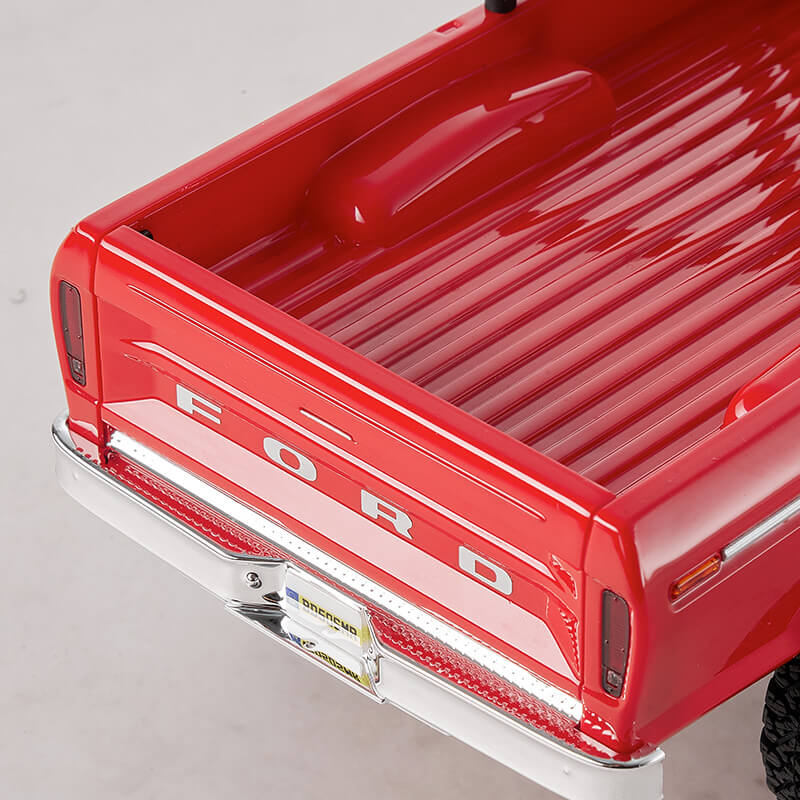

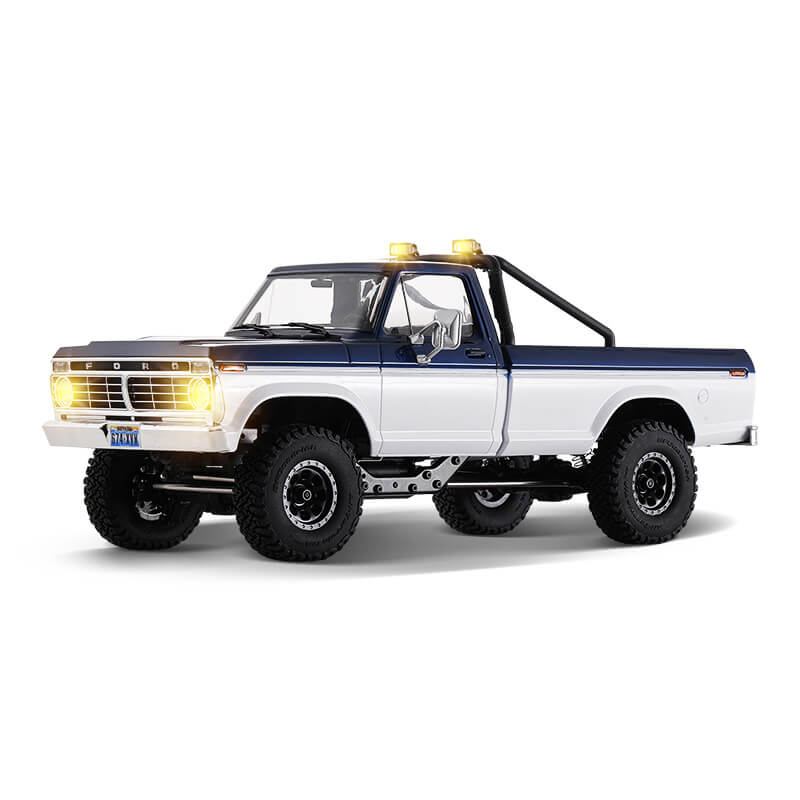

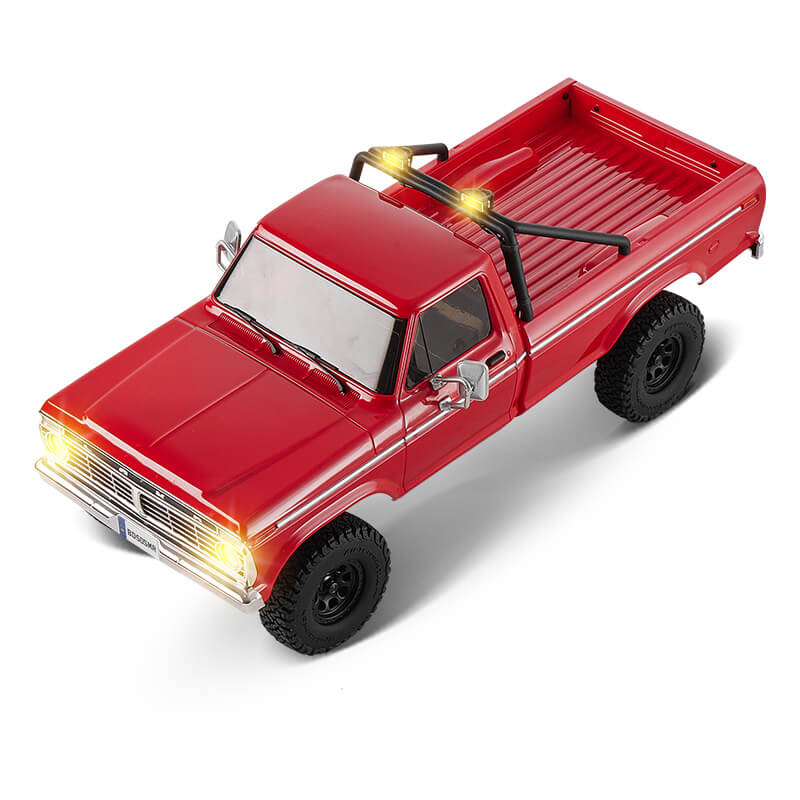

The body is fully molded with a highly detailed scale exterior and interior — steering wheel, dashboard, and mirrors are all visible through the windows. Headlights, taillights, turn signals, and roof-mounted spotlights are individually controllable from the transmitter through a synchronized lighting control system with multiple modes. The BFGoodrich KO3 tires are officially licensed and replicate the tread pattern and stance of the real-world tire on the truck.

Key Features

• Officially licensed Ford F-100 body — hard-shell, highly detailed scale exterior & interior

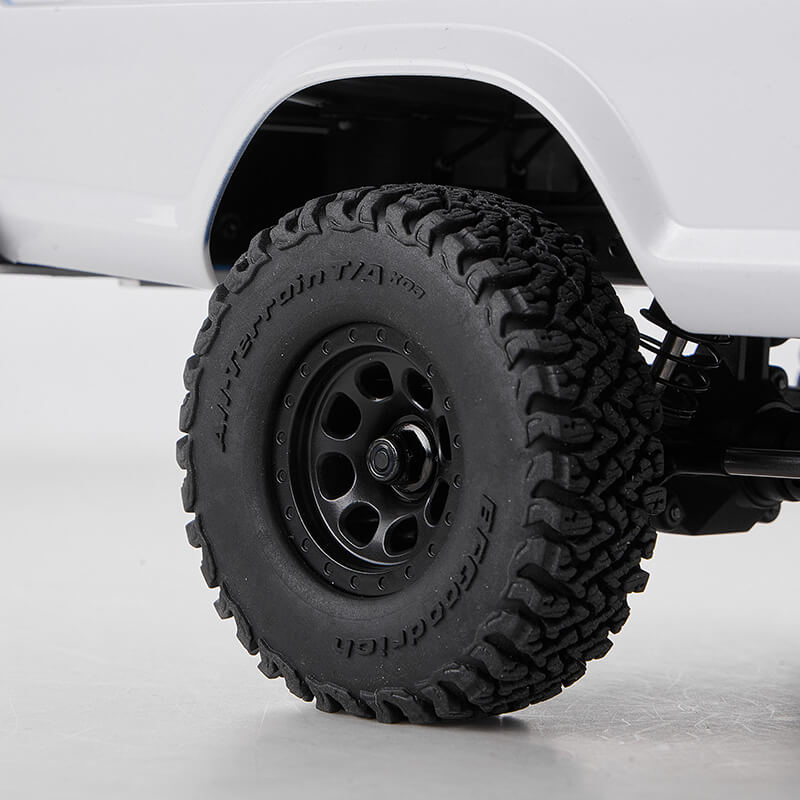

• Officially licensed BFGoodrich KO3 tires — Φ58 × 19 mm, accurate scale tread pattern
• All-new FCX18 II LCG chassis — low center of gravity, improved climbing stability, reduced rollover risk
• Full light system with multiple modes — headlights, taillights, turn signals, roof spotlights, individually controllable
• Two-speed transmission — High 17.7:1 / Low 94.2:1, transmitter-selectable
• Magnetic quick-release body system — tool-free swap in ~2 seconds, auto lighting contact
• Metal chassis rails, links, bearings, gears & shocks — full metal drivetrain throughout

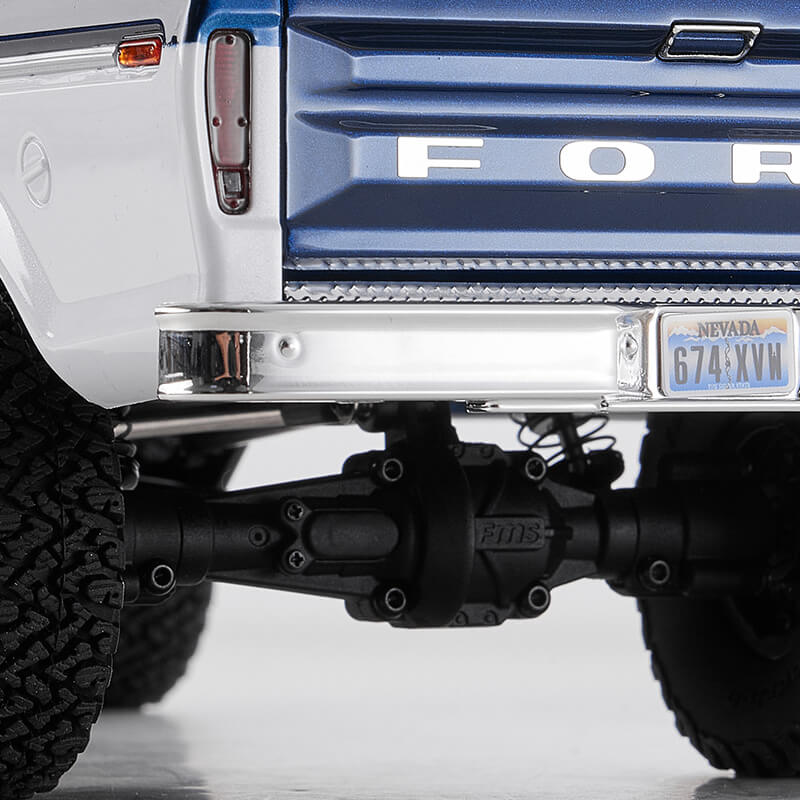

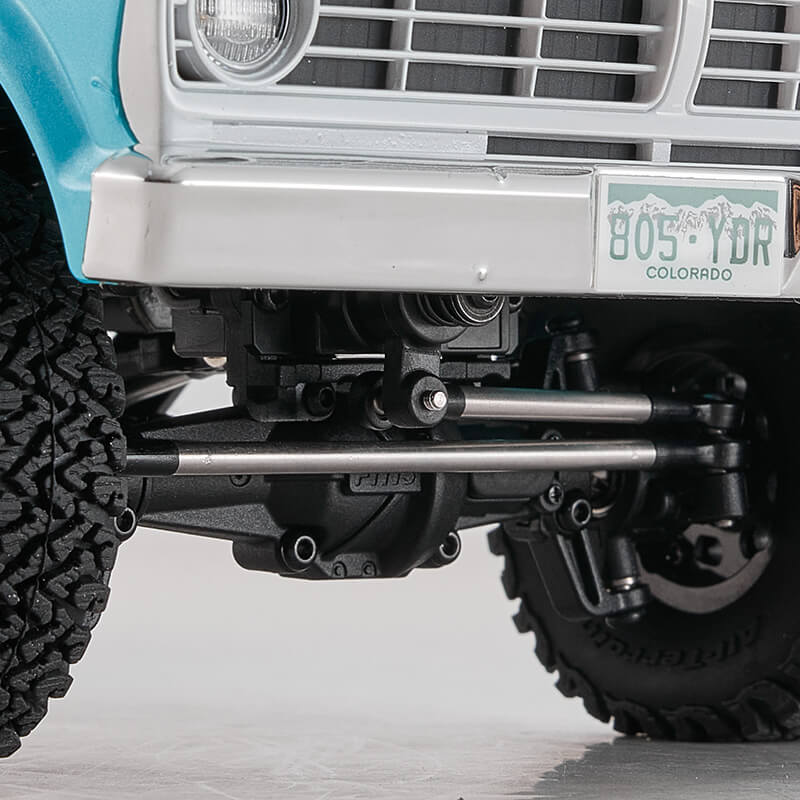

• Solid axle with four-link suspension
• Reverse transmission design — improved weight distribution and crawl performance
• Full-time 4WD — ready for technical off-road terrain
• 180 brushed motor + FMS-R3D-BS 2-in-1 ESC/receiver — selectable switching, upgrade-ready
• Extensive upgrade parts available for future customization
• 7.4V 900mAh 2S LiPo battery — 40–60 min runtime
• RTR configuration — transmitter, battery, charger included

Full Specifications

What's in the Box

• 1 × FMS FCX18 II Ford F-100 RC Crawler (assembled)
• 1 × FS-MG44 Transmitter with installed receiver
• 1 × 7.4V 900mAh 2S LiPo Battery
• 1 × USB Battery Charger
• 1 × Decal Sheet
• 1 × Product Manual

Note: 4 × AAA batteries required for transmitter — not included.

Who Is the FMS FCX18 II F-100 For?

This truck is a good fit for RC beginners who want a compact, capable crawler without a complex setup, for Ford and classic truck collectors who want a shelf-worthy model that actually drives, and for experienced hobbyists who want a 1:18 trail rig with upgrade room. The metal drivetrain, 2-speed gearbox, and modular magnetic body system make it a proper hobbyist platform rather than a basic toy-grade crawler.

Frequently Asked Questions

Is the FMS FCX18 II F-100 good for beginners?
Yes. The RTR configuration means no assembly, and the 2-speed transmission gives beginners the option to start in high gear and switch to low gear when they're ready for technical crawling.

What is the difference between the FCX18 and FCX18 II?
The FCX18 II adds the LCG chassis layout, magnetic quick-release body and power contact system, multi-position shock mounting, and reverse transmission design on top of the original platform's metal drivetrain and 2-speed gearbox.

How long does the battery last?
Approximately 40–60 minutes on the included 7.4V 900mAh 2S LiPo battery. Actual runtime varies with terrain and driving style.

Can I swap the body for a different color?
Yes. The magnetic quick-release system accepts different painted shells and automatically connects body lighting when the shell is mounted — no tools or extra plugs needed.

Does it come with everything needed to run?
Yes. Transmitter, battery, and USB charger are included. You will need 4 × AAA batteries for the transmitter.
