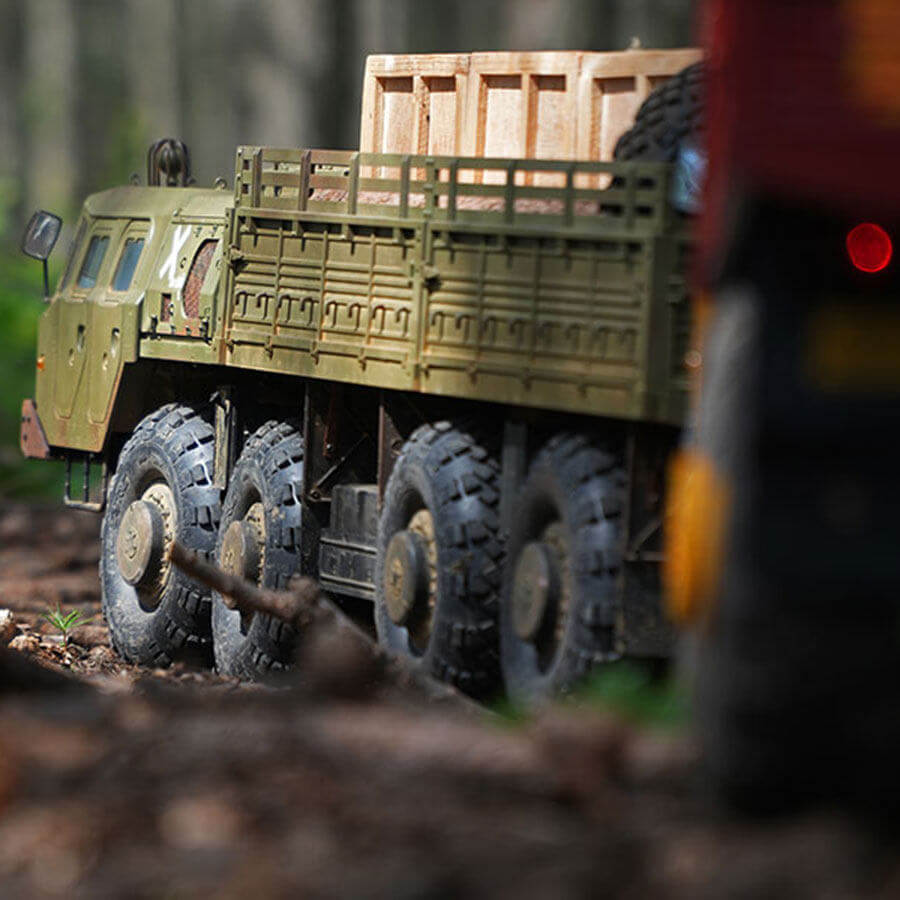

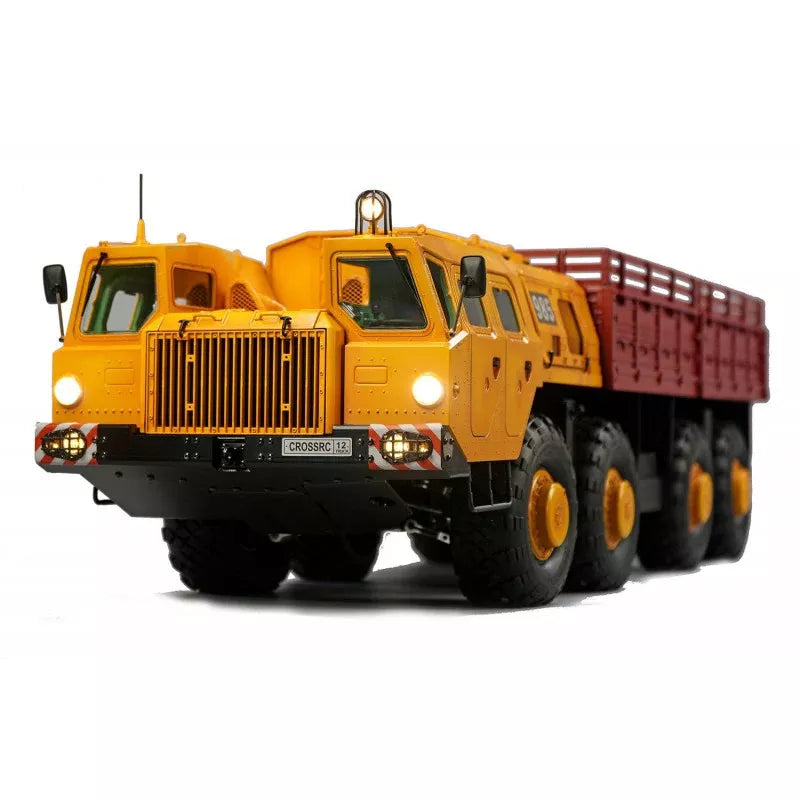

CROSSRC CC8 1/12 Scale 8x8 8WD RC Military Metal Transport Truck Crawler KIT/RTR

The CROSSRC CC8 is a 1/12 scale heavy-duty military off-road RC model featuring a full-metal ladder frame and dual torsion-bar independent suspension, balancing lightweight design with high strength. Powered by a 775 high-torque motor with a dual-speed planetary gearbox and all-metal drivetrain, it delivers impressive crawling and heavy-load performance. The ABS scale body with opening parts and synchronized lighting, combined with a KIT assembly format, offers an immersive mechanical and build experience.

* Highly detailed, richly detailed, and high-quality model kit for a CC8 8x8 truck on a scale of 1:12.
* The model is based on a truck manufactured in the 1960s.
* This model kit is another highlight of the CROSS-RC truck family on a scale of 1:12.

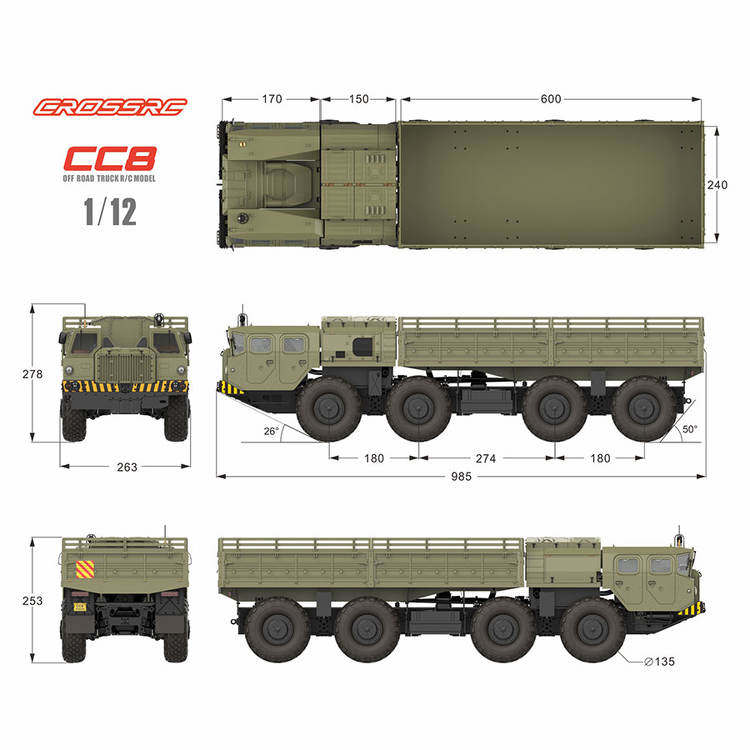

* With dimensions of 985 mm x 263 mm x 278 mm (L x W x H), it is a very impressive model.
* Tires with a diameter of 135 mm and a width of 48 mm on 2.2" steel rims.
* Highly detailed foldable cab with ABS interior.

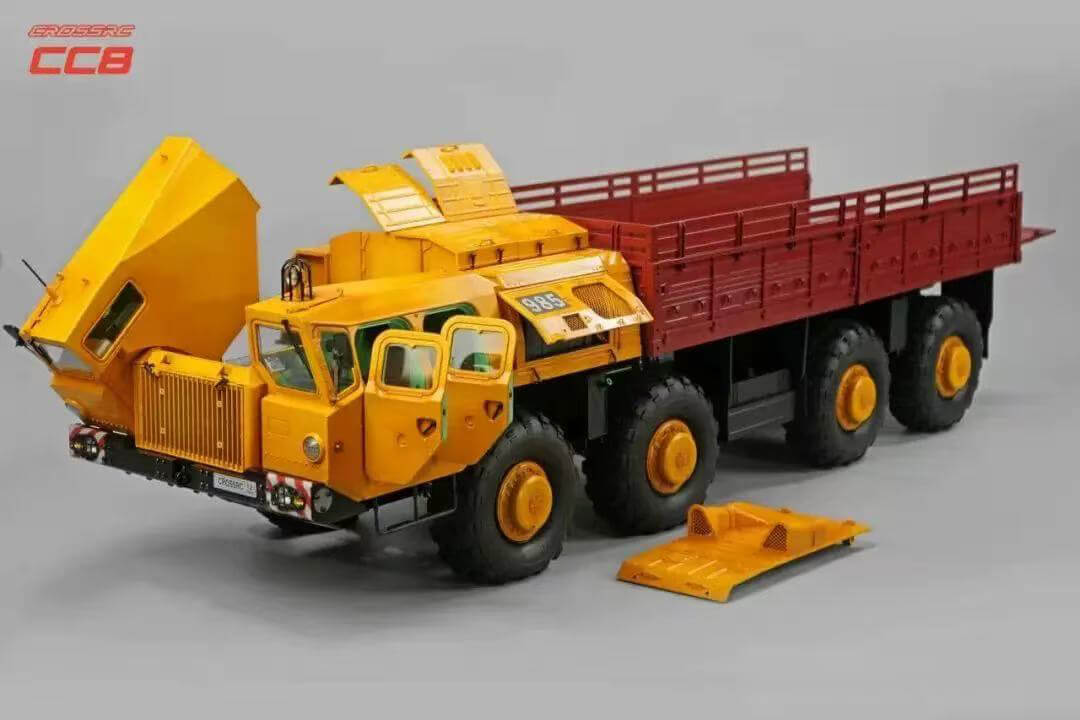

* Doors and hatches can be opened.
* ABS flatbed
* Front engine and 2-speed center transmission
* Independent suspension
* Torsion bar suspension
* Complete lighting and brushed motor included
* High-torque 775 motor
* Battery box for rechargeable battery: max. 152 mm x 53 mm x 33 mm
* Maximum motor size: Ø47 mm x 80 mm

KIT version requires self provided accessories:
* 2 HV steering servos, min. 30 kg
* 1 midi switching servo
* 1 brushed speed controller, if using the supplied motor, or a brushless variant for the drive, controller, and motors
* 1 traction battery, 3S recommended
* We also recommend a UBEC for the steering servos
* Tools
* Glue
* Grease
* Paints
* Remote control, 6 channels or more recommended

CROSSRC CC8 Assembly Instructions：
1. Always perform painting and gluing of body parts in a well-ventilated area and wear a protective mask.
2. Pay attention to adhesive selection during assembly: Use ABS-specific cement for the ABS body shell. For acrylic windows and light lenses, use a low-corrosion clear adhesive or model-specific cement.
3. Before gluing ABS plastic parts, clean the bonding surfaces thoroughly. Ensure no paint is present on the surfaces. Apply ABS cement to both parts and hold them under pressure for 10 seconds to ensure a strong bond.
4. Conduct a dry-fit assembly of body parts before gluing or painting to determine the correct sequence of operations.
5. Refer to page 63 of the manual for the electronic wiring diagram. Perform power system testing only when the wheels are off the ground.
6. This is a high-precision model kit requiring technical experience and over 60 hours of assembly time. Please read this manual thoroughly before starting and follow the instructions precisely.
7. Threadlocker is required during assembly. Important: Prevent any contact between threadlocker and the body shell parts. Threadlocker can cause a chemical reaction with ABS material, leading to brittleness and cracking.
8. It is recommended to use tools designed for model building. Always observe proper tool safety during assembly.

Packaging size: 82*34*24 CM
Package weight: 13 KG

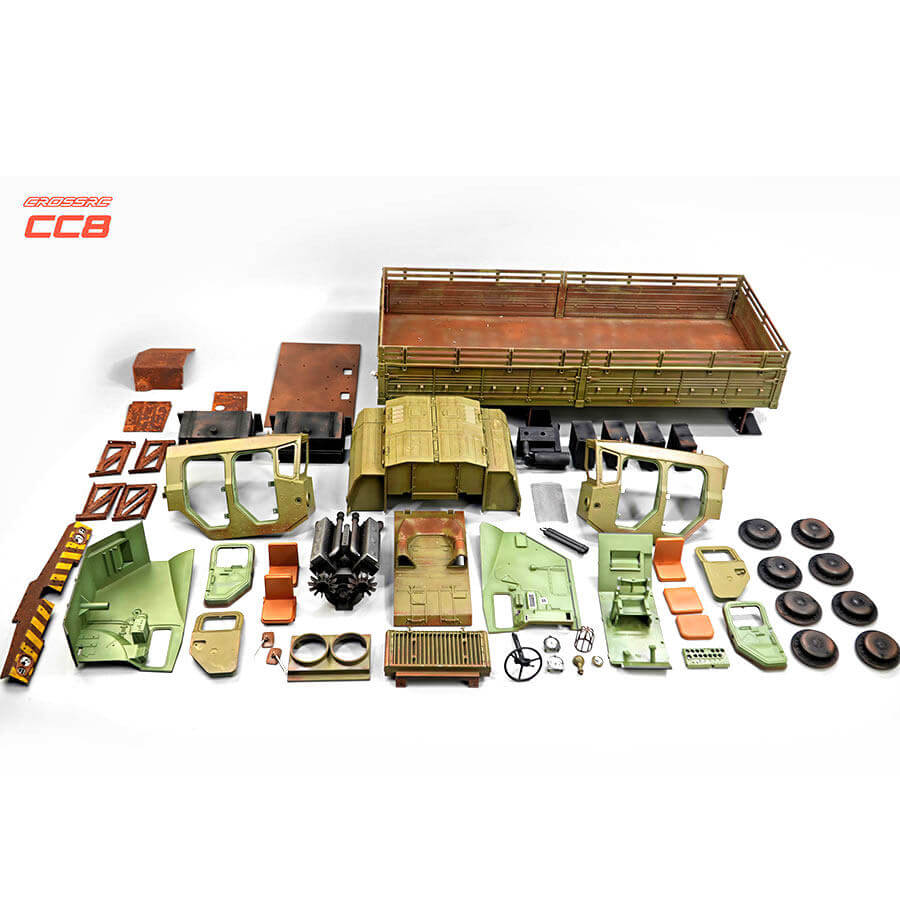

Please Note: Both the KIT and RTR versions are supplied as unpainted, unassembled kits. Painting and assembly are required. The finished models shown on the product page have been painted and assembled by other modelers. For experienced modelers and enthusiasts of RC military vehicles. a unique construction project combining realism and robustness. ideal for collectors and demanding RC enthusiasts.

* KIT Version: Includes 1 original motor; Does not include servos, ESC, transmitter, battery and charger are optional.

* RTR Version: Includes 1 original motor ; 3 servos (2 for steering, 1 for 2‑speed shift); 1 ESC; 1 transmitter are optional; battery and charger are optional.Salute to the Iron Legends: The CROSSRC CC8 All-Metal Scale Off-Road Truck Makes Its Grand Entrance:
—In the name of brutalist mechanics, it redefines the functional artistry of the mobile platform.

Era-Defining: The Birth of the Iron Behemoth:
Amid the unique global landscape of the 1960s, Soviet engineers created a "national asset" that defied convention. Featuring an innovative twin-cab design, a 525-horsepower V12 tank engine, and an independent suspension all-wheel-drive system, it possessed exceptional off-road capability, formidable load capacity, and high on-road mobility. It was a purpose-built wheeled heavy platform for the rapid deployment of strike forces, capable of conquering swamps, mud, high plateaus, and permafrost.
Half a century later, this iron behemoth that once reshaped military history is reborn in 1/12 scale as the CROSSRC CC8—a timeless tribute to the art of mechanical force."We sculpt metal to preserve the mechanical souls forgotten by time."

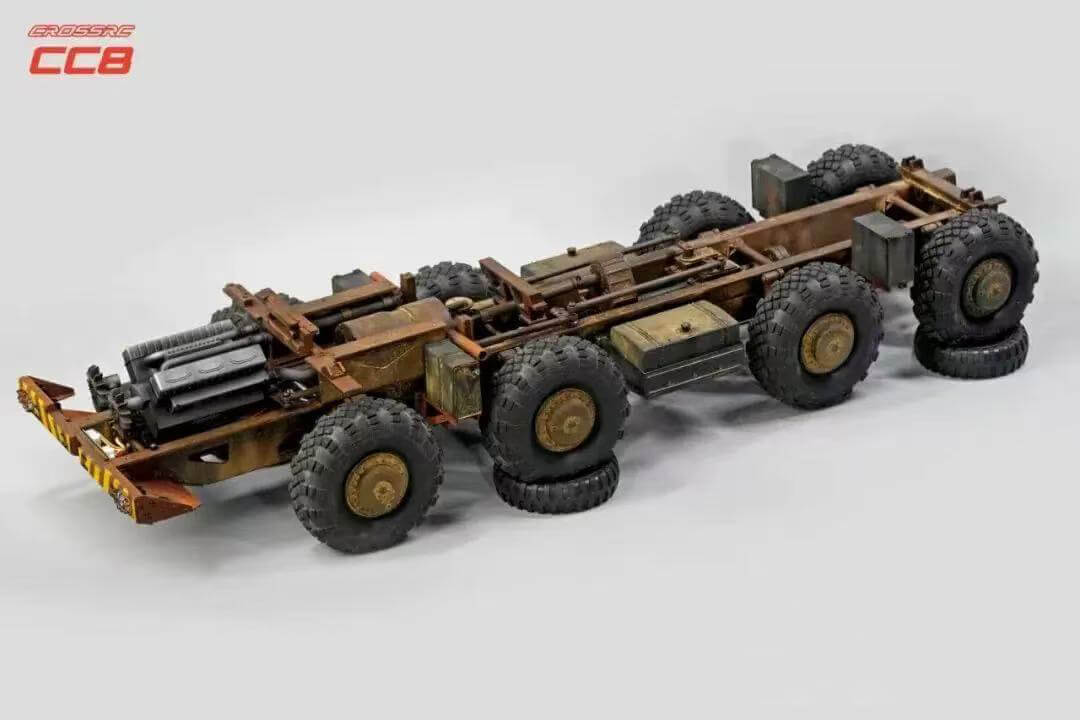

All-Metal Skeleton: The Precise Balance of Load and Weight:

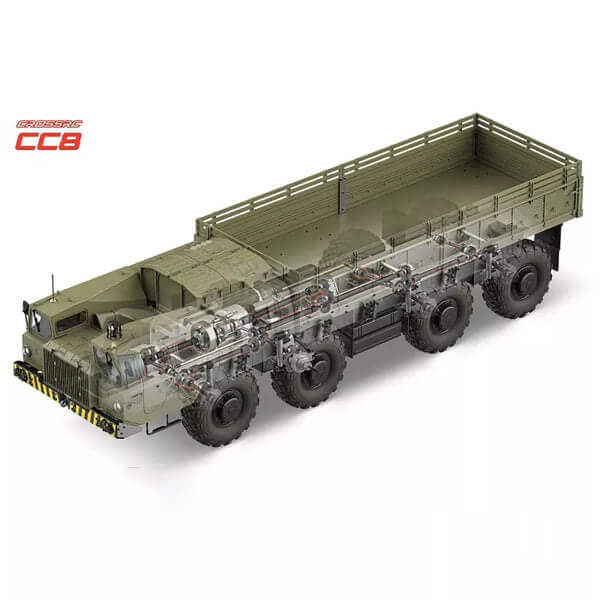

Inheriting the real vehicle's ladder frame design, the CROSSRC CC8 utilizes precisely machined aerospace-grade aluminum alloy for its main rails. This achieves a 53% weight reduction compared to a traditional steel frame while withstanding the impact loads of powerful drivetrains. The result: a 48% increase in torsional rigidity during extreme off-roading, maintaining an effortless and controlled posture.Dual Torsion Bar Suspension: Recreating the Agile Stride of a Battlefield Behemoth:

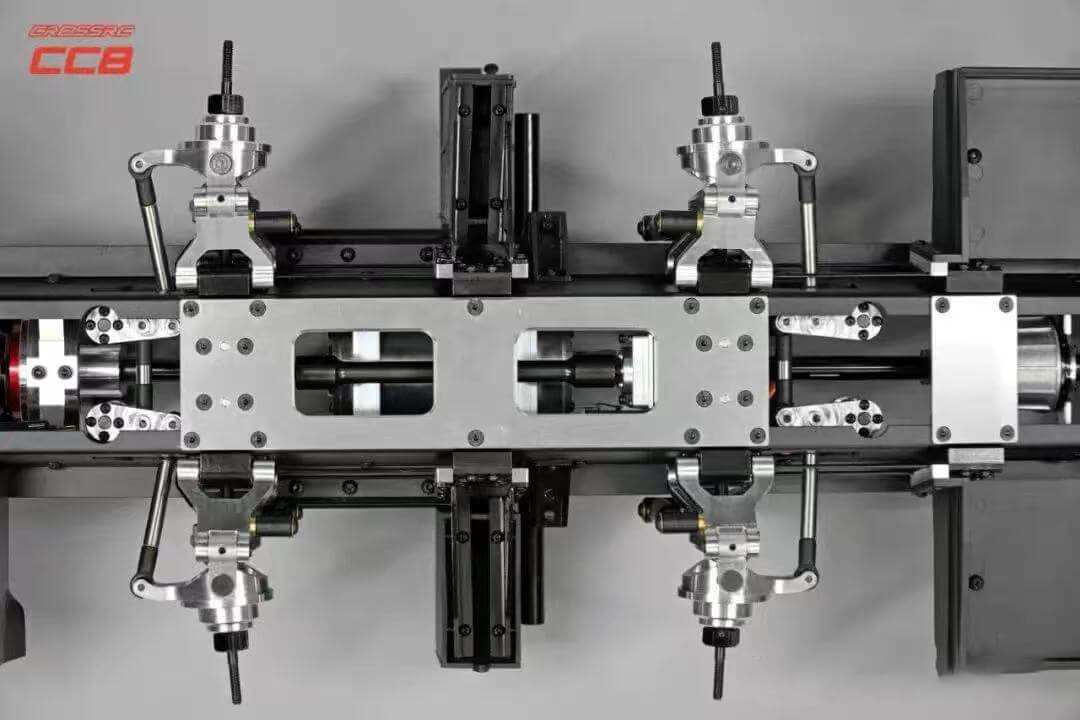

CROSSRC CC8 each wheel set is equipped with dual CNC-machined aluminum alloy swing arms and an independent dual torsion bar system, perfectly replicating the real vehicle's adaptive capability over rough terrain. As the torsion bars flex, store energy according to the terrain, and then release it, the vehicle body pitches and rolls like a real military truck, giving the scale model a rare, dynamic vitality.The Planetary Gear Temple: A Three-Stage Torque-Multiplying Drivetrain Sanctuary:
CROSSRC CC8 housed within the transmission are two-speed planetary gear sets and a dual-axis reduction mechanism. Torque is progressively magnified through three sets of transfer cases.
Driven by a high-torque 775 motor and utilizing all-metal gears, this system enables true-to-life low-speed hill climbing and high-speed running even under heavy loads and when towing trailers.Competition-Grade Drive Shaft Material: The Sturdy and Flexible Power Spine：
CROSSRC CC8 drive shafts are constructed from aviation-model competition-specific steel, proven undeformed through ten thousand torque tests. Their ideal balance of strength and flexibility ensures zero power loss is delivered to every wheel, even when the massive 135mm tires are driven at full impact on gravel terrain.Articulated Armor Shell: Unlocking Immersive Static Storytelling：

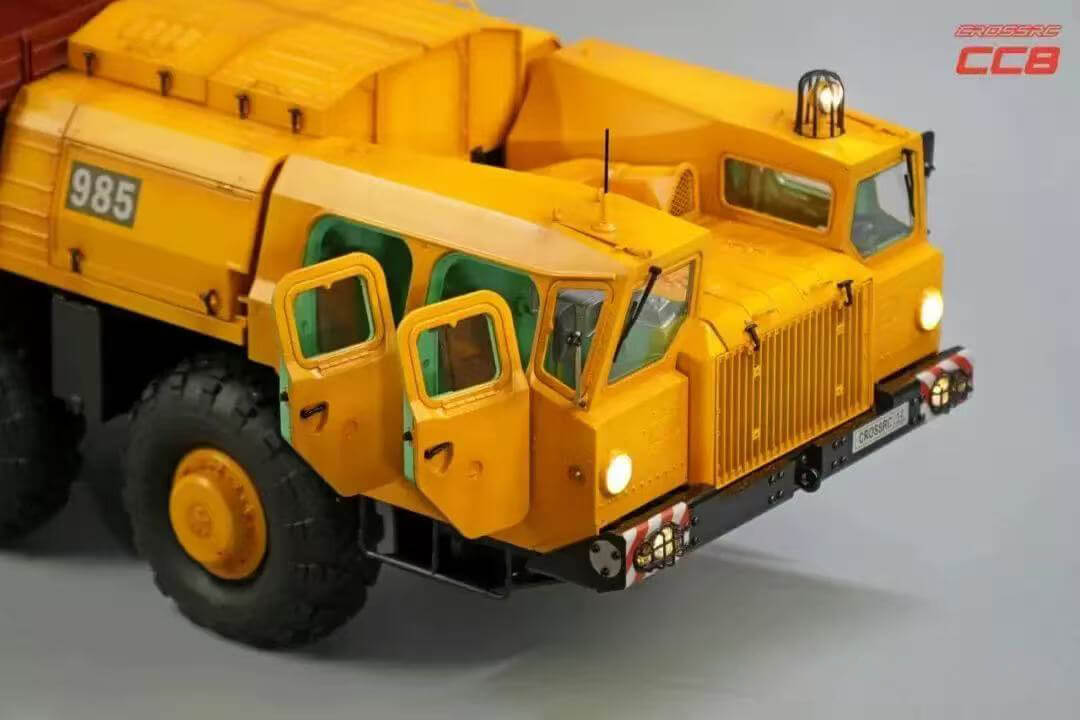

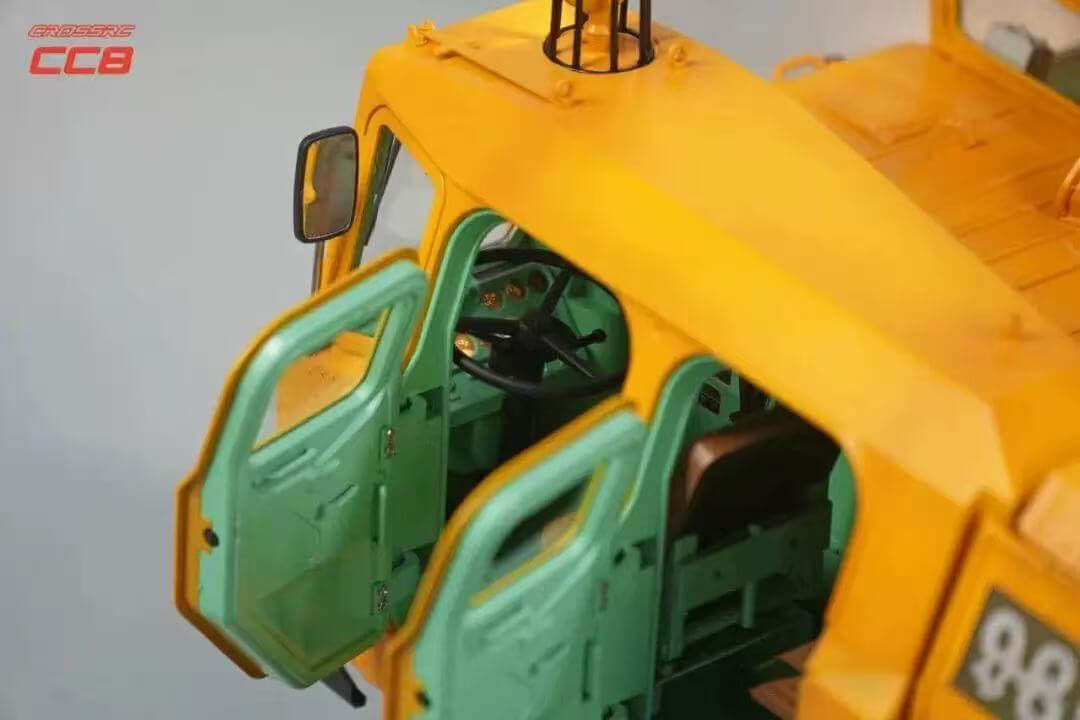

CROSSRC CC8 injection-molded ABS body features fully operational doors, with the cab doors mounted on authentic metal hinges identical to those on the real vehicle. When the synchronized lighting system illuminates the detailed interior dashboard, every element—from the hydraulic steering wheel to the control console—is revealed in sharp relief. In this moment, you command not merely a model, but a micro-scale epic of engineering and machinery.An Ultimate Ritual for Devotees of Machinery：
The CROSSRC CC8 is delivered in KIT form. Assembling every screw is a profound dialogue with that era of iron and blood. When you personally awaken this miniature "Uragan" (the nickname given to the real vehicle by Soviet soldiers), you become connected to the torrent of steel that once raced across the Siberian tundra.
"A true classic never retires; it is simply reborn in another form."

Servos*3 (RTR only):

HobbyWing KuangPao WP-1080-G2 80A Waterproof Brushed ESC for Crawlers.

Remote Control  (RTR only):

FLYSKY Noble NB4+ Transmitter and Receiver: 8-Channel Waterproof 2.4GHz Touch Screen Transmitter for RC Cars.

Battery (optional):

GREPOW (GENS ACE) Redrock G-tech 5200mAh 50C 11.1V 3S LiPo Battery with Voltage Display

Charger (optional):

GREPOW (GENS ACE) iMars S100 Smart Balance Charger/Discharger - 100W for RC Car/Drone LiPo Batteries
