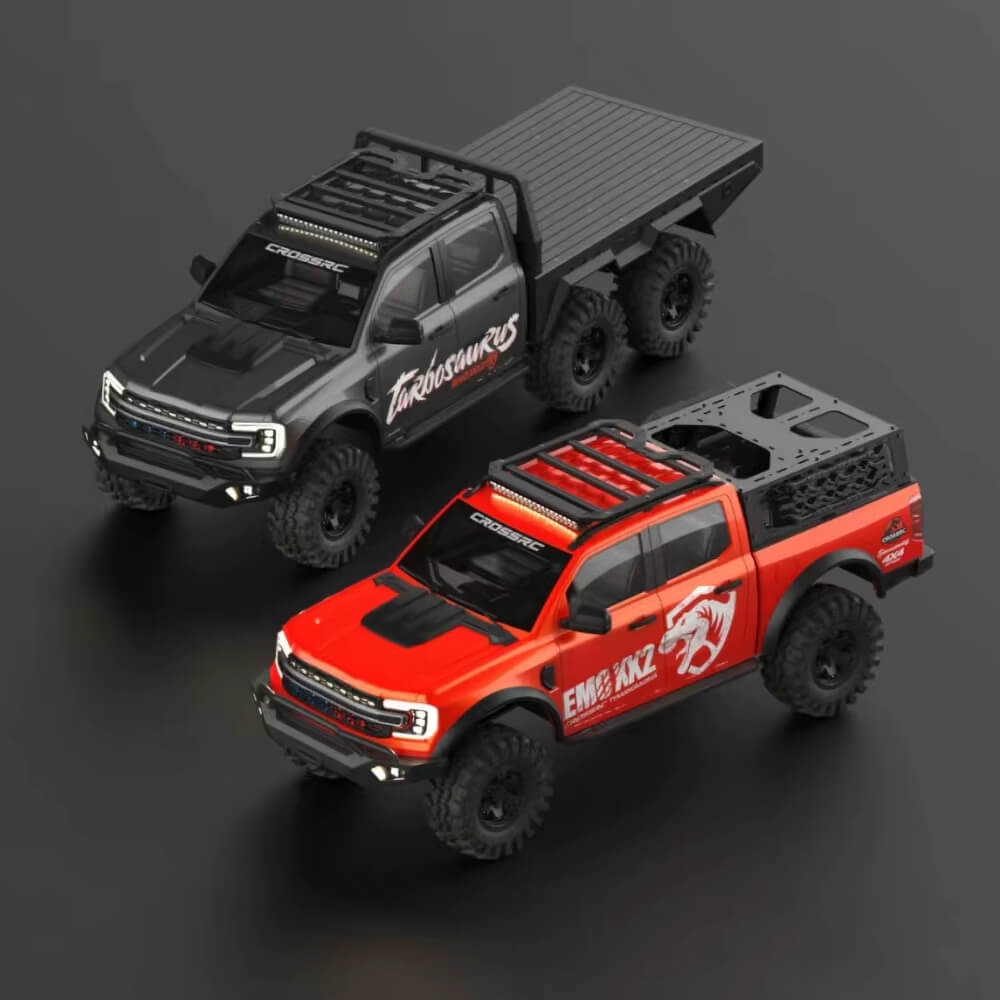

Overview: Both CROSSRC EMO XX2 Tyrannosaurus 4x4 and CROSSRC XXL2 Super Tyrannosaurus 6x6 come in multiple versions including ARTR, dual-motor, and brushless. The former features a nylon solid cargo box and other configurations to present 4x4 power and simulated structure, while the latter showcases excellent 6x6 performance with an engineering plastic combined flatbed cargo box and more. Both are equipped with high-quality PC shells, 2.5mm steel stamped simulation frames, and powerful transmission and suspension systems.

I. Basic information：
*Brand/Model: CROSSRC EMO XX2/XXL2

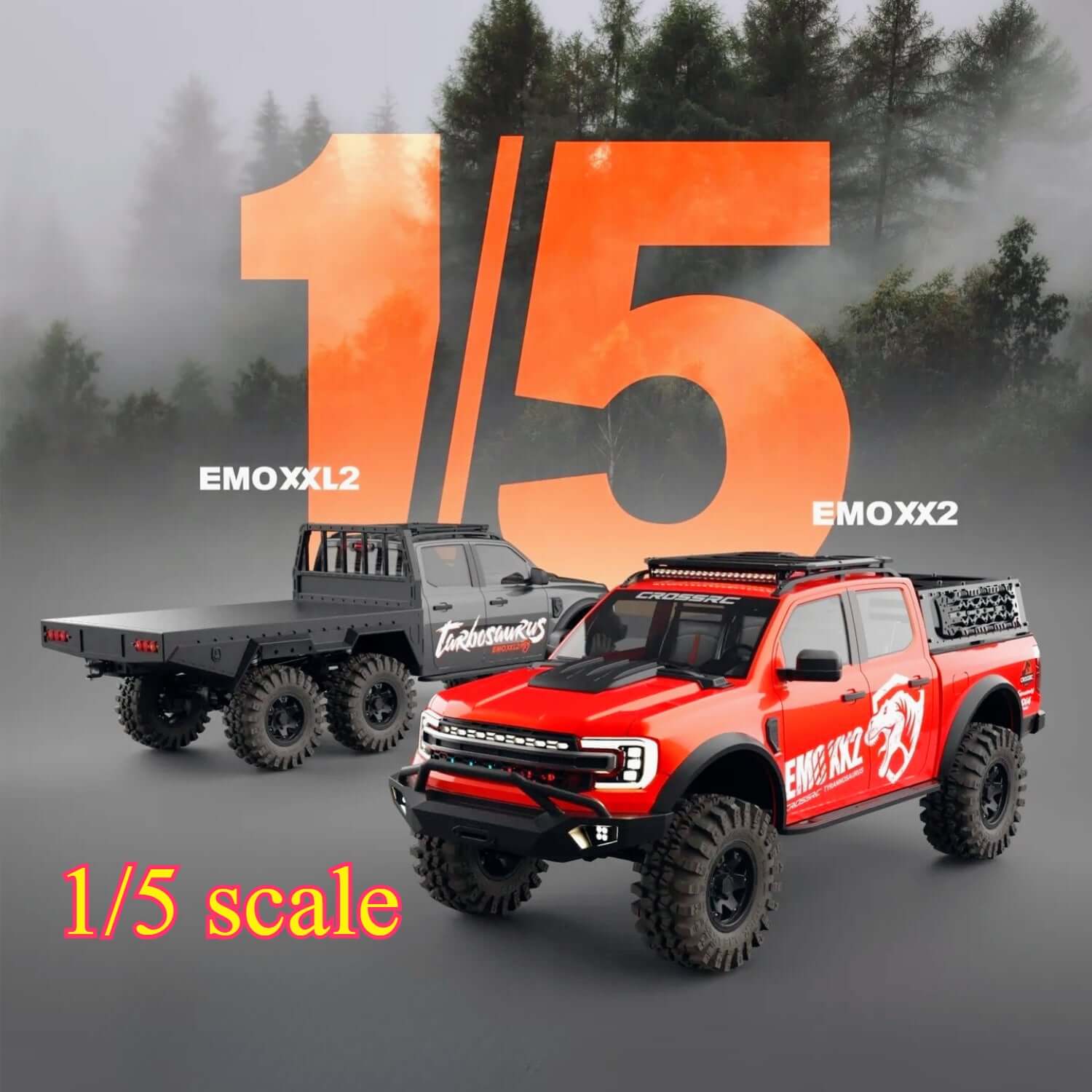

*Scale: 1/5
*Version: ARTR Version / Dual Motor Brushed Version / Brushless Version
*Color: Orange/Gray

EMO XX2 packaging size: 145 * 53 * 50 CM
EMO XX2 packaging weight: 18 KG

EMO XXL2 packaging size: 145 * 53 * 50 CM
EMO XXL2 packaging weight: 25 KG

II. Specification Sheet：
Electrical Components：
*ESC (Electronic Speed Controller):

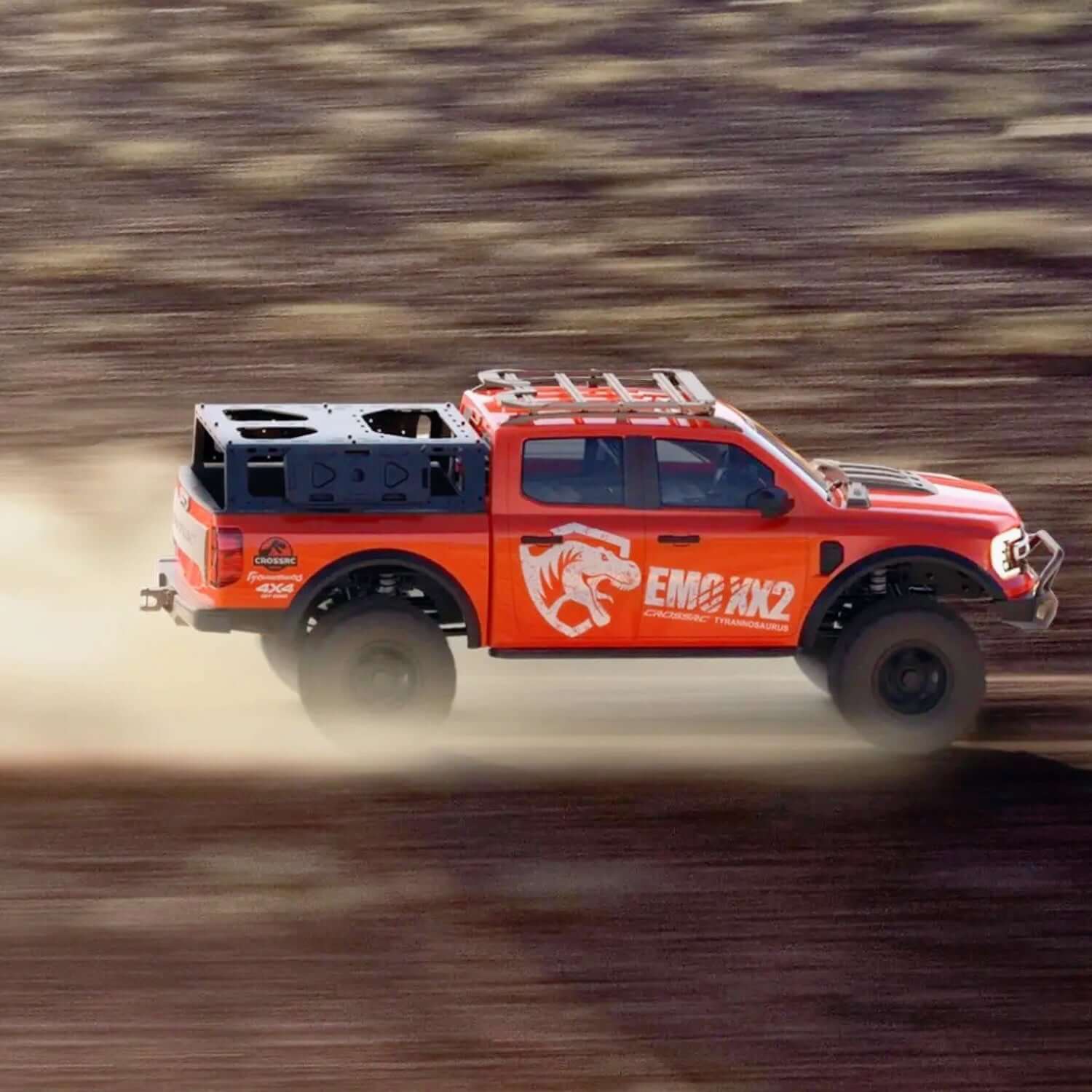

1. CROSSRC EMO XX2 Tyrannosaurus 4x4
    1. ARTR version: No ESC;
    2. Dual-motor version: Dual Hobbywing 880 (2-4S);
    3. Brushless version: Hobbywing 150A (3-6S Brushless).

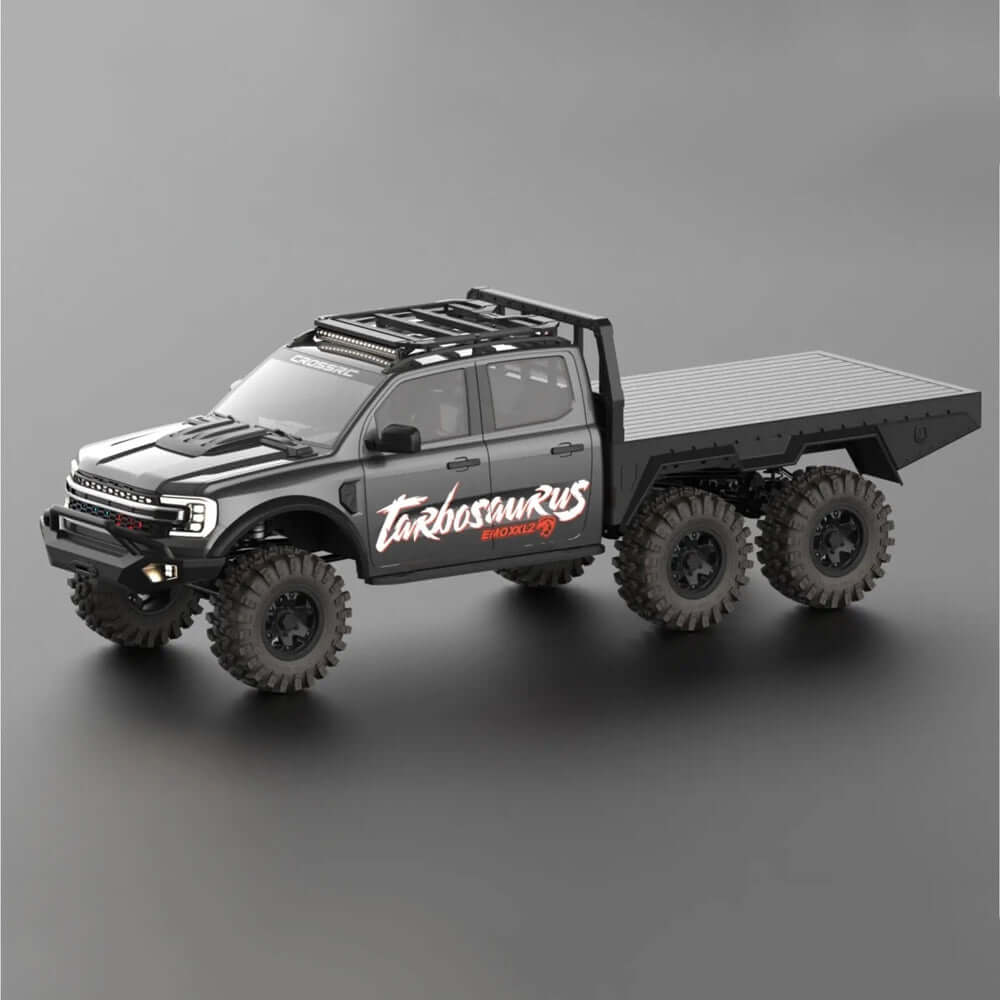

2. CROSSRC EMO XXL2 Super Tyrannosaurus 6x6
    1. ARTR version: No ESC;
    2. Dual-motor version: Dual Hobbywing 880 (2-4S);
    3.Brushless version: Hobbywing 150A (3-6S Brushless).

*Motor:
1. CROSSRC EMO XX2 Tyrannosaurus 4x4
    1. ARTR version: No motor;
    2. Dual-motor version: Dual high-power 775 brushed motors;
    3. Brushless version: Hobbywing 4985 (1650kv Brushless).
2. CROSSRC  EMO XXL2 Super Tyrannosaurus 6x6
    1. ARTR version: No motor;
    2. Dual-motor version: Dual high-power 775 brushed motors;
    3. Brushless version: Hobbywing 4985 (1650kv Brushless).

*Steering Servo:
CROSSRC EMO XX2 Tyrannosaurus 4x4 and CROSSRC EMO XXL2 Super Tyrannosaurus 6x6
    1. ARTR versions: No steering servo;
    2. Dual-motor and Brushless versions: 70KG 7.4V High-Voltage 5-channel large steering servo.

*Remote Controller:
CROSSRC EMO XX2 Tyrannosaurus 4x4 and CROSSRC EMO XXL2 Super Tyrannosaurus 6x6
    1. ARTR versions: No remote controller;
    2. Dual-motor and Brushless versions: Little Flying Elephant 6-channel 2.4G remote controller.

*Shifting Differential Servo:
All versions of CROSSRC EMO XX2 Tyrannosaurus 4x4 and CROSSRC EMO XXL2 Super Tyrannosaurus 6x6: 3 pre-installed factory 25KG 7.4V High-Voltage standard servos.

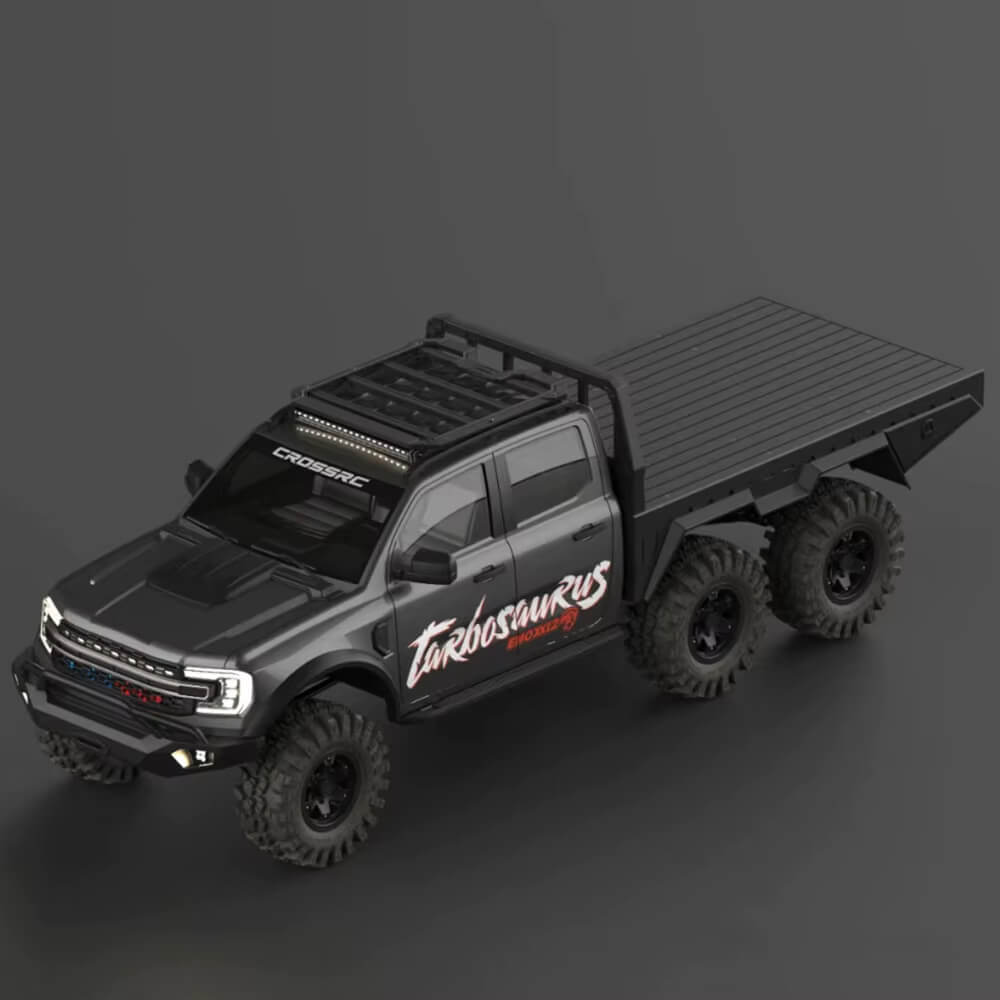

*Lighting:
All versions of CROSSRC EMO XX2 Tyrannosaurus 4x4 and CROSSRC EMO XXL2 Super Tyrannosaurus 6x6: Linked high-power light set with strobe mode.

Main Body：
*Car Body Shell:
All versions of CROSSRC EMO XX2 Tyrannosaurus 4x4 and CROSSRC EMO XXL2 Super Tyrannosaurus 6x6: High-quality PC finished shell.

*Rear Cargo Box:

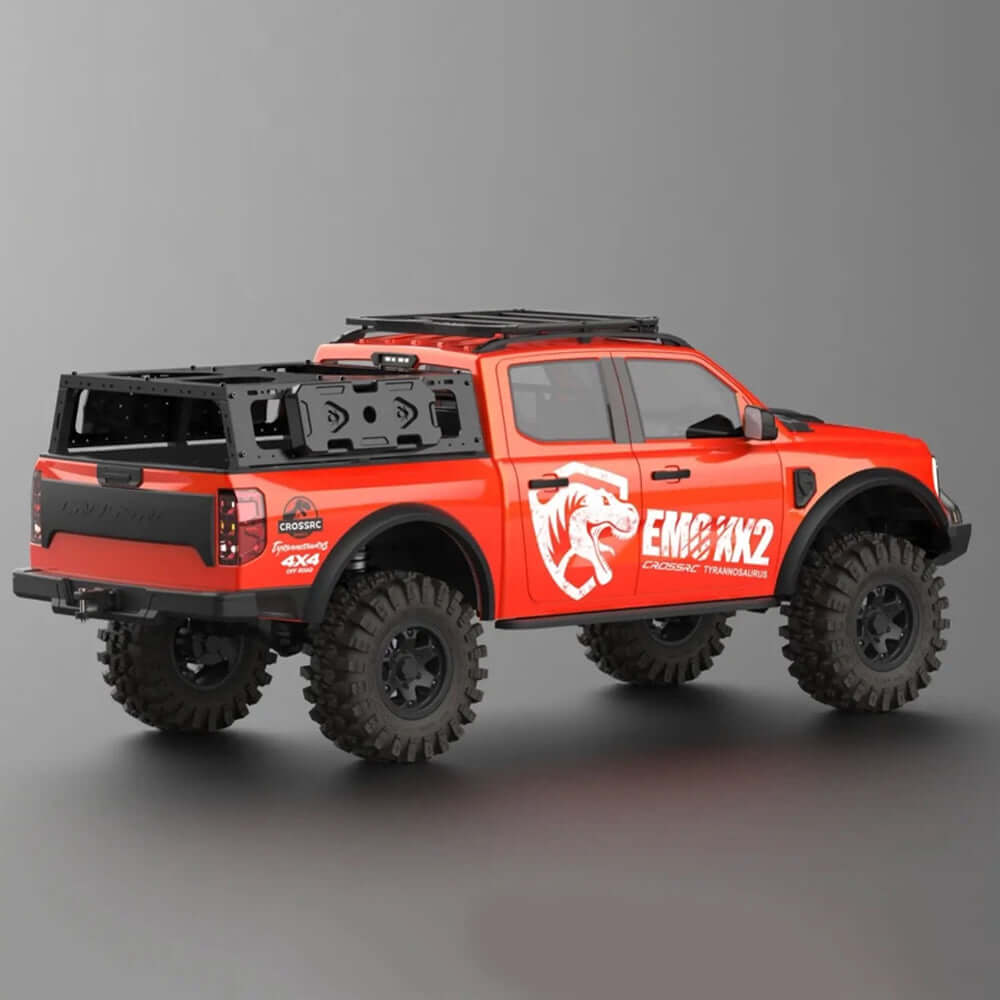

    1. CROSSRC EMO XX2 Tyrannosaurus 4x4 (all versions): Nylon solid cargo box;

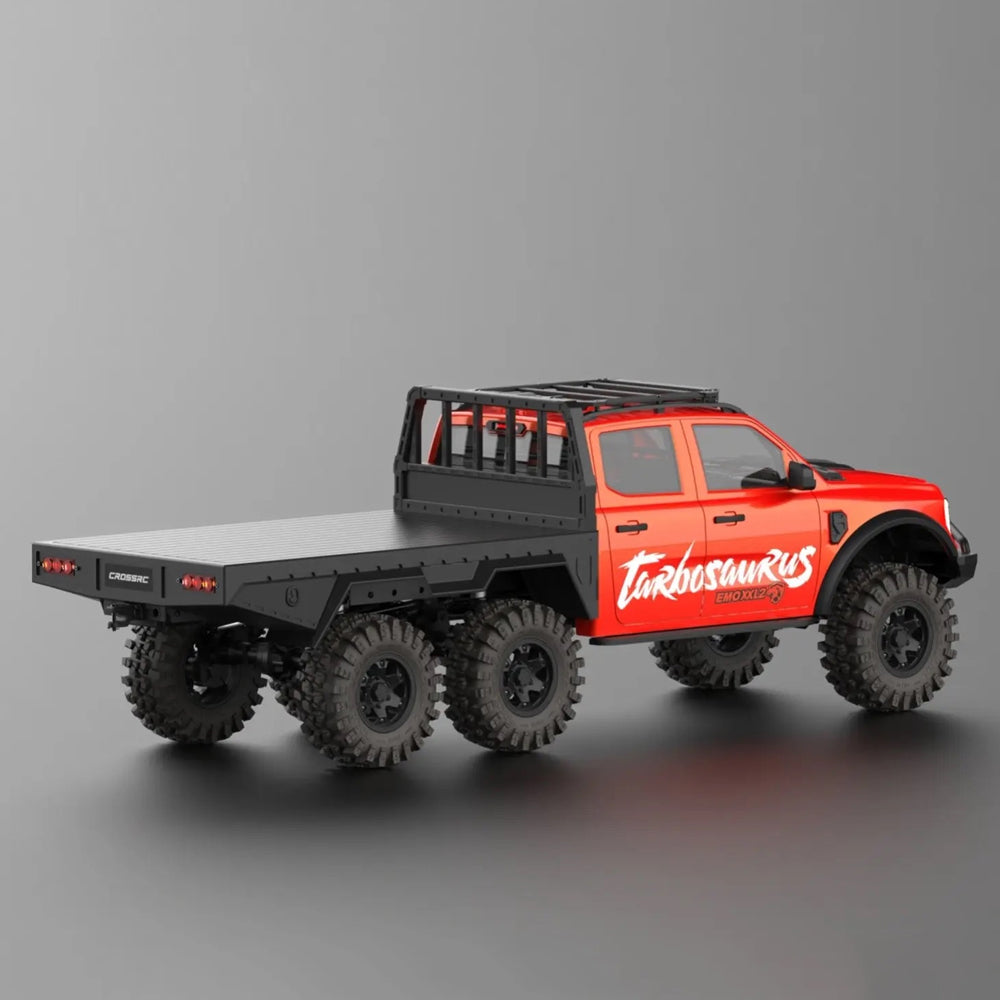

    2. CROSSRC EMO XXL2 Super Tyrannosaurus 6x6 (all versions): Engineering plastic combined flatbed.

*Chassis Frame:

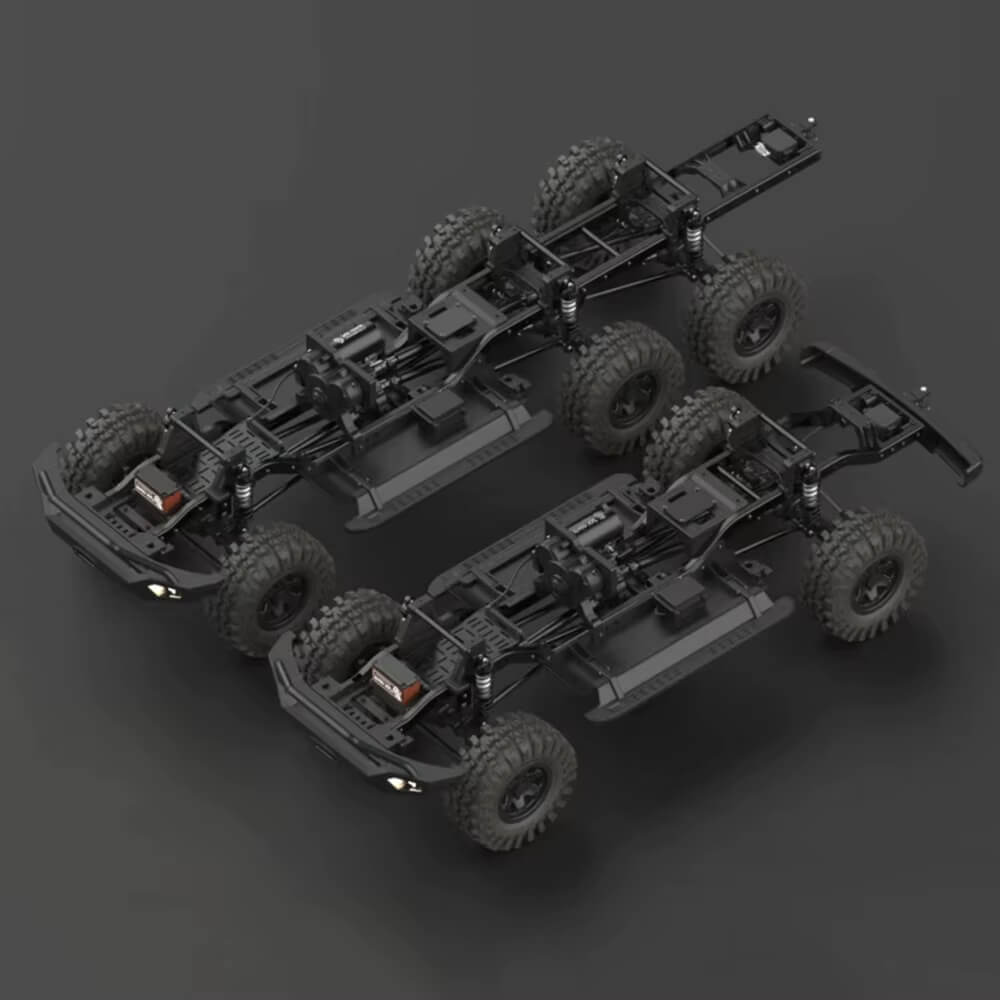

All versions of CROSSRC EMO XX2 Tyrannosaurus 4x4 and CROSSRC EMO XXL2 Super Tyrannosaurus 6x6: 2.5mm steel stamped simulated chassis frame.

Transmission System：
*Large Gear:
    1. CROSSRC EMO XX2 Tyrannosaurus 4x4 (all versions): 63T nylon silent gear;
    2. CROSSRC EMO XXL2 Super Tyrannosaurus 6x6: Not applicable.
*Transmission Gears:
    1. CROSSRC EMO XX2 Tyrannosaurus 4x4 (all versions): Full steel cut gears;
    2. CROSSRC EMO XXL2 Super Tyrannosaurus 6x6: Not applicable.
*Bevel Gears (Large & Small):
    1. CROSSRC EMO XX2 Tyrannosaurus 4x4 (all versions): Full steel cut gears;
    2. CROSSRC EMO XXL2 Super Tyrannosaurus 6x6: Not applicable.
*Central Drive Shaft:
    1. CROSSRC EMO XX2 Tyrannosaurus 4x4 (all versions): Steel universal joint metal drive shaft;
    2. CROSSRC EMO XXL2 Super Tyrannosaurus 6x6: Not applicable.
*Axle Half-Shafts:
    1. CROSSRC EMO XX2 Tyrannosaurus 4x4 (all versions): Front axle steel CVD universal half-shafts + Rear steel straight half-shafts;
    2. CROSSRC EMO XXL2 Super Tyrannosaurus 6x6: Not applicable.
*Bearings:
    1. CROSSRC EMO XX2 Tyrannosaurus 4x4 (all versions): Full-car ABEC3 high-speed bearings;
    2. CROSSRC EMO XXL2 Super Tyrannosaurus 6x6: Not applicable.

Suspension System：
*Pull Rods:
    1. CROSSRC EMO XX2 Tyrannosaurus 4x4 (all versions): 10mm aluminum alloy chassis pull rods + Steel rear balance links;
    2. CROSSRC EMO XXL2 Super Tyrannosaurus 6x6: Not applicable.
*Shock Absorbers:
    1. CROSSRC EMO XX2 Tyrannosaurus 4x4 (all versions): 26mm large-diameter CNC hydraulic shock absorbers;
    2. CROSSRC EMO XXL2 Super Tyrannosaurus 6x6: Not applicable.
*Shock Springs:
    1. CROSSRC EMO XX2 Tyrannosaurus 4x4 (all versions): Standard climbing posture springs;
    2. EMO XXL2 Super Tyrannosaurus 6x6: Not applicable.
*Suspension Protection:
    1. CROSSRC EMO XX2 Tyrannosaurus 4x4 (all versions): CNC upper pull rod mounting point reinforcement + Steel lateral track bar upper mounting point reinforcement;
     2. CROSSRC EMO XXL2 Super Tyrannosaurus 6x6: Not applicable.
*Steering Protection:
    1. CROSSRC EMO XX2 Tyrannosaurus 4x4 (all versions): CNC steering buffer system;
    2. CROSSRC EMO XXL2 Super Tyrannosaurus 6x6: Not applicable.

Tires & Wheels：
*Tires:
    1. CROSSRC EMO XX2 Tyrannosaurus 4x4 (all versions): ROCK BREAKER "Rock Splitting Roar" MT tires (Rock Crawling Tires);
    2. CROSSRC EMO XXL2 Super Tyrannosaurus 6x6: Not applicable.
*Wheel Rims:
    1. CROSSRC EMO XX2 Tyrannosaurus 4x4 (all versions): Nylon tire-clamped rims;
    2. CROSSRC EMO XXL2 Super Tyrannosaurus 6x6: Not applicable.

Included Tools：
All versions include: 3 CROSSRC CNC model-specific hexagon socket screwdrivers (1.5mm, 2.0mm, 2.5mm), 1 M6 wheel rim disassembly socket, and 1 remote controller lanyard.
