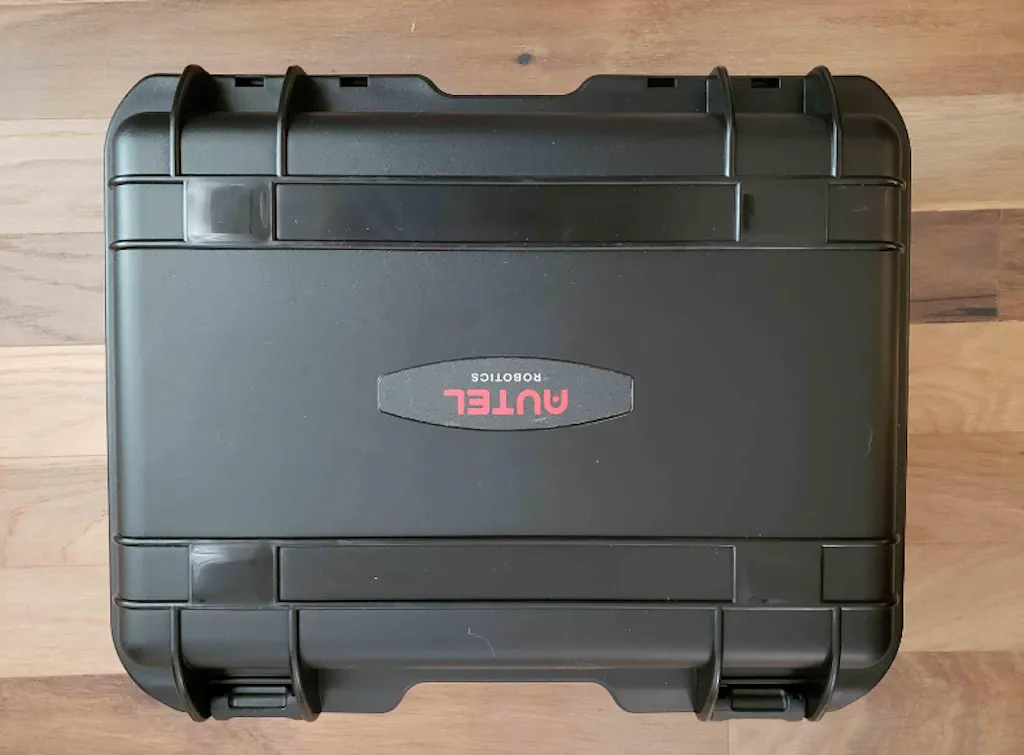

Autel Robotics EVO II Pro V3 6K Rugged Bundle 15km Video Transmission 40 Mins Flight Time

Note: *There is a branch in Chicago, USA, and the after-sales service of Autel series can be handled directly in the United States.
*Enterprise version adds 1 battery, megaphone, searchlight, and night navigation light.

AIRCRAFT：
Takeoff weight: 1191 g
Autel EVO II Pro V3 Max takeoff weight: 2000 g
Wheelbase: 397 mm
Autel EVO II Pro V3 Size(L*W*H): 230x130x108 mm (folded), 457x558x108 mm (unfolded)
Autel EVO II Pro V3 Maximum service ceiling altitude: 7000 m
Max ascent speed: 8 m/s (Ludicrous)
Max descent speed: 4 m/s (Ludicrous)
Max horizontal flight speed: 20m/s (Ludicrous)
Max flight distance (no wind): 25 km
Max tilt angle: 33° (Ludicrous)
Max angular velocity: 120°/s
Max flight time (no wind): 40 min
Max hovering time (no wind): 35 min
Operating temperature range: -10℃ ~ 40℃
Maximum resistance to wind: 12 m/s (Take-off and landing)
Operating frequency: 902-928MHz (FCC Only), 2.400-2.4835GHz, 5.725-5.850GHz (non-Japan), 5.650-5.755GHz (Japan Only)
Transmission power: 900M, FCC/ ISED：≤31dBm; 2.4G, FCC/ ISED：≤32dBm; SRRC/CE/MIC/RCM：≤20dBm; 5.8G (non-Japan) ; 5.7G (Japan); FCC/ISED/SRRC/MIC：≤33dBm; CE/ RCM：≤14dBm
Hovering accuracy: Vertical: ±0.1 m (when the visual positioning is working normally); ±0.5 m (when GPS works normally); Horizontal: ±0.3 m (when the visual positioning is working normally); ±1.5 m (when GPS works normally)
GNSS: GPS/Beidou/Glonass/Gallieo
Internal storage: 8GB
Autel EVO II Pro V3 SD storage: max. support 256GB (UHS-3 or Class 10)

GIMBAL:
Gimbal: 3-axis stabilization
Mechanical range: Tilt: -135° to +45°; Pan: -100° to +100°
Controllable rotation range: Tilt: -90° to +30°; Pan: -90° to +90°
Max control speed (Tilt): 300°/s
Angular Vibration Range: ±0.005°

REMOTE CONTROLLER AND IMAGE TRANSMISSION:
Operating frequency: 902-928MHz (FCC Only); 2.400-2.4835GHz; 5.725-5.850GHz (non-Japan); 5.650-5.755GHz (Japan Only)
Transmission power: FCC：≤33dBm; CE：≤20dBm@2.4G，≤14dBm@5.8G; SRRC：≤20dBm@2.4G，≤33dBm@5.8G/5.7G
Autel EVO II Pro V3 Max Transmission Distance (unobstructed, free of interference): FCC：15km; CE：8km
Display screen: 2340x1080 60fps
Battery: 1900mAh
Operating time: ~2 hours (Max. Brightness); ~3 hours (50% Brightness)
Charging time: 90 minutes
Autel EVO II Pro V3 Internal Storage: ROM 128GB + expandable storage via micro-SD card

SENSING SYSTEM:
Sensing system type: Omnidirectional sensing system
Forward: Accurate measurement range: 0.5-18 m; Effective sensing speed:<12m/s; Viewing angle: Horizontal: 60°, Vertical: 80°
Backward: Accurate measurement range: 0.5-16 m; Effective sensing speed:<12m/s; Viewing angle: Horizontal: 60°, Vertical: 80°
Upward: Accurate measurement range: 0.5-10 m; Effective sensing speed:<5m/s; Viewing angle: Horizontal: 65°, Vertical: 50°
Downward: Accurate measurement range: 0.5-10 m; Effective sensing speed:<5m/s; Viewing angle: horizontal: 100°, vertical: 80°
Left and right: Accurate measurement range: 0.5-10 m; Effective sensing speed:<5m/s; Viewing angle: horizontal: 65°, vertical: 50°
Operating Environment: Forward, Backward and Sides: Surface with clear pattern and adequate lighting (lux > 15); Upward: Detects diffuse reflective surfaces (>20%), (walls, trees, people, etc.); Downward:
Surface with clear pattern and adequate lighting (lux > 15), Detects diffuse reflective surfaces (>20%), (walls, trees, people, etc.)

CAMERA:
Sensor: 1 inch CMOS; 20M pixels
Lens: FOV: 82°; Equivalent focal length: 29 mm; Aperture: f/2.8 - f/11; Focus range: 0.5 m to infinity
ISO range: Video: 100-44000; Photo: 100-6400
Shutter speed: Photo mode: 1/8000 ~ 8s; Other: 1/8000 ~ 1/frame rates
Zoom: 1-16x (up to 3x lossless zoom)
Photo mode: Single shot/Burst shooting/AEB/Time Lapse/HDR
Maximum photo size: 5472*3648 (3:2); 5472*3076 (16:9); 3840*2160 (16:9)
Image Format: JPG (default) / DNG / JPG+DNG
Video mode: 5472x3076P30/P25/P24; 3840x2160P60/P50/P48/P30/P25/P24; 2720x1528P60/P50/P48/P30/P25/P24; 1920x1080P60/P50/P48/P30/P25/P24
Video format: MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265)
Max bitrate: 120Mbps
Supported file system: FAT32/exFAT

BATTERY:
Capacity: 7100 mAh
Voltage: 11.55 V
Battery type: LiPo 3S
Energy: 82 Wh
Weight: 365 g
Charging temperature range: 5℃ to 45℃
Storage temperature and humidity: -10~30℃，65±20%RH
Recommended storage temperature: 22-28℃
Max charging power: 93W
Charging time: 90 minutes

CHARGER:
Input: 100-240 V, 50/60 Hz, 1.5A
Output: 13.2 V ⎓ 5 A; 5V⎓3A 9V⎓2A 12V⎓1.5A
Voltage: 13.2±0.1V
Rated power: 66W

MULTI-CHARGER:
Voltage: 13.2 V
Charging temperature range: 5℃ to 45℃

ABOUT THIS ITEM：
【2023 NEWEST Autel EVO II Pro V3 - EXCEPTIONAL IMAGE QUALITY】With Son-y's new 1-inch CMOS image sensor, Autel EVO II Pro V3 supports up to 6K video with greater dynamic range, stronger noise suppression, and higher frame rates. The f/2.8-f/11 adjustable aperture, 3x optical 16x digital zoom capability and 44000 maximum ISO gives photographers enhanced creative control.
【MOONLIGHT ALGORITHM 2.0 & 12-BIT IMAGE】Autel EVO II Pro V3 Equipped with Autel NEWEST Moonlight Algorithm 2.0 system, the camera ISO can be up to 44000 for the night photography, also with 12-Bit DNG photos which is capable of recording up to 68.6 billion colors with 64 times the color rendering power of 10-bit(EVO 2 Pro V2), allowing greater flexibility in post-production.
【HYPER-LAPSE PHOTOGRAPHY IN 6K】You can enjoy your favorite moments at any time flying with Autel EVO II Pro V3, free from post-processing as 6K mobile time-lapse as video can be exported right after recording, and JPEG/RAW format are also supported.
【MAXIMUM PERFORMANCE OFFERS ENDLESS POSSIBILITIES】Autel EVO II Pro V3 with Omnidirectional obstacle avoidance with 12 visual sensors equipped with 19 groups of sensors offers 360° obstacle avoidance, pathing through complex terrain safely in real time. 40min long flight time & 27mph maximum wind resistance makes sure it can fly in virtually any wind condition with confidence, ensuring a successful mission.
【2023 AUTEL NEWEST SUSTEM - SKYLINK 2.0 VIDEO TRANSMISSION】 Autel EVO II Pro V3 is upgraded with Autel drone's all new SkyLink 2.0 video transmission technology, allows video transmission from up to 15 km away and Image Quality up to 2.7K, supports 2.4GHz / 5.8GHz / 900MHz tri-band communication and can automatically frequency hop for maximum anti-interference capability.
【COME WITH 2023 NEWEST AUTEL SMART CONTROLLER SE】Autel EVO II Pro V3 is packed with Autel 2023 Smart Controller SE which comes with a 6.4-inch OLED touch screen and latest gen 8-core processor for HD image transmission, which guarantees operations from up to 15km away and enhances anti-interference abilities with triple band frequency hopping. The customized Android system allows for additional flexibility with 3rd party Apps and an IP43 rating ensures all weather performance.

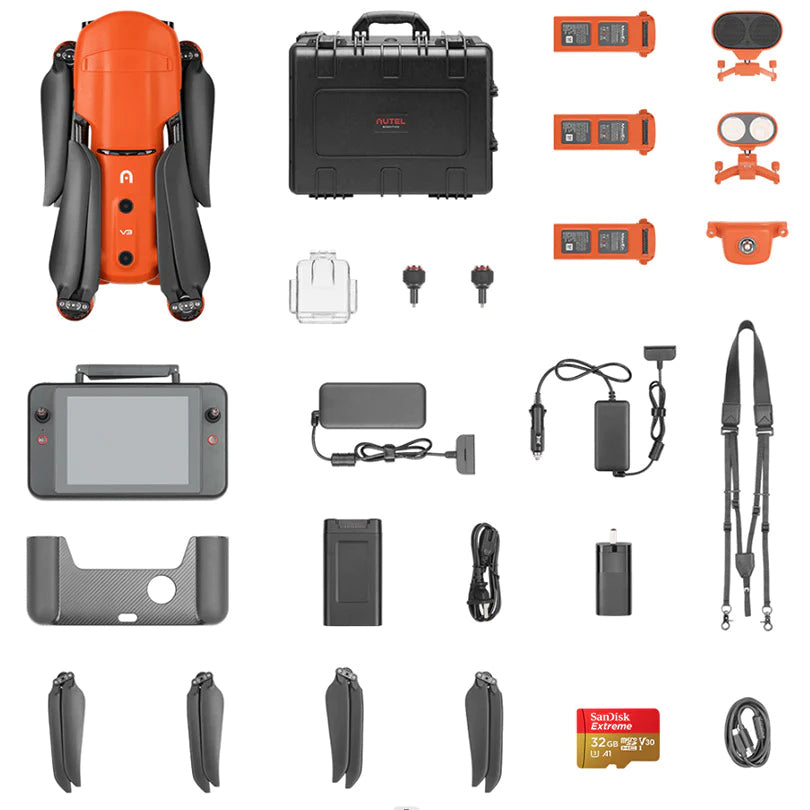

【WHAT YOU GET IN THIS V3 COMBO】Autel EVO II Pro V3 Aircraft*1 (Battery, Propeller, Gimbal Cover, 32G SD Card Included), Remote Controller*1, Spare Battery*1, Spare Propeller*3 (pair), Battery Charger&Power Cable*1, RC Charger*1, RC Charging Cable*1, RC Lanyard*1, Spare Control Stick*1 (pair), Landing Pad*1, Custom Lens Wipe*1, Protector Case*1.

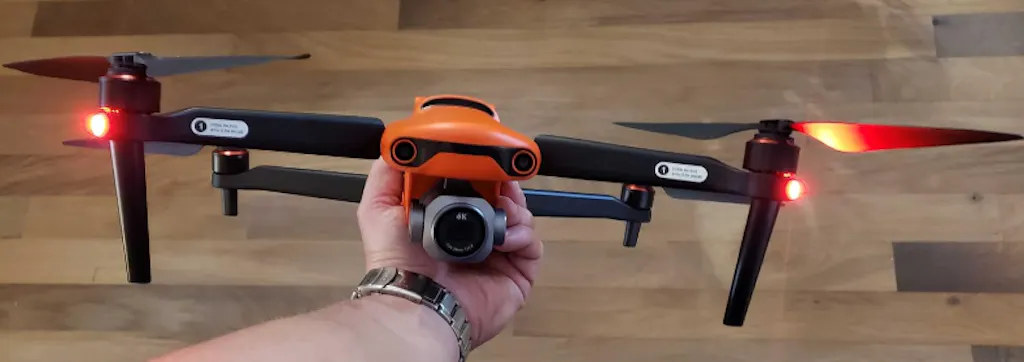

Autel Robotics EVO II Pro V3

Autel Latest Released V3 Autel EVO II Pro V3 Rugged Bundle,with Sony's new 20 megapixel 1 inch CMOS image sensor,supports up to 6K video resolution with greater dynamic range, stronger noise suppression, higher frame rates. Succeed in night photography with Autel EVO II Pro V3 6K 1" CMOS and Autel Robotics' Moonlight Algorithm 2.0.

Autel EVO II Pro V3 6K Camera

• 1″ CMOS Sensor & F/2.8-F/11 Adjustable Aperture

Autel Robotics EVO II Pro V3 6K drone camera with 1-inch sensor captures incredibly smooth 6K Ultra HD video and 20MP photos. And An adjustable aperture from f/2.8 to f/11 giving you wide-ranging adjustment over how much light gets into the camera.

As for resolution, the 6K camera can achieve up to 5472 x 3648 in still and 6K/ 30fps, 4K/ 60fps in video. Also with a bit rate of up to 120 Mbps.

• 6K Hyper-lapse photography and More Shooting Modes

The EVO II Pro V3 camera drone support a variety of shooting modes, including Single-shot; Burst shooting; Auto exposure bracketing (AEB); Time-lapse (JPEG/RAW format); High-dynamic-range (HDR) imaging; HyperLight; Long exposure

• Capture the night time world

The EVO II Pro V3 camera featured Hyper-light mode for shooting in low-light conditions with 2D and 3D noise reduction smoothing motion blur and reducing noise.

• 10-bit A-Log Color Recording

This mode allows for greater flexibility in post-production for the professional photographer 10-bit allows the EVO II Pro V3 to record up to 1 billion colors. The EVO II Pro V3 retains rich detail in shadows and highlights, allowing greater flexibility in post-production.

• Connect Autel Live Deck to display live video from EVO II on any device

The live video from EVO 2 V3 drone can be displayed on your remote controller or connect with Autel Live Deck to display on any device including computer, TV, Ipad via USB, HDMI, Ethernet, to meet the requirements of projection monitoring and live streaming.

• Adjust field-of-view to any angle from 0° to 90° while flying

EVO II Pro V3 Drone contains a high-precision 3-axis gimbal that keeps the camera steady while the aircraft is flying, ensuring image stability and clarity. Also, You can use the remote control's gimbal pitch dial to adjust the pitch axis to any angle from 0° to 90° at any time.

• Cameras interchangeable

Autel EVO II V3 Series Dones is one aircraft with three camera options. All cameras for Evo II can be purchased separately and are interchangeable!

Moonlight Algorithm 2.0

EVO II Pro V3 Version Succeed in night photography with EVO II Pro V3's 6K 1" CMOS and Autel Robotics' Moonlight Algorithm 2.0.

Excel in Low Light

EVO II Pro V3 brings you Autel's Moonlight Algorithmn 2.0 with additional noise reduction processing. Paired with EVO II Pro V3's upgraded CMOS, succeed in operations with minimal lighting or in harsh lighting situations at night.

4K HDR Video

the EVO II Pro V3 pairs the brilliance of 4K clarity with the brightness, color and detail of HDR. Previously hidden areas of dark shadow and sunlight are now full of clarity and details.

Post-Production Flexibility with 12-bit DNG

The EVO II Pro V3 can take 12-bit DNG photos and is capable of recording up to 68.6 billion colors with 64 times the color rendering power of 10-bit, allowing greater flexibility in post-production.

Skylink 2.0 Video Transmission

The EVO II PRO V3 is upgraded with Autel's all new skylink 2.0 Video Transmission technology.

15KM	QHD	2.4G/5.8G
HD video Transmission up to 15km	Critical details with QHD video within 1km	Less signal breakups and enhanced anti-inter-ference capabilities.

EVO II - AI Enhanced Dynamic Track

EVO II Pro V3 can model location and speed of targets simultaneously, predict their trajectory accurately, avoiding obstacles during flight, and track them continuously while identifying up to 64 objects at the same time. The function can track the subject in three modes: behind, side-by-side, or fixed position.

360° Obstacle Avoidance

EVO 2 Pro V3 Drone’s front, rear, left, right, top, and bottom binocular vision sensing systems use image data to calculate the distance between the aircraft and potential obstacles. Begin detecting potential hazards at up to 30m away and let EVO II accurately control the speed of the drone to avoid a collision.



Maximum Performance Endless Possibilities

40 Min Maximum Flight Time 20m/s Maximum Flight Speed

17m/s Maximum Wind Resistance 920g Maximum Lift Capability

Practical and Convenience Features

Deploy Rapidly : The EVO II Pro V3 takes 45 seconds from launch to takeoff without fuss.

No Forced Updates : EVO II Pro V3 does not need to be on the latest hardware or app version in order to take off unlike others.

No Fly Zones: EVO II Pro V3 does not have any no fly zones and will not prevent the pilot from taking off.(Please fly safely and consult your local laws and regulations.)



Autel Smart Controller SE

6.4-inch OLED touch screen and latest gen 8-core processor for HD image transmission.The customized Android system allows for additional flexibility with 3rd party apps and an IP43 rating ensures all weather performance.

Broadcast with Live Deck 2

EVO II Pro V3 supports multi-port HDMI real-time output to meet the requirements of projection monitoring and live streaming with Live Deck 2.

Multiple Intelligent Flight Modes

Autel EVO II Pro V3 Drone supports multiple smart Flight Modes includes Dynamic Track, Parallel Track, Tripod Track, Viewpoint, Orbit, Gesture control, VR Flight, Waypoint and more.

Failsafe & Automatically Return Home

EVO 2 Pro V3 will return home automatically when Low Aircraft Battery Level and Communication Lost. Additionally, EVO 2’s bottom binocular vision camera to create a density depth map. Then, it calculates the depth map's flatness and angles to ensure an accurate and safe landing.

40 Minutes & 5.5 Miles HD Transmission

Autel EVO 2 Pro V3 comes standard with a 7100mAh rechargeable battery. Providing up to 40min of flight time in forward motion to up to 9km (5.5miles) away and 35min at a hover. And top speed up to 45MPH, additionally There is no geofencing or cellular service restrictions on any of EVO II.
