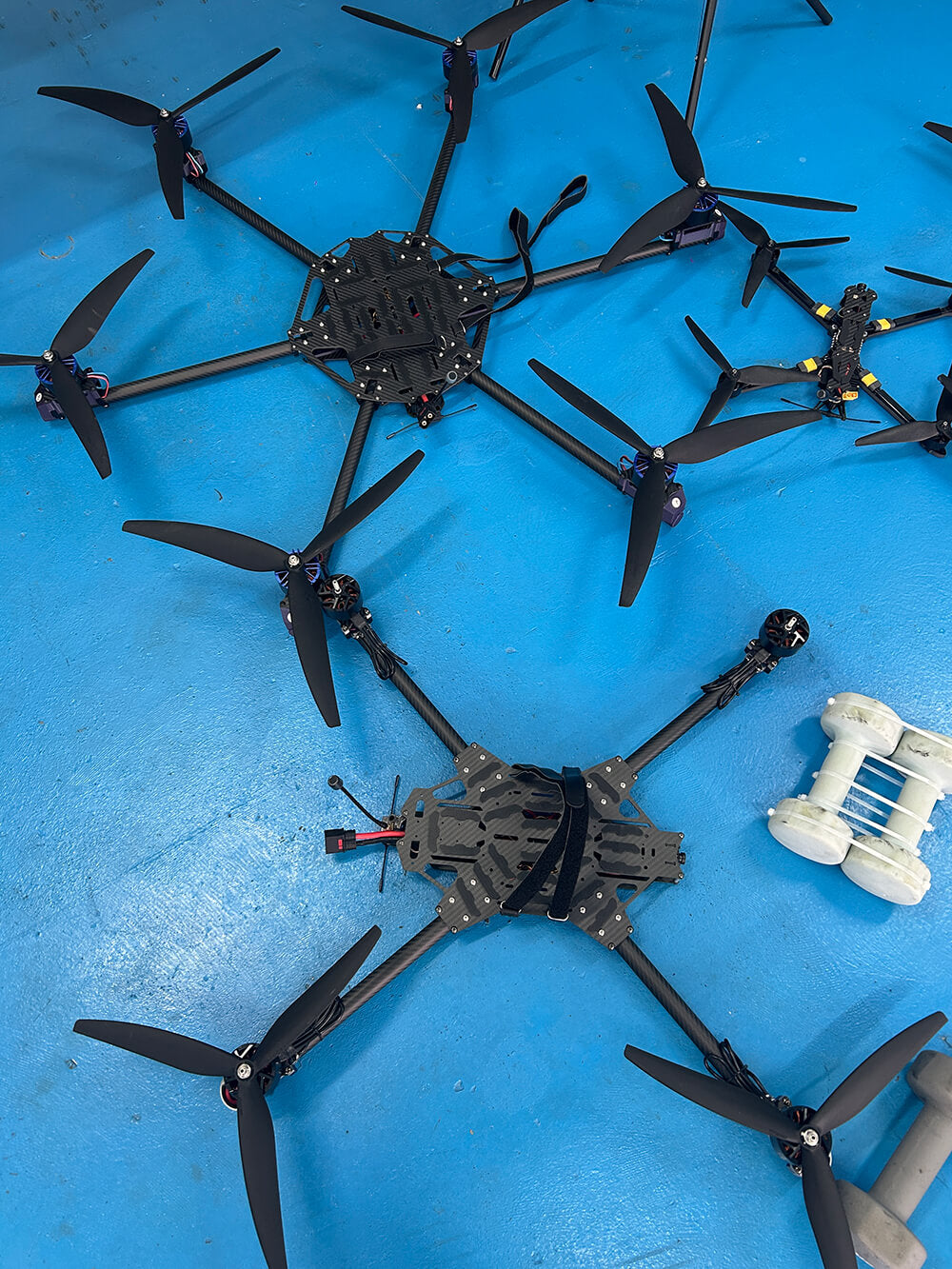

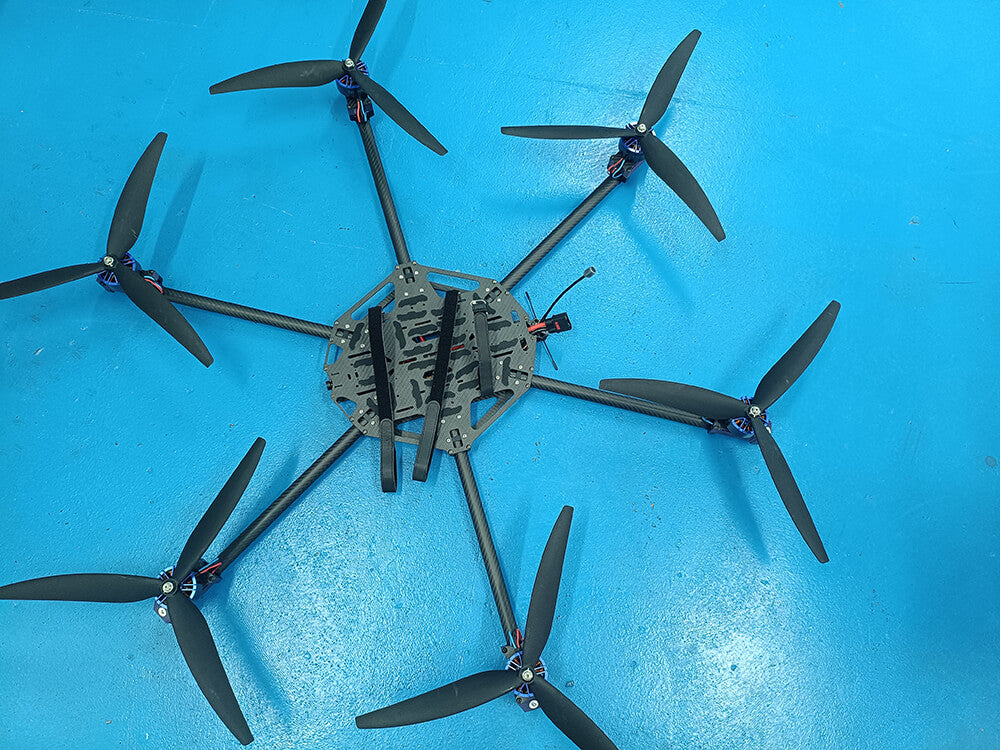

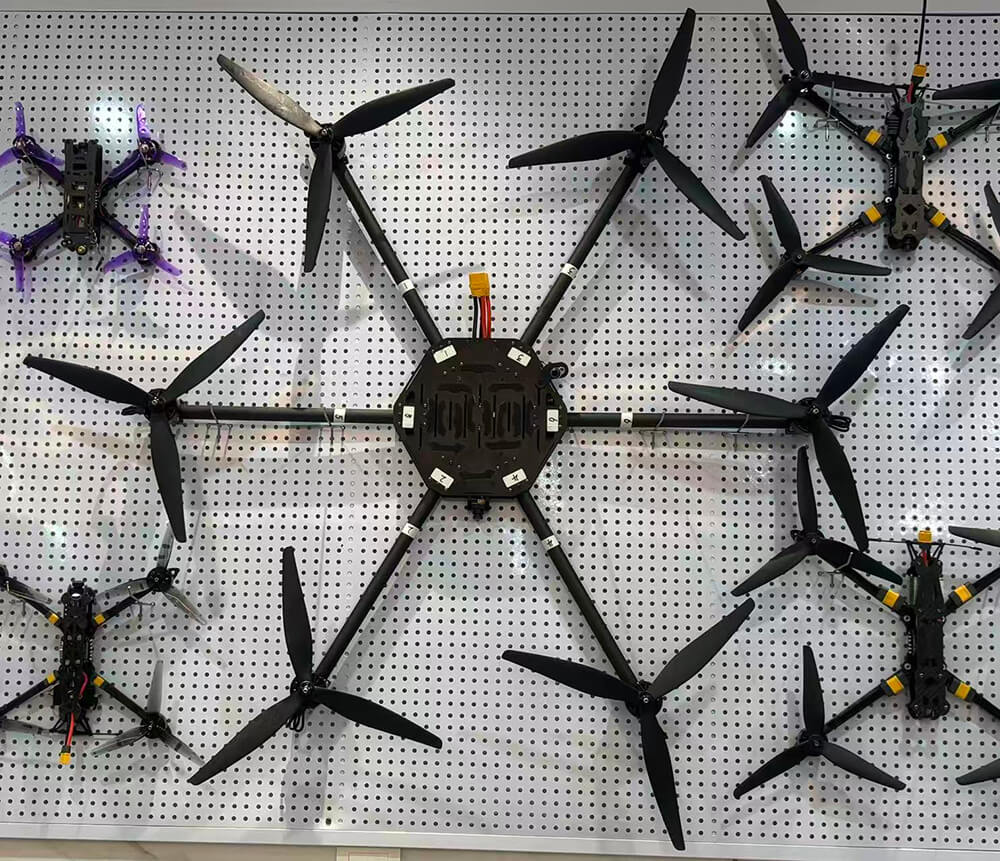

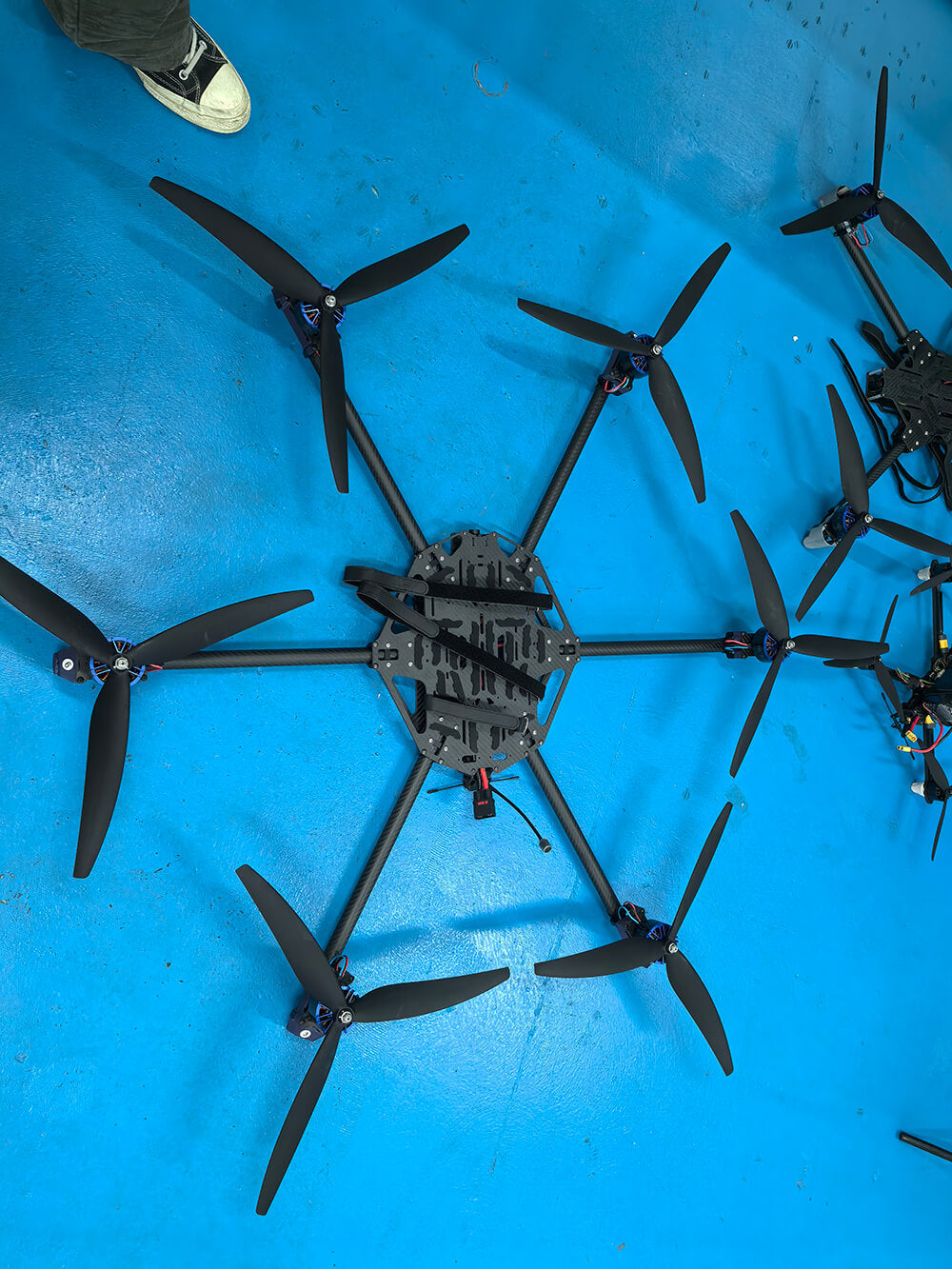

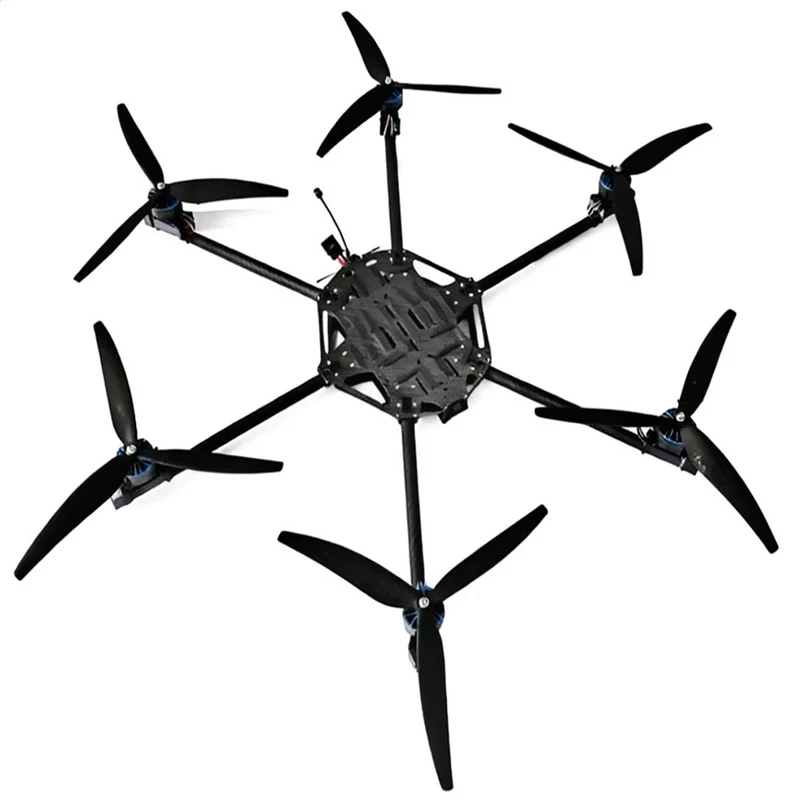

18 inch 6-Axis FPV Drone 15-20kg Payload with 5.8G 3W VTX F722 Flight Controller 10-20KM Long Range Drone Kit

Regular price
$2,099.98
Regular price
Sale price
$2,099.98
Shipping calculated at checkout.

All U.S. Orders Tax-Free! | Secure Payment | Free Shipping

Color: 18 inch 6-Axis
Battery/Charger: Not included
100 in stock

Why Buy From us

Caret Down

A FEW REASONS WHY BUY FROM US:

SAFE SHOPPING
We try our best to make your shopping experience not only pleasant, seamless and hassle-free, but also secure.

SAFE SHIPPING
Choose high-quality and flexible international shipping companies for cooperation, as well as free shipping and fast shipping options to ensure our quality service and experience.

RETURN PLAN
It's okay to change your mind! You can return your order for a full refund, and we offer you full 30-day buyer protection.

NEW ARRIVALS
Brand new products are available on a regular basis.

EXCELLENT CUSTOMER SERVICE
Knowledgeable and professional support team is always happy to help you.

ACCESSORY SUPPORT
Perfect product accessories service, if the product you purchased is damaged during use, please don't worry, you can contact us directly at service@funyat.com, or communicate with us in live chat, live chat time: Monday-Friday (9:00AM - 8:00PM EST), tell us the product model or your order number and the accessories you need.

EASY TRACKING

You will receive a notification email in your email once the package has been shipped. The tracking number and link inside are for tracking the timely status of the package.You can also track at Our order tracking page . Or if you need a team members help to check up, please contact with our service team service@funyat.com and we will be in touch with a status update.

Order Protection

Caret Down

Shopping cart can choose the package delay, loss, damage claim service!

Note: Opening the insurance service is only to respond to the accidental accident of the order, under normal circumstances, do not open the insurance service order will not be damaged and lost! Customers can choose according to their own needs.

What does Buyer Protection cover?
Buyer Protection is a service provided by Seel (a 17TRACK partner). It covers delayed, damaged, and lost items that meet the following criteria.

*Delay: Domestic packages not delivered before the 10th day following order fulfillment (i.e., the date when the order is shipped by the merchant) or international packages not delivered before the 30th day following order fulfillment are considered delayed. The compensation for delayed packages is $5 USD. (If the order is not transacted in USD, compensation will be made in the currency of the transaction. For example, if an order in euros is delayed, the compensation is €5.)

*Loss: Domestic packages not delivered 30 days after order fulfillment (i.e., the date when the order is shipped by the merchant) are considered lost. (60 days for international packages.) Lost packages will be compensated for the actual item(s) value paid.

*Damage: Buyer Protection covers item damages to the point that the item(s) are unusable, clearly fractured, shattered, bent (if not bendable), crushed, etc., but does not cover cosmetic damage (scratches, dents, etc.), manufacturing damages, packaging errors, or unsealed items. The compensation for damaged items will be up to the value paid for the purchased item(s).

*Buyer Protection also includes carbon-neutral shipment within the recipient’s country.

*Note: Total compensation for one cover is up to the value actually paid for the item(s).

Description

Caret Down

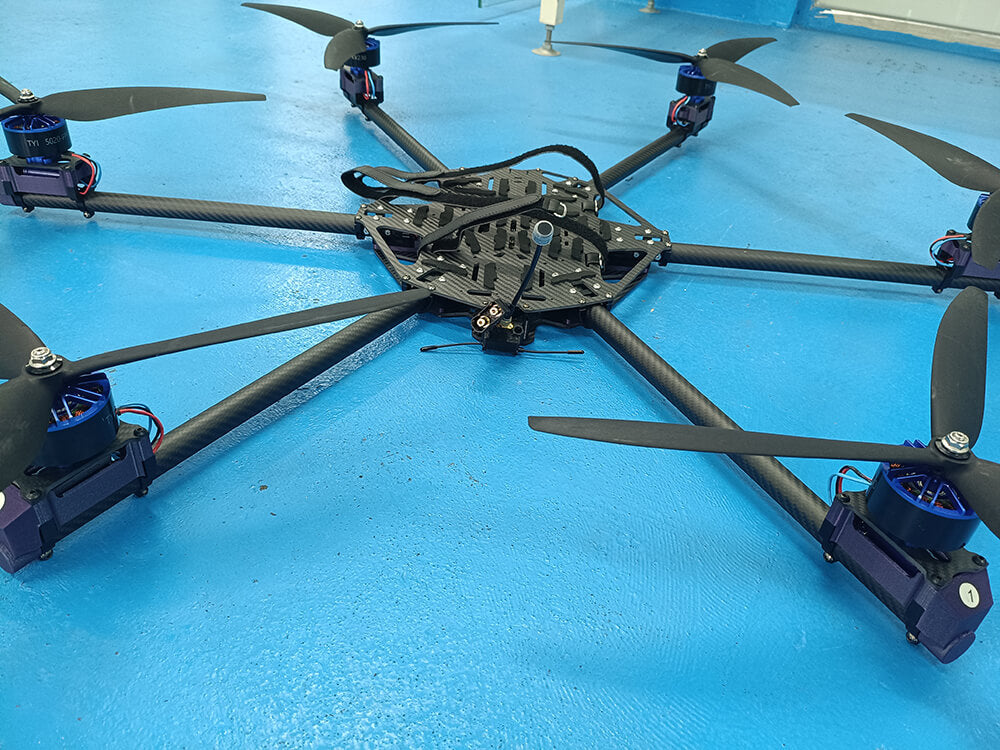

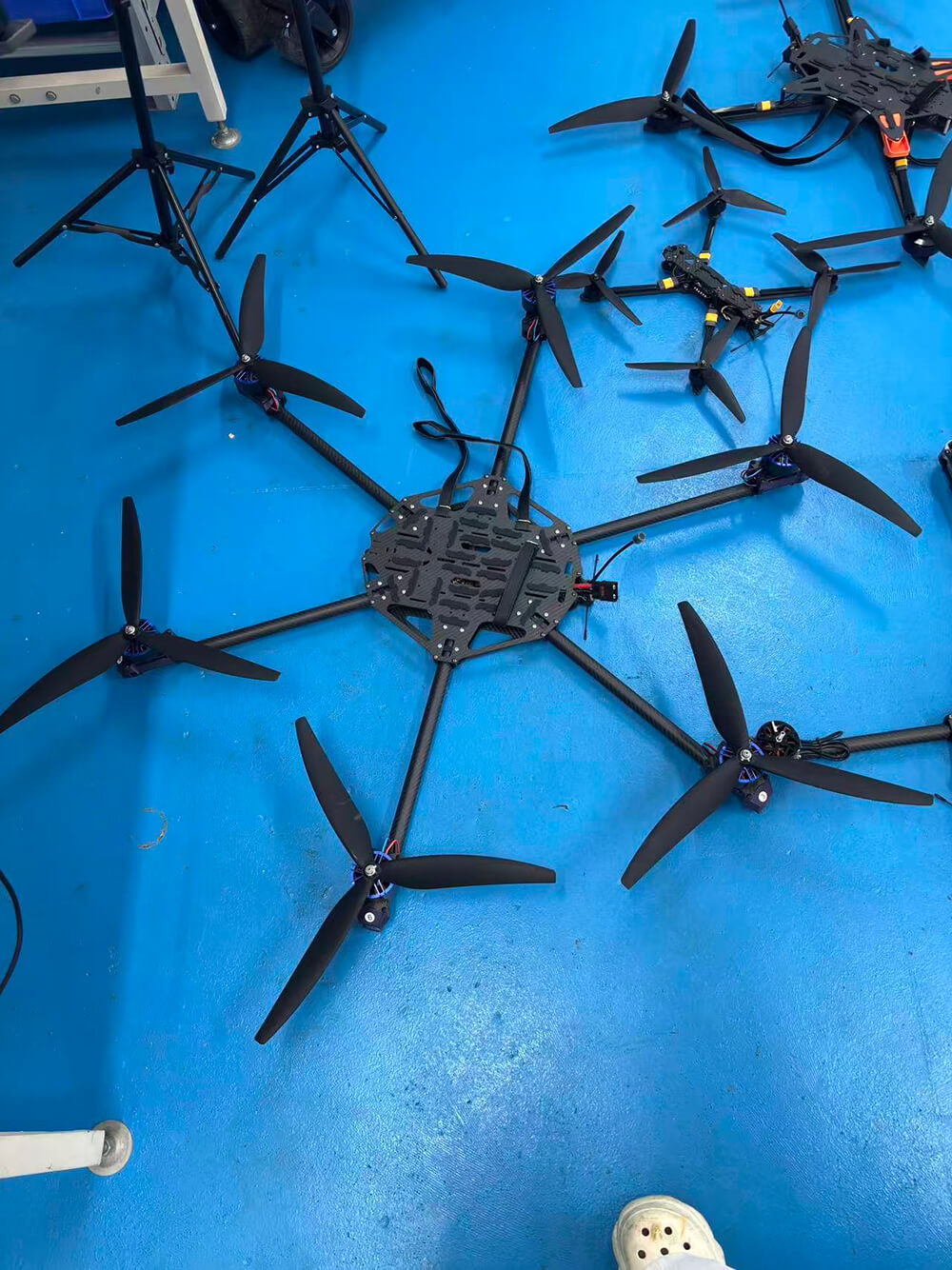

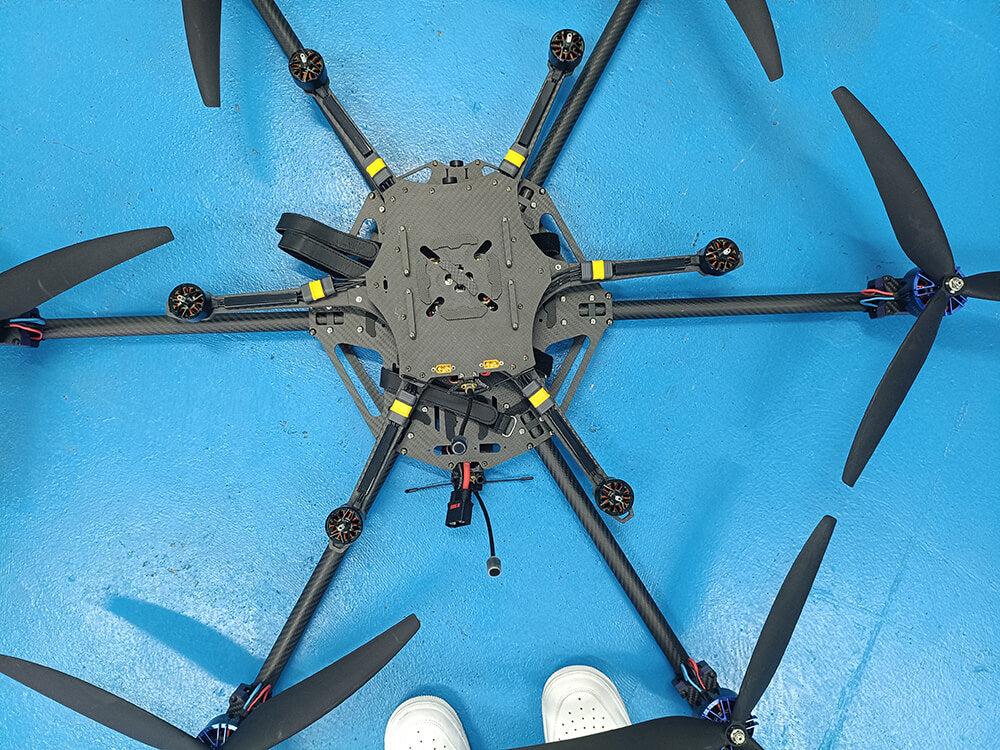

A professional-grade 18-inch hexacopter FPV drone kit built for heavy-lift operations, long-range missions and deep customization. With a 15-20kg payload capacity, 10-20KM control range and a complete electronics stack including F722 flight controller, 120A ESC, 5020 brushless motors and 5.8G 3W VTX, this is a serious platform for operators who need performance and flexibility. Source manufacturer pricing — bulk orders and custom configurations welcome.

Quick Verdict

If you need a heavy-lift FPV hexacopter with long-range capability, a proven electronics stack and the option to customize every component, this 18-inch 6-axis kit is the platform to build on. 20-minute flight time under 18kg load, 40 minutes unloaded, 130km/h top speed and 5000m max altitude.

Key Specifications

Spec Detail
Payload 8-20kg
Flight Time (18kg load) 20 minutes
Flight Time (no load) 40 minutes
Control Range 10-20km
Max Speed 130km/h (no load) / 100km/h (load)
Max Altitude 5000m
Configuration 6-Axis Hexacopter
Propeller Size 18 inch
Wheelbase 980mm
Package Weight 6kg
Package Size 40×40×18cm

Frame

Spec Detail
Structure Hexacopter (6-Axis)
Wheelbase 980mm
Bottom Plate Thickness 4mm
Top Plate Thickness 3mm
Carbon Plate Material T300/T700
Carbon Tube 22mm
Top Plate Size 35×33cm
Bottom Plate Size 32×30cm
Electronic Device Layer Height 30mm
Camera Spacing 20mm
Stack Mounting Hole M3×30mm
VTX Mounting Hole M2×19/19 | M3×30×30mm | M2×22×22mm
Motor Mounting Hole 21×21mm / 34×34mm
Max Propeller 18 inch

Motor — 5020 230KV Brushless

Spec Detail
KV Rating 230KV
Operating Rated Voltage 8-12S
No-load Current 1.6A
Maximum Current 77A
Maximum Power 3579W
Motor Size Φ62×58mm
Weight 320g

Flight Controller — F722

Interface Detail
Size 36×36mm
Mounting Holes 30.5×30.5mm
9V 9V regulated power output, max current 2A
5V 5V regulated power output, max current 3A
4.5V Receiver power connector (USB power supply only)
CR Current monitoring port
M1 Camera reference pin (firmware version dependent)
VI Camera input port
VO Graphic output interface
LED RGB light strip interface
B- Buzzer negative terminal (positive connects to B+)
RC Receiver SmartPort interface
Rssi RSSI signal input port

ESC — 120A 12S

Spec Detail
Continuous Current 120A
BEC No
Current Sensor Yes
Battery Cells 4-12S
Size 46×30mm
Mounting Hole Spacing 30.5×30.5mm

Camera — Manual Cam 1500TVL

Spec Detail
Model HD 1500TVL (upgraded version with OSD tuning board)
Image Sensor 1/3’ CMOS
Pixels 1500TVL
Lens 2.1mm
Signal System PAL / NTSC (adjustable via OSD)
Signal-to-Noise Ratio >60dB (AGC OFF)
Electronic Shutter (PAL) 1/50 – 100,000
Electronic Shutter (NTSC) 1/60 – 100,000
Automatic Gain Control (AGC) Low / Medium / High
Backlight Compensation (BLC) Yes
Minimum Illumination 0.001Lux / 1.2F
WDR D-WDR
DNR 3DNR
Day/Night Auto / Color / B&W
Power Supply DC 5V-30V

VTX — 4.9/5.8G 3W

Spec Detail
Supported Voltage 20-30V
BEC 5V
Transmission Power 25mW / 1000mW / 2000mW / Max
Output Power 3W
Antenna Interface MMCX
Standard Channels 9CH: A / B / E / F / R / L / O / U / H
Video Transmission Protocol IRC
Mounting Holes 20×20mm / M2
Size 54×28×13mm
Weight 32.5g

Antenna — 5.8G RHCP 150mm

Spec Detail
Frequency 5.8G
Polarization RHCP (Right-Hand Circular Polarized)
Length 150mm
Material Imported PC+ABS — high-strength impact resistant
Cable Impact-resistant double-sheathed semi-rigid cable
Root Design Root reinforcement, 360° protection

Receiver — ELRS 915MHz

Spec Detail
Processing Chip ESP8285
RF Chip SX1276IMLTRT
Power Input 5V
Operating Current 100mA
Operating Protocol CSRF (ExpressLRS)
Receiving Frequency 915MHz or 868MHz
Telemetry Output Power <17dBm
Antenna Connector IPEX1
Firmware Update WiFi OTA
Size 12×12×3mm
Weight 0.6g (antenna not included)

Propellers — 1810 Tri-Blade

Spec Detail
Type 1810
Blades 3
Material Fiberglass Nylon
Pitch 10 inch
Center Hole Inner Diameter 5mm
Weight 17g each

Optional Battery

22000mAh 12S ×2 (two batteries connected in parallel). Battery and charger are optional — not included in standard package.

What’s in the Box

  • 18-inch 6-axis carbon fiber hexacopter frame
  • 6× 5020 230KV brushless motors
  • F722 flight controller
  • 120A 12S ESC
  • 1500TVL FPV camera with OSD tuning board
  • 5.8G 3W VTX
  • 5.8G RHCP 150mm antenna
  • ELRS 915MHz receiver
  • 1810 tri-blade propellers

Note: Remote control, batteries and charger are NOT included.

Customization & Bulk Orders

We are a source manufacturer. Deep customization accepted for single units or bulk orders — motor KV, ESC rating, FC, VTX power, payload configuration and more. Contact us with your requirements before ordering.

Who Is This For?

  • Commercial operators needing a heavy-lift hexacopter with 15-20kg payload for delivery, inspection or agriculture
  • Long-range FPV pilots who need 10-20KM range with ELRS + 5.8G 3W VTX
  • System integrators who want a customizable 980mm hexacopter with standard mounting patterns
  • Bulk buyers looking for source manufacturer pricing on professional drone kits
