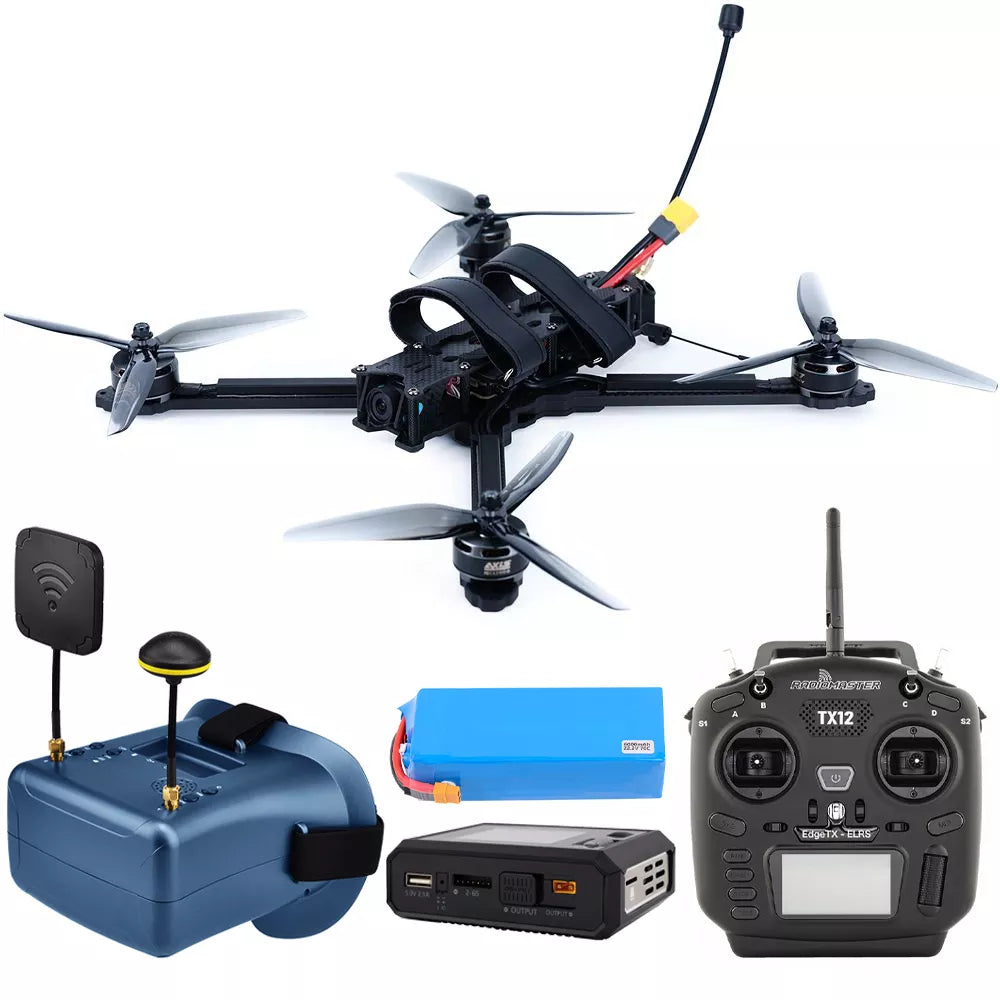

7inch FPV Drone Manta 7 X Lite Long Range Cinematic FPV Drone RTF Flying kit with Transmitter and Flight Goggles

Sale price$688.98 Regular price$889.98
Save 23%
Don't Wait for Black Friday: Shop Now and Save Big!

$99+ and get $8 off ——Use code "FY8OFF" at checkout.
$199+ and get $16 off——Use code "FY16OFF" at checkout.
$499+ and get $36 off——Use code "FY36OFF" at checkout.
$599+ and get $56 off——Use code "FY56OFF" at checkout.
$799+ and get $69 off——Use code "FY69OFF" at checkout.


Color: 7inch RTF Flying kit
Battery: 1 Battery

7inch FPV Drone Manta 7 X Lite Long Range Cinematic FPV Drone RTF Flying kit with Transmitter and Flight Goggles 6000mAh Battery/Charger

Note: The package includes batteries, chargers, transmitters, and flight goggles, so you can fly directly after receiving the goods!

Product parameters:
Product name: Manta 7"X Lite
Structure: True X
Motor: AX2807 1350kv
Stack: Argus ECO 60A+F405; Argus 55A+F722
Props: 7inch
Wheelbase: 340mm
Bottom plate thick: 3mm
Top plate thick: 2mm
Carbon material: T700
Bottom-to-top distance: 25mm
Arm thickness: 6mm
Lens space: 14-20mm
Stack mounting: M3*30.5mm
VTX mounting: M2*20/25.5mm; M3*30.5mm
Prop size: Max 7 inch
Motor install hole: M3*16/19mm
Weight(include propellers):650g
Payload: 2.5kg
Flying Time: With Load Flying Time: 10-15min; No Load: 25min
Battery: 6000mAh 6S
Charger: ToolkitRC M7AC 2-6S multi-function balance charger for aircraft model lithium batteries supports DC and AC
Flying Distance: About 10km
Max Speed: 140km/h
Max Altitude: 6000m
Packaging: 2.5kg / 450*450*150mm

Transmitter:
Item: Radiomaster TX12 MK II
Frequency: 2.400GHZ-2.480GHZ
RF Chip: ExpressLRS (ELRS)
Working Current: 320mA@8.4V
Voltage Range: 6.6-8.4v DC
Range: > 2km (depending on receiver)
Radio Firmware: ELRS Version: EdgeTX (Transmitter) / ExpressLRS (RF module), CC2500 Verison: EdgeTX (Transmitter) / MPM (RF module)
Channels: Up to 16 (depending on the receiver)
Display: 128*64 Monochrome LCD display
Gimbal: High precision hall gimbals
External module: JR/FrSKY/Crossfire compatible
Upgrade Method: USB/SD card & EdgeTX Buddy online or EdgeTX Companion PC software
USB Charging: QC3 USB-C
Weight: 363g
Size: 170*159*108mm

Flight Goggles:
Model: LS-800D
Video input: NTSC
Media format: jpg, png, JPEG, AVI, MOV, other
Resolution: 854X480
Screen size: 5.0 inches
Material: plastic
Additional functions: USB charging
Product weight: 690 grams (including packaging)
Wearing method: head-mounted
Memory: supports 128G expansion
Battery: 3.7V 2000mah (built-in)
Operating system: other
Appearance size: 180*145*82mm
Packing list: charger, two antennas, whole machine, data cable

Frame: 7-inch Carbon
Structure: True X
Wheelbase: 340mm
Bottom Plate Thickness: 3mm
Top Plate Thickness: 2mm
Carbon Plate Material: T300/T700
Height of Electronic Device Layer: 25mm
Arm Thickness: 6mm
Camera Spacing: 14 to 20mm
Stack Mounting Hole: M3*30.5mm
VTX Mounting Hole: M220/25.5mm; M330.5mm
Propeller Installation Size: Max 7 inches
Motor Mounting Hole: 16mm16mm/19mm19mm
Top Plate Size: 15.8*3.5cm
Bottom Plate Size: 15.8*7.9cm

Motor: 2807 1300KV
KV Value: 1300KV
Operating Rated Voltage: 6S
No-load Current: 1.06A/10V
Phase Resistance: 77mΩ
Motor Weight: 47g
Maximum Current: 45.4A
Maximum Power: 1059W
Maximum Thrust: 2.4kg
Recommended Propellers: 7040, 7042

Flight Control: F405
Size: 37×37mm
Mounting Holes: 30.5×30.5mm
9V: 9V regulated power supply output interface, max current 2A
5V:5V regulated power supply output interface, maximum current 3A
4.5V:Receiver power connector (USB power supply only)
CR: Current monitoring port
M1: camera reference pin (according to the flight control firmware version)
VI: Camera input port
VO: Graphic output interface
LED: RGB light strip interface
B-:Connect to the negative terminal of the buzzer, positive terminal connects to B+
RC: Receiver SmartPort interface
Rssi: Rssi signal input port

ESC: 60A-6S
Model: BLHeli_S 4IN160V1
Continuous Current: 60A
Burst Current: 70A (10s)
BEC: No
Current Sensor: Yes
Battery Cells: 2-6S
Weight: 21.5g
Size: 37*42.7mm
Mounting Hole Spacing: 30.5*30.5mm

Camera: B19 Product Manual Cam 1500TVL
Model: HD 1500TVL (upgraded version, with OSD tuning board)
Image Sensor: 1 / 3′CMOS
Pixels: 1500TVL
Lens: 2.1mm
Signal System: PAL / NTSC (adjustable via OSD)
Signal-to-Noise Ratio: >60Db(AGC OFF)
Electronic Shutter Speed: PAL: 1 / 50-100.000; NTSC: 1 / 60-100,000
Electronic Shutter: PAL: 1/50 - 100,000; NTSC: 1/60 - 100,000"
Automatic Gain Control (AGC: Low/Medium/High
Backlight Compensation (BLC): Yes
Minimum Illumination: 0.001Lux / 1.2F
WDR: D-WDR
DNR: 3DNR
Day/Night: Auto/Color/B&W
Power Supply: DC 5V-30V

Image transmission VTX: 5.8G 40CH 2.5W
Supported Voltage: 7-28V
BEC: 5V / 500mA
Transmission Power: 25mW / 13.95dBm; 2500mW / 34.04dBm
Antenna Interface: MMCX
Output Power: PIT / 25 / 2500mW
Standard 40 Channels: A / B / E / F / R
Video Transmission Protocol: SmartAudio
Mounting Holes: 20X20.M2
Size: 25mmX37mmx6.5mm
Weight: 19g

Antenna: 5.8G RHCP 150MM
*The whole is made of imported PC+ABS material which can withstand high strength impact.
*Impact resistant double-sheathed semi-rigid cable.
*Root reinforcement design, 360 ° protection.

RX: ELRS 915MHz
Processing Chip: ESP8285
RF Chip: SX1276IMLTRT
Power Input: 5V
Operating Current: 100mA
Operating Protocol: CSRF
Receiving Frequency Range: 915MHz or 868MHz
Size: 12mm12mm3mm
Weight: 0.6g (without antenna)
Antenna Connector: IPEX1
Telemetry Output Power: <17dBm
Firmware Update Method: WIFI

Propellers: HQ7*3.5*3
Type: 7040
Blades: 3
Material: Fiberglass Nylon
Pitch: 5in
Center Hole lnner diameter: 5mm
Weight/g: 16.8g

Forword:
*We focuses on user experience and carefully studies user sore points. In the field of freestyle, we continuously absorb user feedback and summarise product design experience. Combines CNC aluminum parts with high quality carbon plates to bring the freestyle frame with a unique and innovative design in the industry.

Feature:
1. The frame adopts an innovative CNC split aluminum structure design, with 6MM thickness quick-release design, which is not only convenient but also ensures the strength, stability and high security of the frame.
2. Double strap ties for secure battery installation.

Recommended Configuration:
MOTORS:  Axisflying 2807 1350KV
ESC: 60A -6S
FC: Axisflying F405
Propellers:  HQ7*4*3 or HQ7*3.5*3 (2 sets)
Camera: Caddx H1
Antenna: 1.2G
VTX: 1600mW 5.8G / 800-1000mW 1.2G-1.3G

Performance:
Payload:2.5 kg
Flying time:About 10 minutes (based on the test results of a 1.6kg load and a 6S 6000mAh battery, you can upgrade to a larger capacity battery)

**We are the source manufacturer, welcome to purchase in bulk!
